WEIPU WS16 Aviation Connector, 2 3 4 5 7 9 10pin Industrial Electrical Power Cable Plug Socket

WEIPU WS16 Aviation Connector, 2 3 4 5 7 9 10pin Industrial Electrical Power Cable Plug Socket

$5.80 USD
$0.00 USD $5.80 USD
Sale Sold out
Shipping calculated at checkout.
Install type
Gender option
Pin option

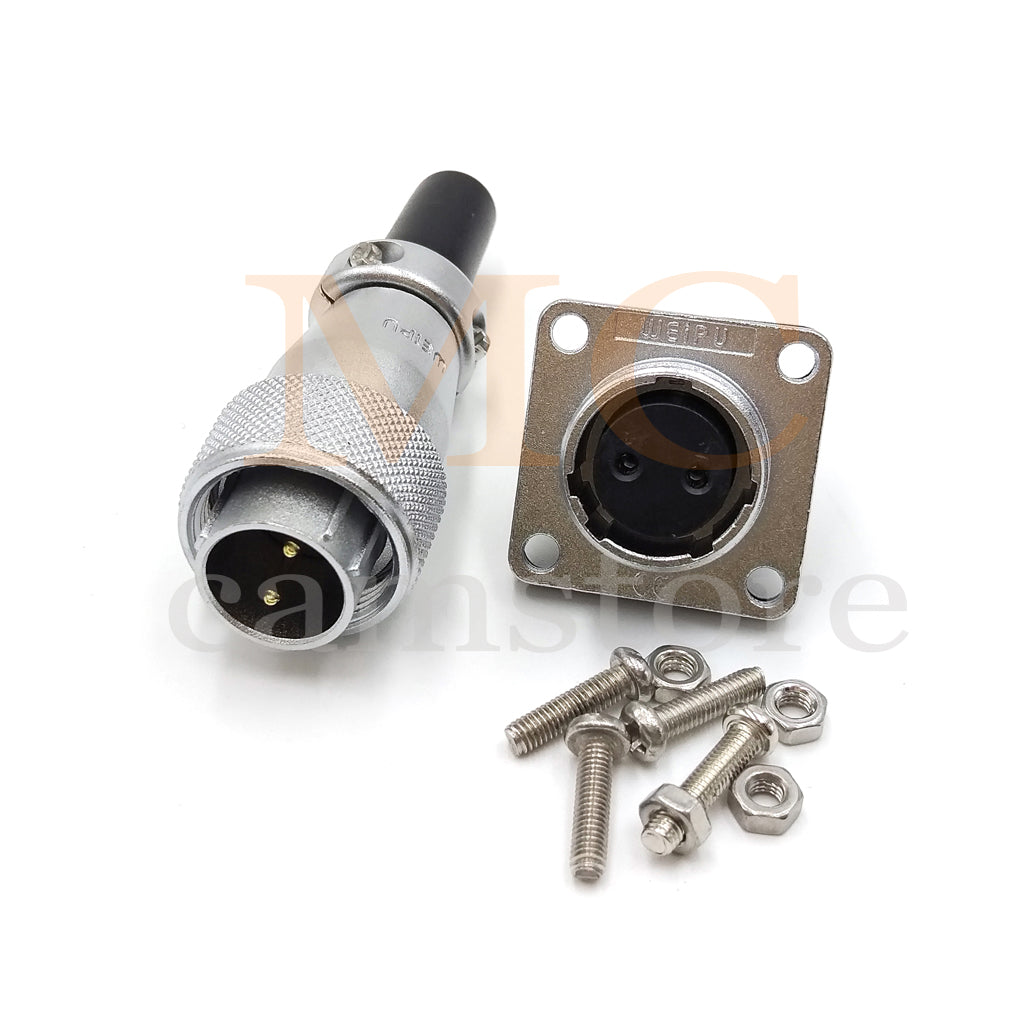

WEIPU WS16 2 3 4 5 7 9 10 pin aviation connector, panel mount / inline docking connector

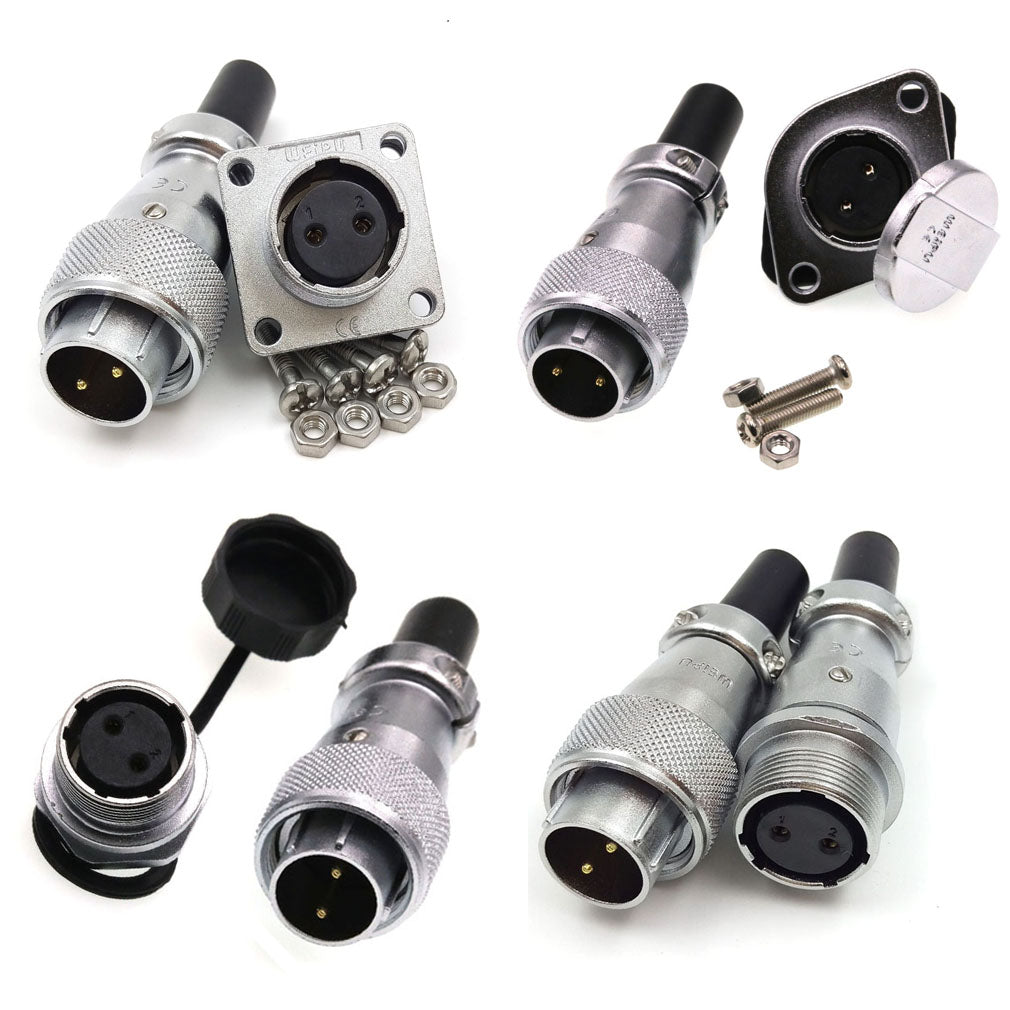

Install type:

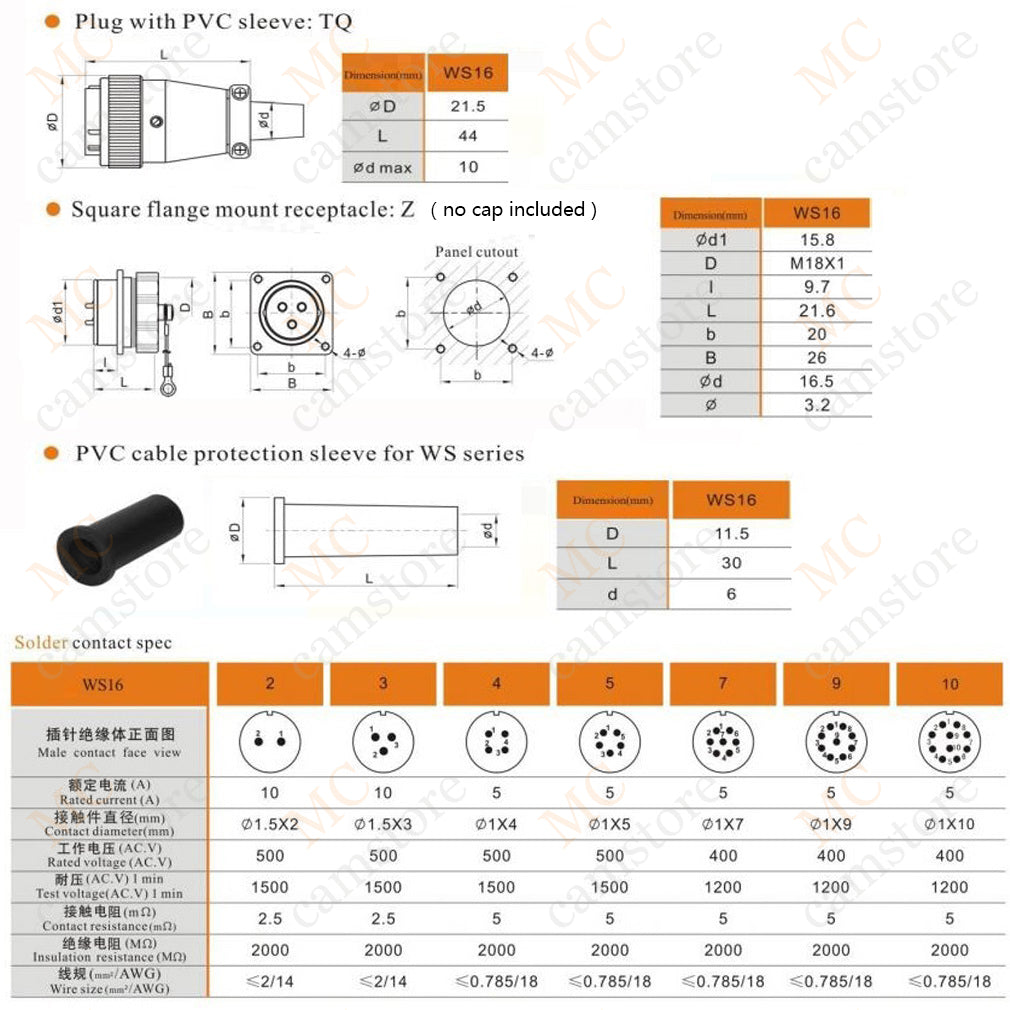

Square panel mount

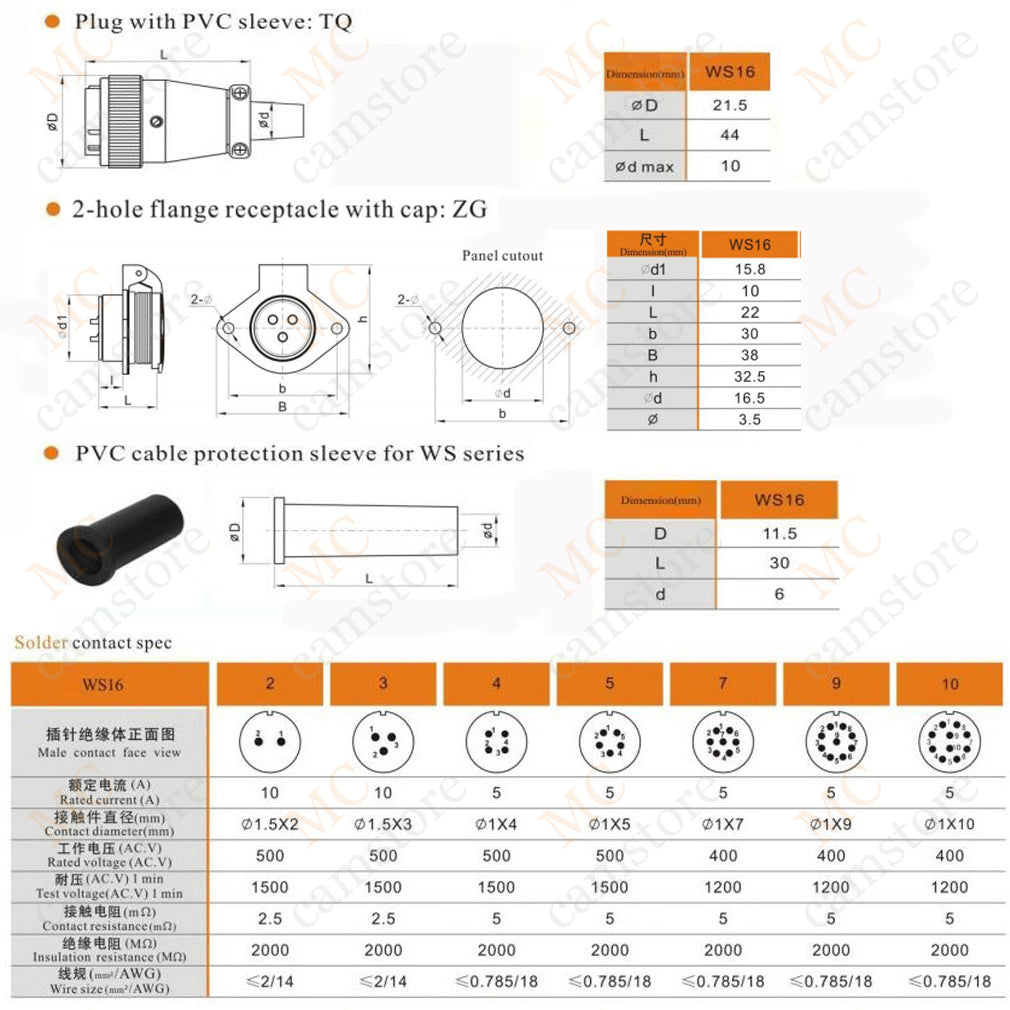

Flange panel mount

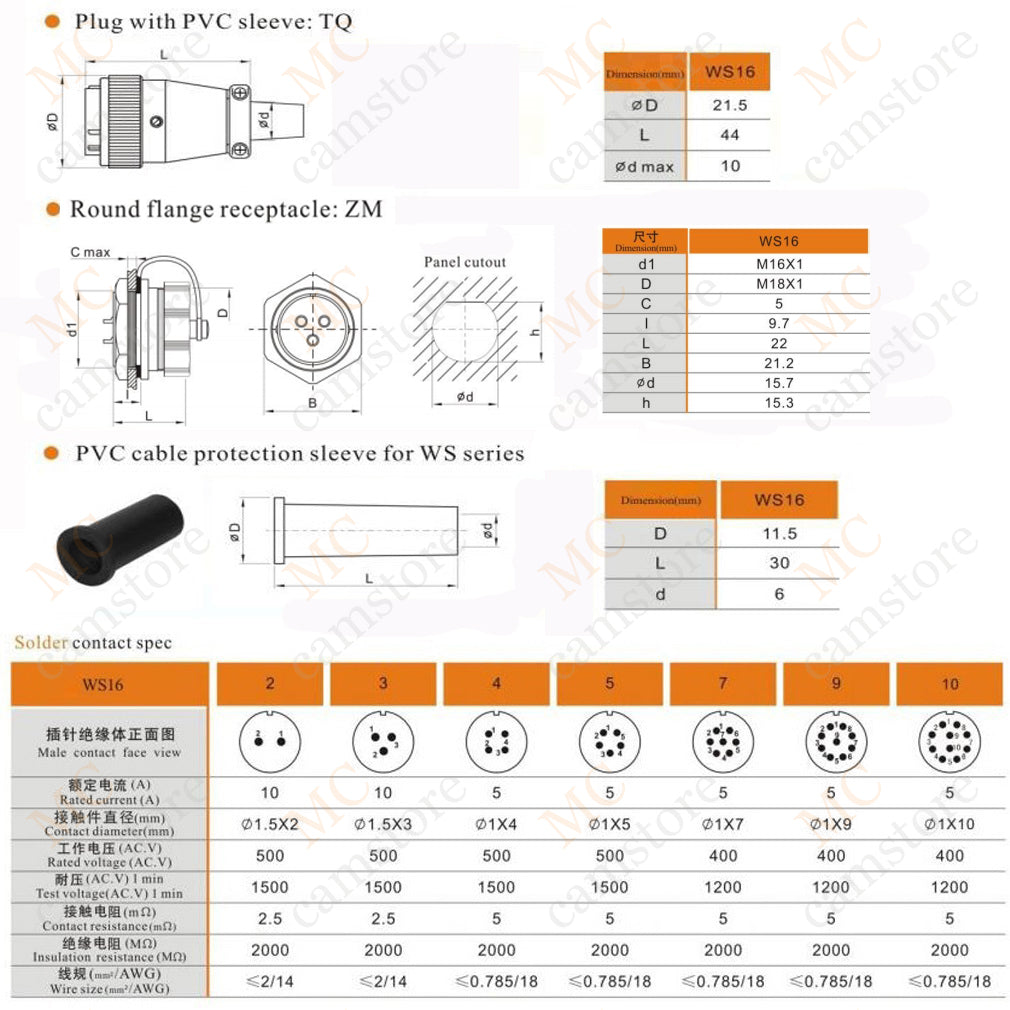

Thread panel mount

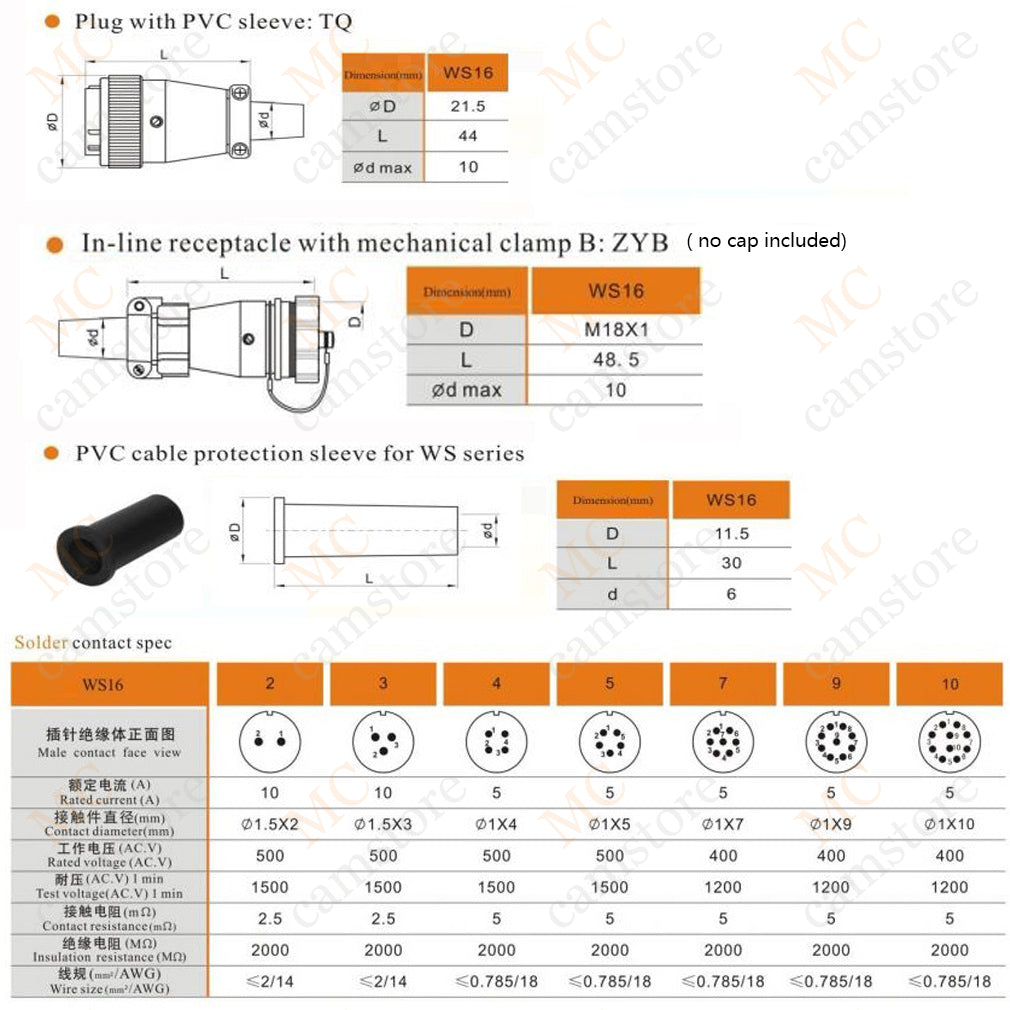

Inline docking

Plug Type:
Male plug, female socket
Female plug, male socket

Pin available:
2 3 4 5 7 9 10 pin

Please note: 16mm size do not have the screw crimping (solder free) type.


2pin, 3pin,:
Rated current (A): 10A
Contact diameter × number: Φ1.5x2 / Φ1.5 x 3
Rated voltage (AC.V.): 500V
Withstand voltage (AC.V) 1 minute: 1500V
Contact resistance: 2.5mΩ
Cable specification: <2.0m㎡/14AWG

4pin, 5pin:
Rated current (A): 5A
Contact diameter × quantity: Φ1x4 / Φ1x5
Rated voltage (AC.V.): 500V
Withstand voltage (AC.V) 1 minute: 1500V
Contact resistance: 5mΩ
Cable specification: <0.785m㎡/18AWG

7pin, 9pin, 10pin:
Rated current (A): 5A
Contact diameter × quantity: Φ1x4 / Φ1x5 / Φ1x7 / Φ1x9 / Φ1x10
Rated voltage (AC.V.): 400V
Withstand voltage (AC.V) 1 minute: 1200V
Contact resistance: 5mΩ
Cable specification: <0.785m㎡/18AWG

Coupling: Threaded Coupling
Insert material: PPS man temperature 260°
Contact Material: Brass (Gold Plated)
Termination: Solder
Cable outer diameter range: 6~10mm
Protection class: IP44
Durability: ≥500 times
Working temperature: -25℃～+85℃

What's in the package:
1 plug + 1 socket (screws included for square and flange type)
View full details
