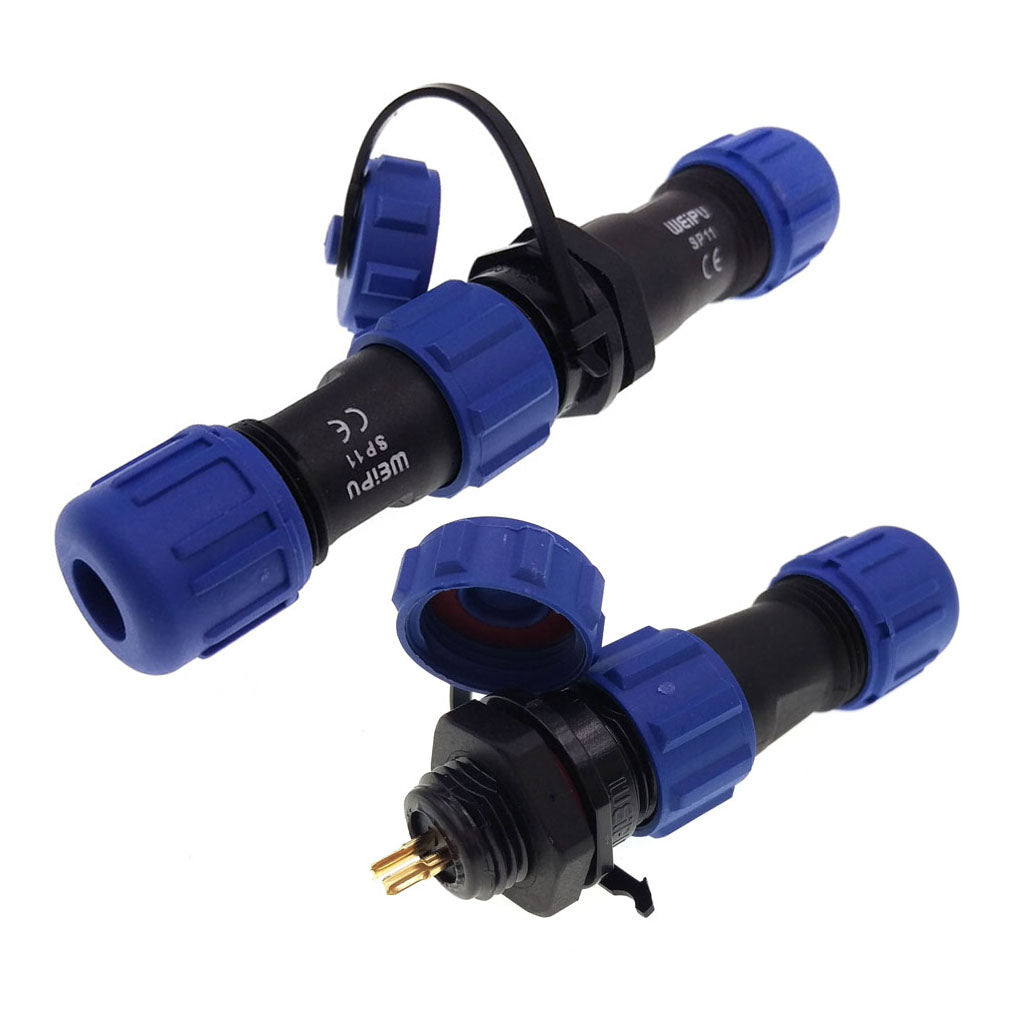

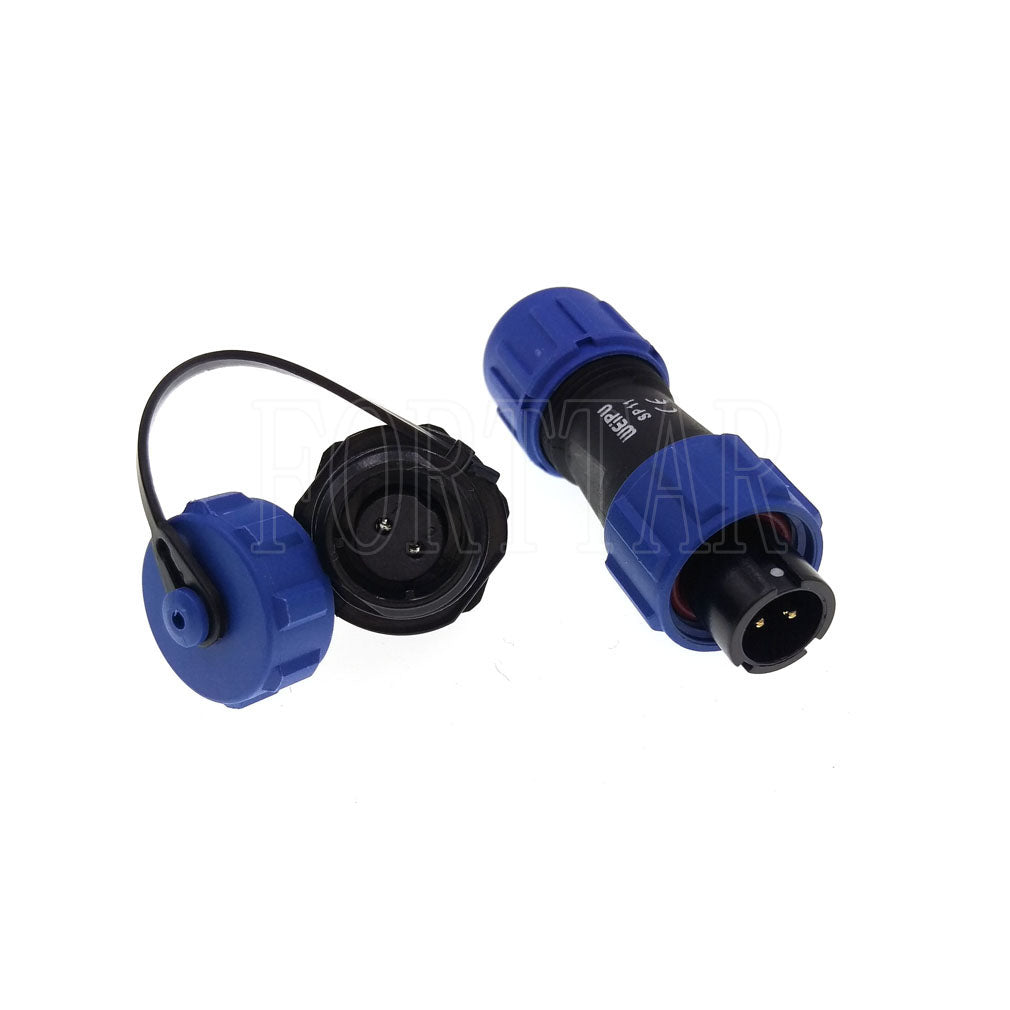

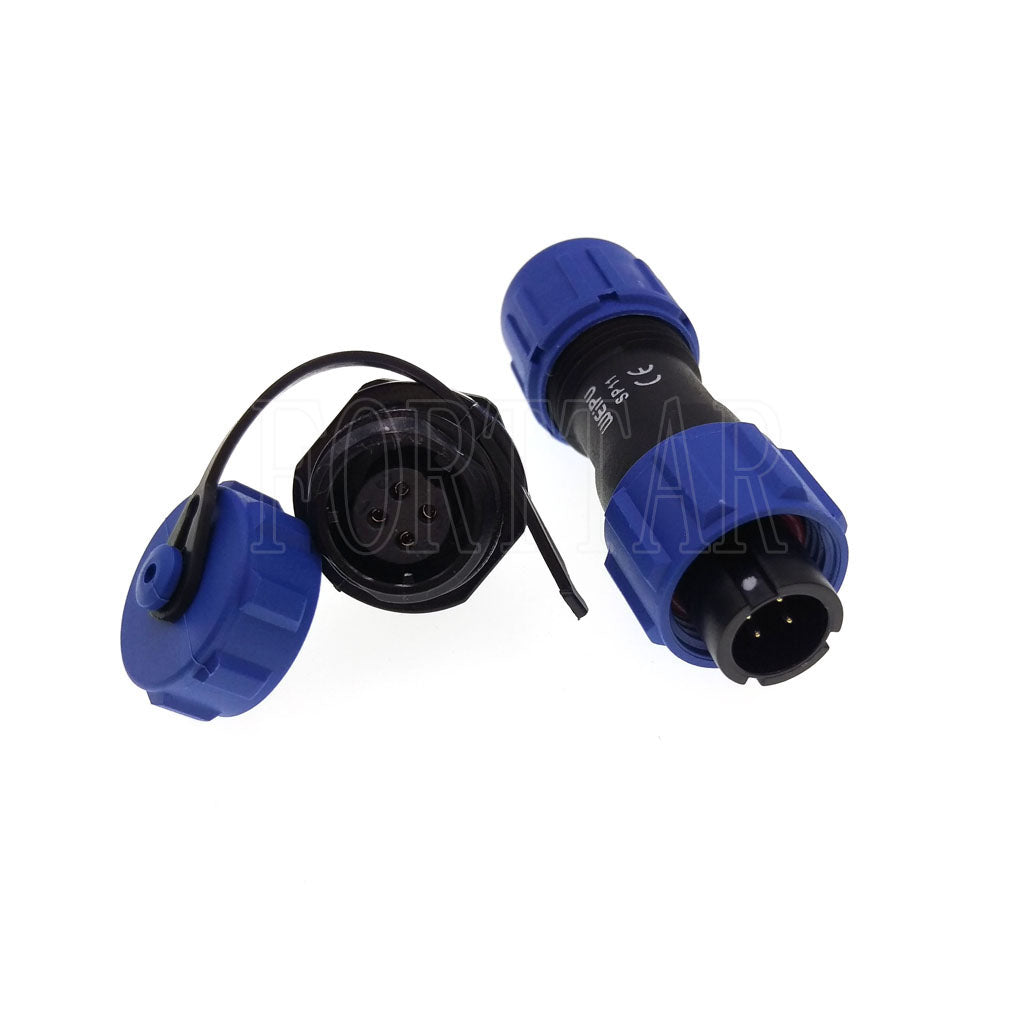

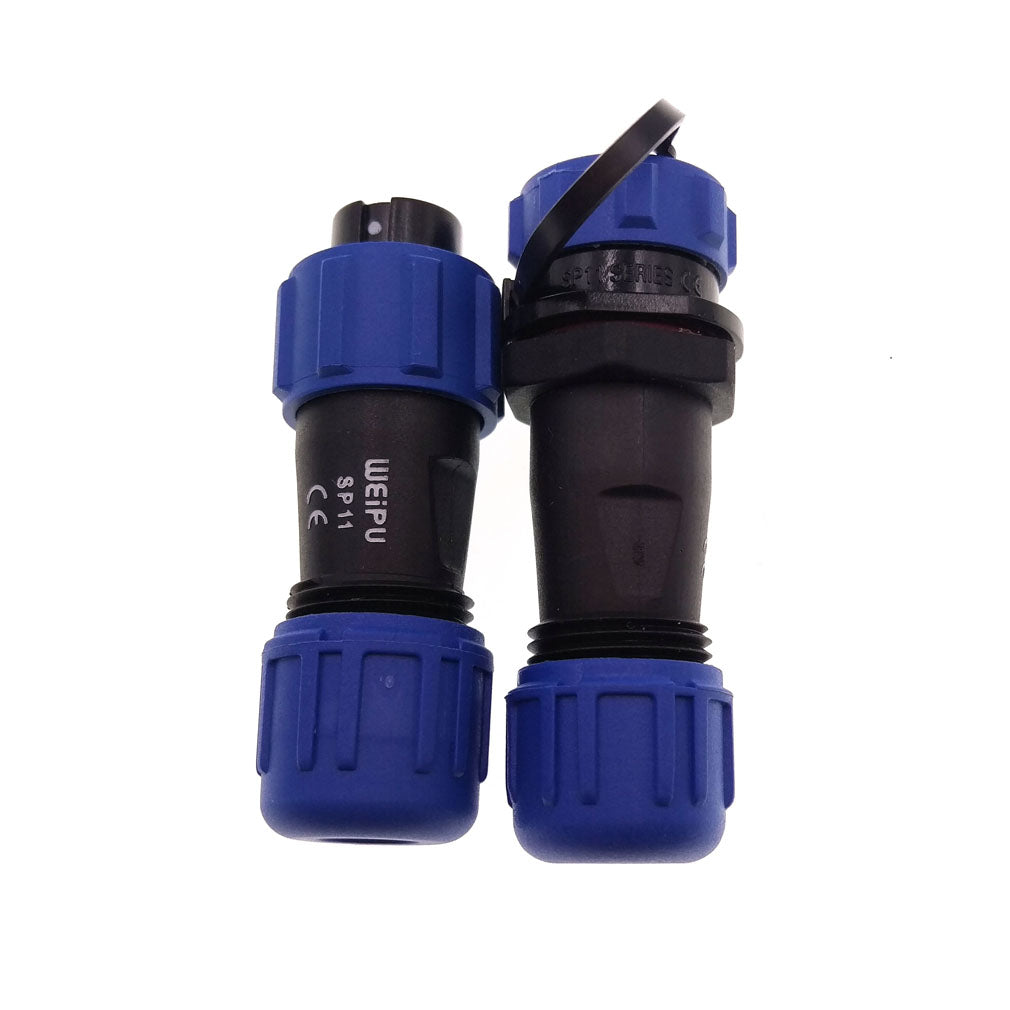

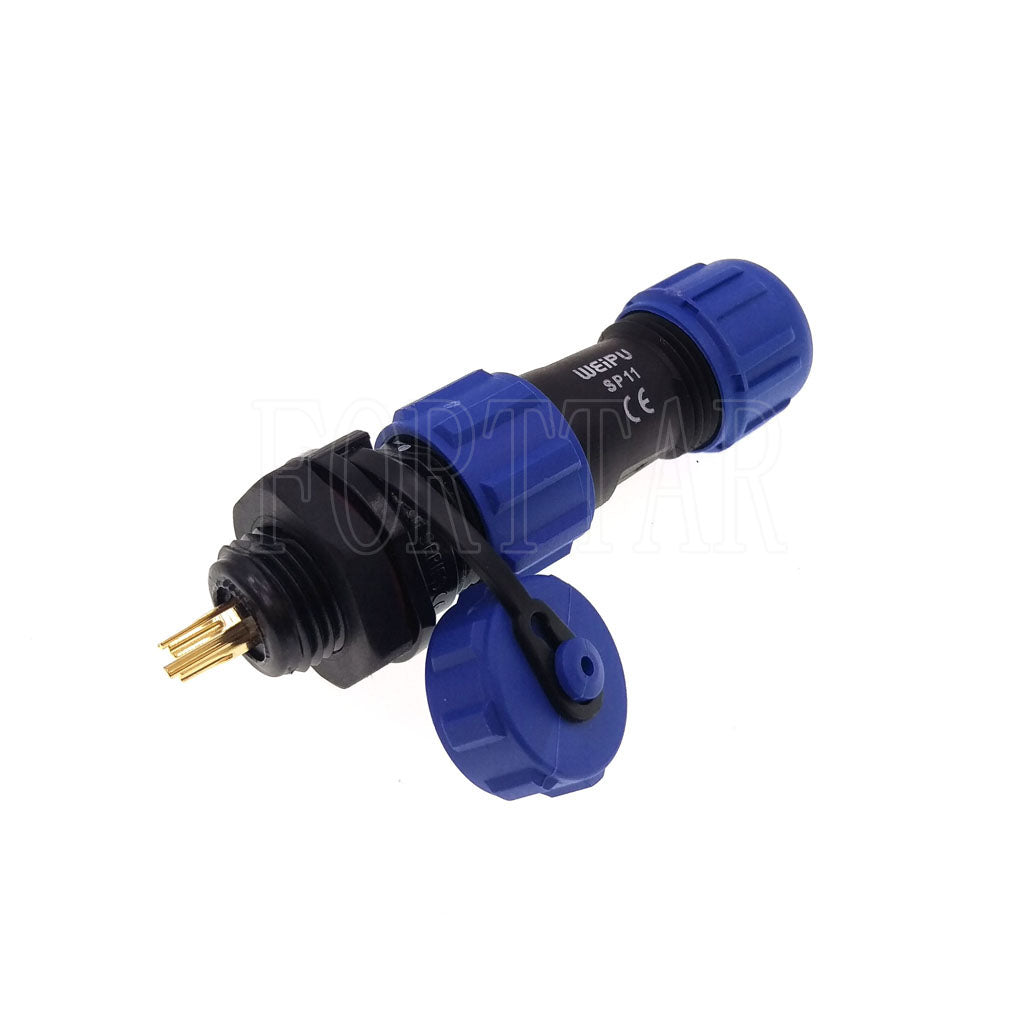

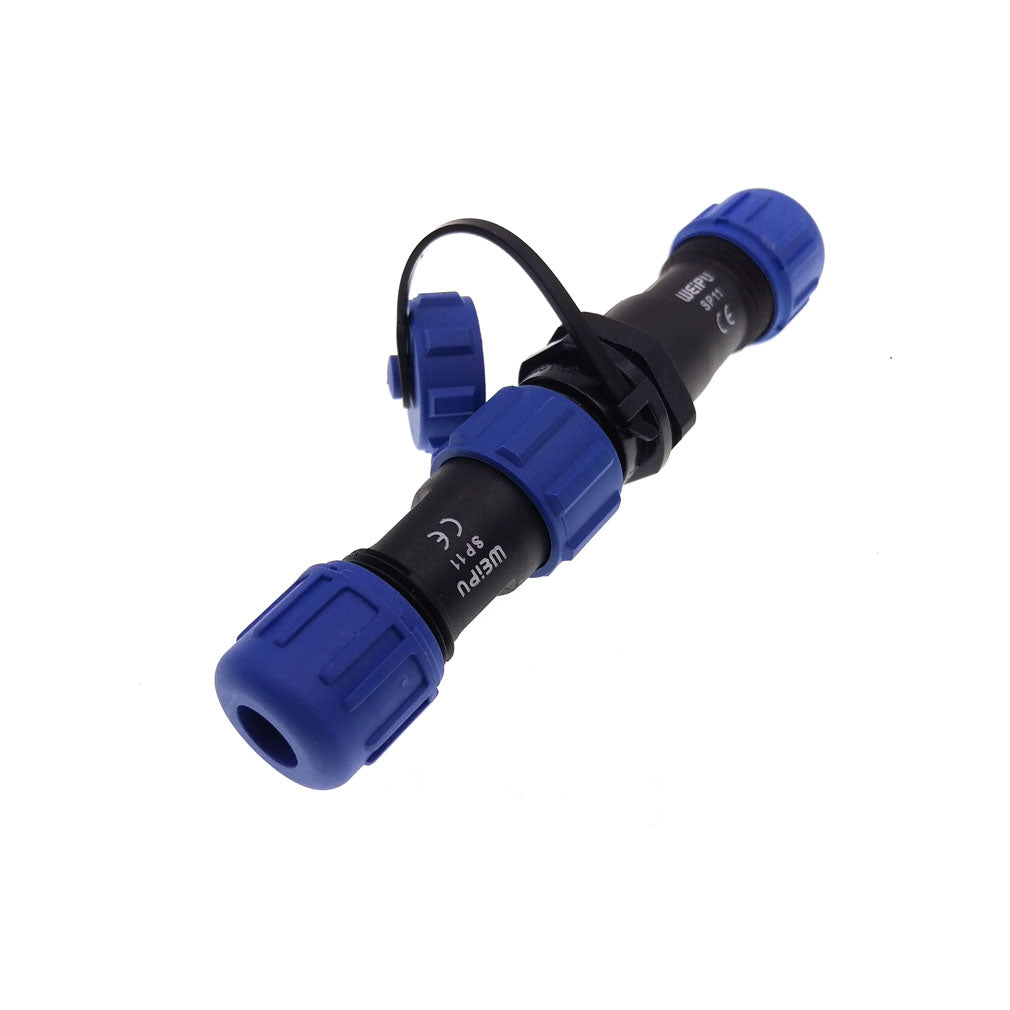

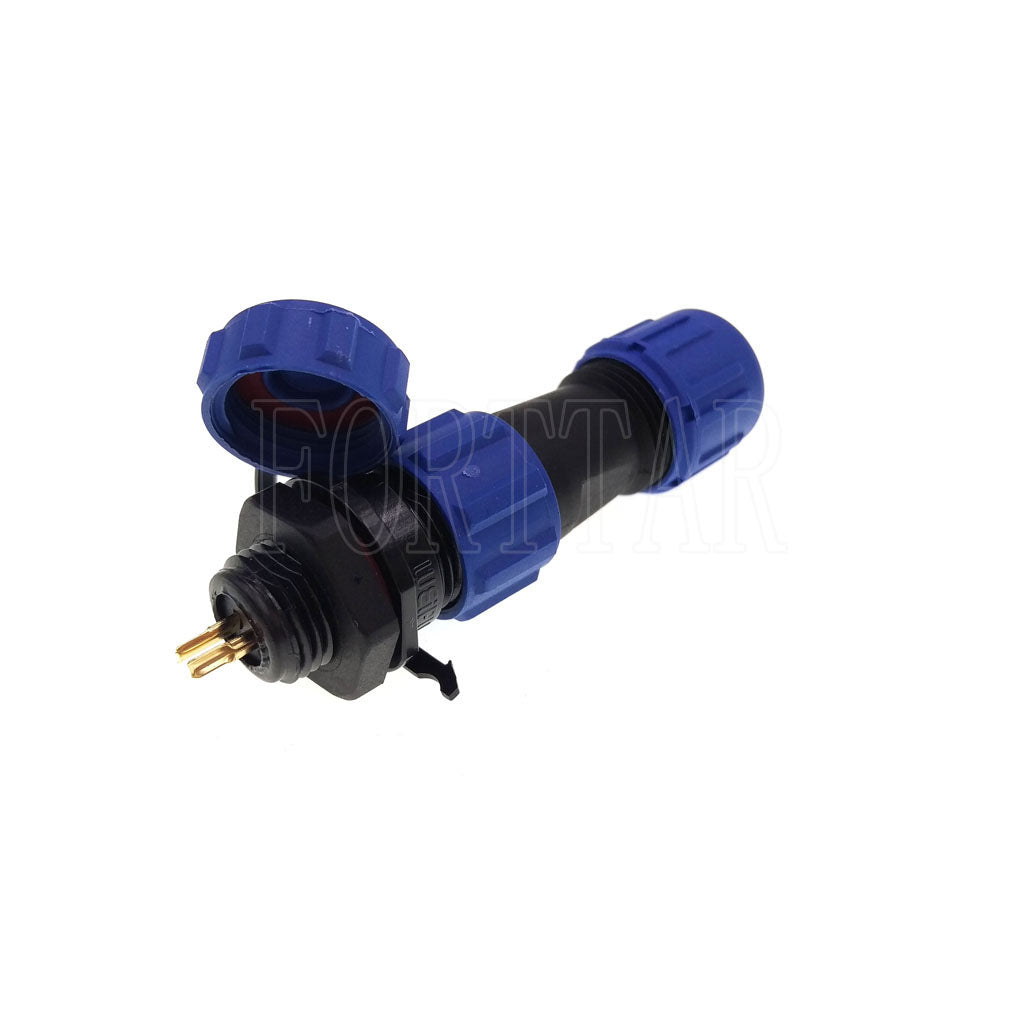

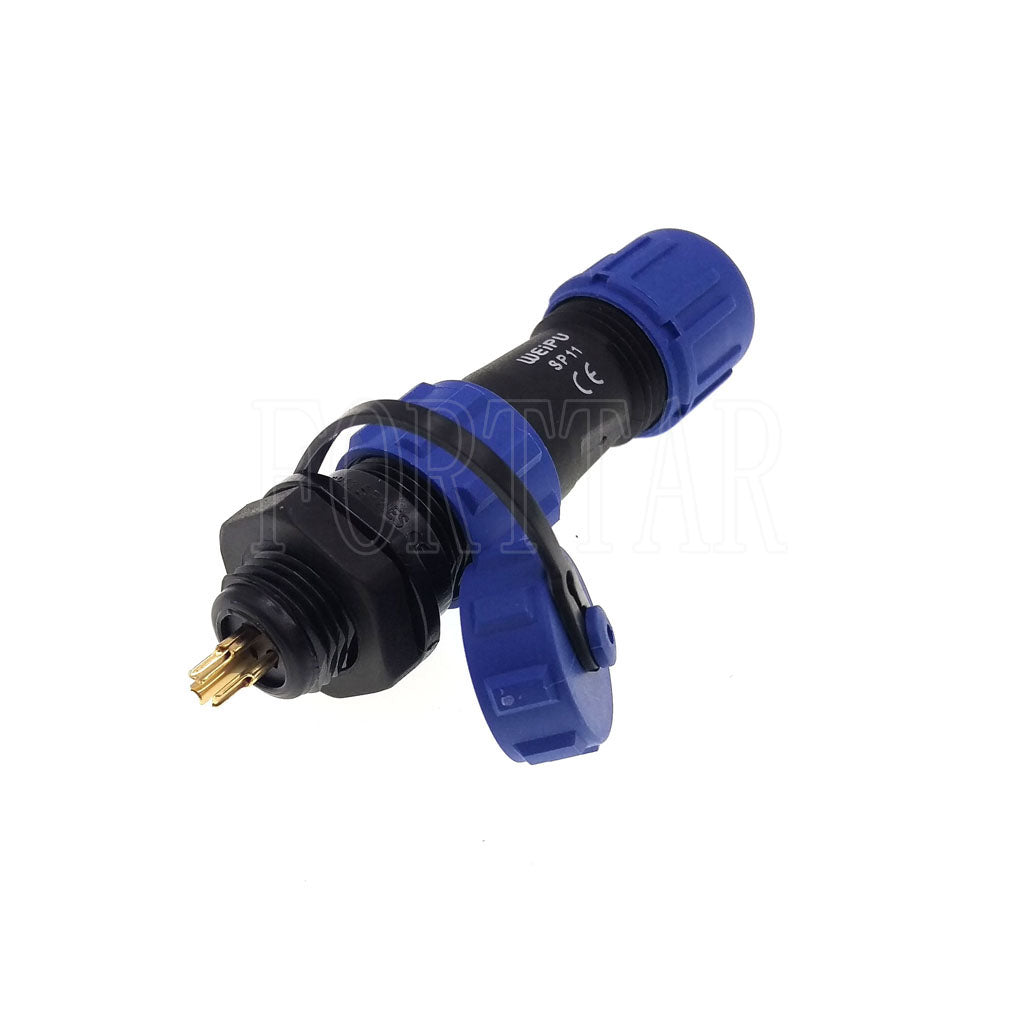

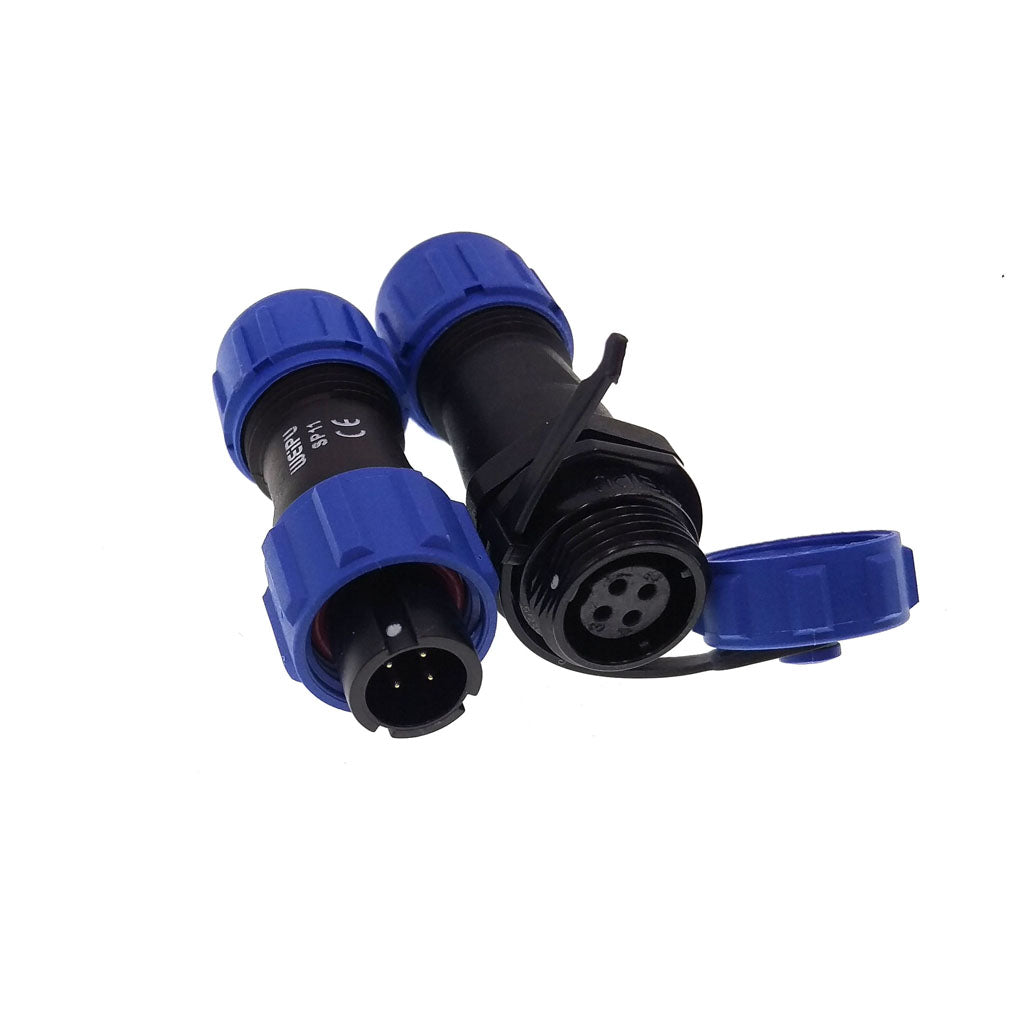

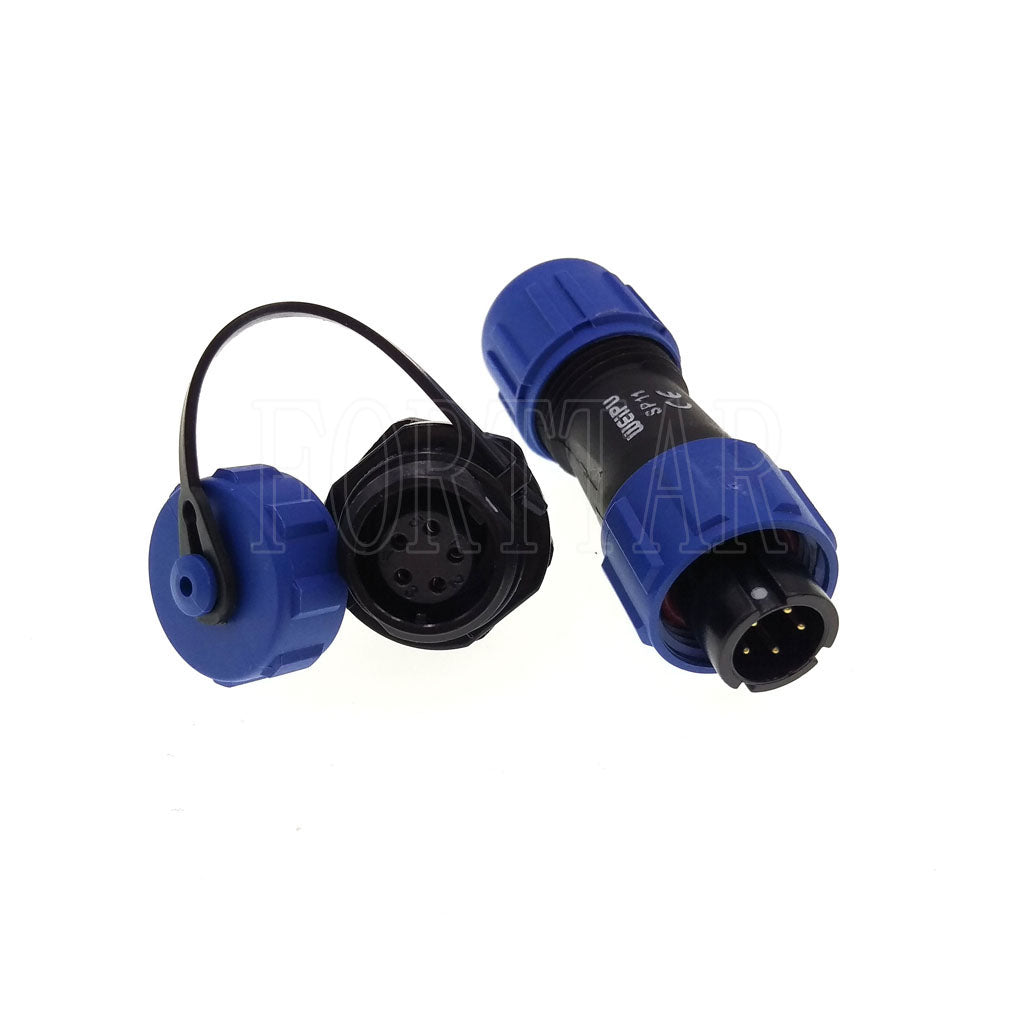

WEIPU SP11 IP68 Waterproof Connector, 2 3 4 5pin Thread Nut Panel Mount / Cable to Cable Power Plug Socket

$6.49 USD

~~$0.00 USD~~ $6.49 USD

Sale Sold out

Shipping calculated at checkout.

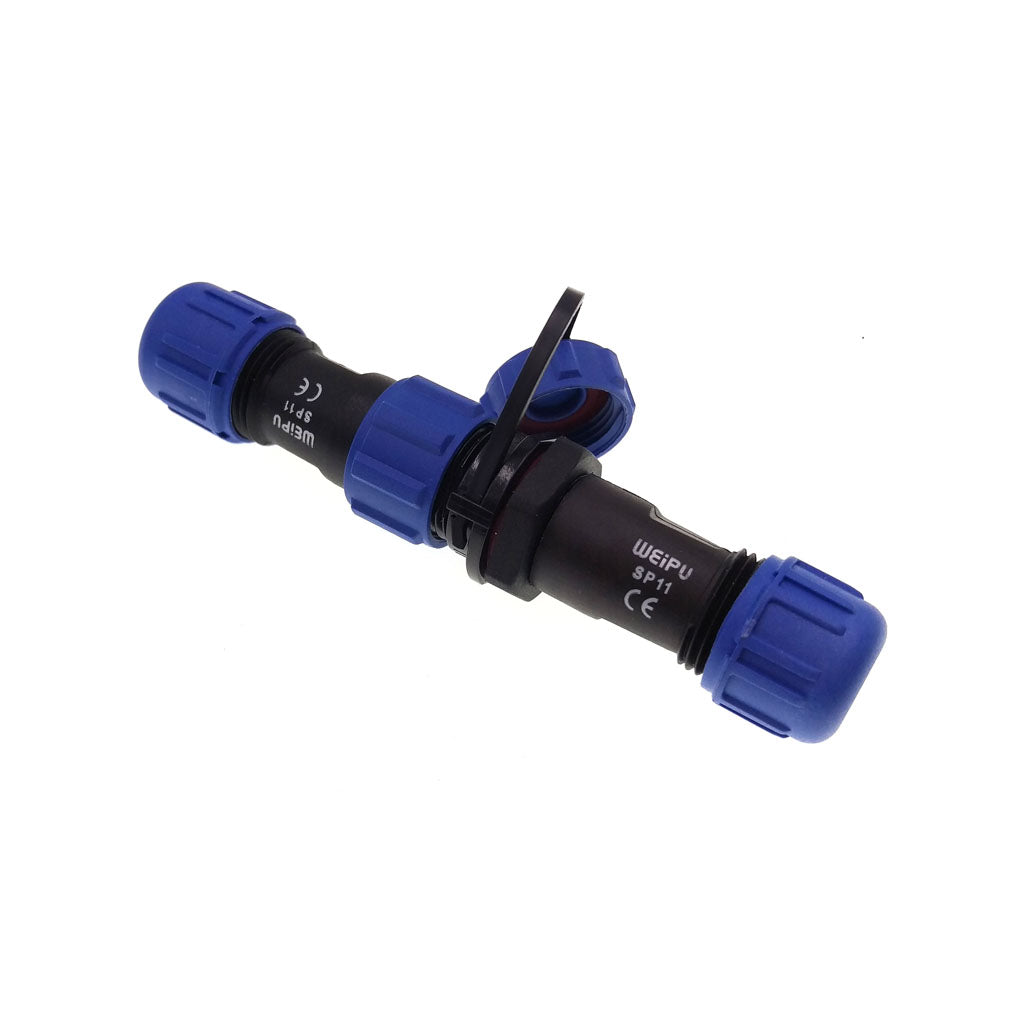

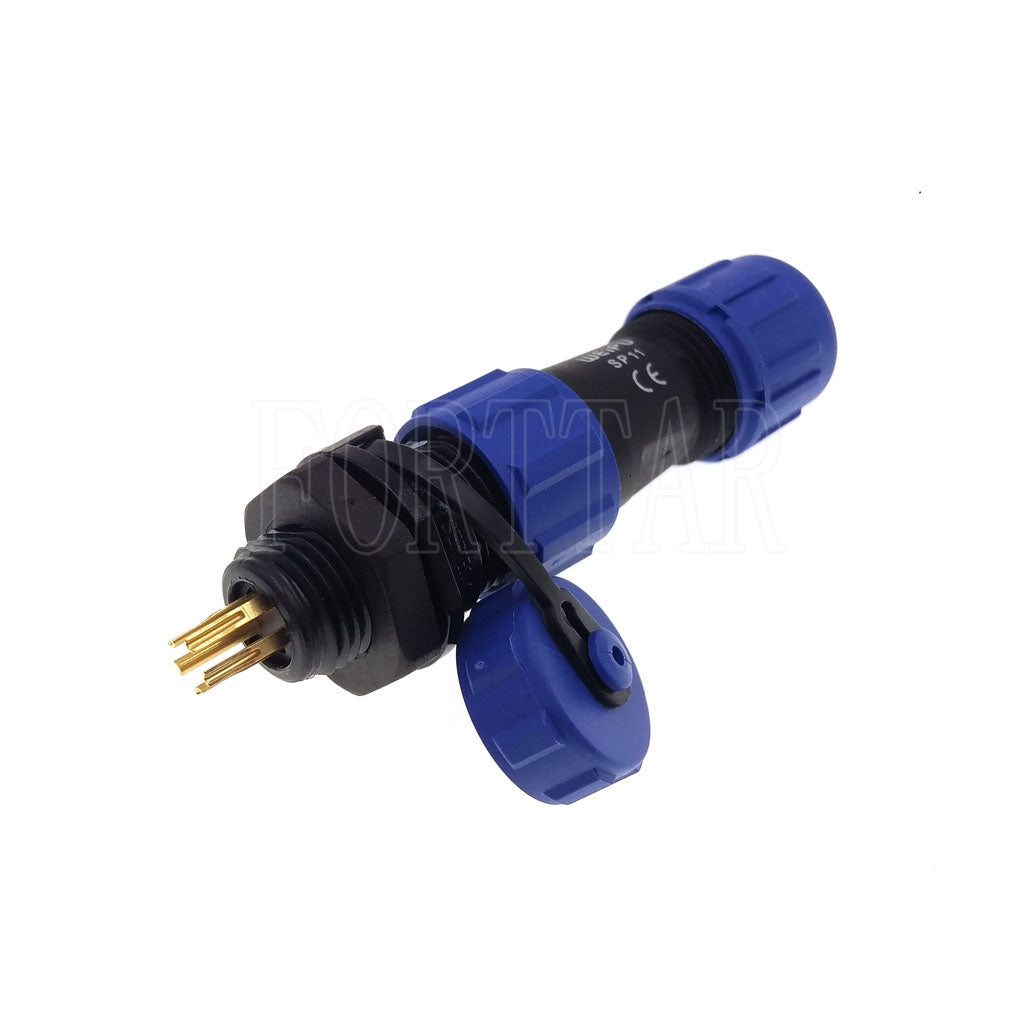

Install type Thread nut panel mount Cable to cable

Gender option Male plug female socket Female plug male socket

Pin option 2pin 3pin 4pin 5pin

Quantity

WEIPU SP11 2 3 4 5 PIN WATERPROOF CONNECTOR IP68 POWER CABLE AVIATION CABLE TO CABLE PLUG SOCKET

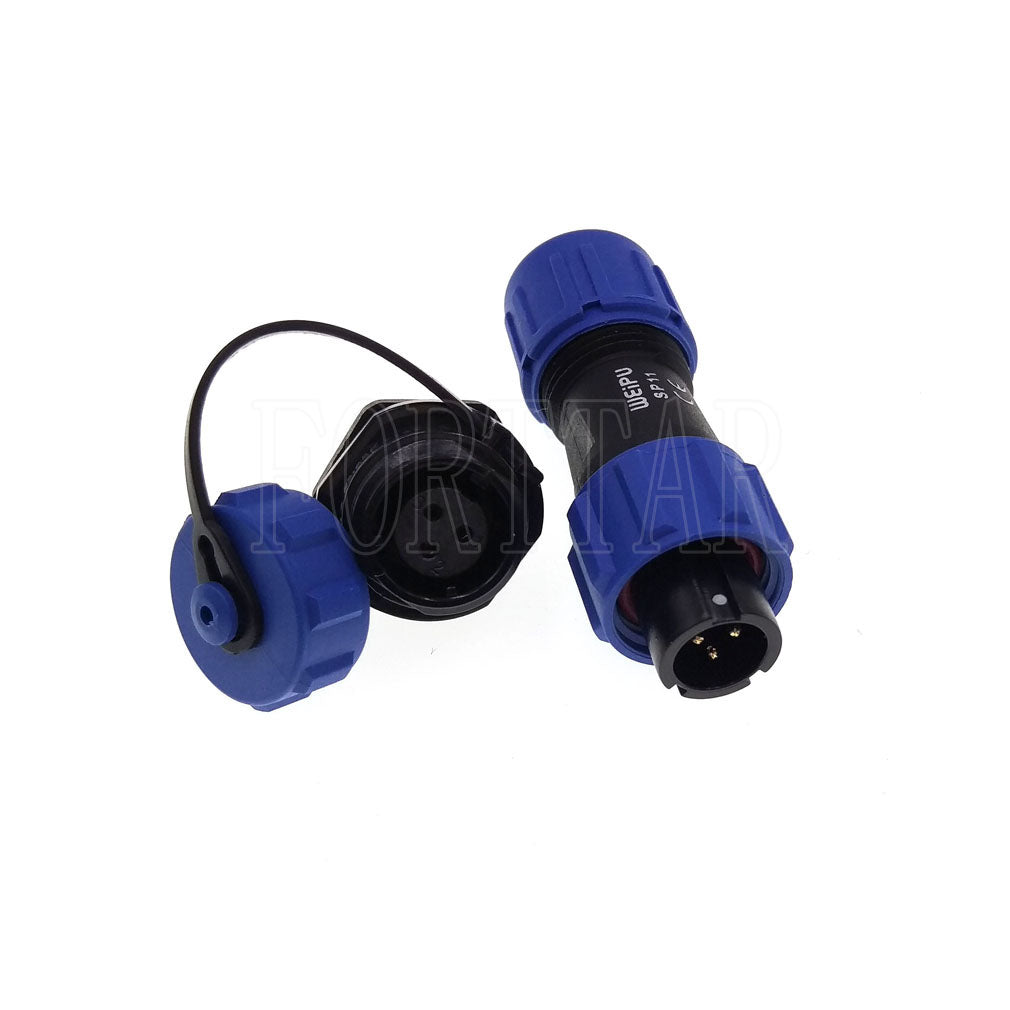

Male plug female socket, female plug male socket available.

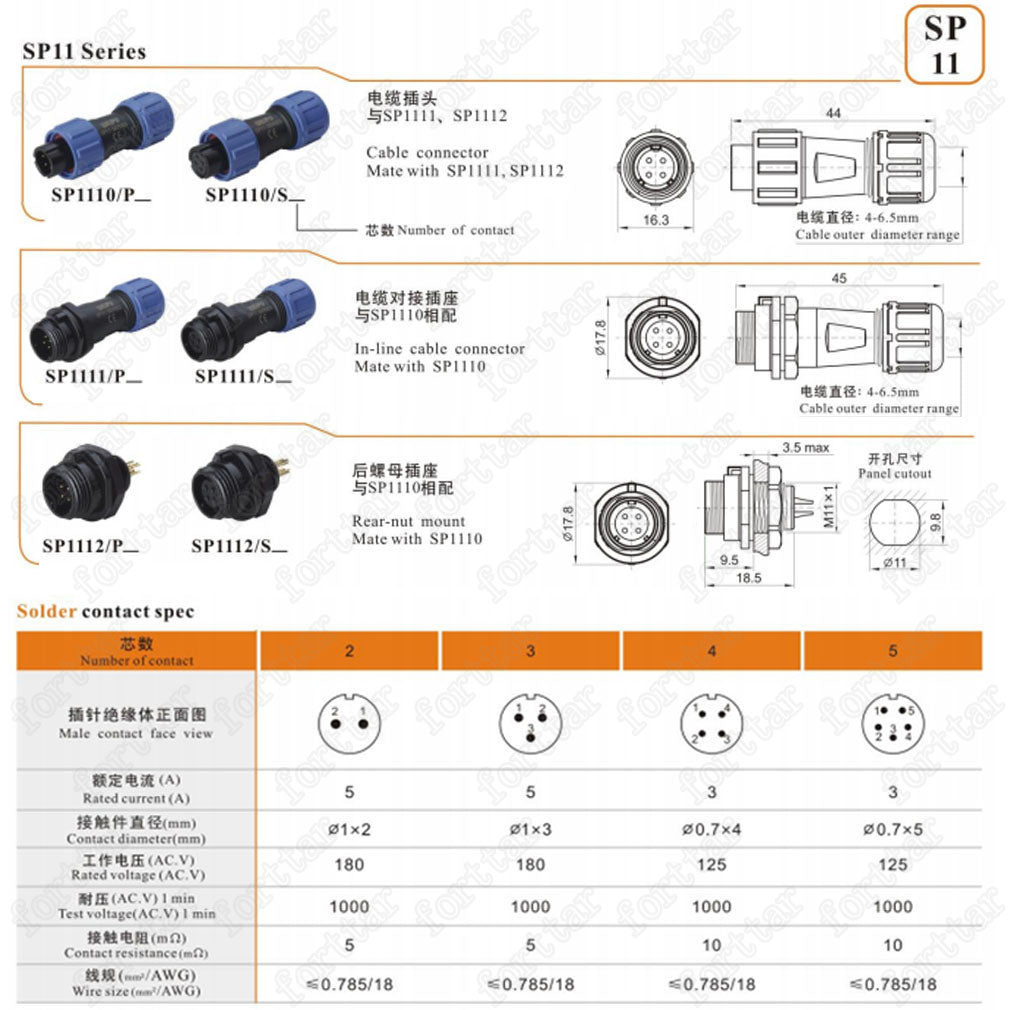

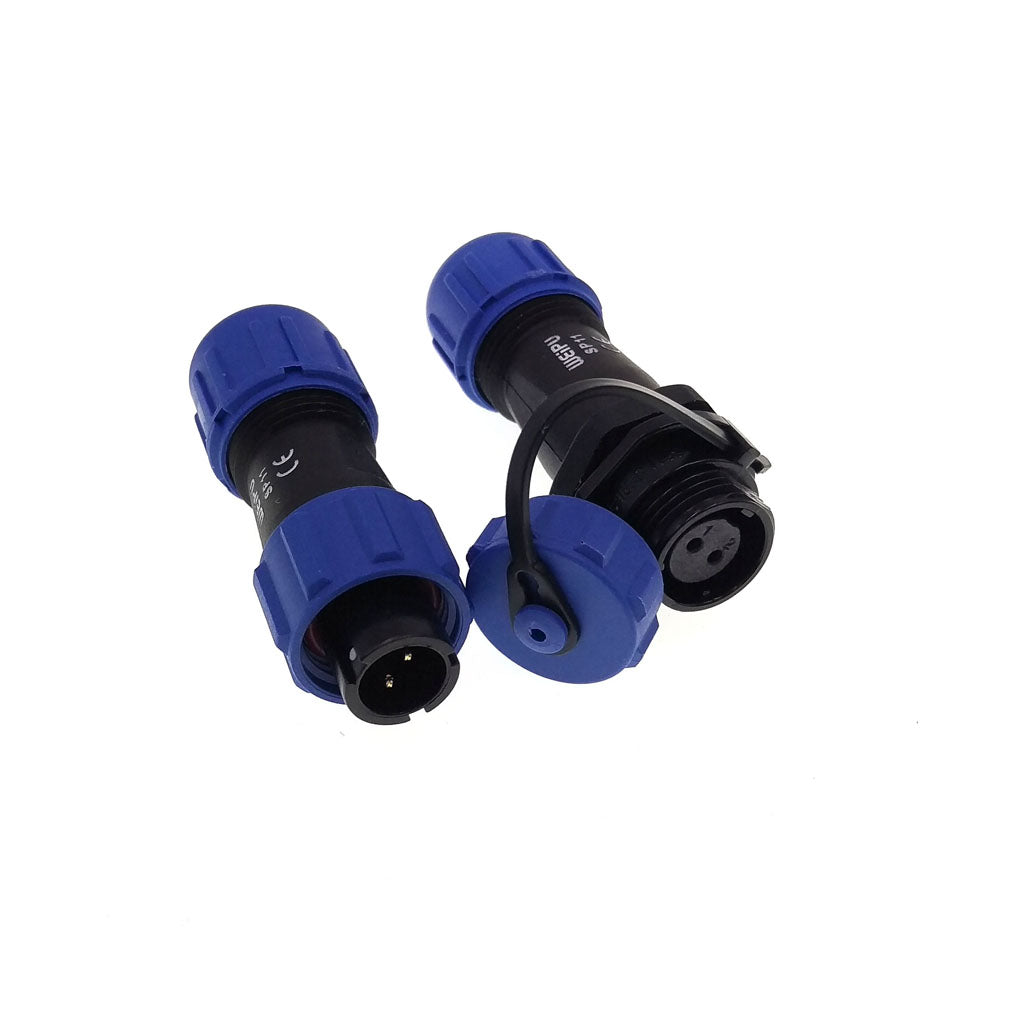

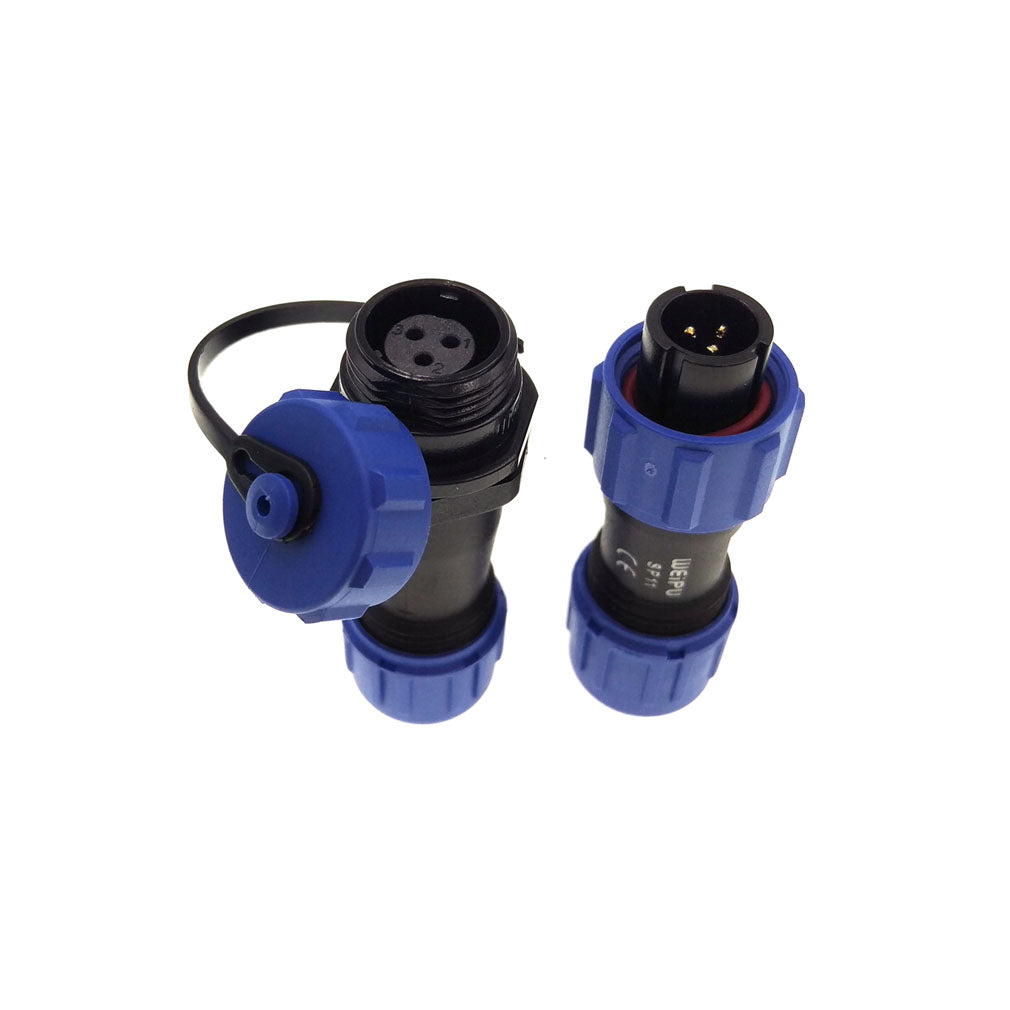

2pin, 3pin:
Rated Current (A): 5A
Contact diameter × number: Φ1x2 / Φ1x 3
Rated voltage (AC.V.): 180V
Withstanding Voltage (AC.V) 1 minute: 1000V
Contact resistance: 5mΩ
Wire specification: <0.785m㎡/18AWG

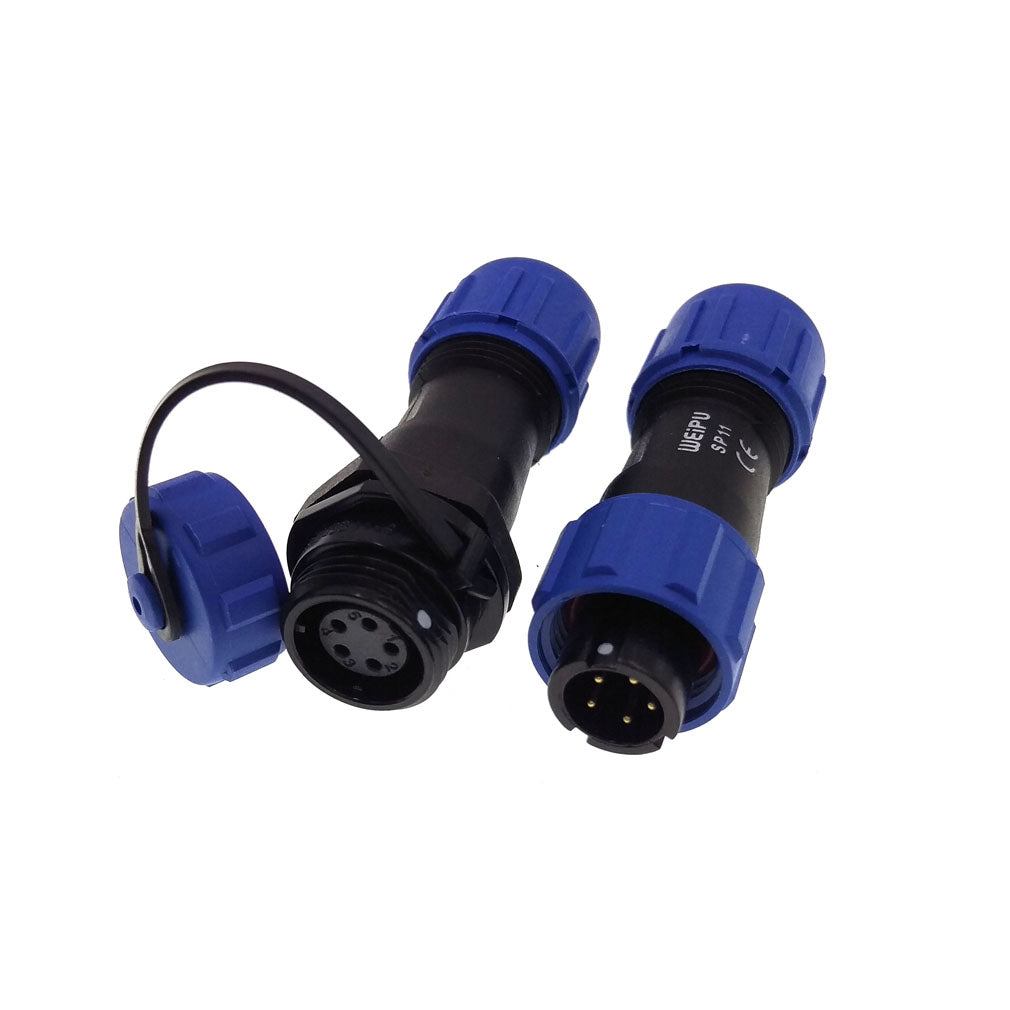

4pin, 5pin:
Rated Current (A): 3A
Contact diameter × number: Φ0.7x4, Φ0.7x5
Rated voltage (AC.V.): 125V
Withstanding Voltage (AC.V) 1 minute: 1000V
Contact resistance: 5mΩ
Wire specification: <0.785m㎡/18AWG

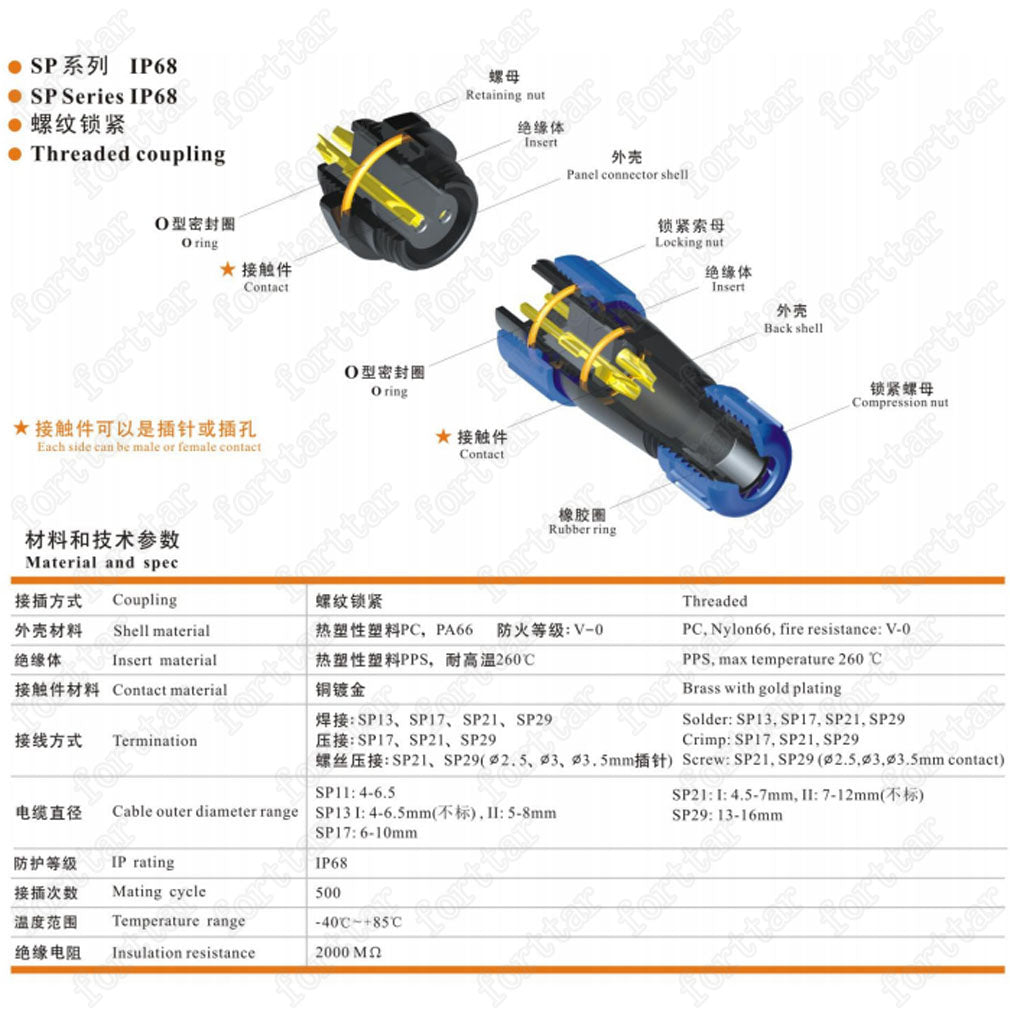

Material: Plastic
IP Rating: IP68
Shell: Nylon66
Fire Resistance: V-0
Contact Material: Brass with Gold Plating
Termination: Solder
Cable Outer Diameter Range: I: 4-6.5mm
Mating Cycle: >500
Temperature Range: -25~+85℃
Insulation Resistance : 2000mΩ

What's in the package: (as to your choose)
1 plug + 1 socket with cap
