SD20 IP68 Waterproof Connector, 1 - 14 pin IP68 Aviation Power Connector

HIGH VOLTAGE POWER CABLE CONNECTOR

Install type:

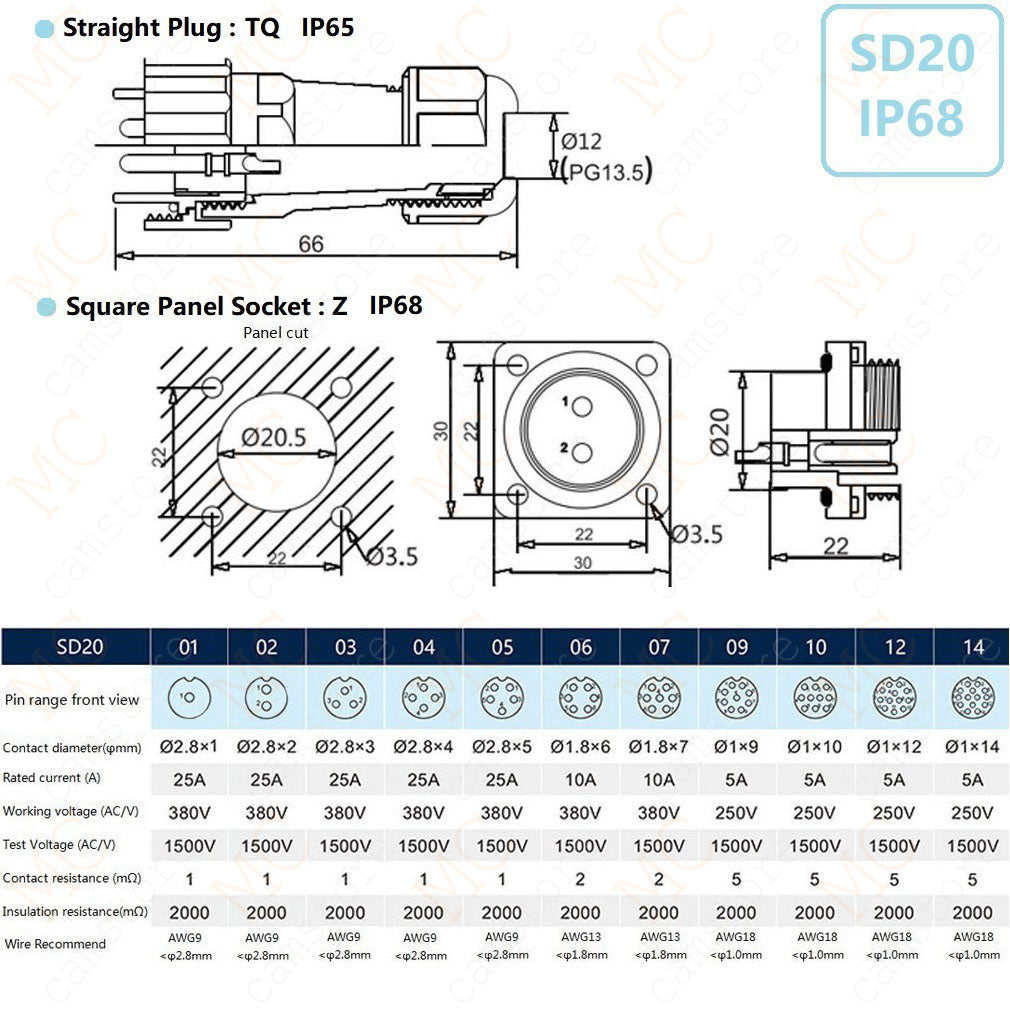

Bulkhead panel mount

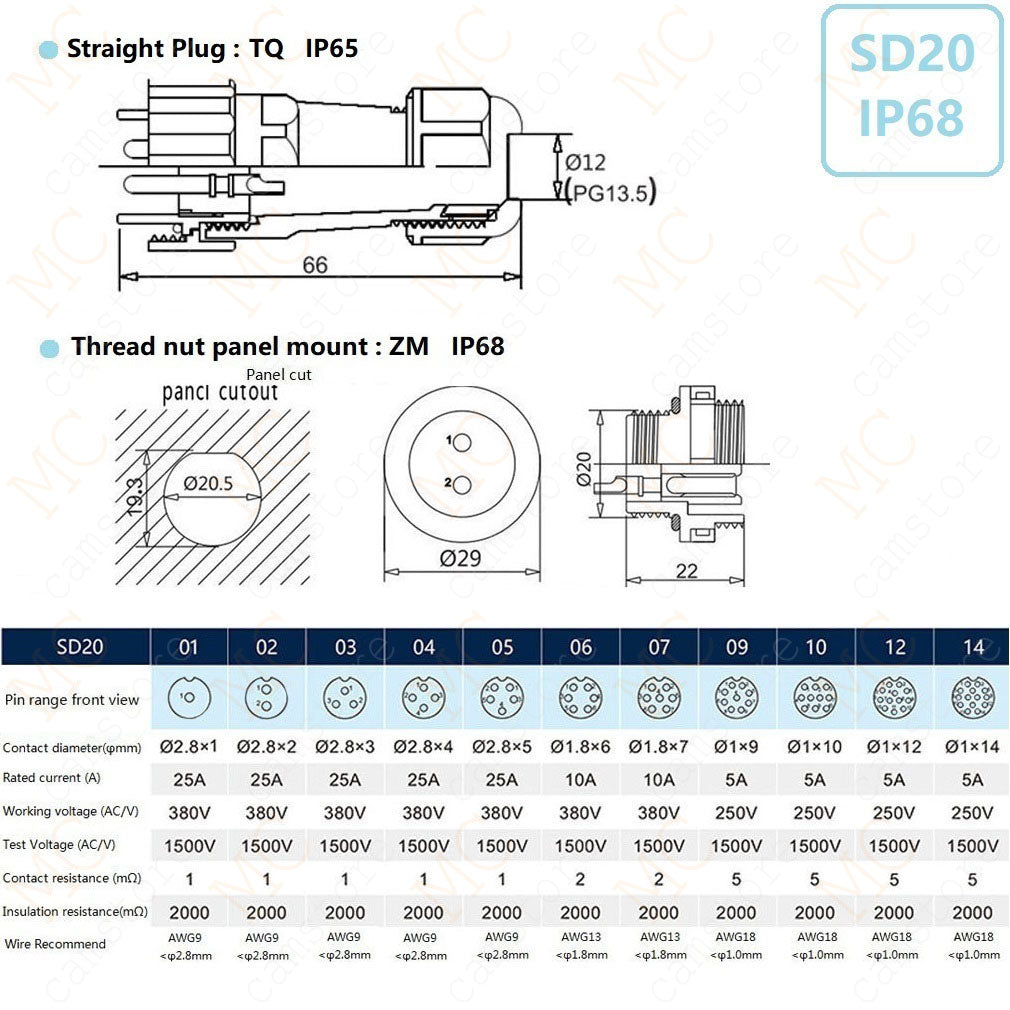

Rear nut panel mount

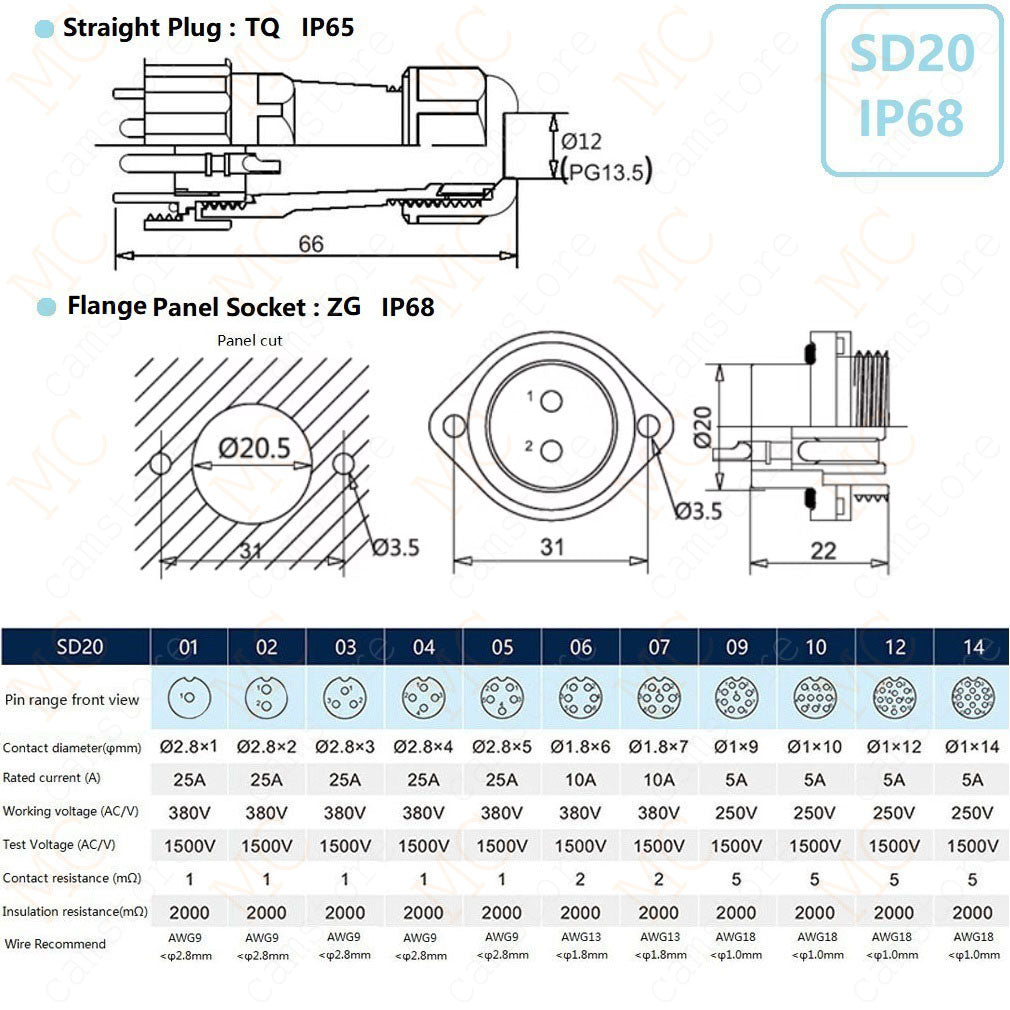

Flange panel mount

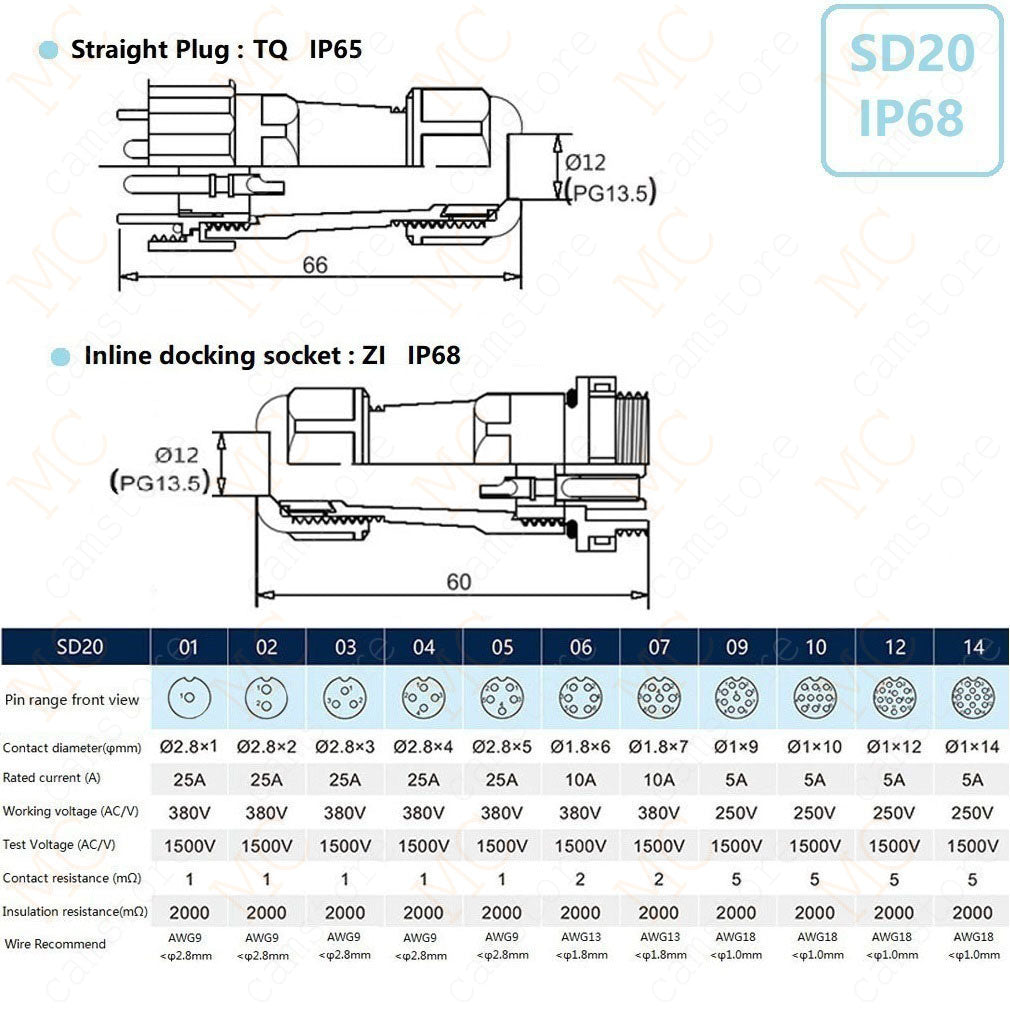

Inline docking

 1pin, 2pin, 3pin, 4pin, 5pin:
Rated Current (A): 25A
Contact diameter × number: Φ2.8x1 / Φ2.8x2 / Φ2.8x 3 / Φ2.8x4 / Φ2.8x5
Rated voltage (AC.V.): 380V
Withstanding Voltage (AC.V) 1 minute: 1500V
Contact resistance: 1mΩ
Wire specification: <2.8m㎡/9AWG

 6pin, 7pin:
Rated Current (A): 10A
Contact diameter × number: Φ1.8x6 / Φ1.8x7
Rated voltage (AC.V.): 380V
Withstanding Voltage (AC.V) 1 minute: 1500V
Contact resistance: 2mΩ
Wire specification: <1.8m㎡/13AWG

9pin, 10pin, 12pin, 14pin:
Rated Current (A): 5A
Contact diameter × number: Φ1.0x9 / Φ1.0x10 / Φ1.0x12 / Φ1.0x14
Rated voltage (AC.V.): 250V
Withstanding Voltage (AC.V) 1 minute: 1500V
Contact resistance: 5mΩ
Wire specification: <1m㎡/18AWG

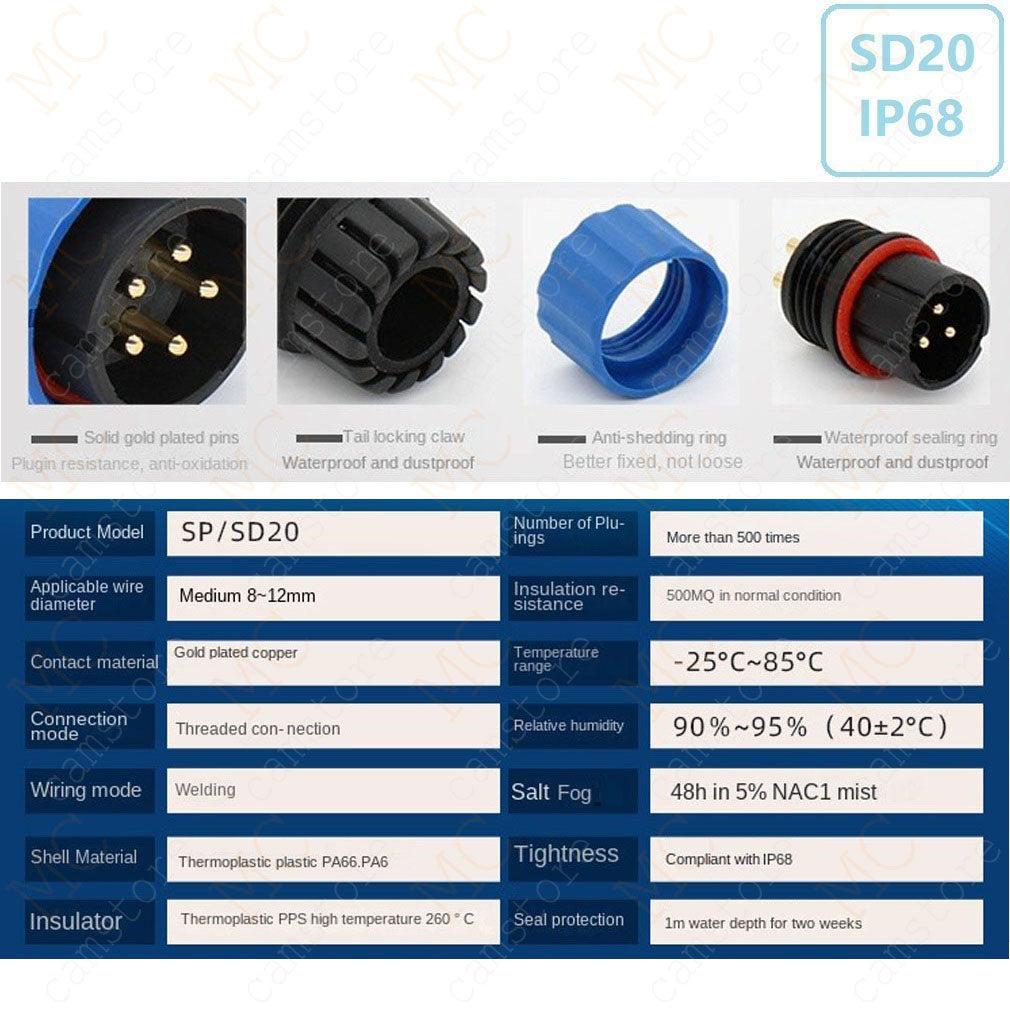

Coupling: Threaded Coupling
Shell Materia: PC
Insert Material: PPS man temperature 260°
Contact materia: Brass (gold-plated)
Termination: solder
Cable outer diameter range：12mm max
Protection level: IP67
Durability: ≥500 times
Working temperature: -40℃～+60℃

What's in the package:

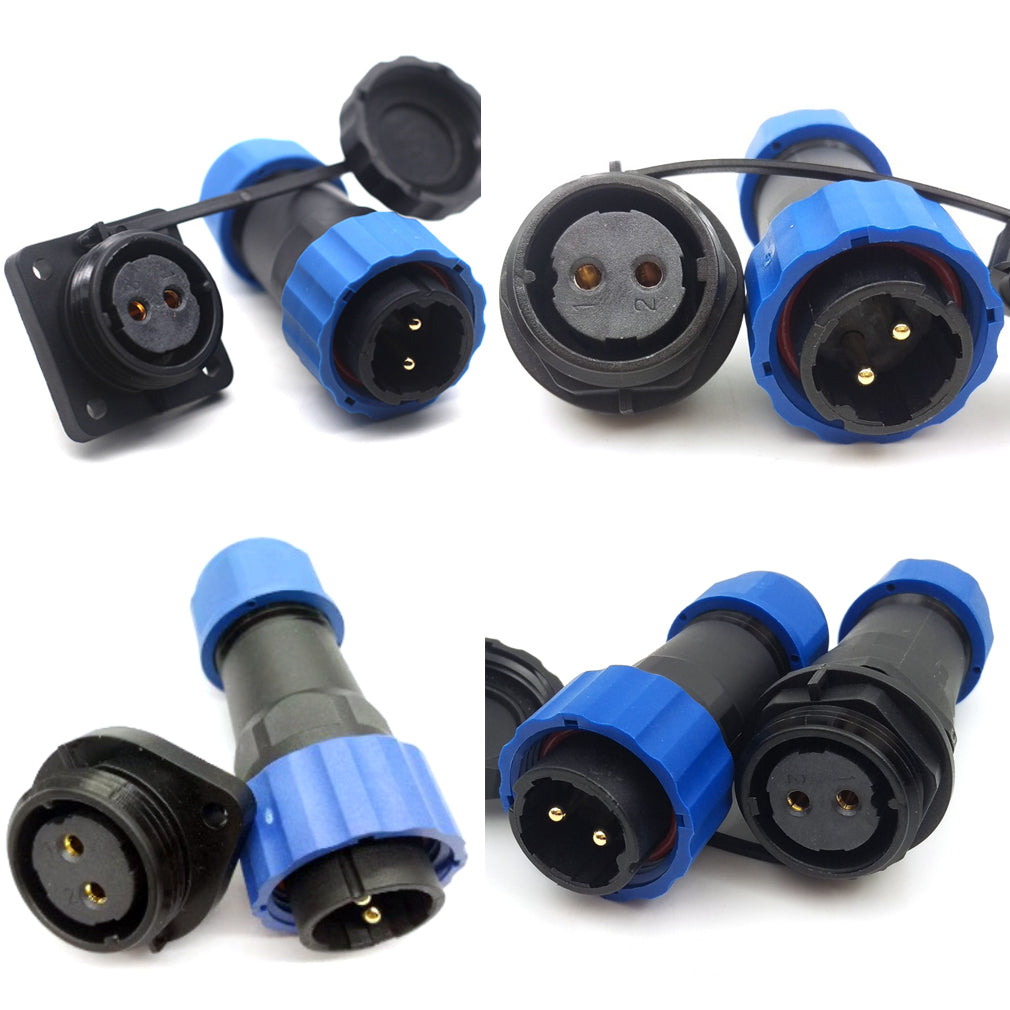

1  plug + 1 socket with cap(screw will included for bulkhead and flange instal)
