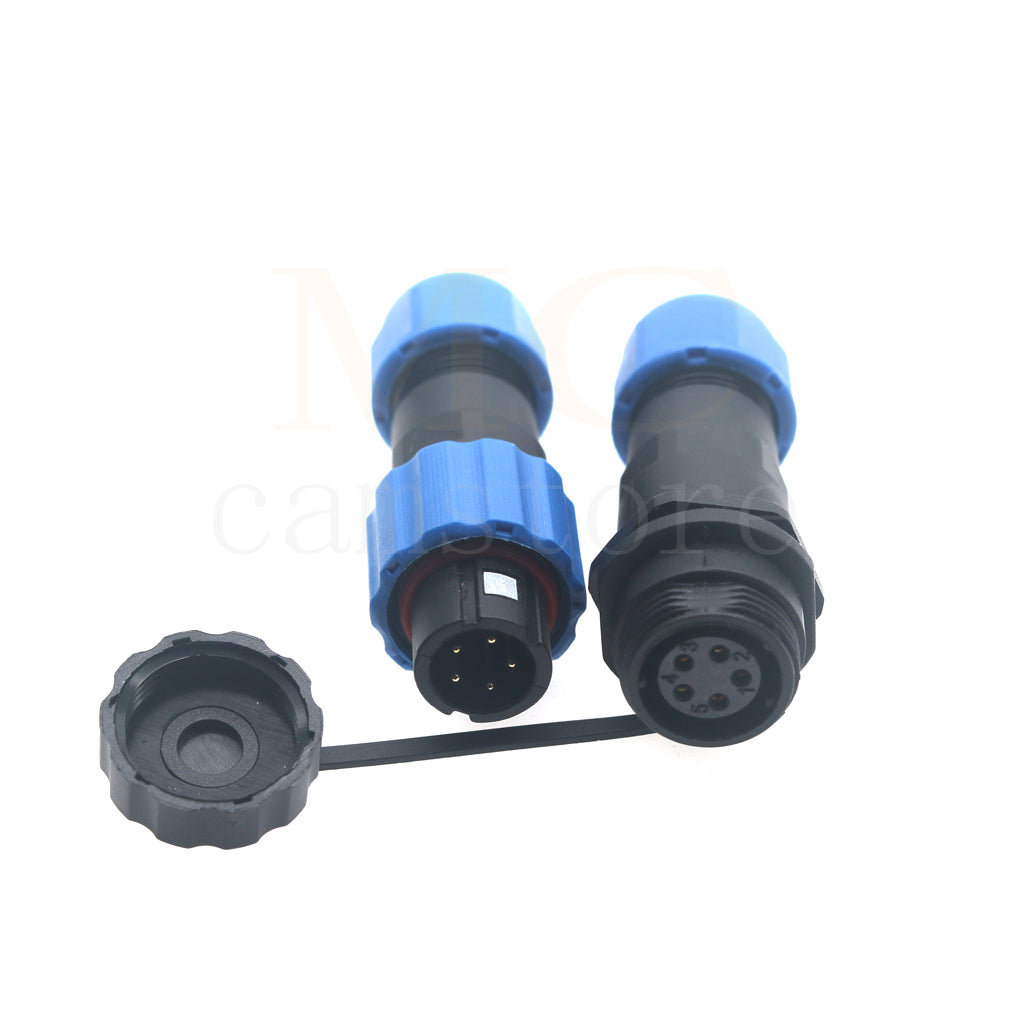

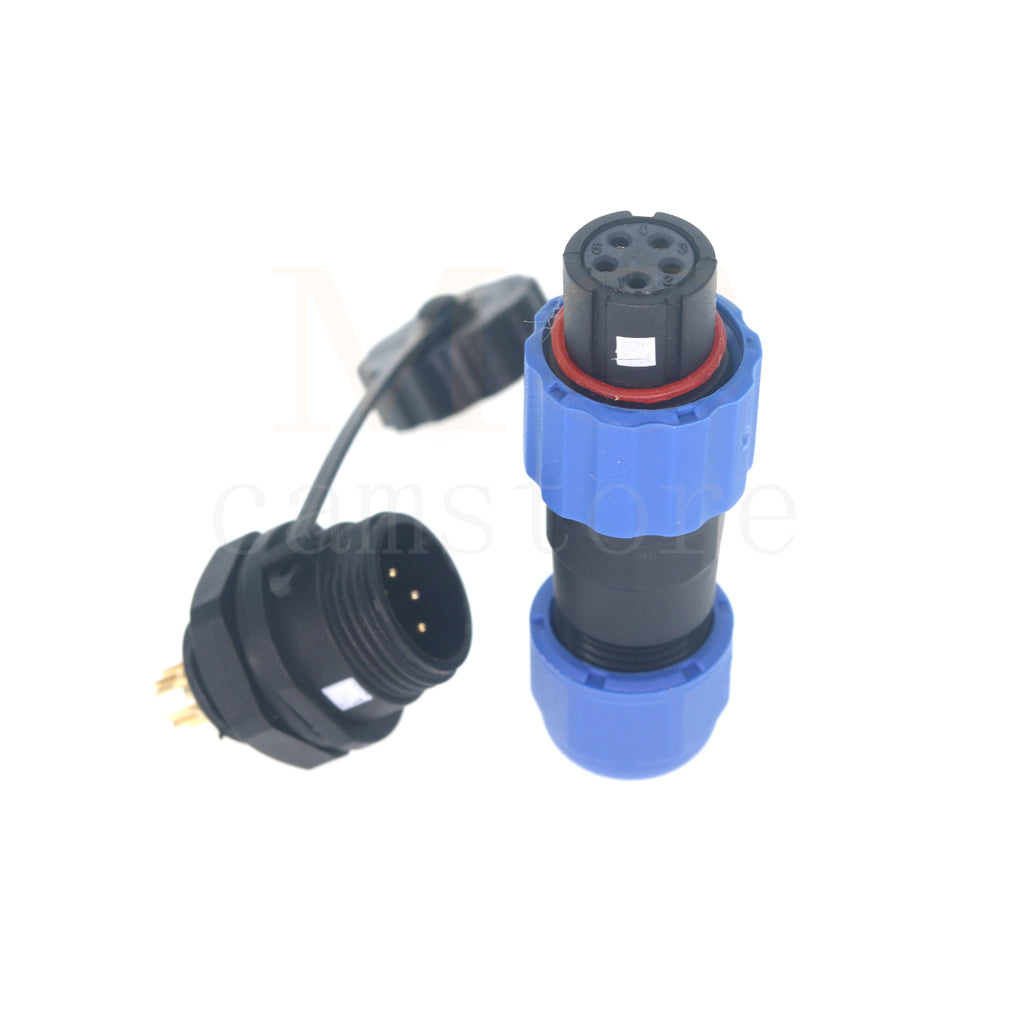

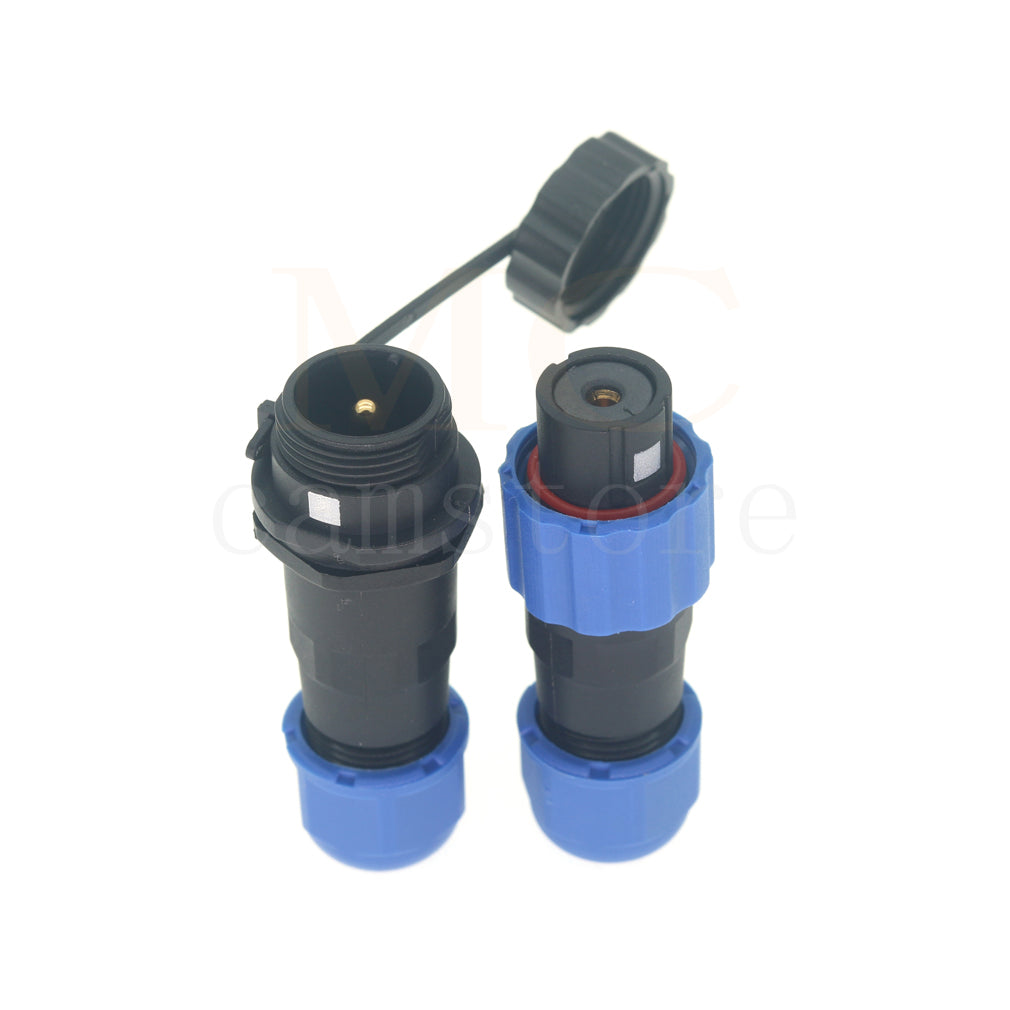

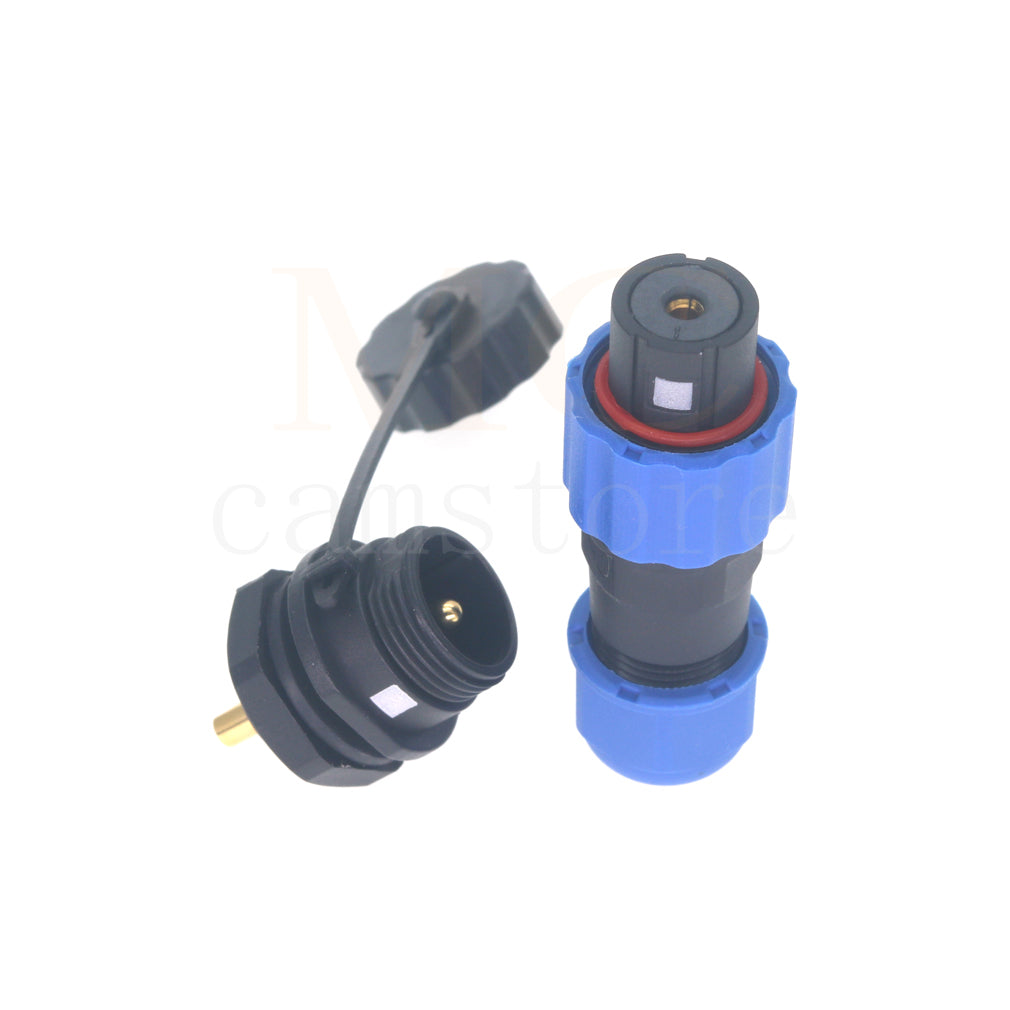

SD13 IP68 Waterproof Connector, 1 2 3 4 5 6 7 pin, Panel mount / Inline docking Aviation Power Connector

SD13 Waterproof Connectors, 1 2 3 4 5 6 7 pin Aviation Power Cable Plug Socket IP68 LED Adapter

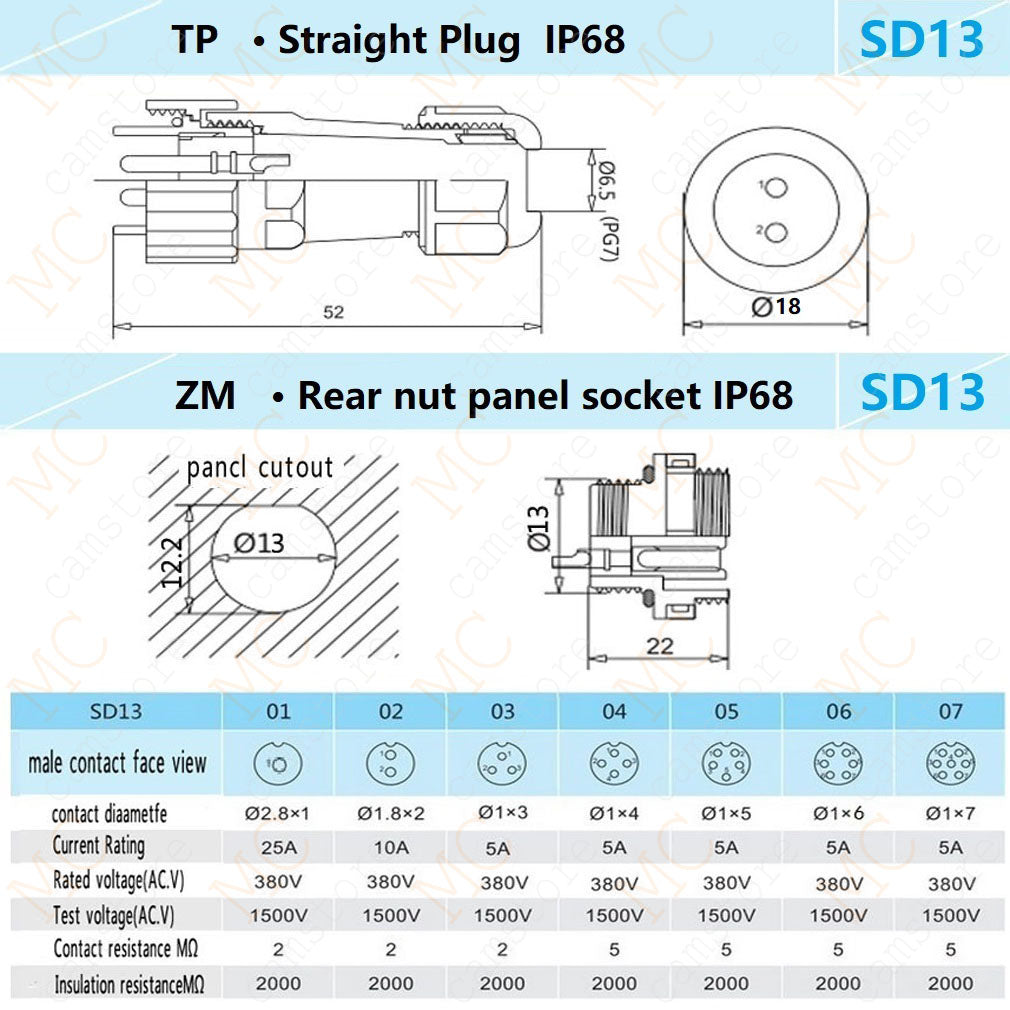

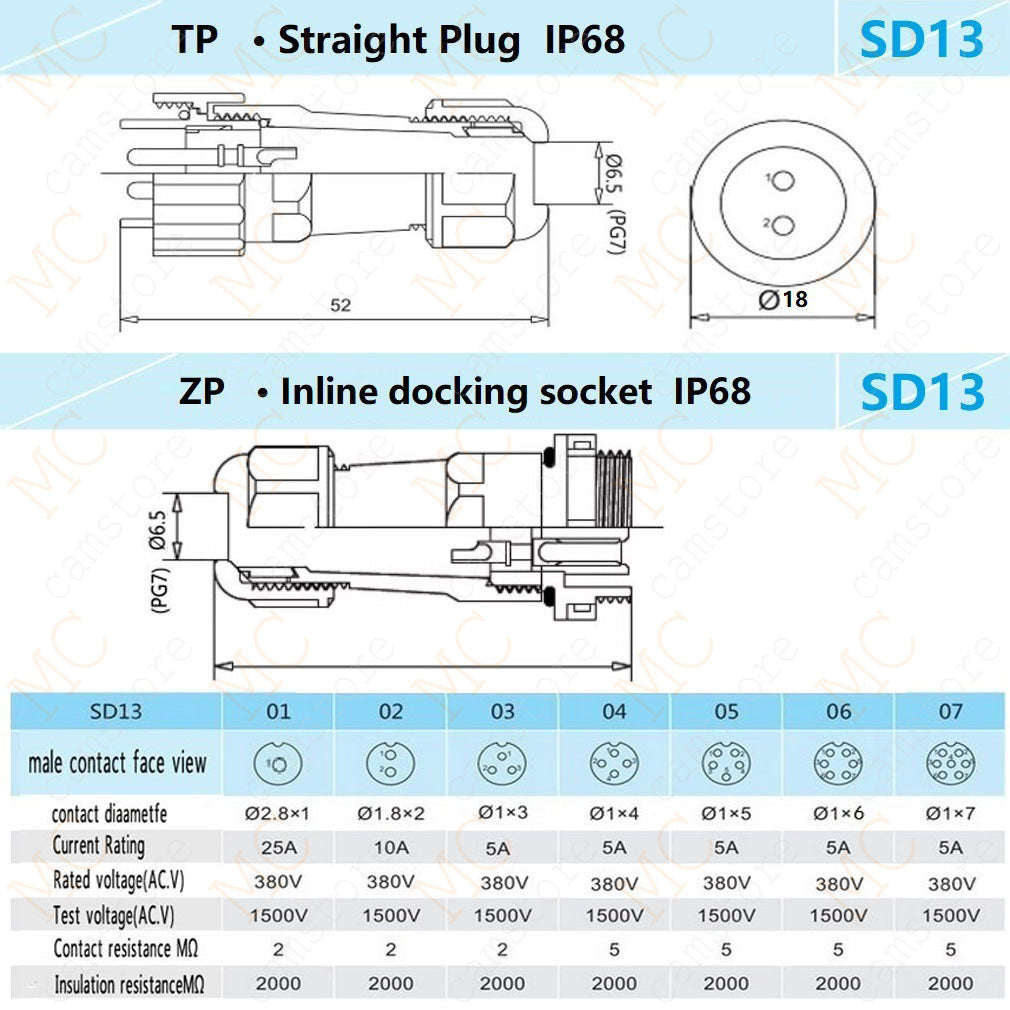

Specifications：
1pin:
Rated Current (A): 25A
Contact diameter × number: Φ2.8x1
Rated voltage (AC.V.): 380V
Withstanding Voltage (AC.V) 1 minute: 1500V
Contact resistance: 2mΩ
Cable specification: <2m㎡/11AWG

2pin:
Rated Current (A): 10A
Contact diameter × number: Φ1.8x2
Rated voltage (AC.V.): 380V
Withstanding Voltage (AC.V) 1 minute: 1500V
Contact resistance: 2mΩ
Cable specification: <1.8m㎡/14AWG

3pin, 4pin, 5pin, 6pin, 7pin:
Rated Current (A): 5A
Contact diameter × number: Φ1.0x4 / Φ1.0x5 / Φ1.0x6 / Φ1.0x7
Rated voltage (AC.V.): 380V
Withstanding Voltage (AC.V) 1 minute: 1500V
Contact resistance: 5mΩ
Cable specification: <0.785m㎡/18AWG

Coupling: Threaded Coupling
Shell Material: Nylon 66, fire resistance: V0
Insert Material: PPS man temperature 260°
Contact material: Brass (gold-plated)
Termination: solder
Cable outer diameter range：φ4-6.5mm
Protection level: IP68
Durability: ≥500 times
Working temperature: -25℃～+85℃
Insulation resistance: 2000MΩ

What's in the package:

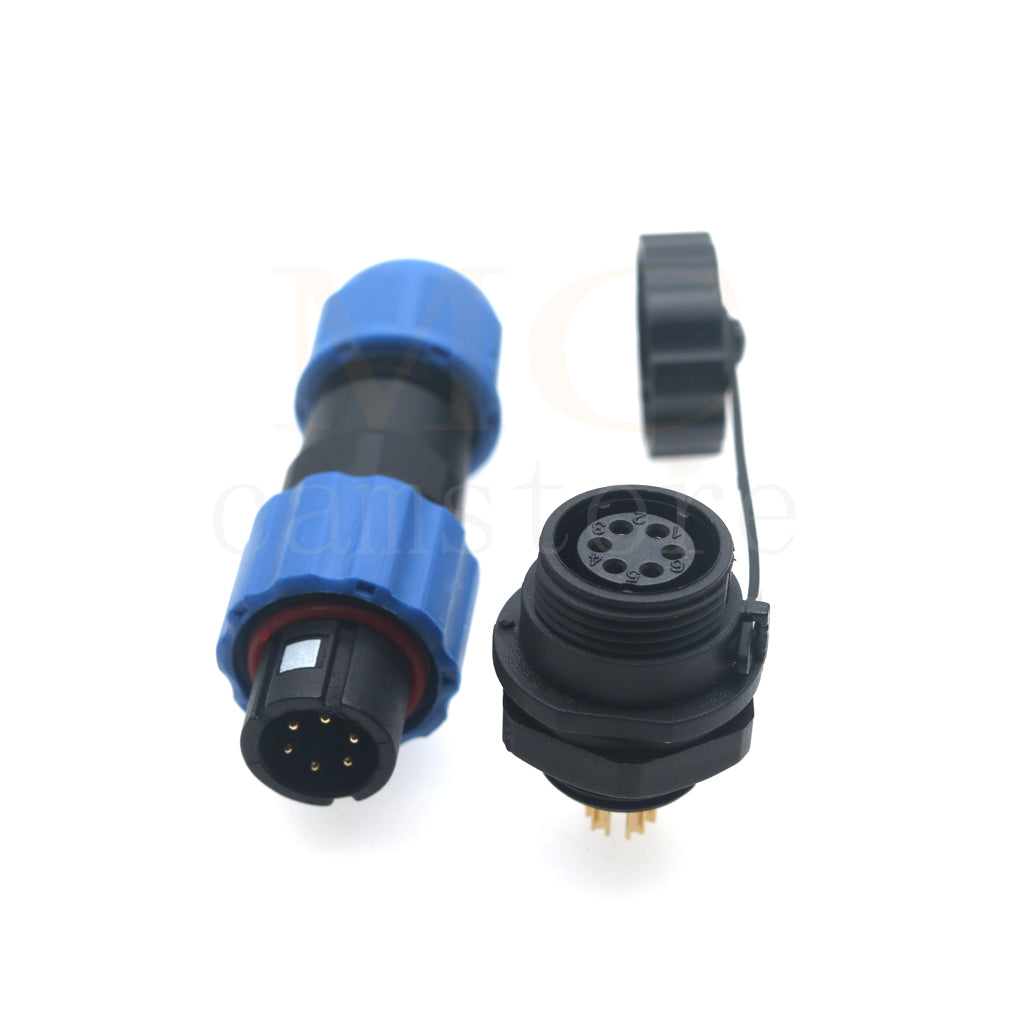

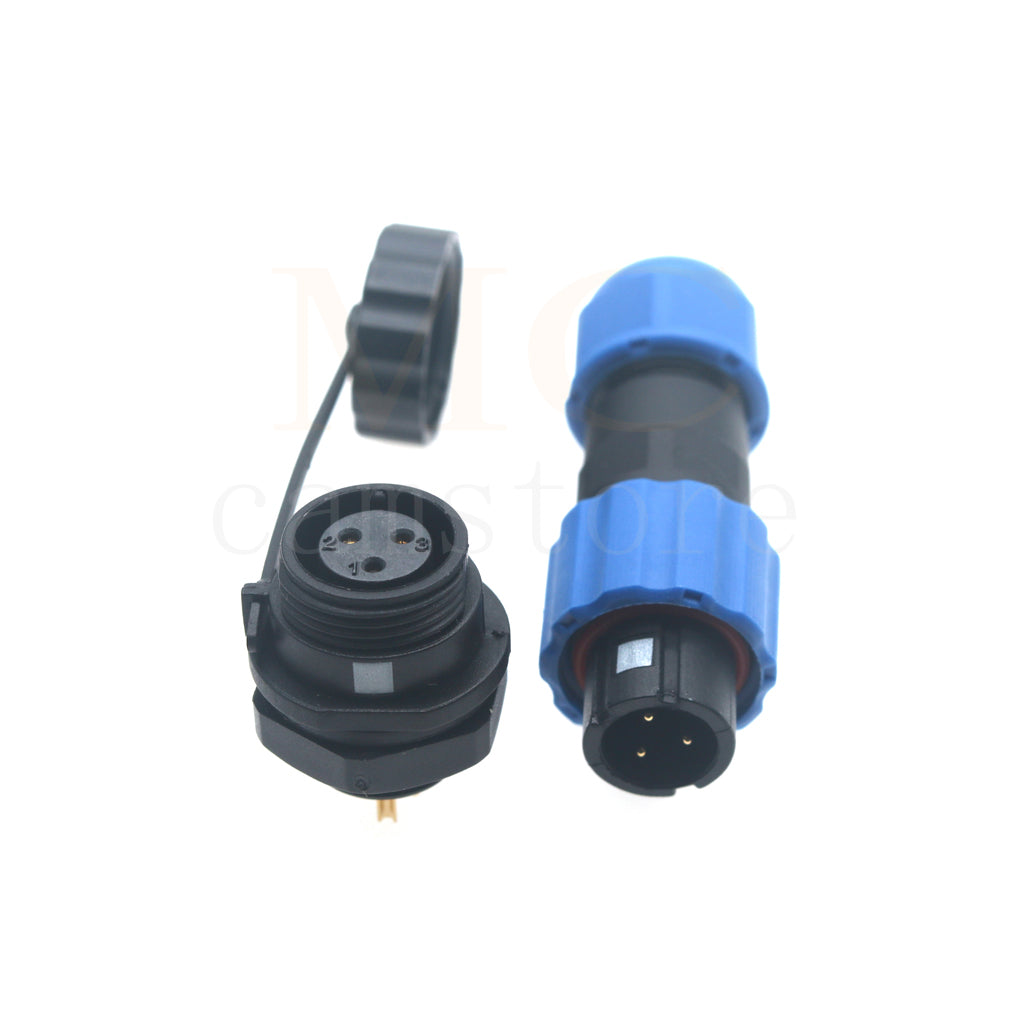

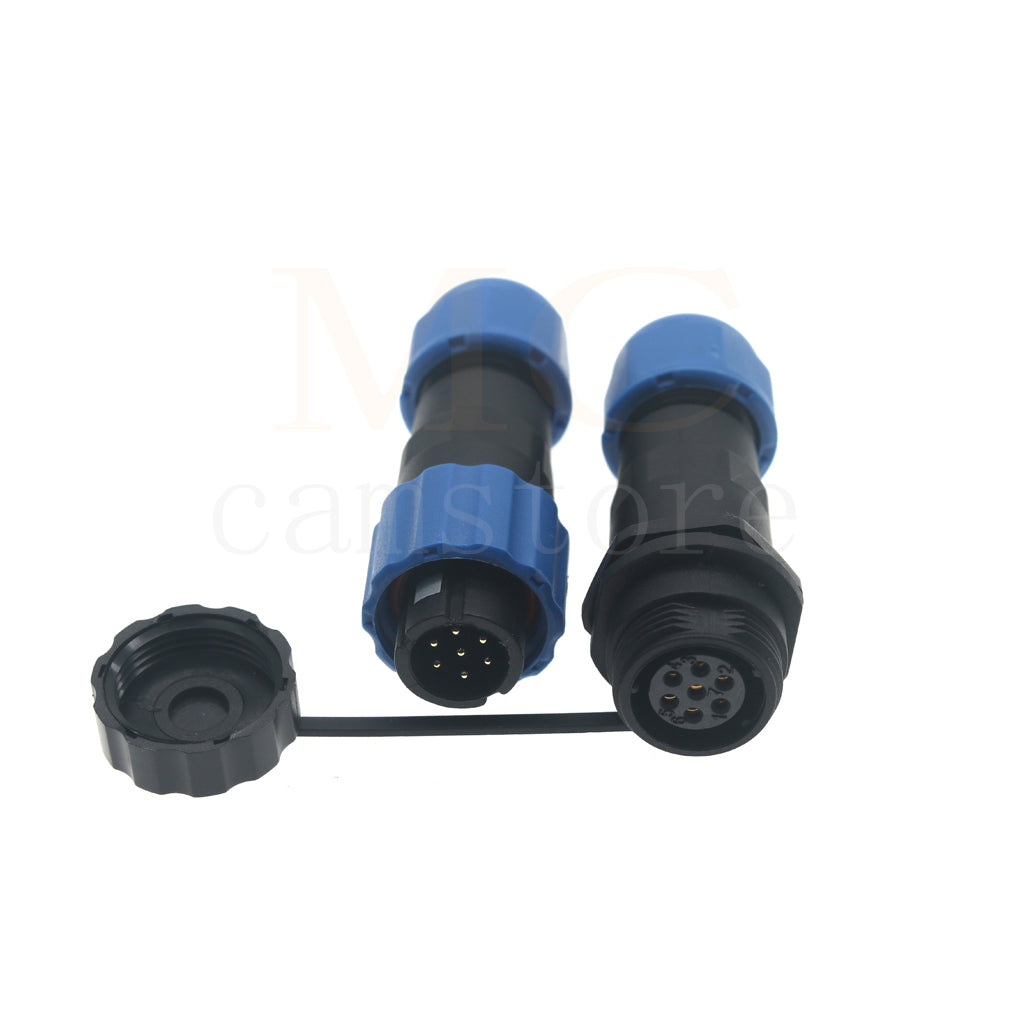

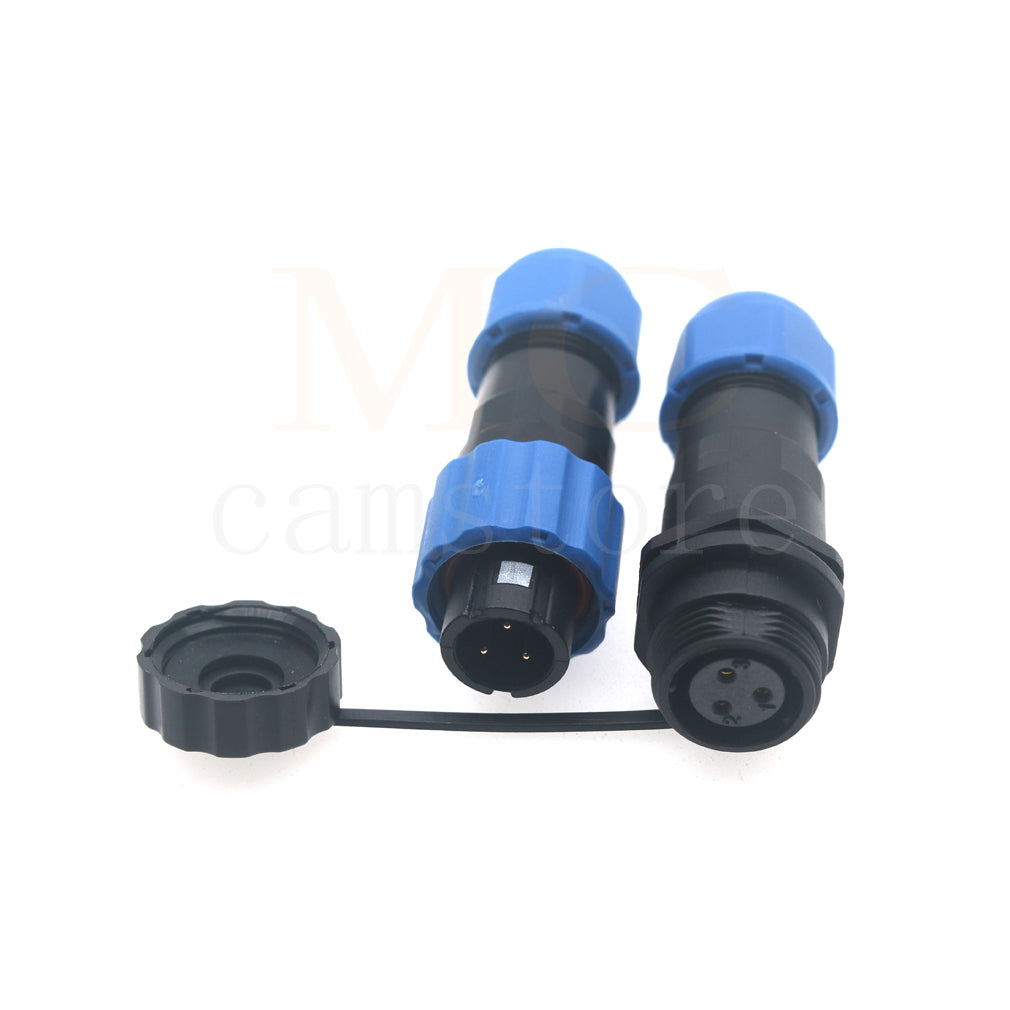

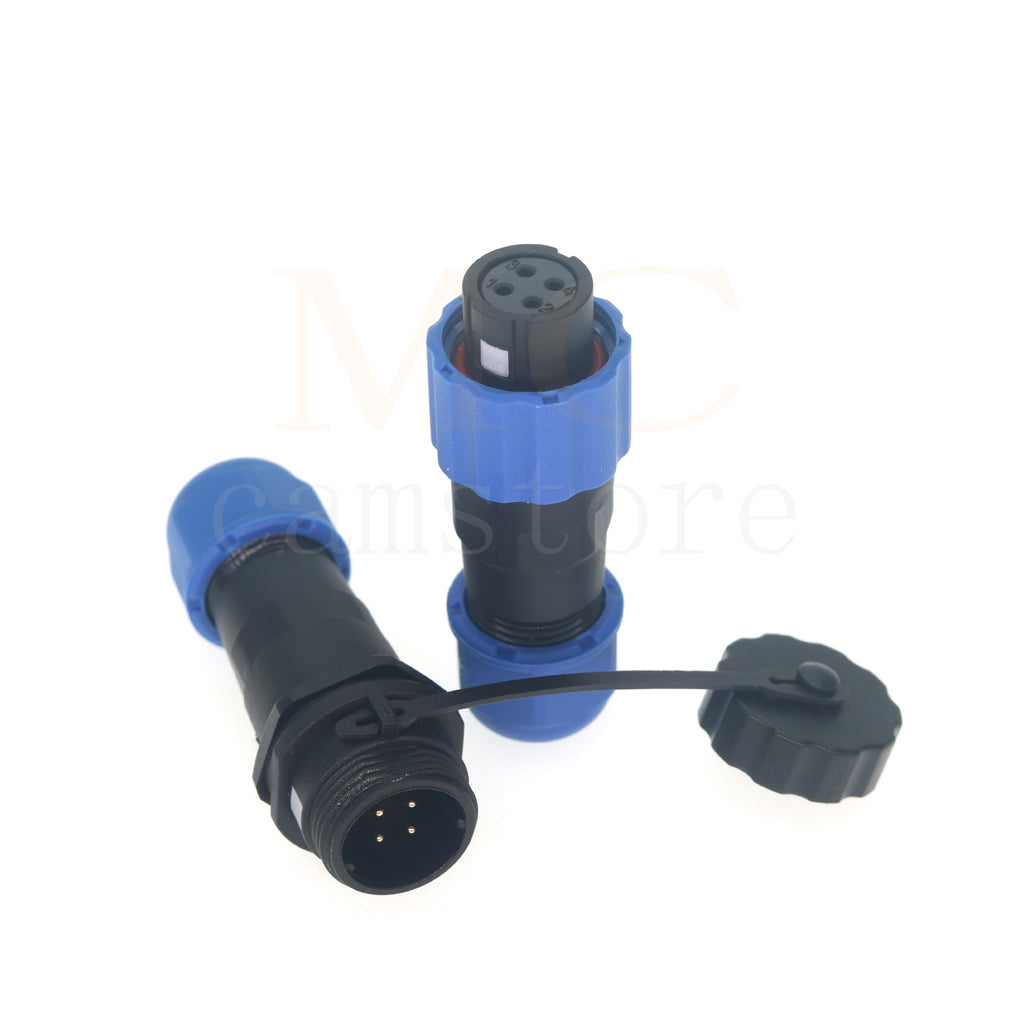

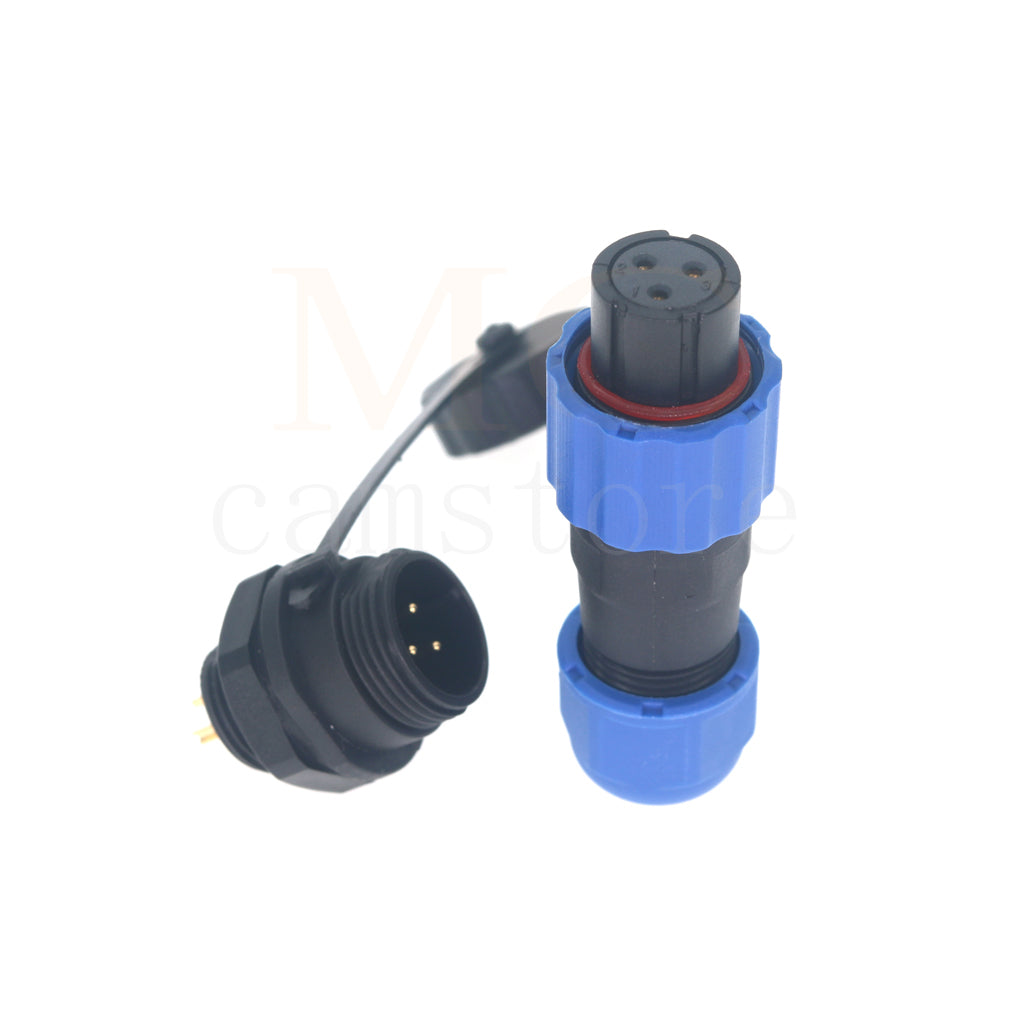

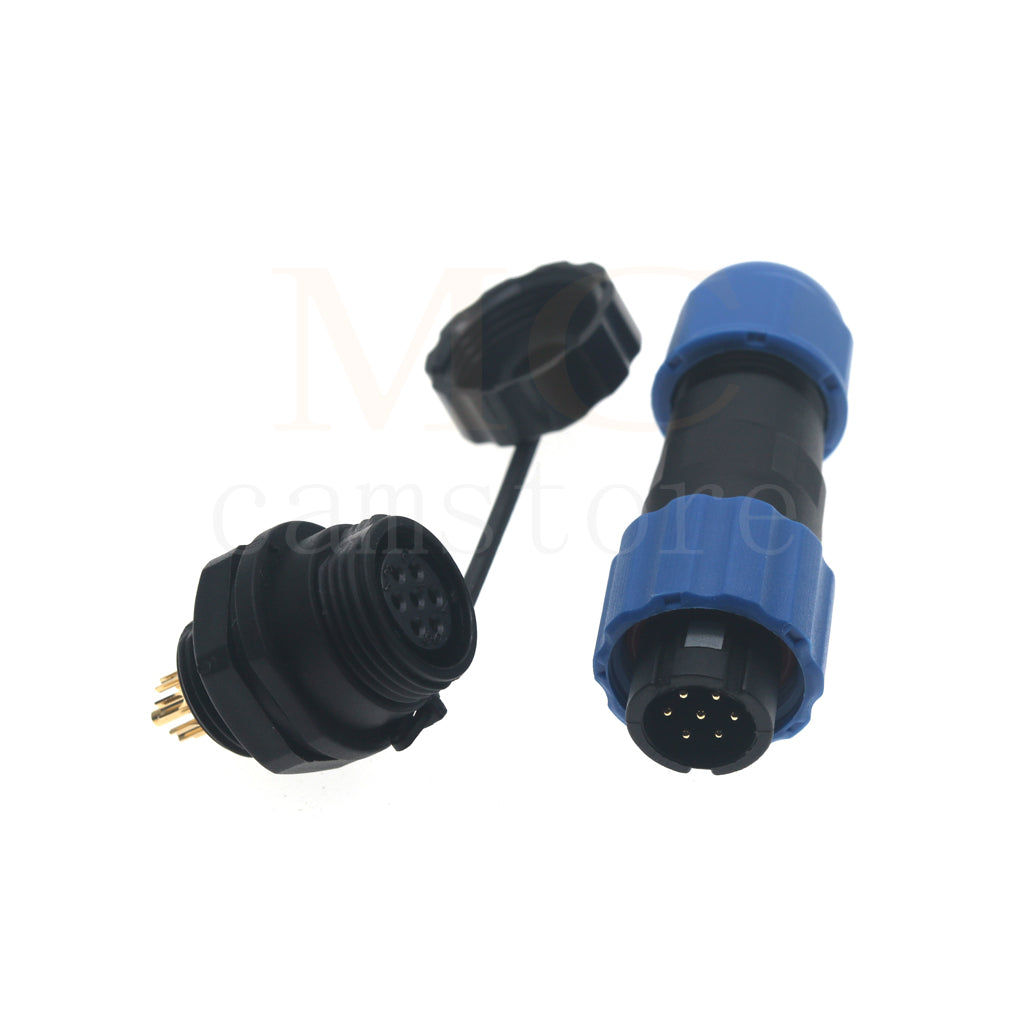

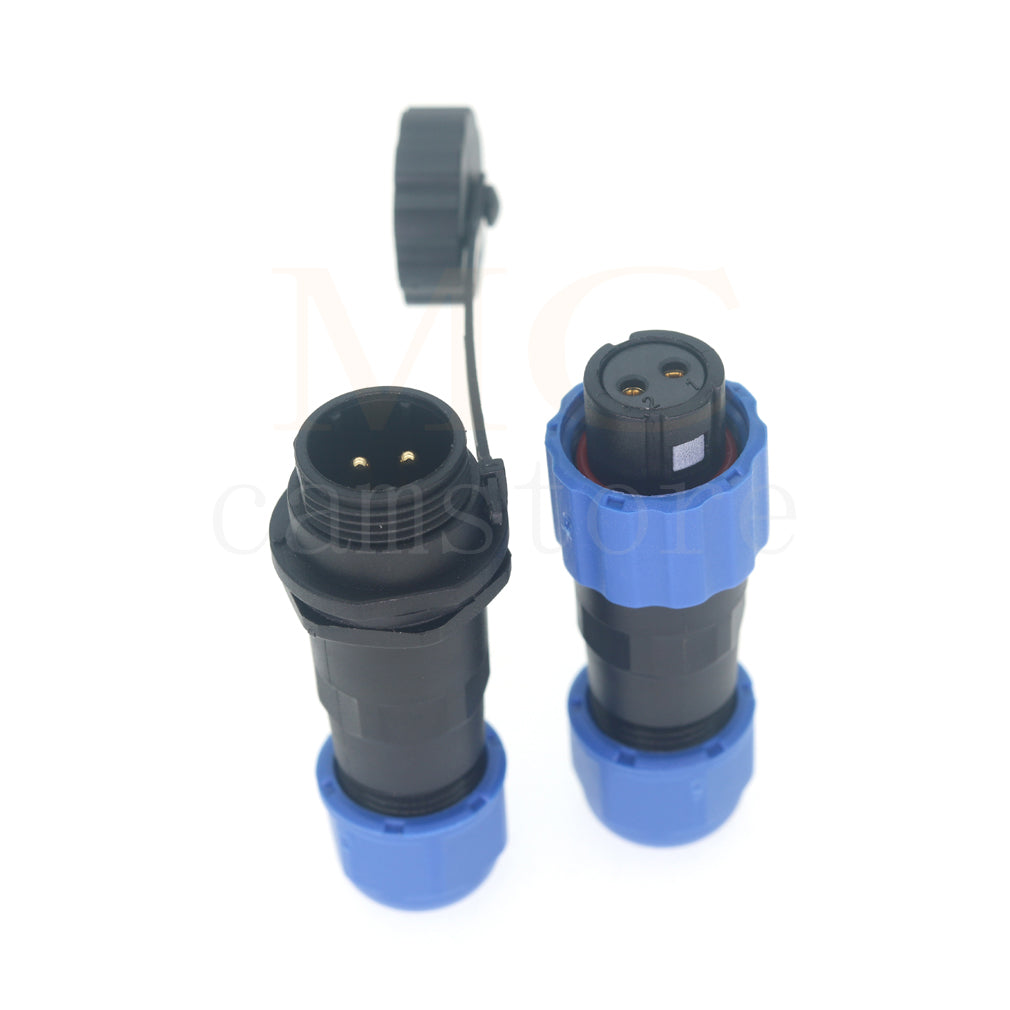

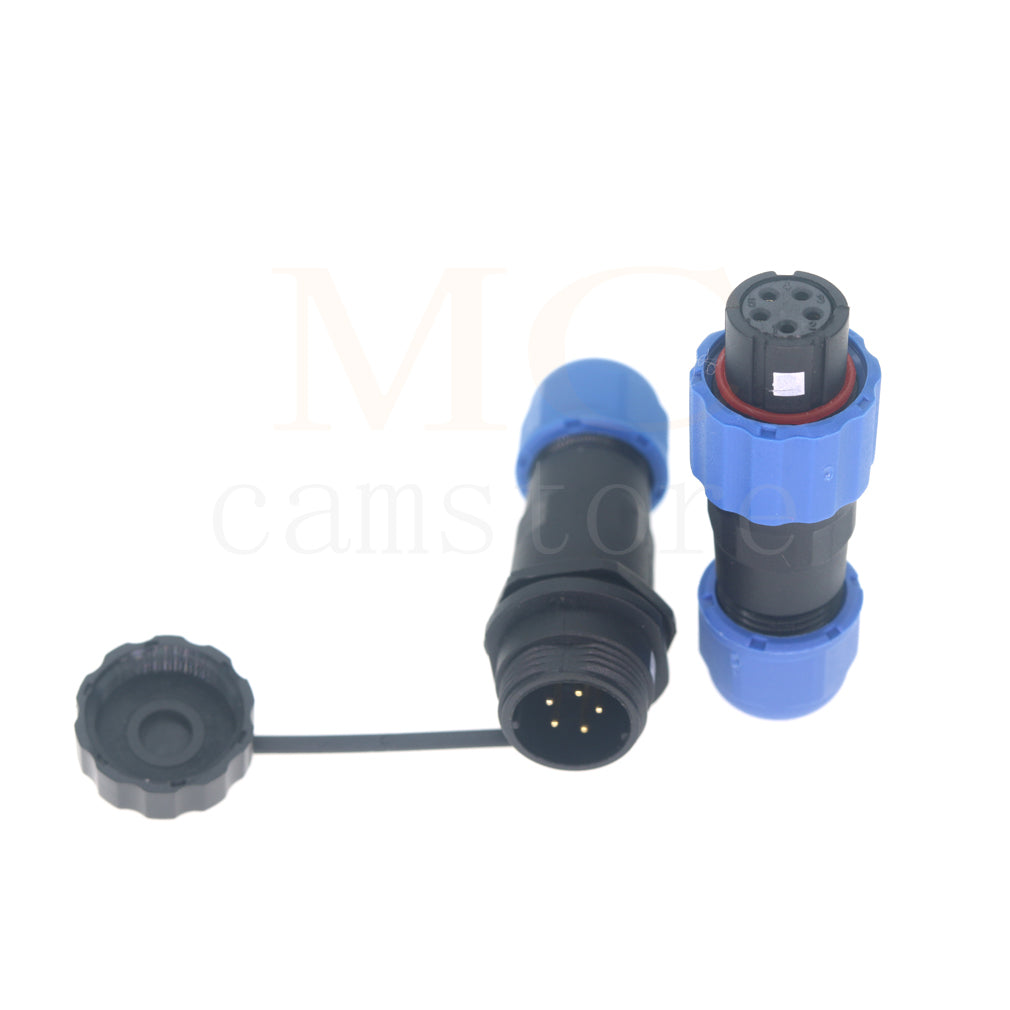

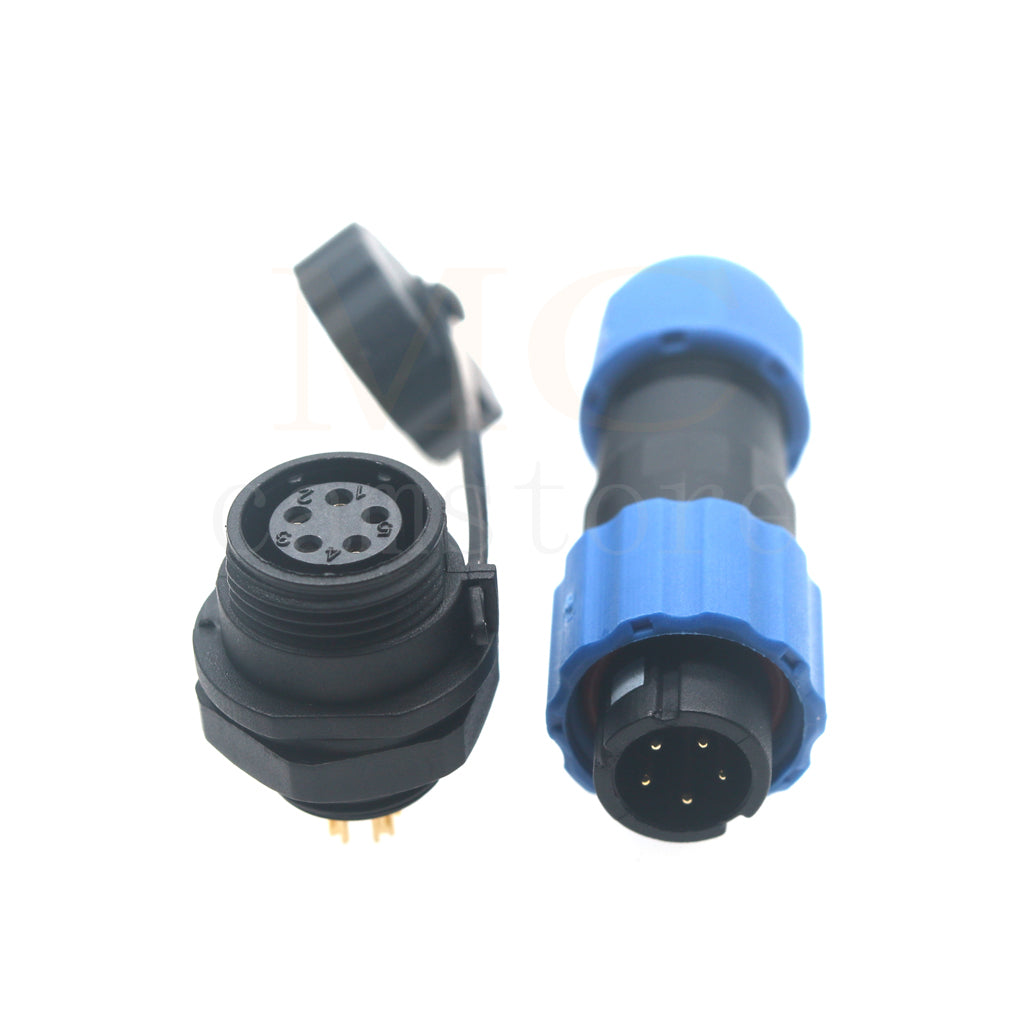

1  plug +1 socket with cap
