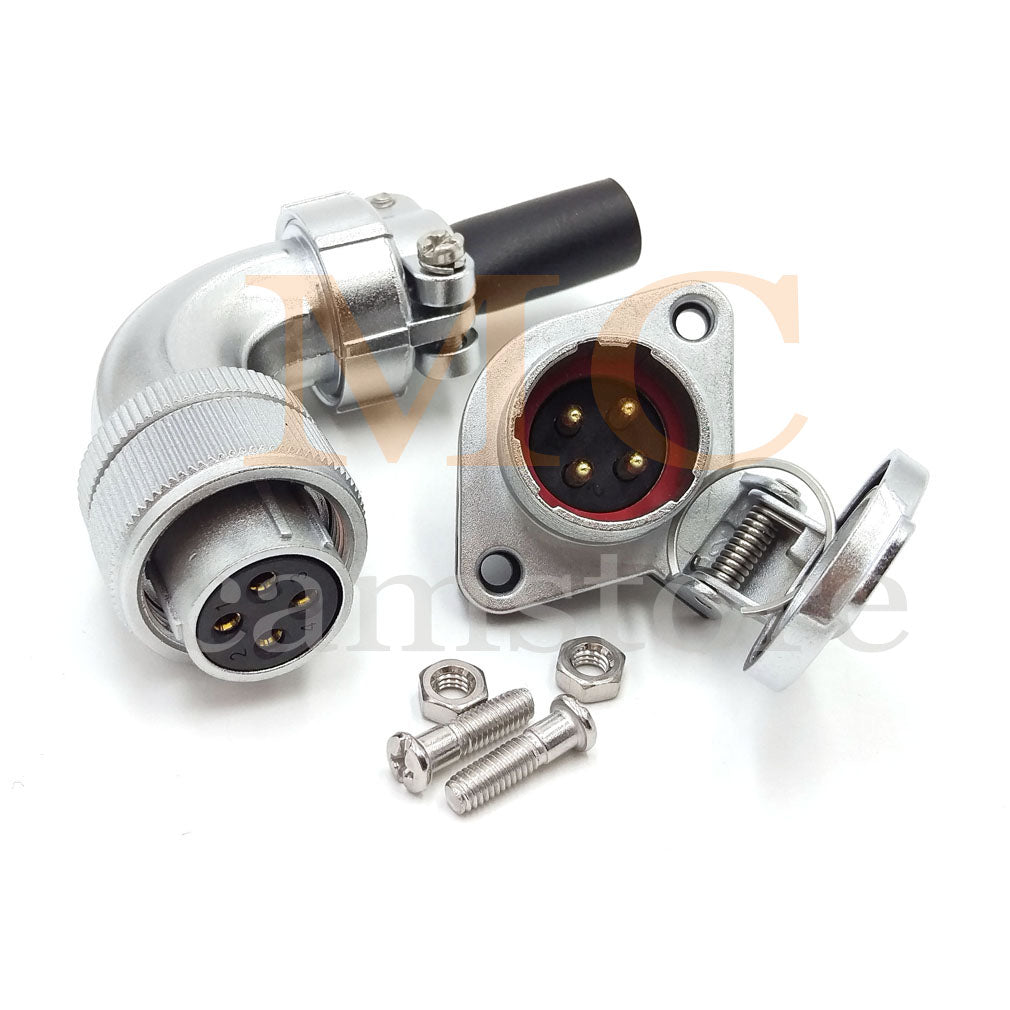

Weipu WS20 series 2 3 4 5 6 7 9 12 15 pin Circular Connector, High Voltage Power Cord Aviation Plug Socket

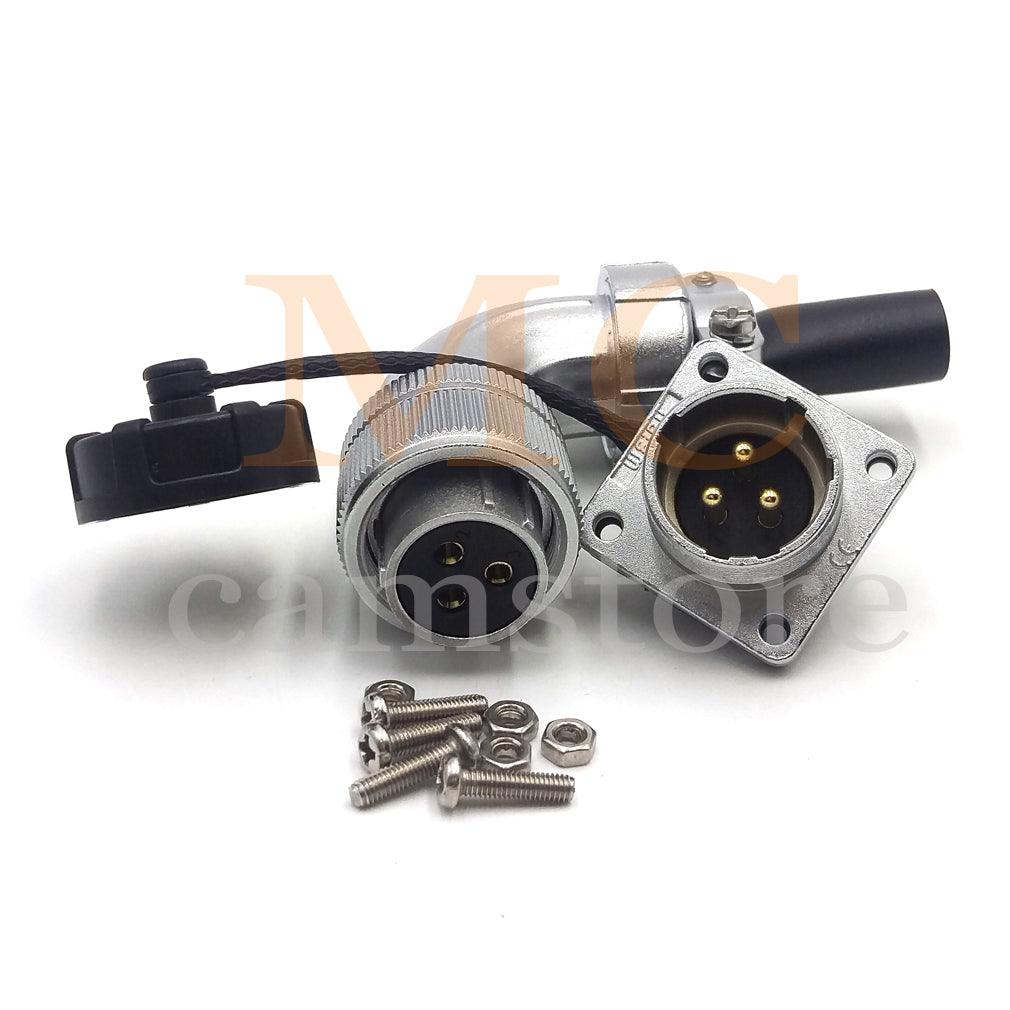

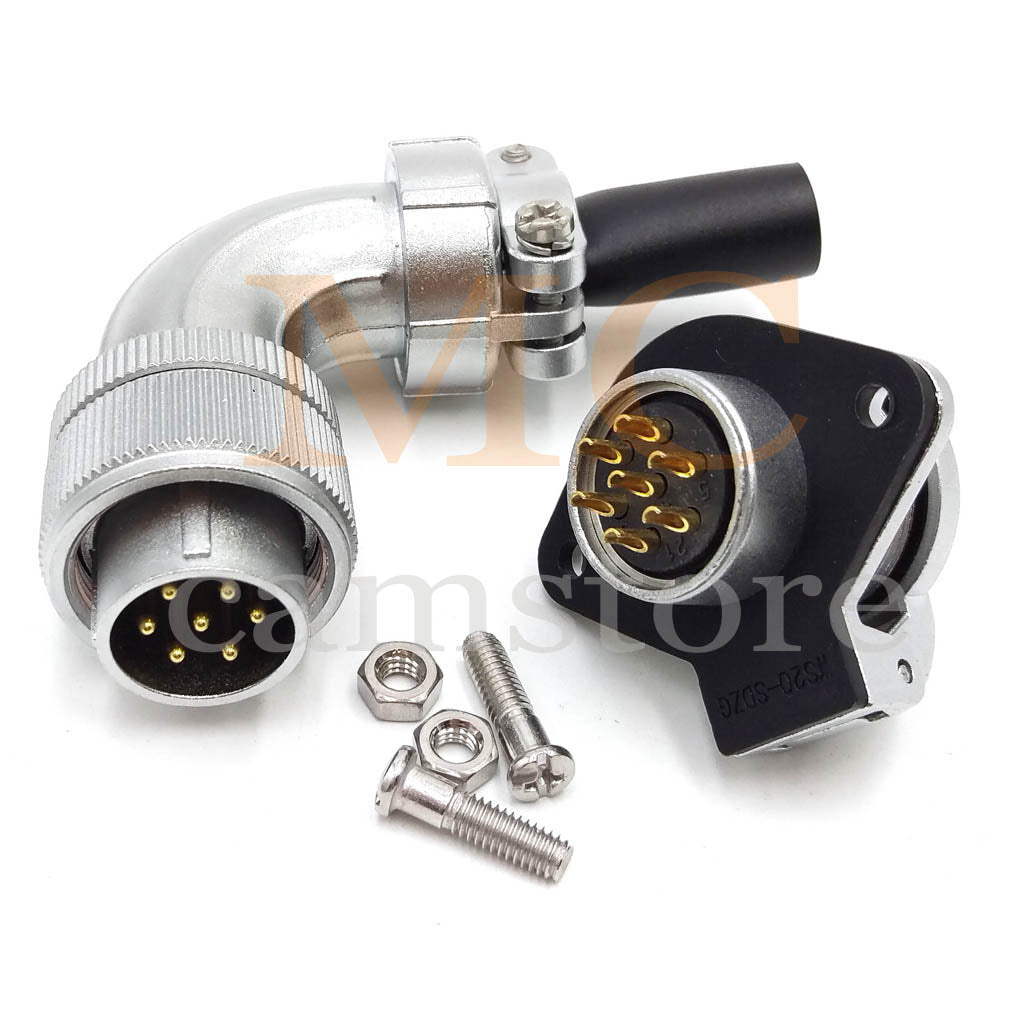

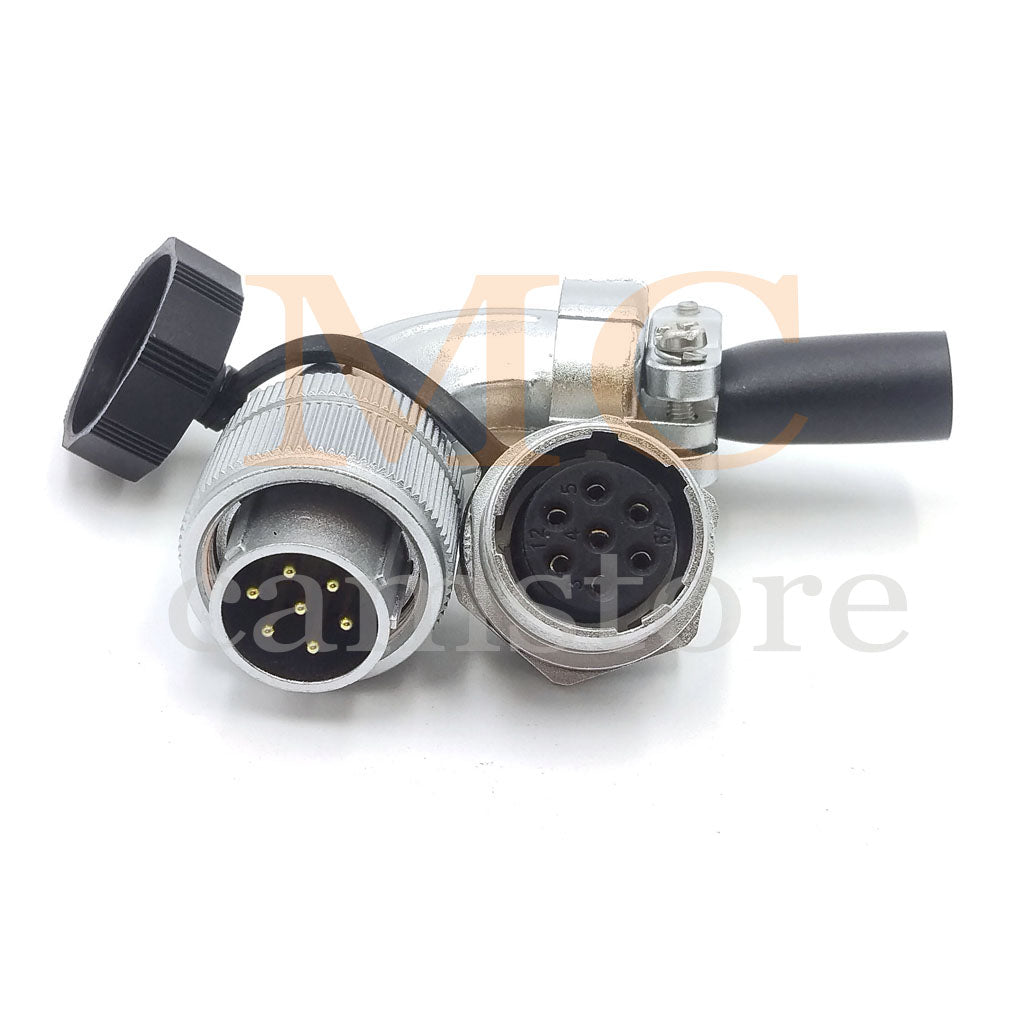

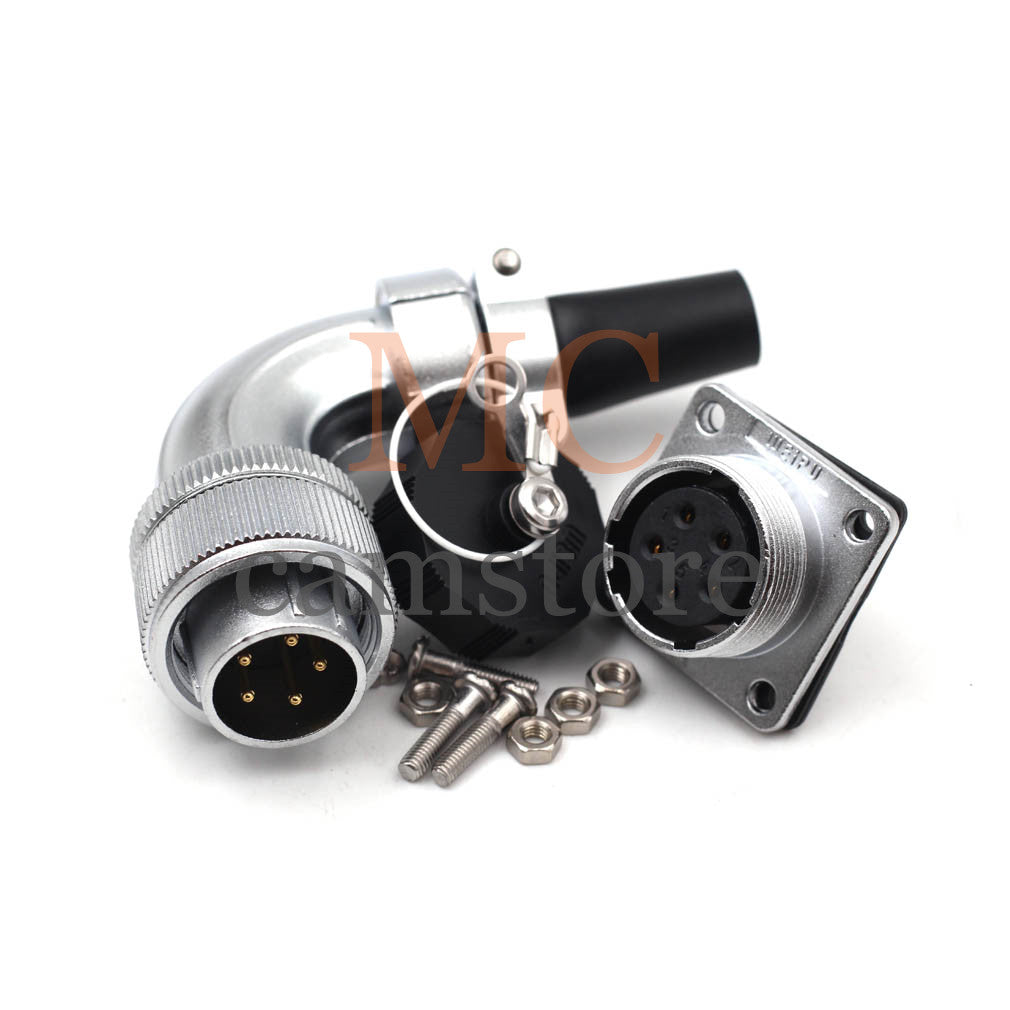

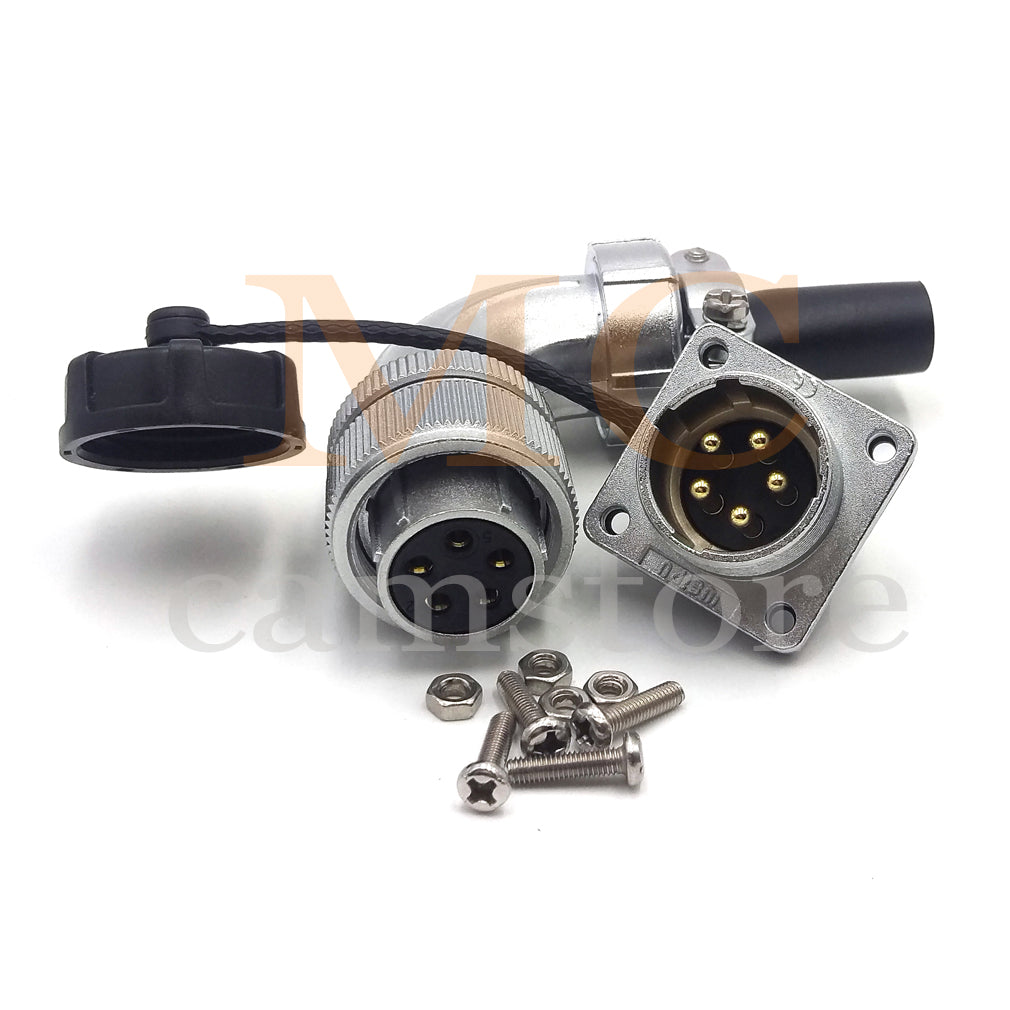

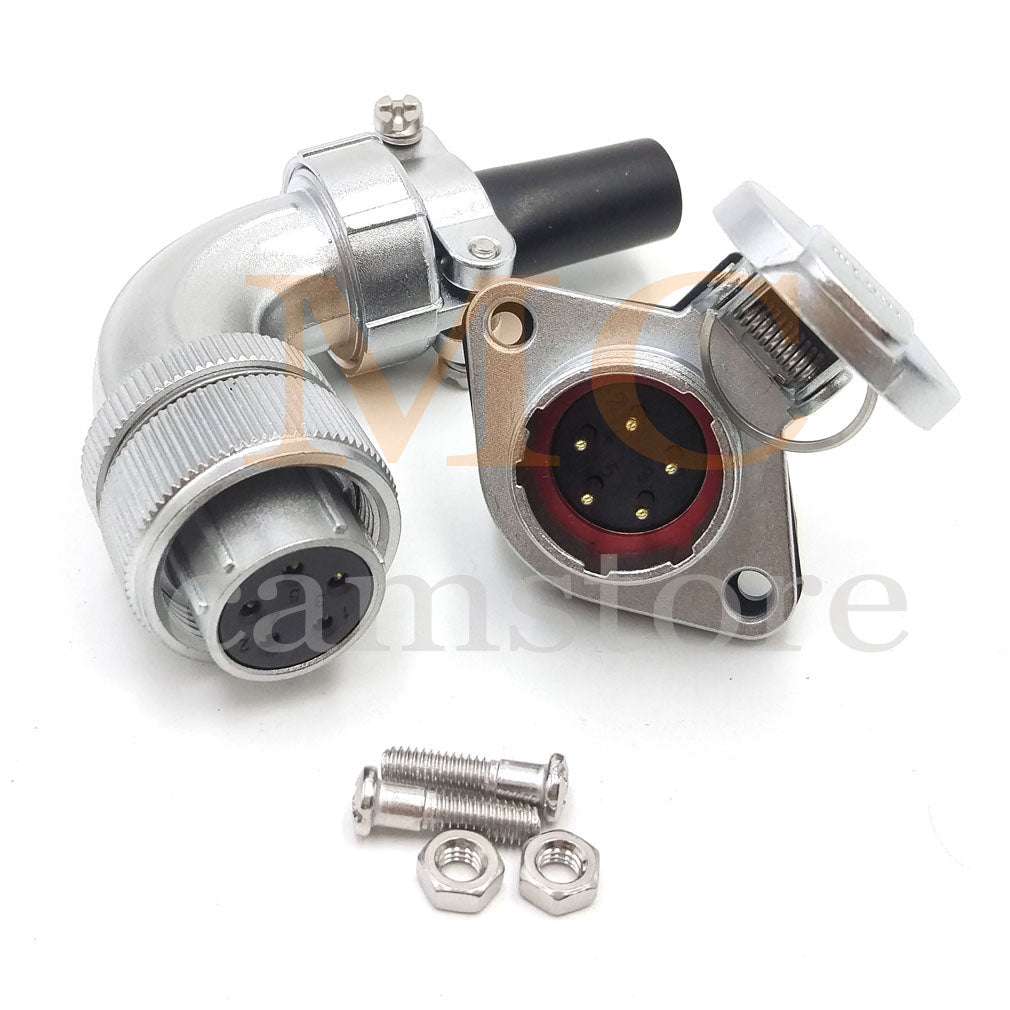

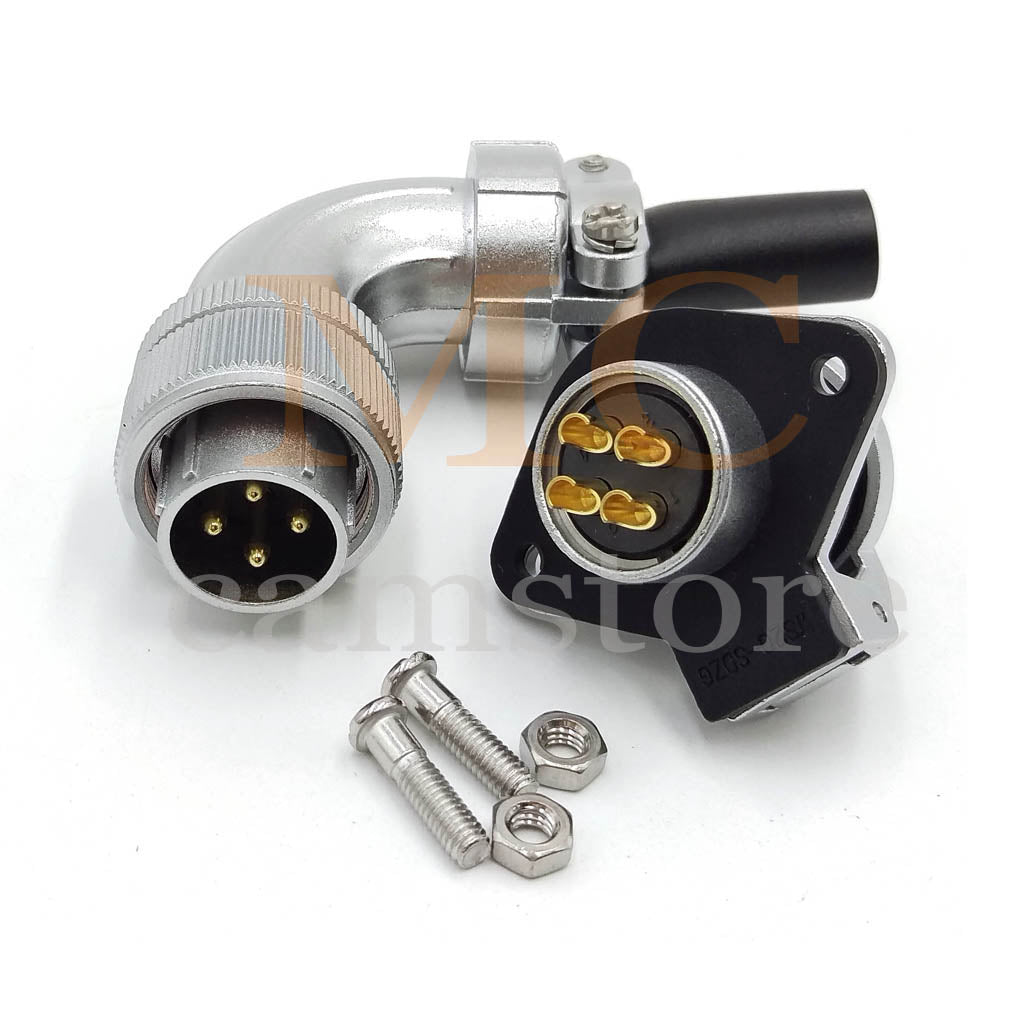

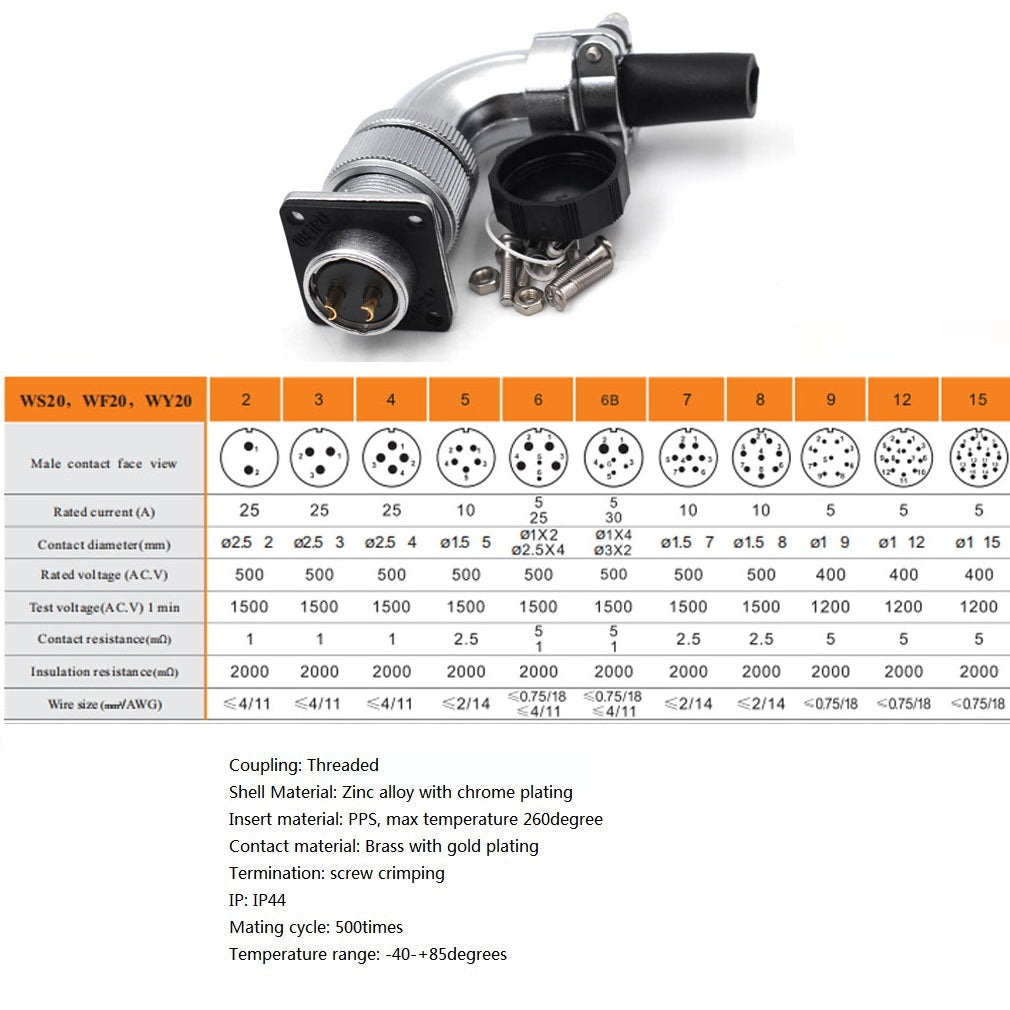

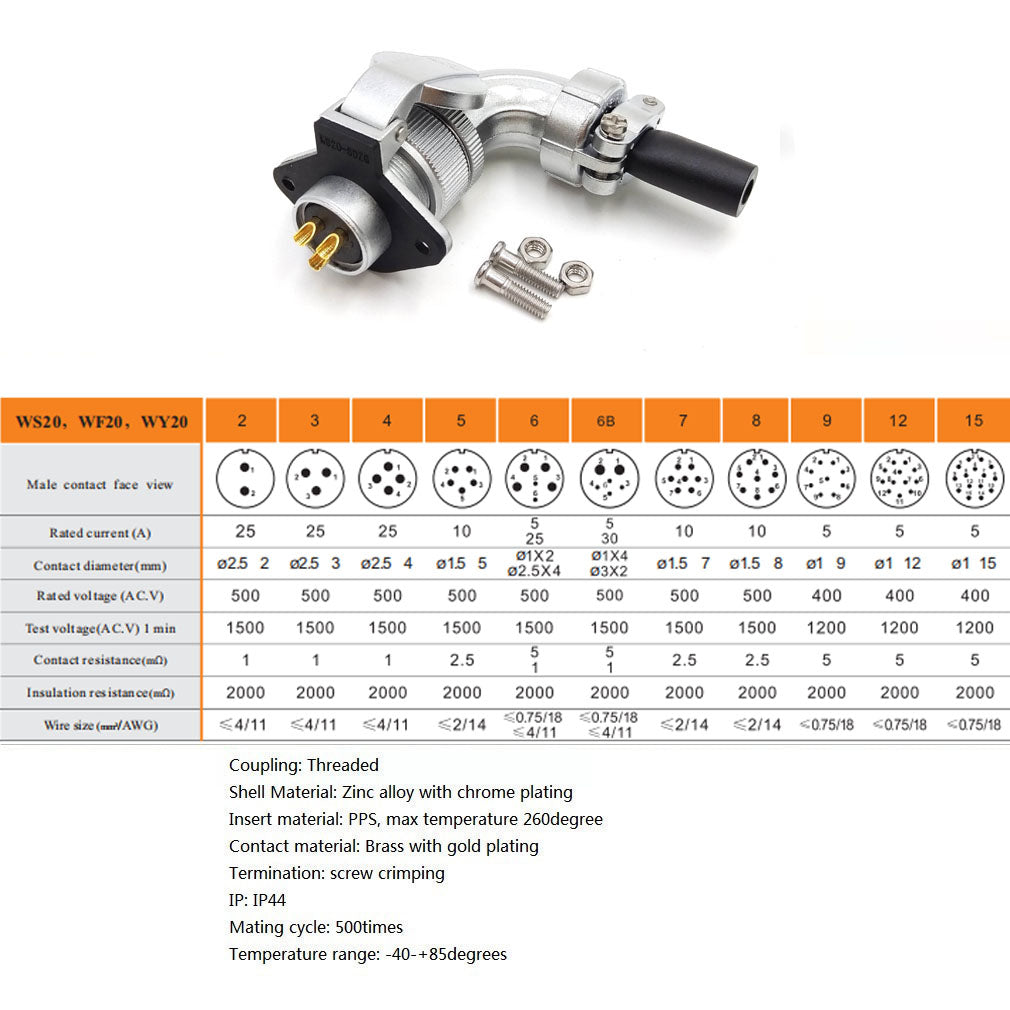

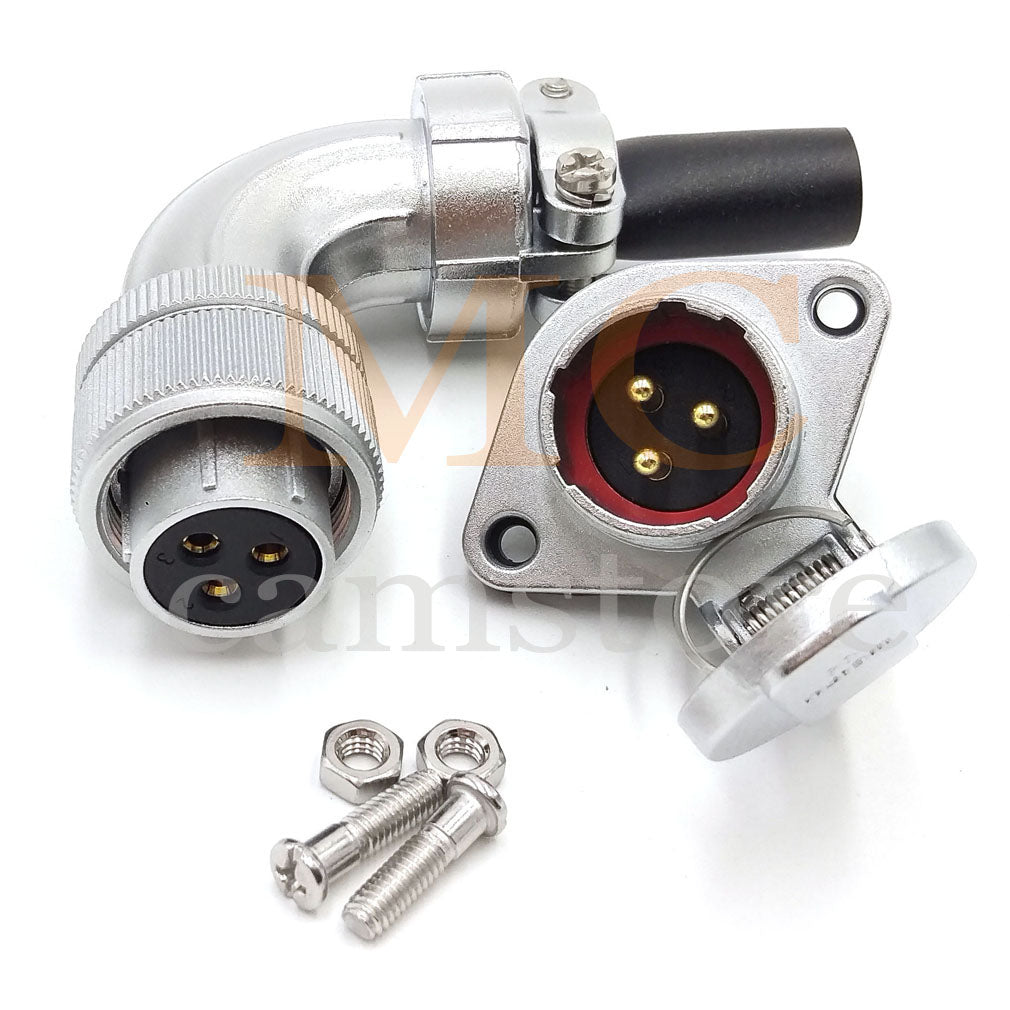

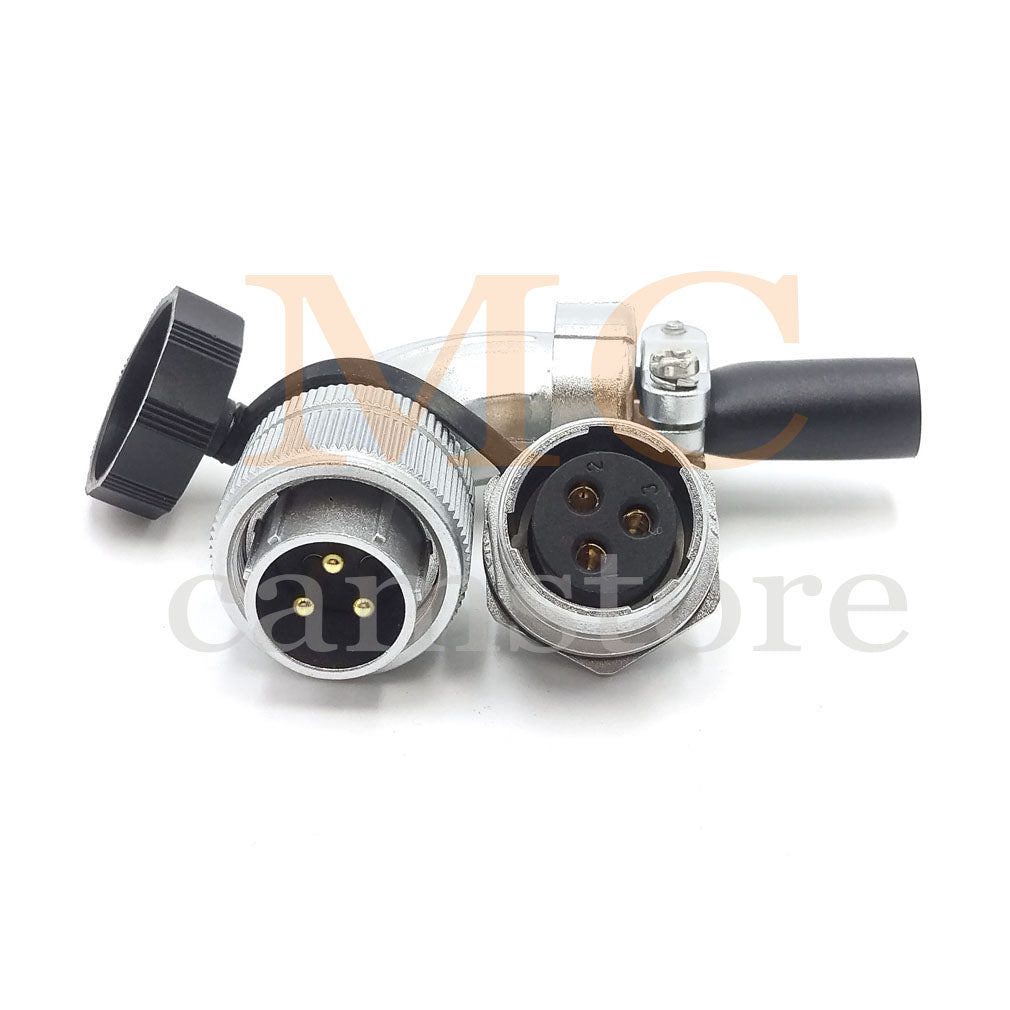

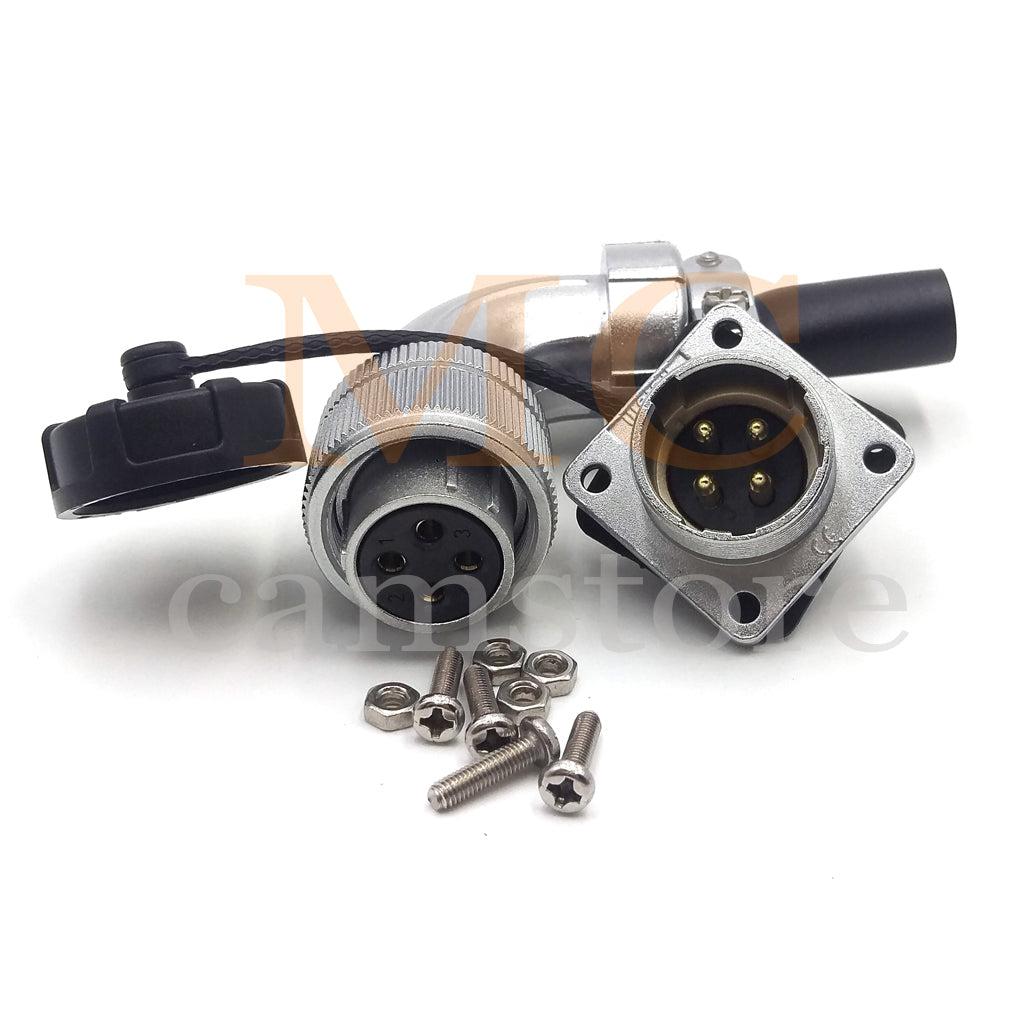

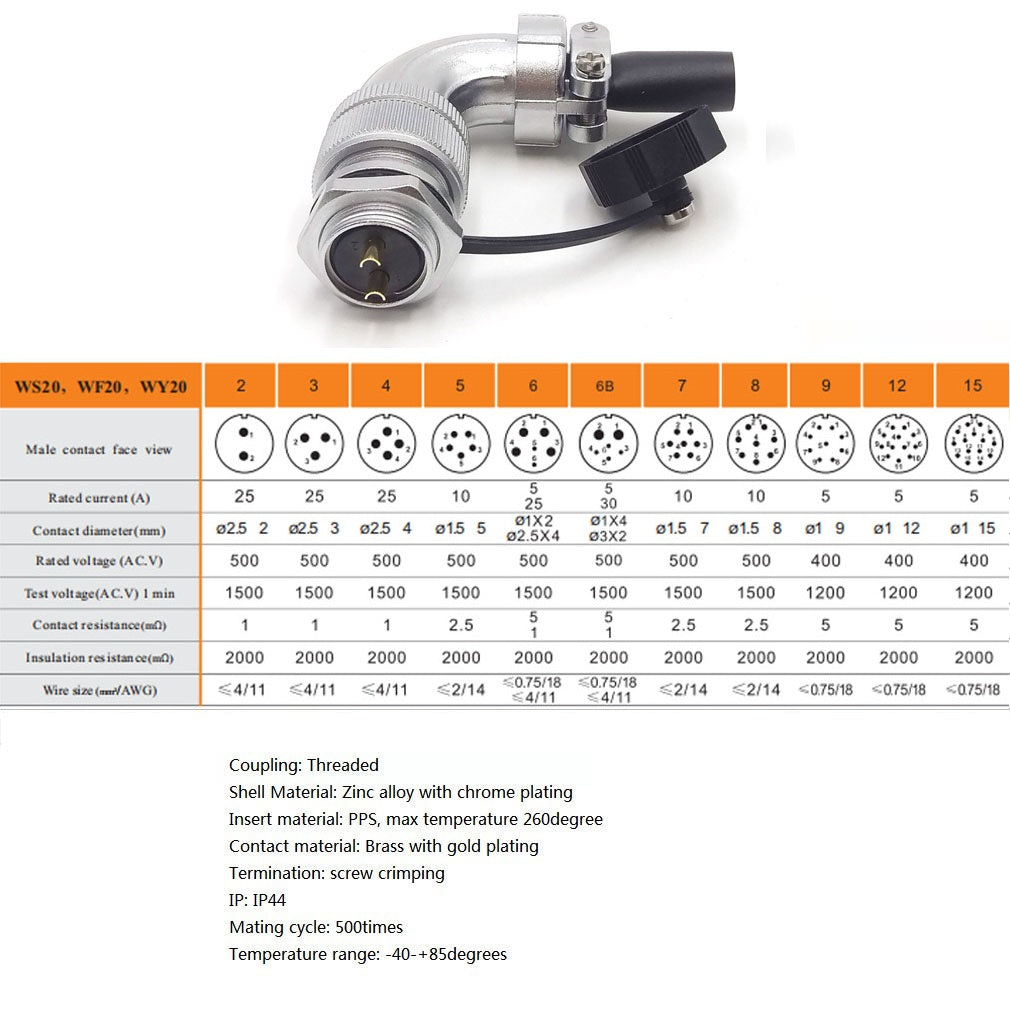

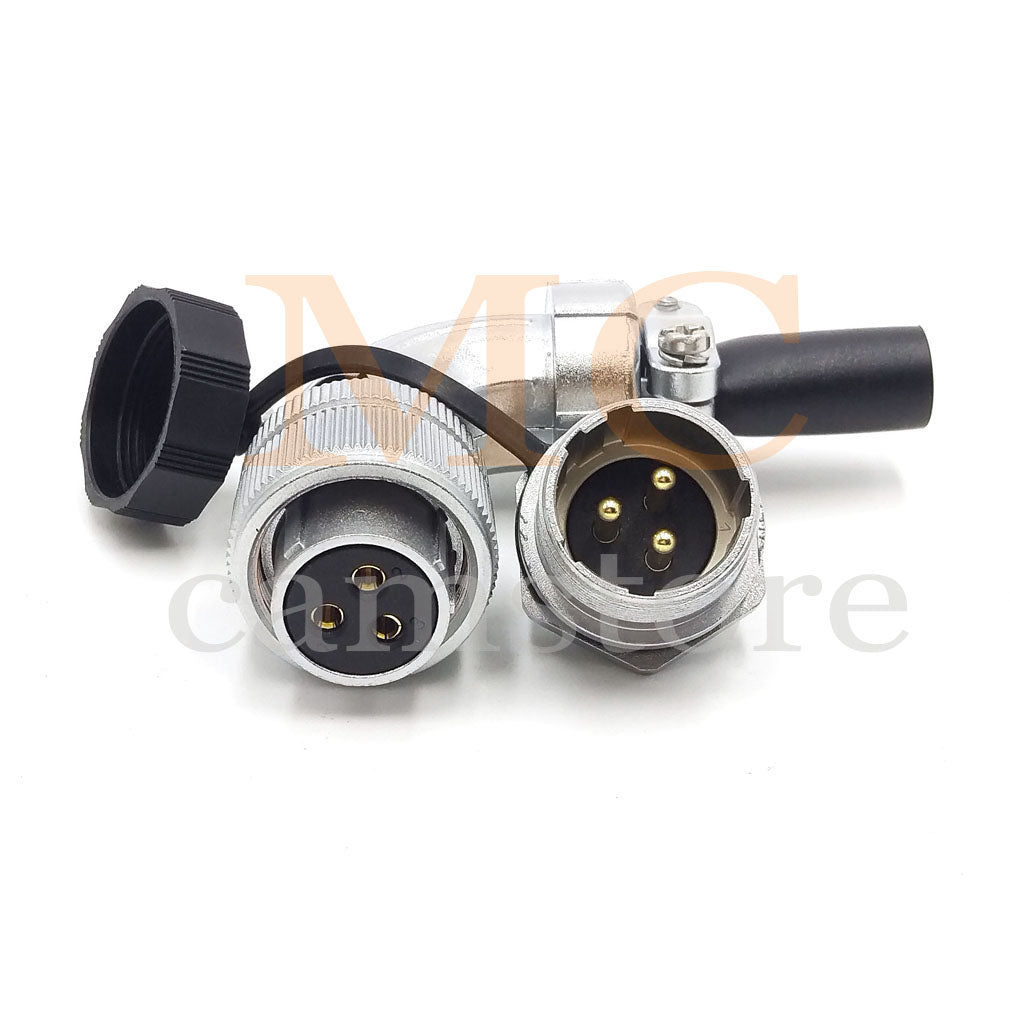

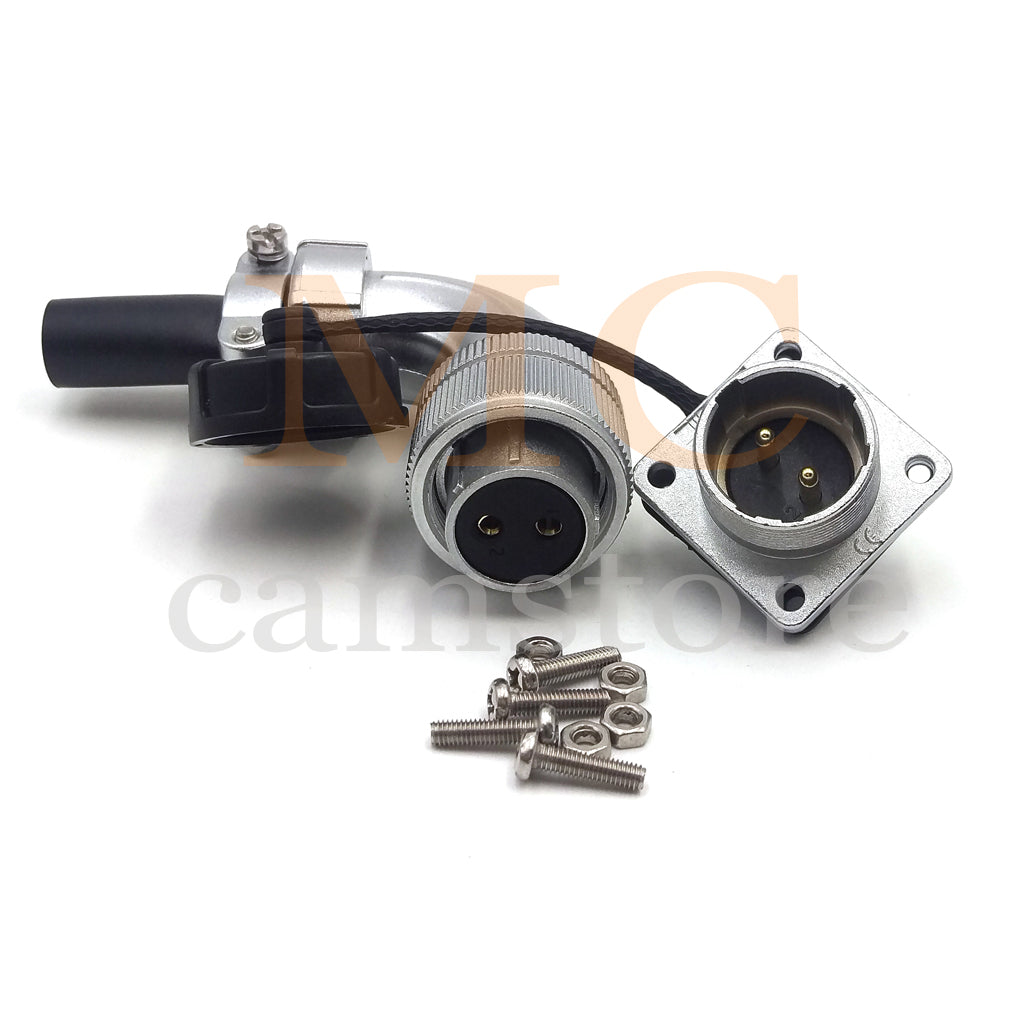

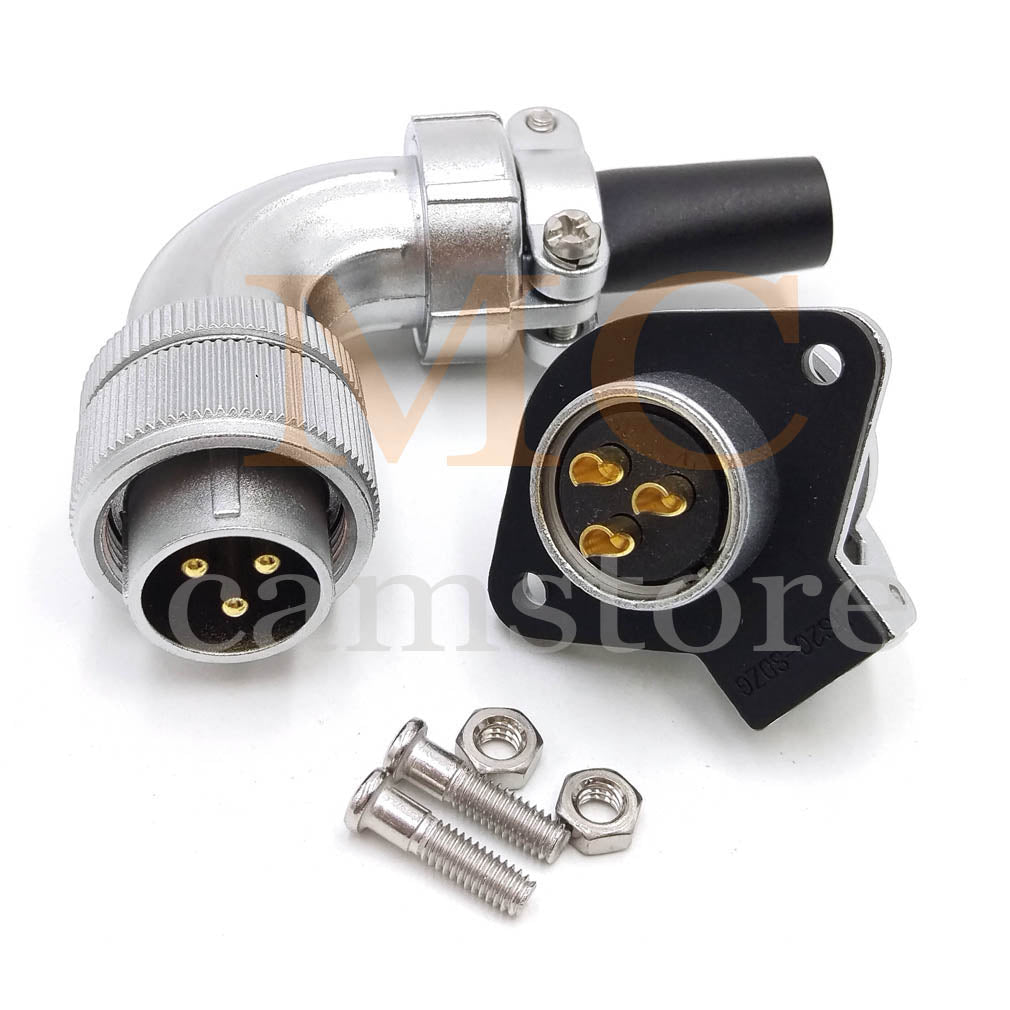

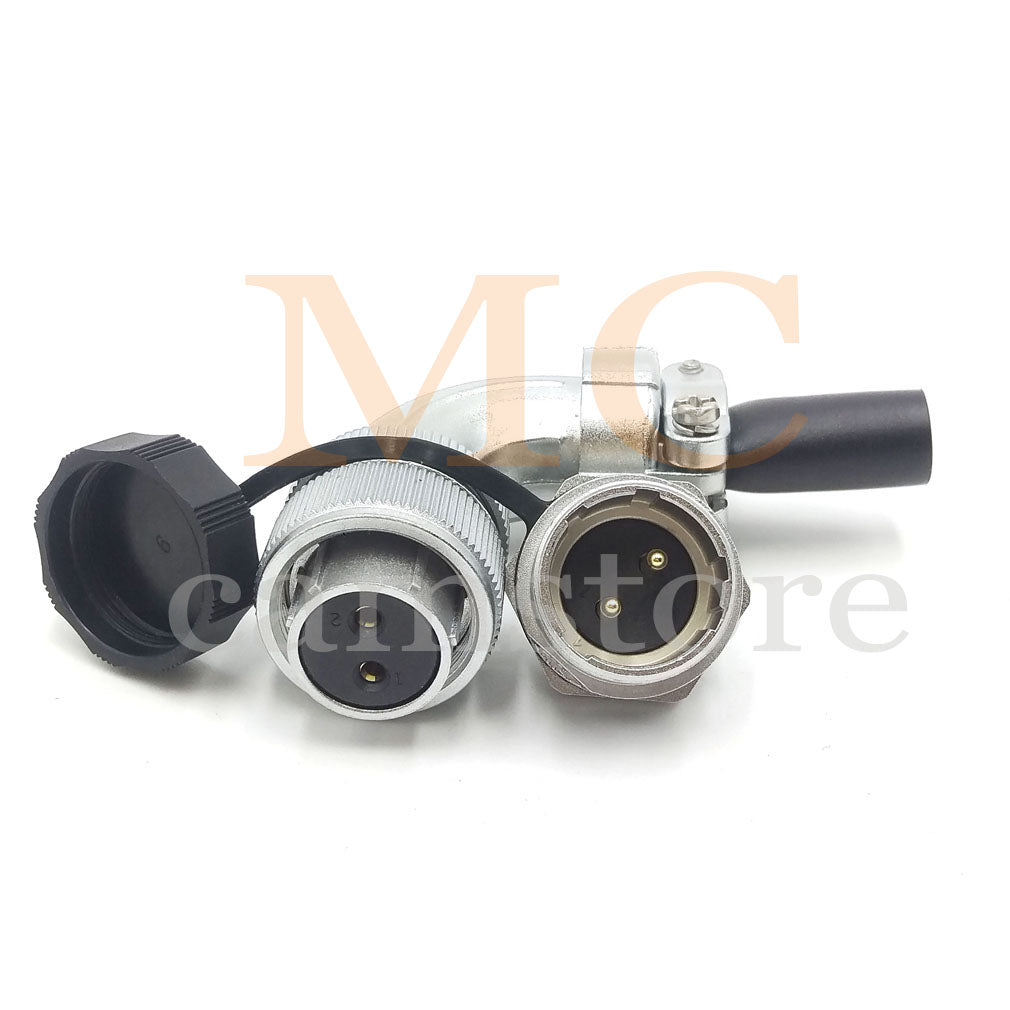

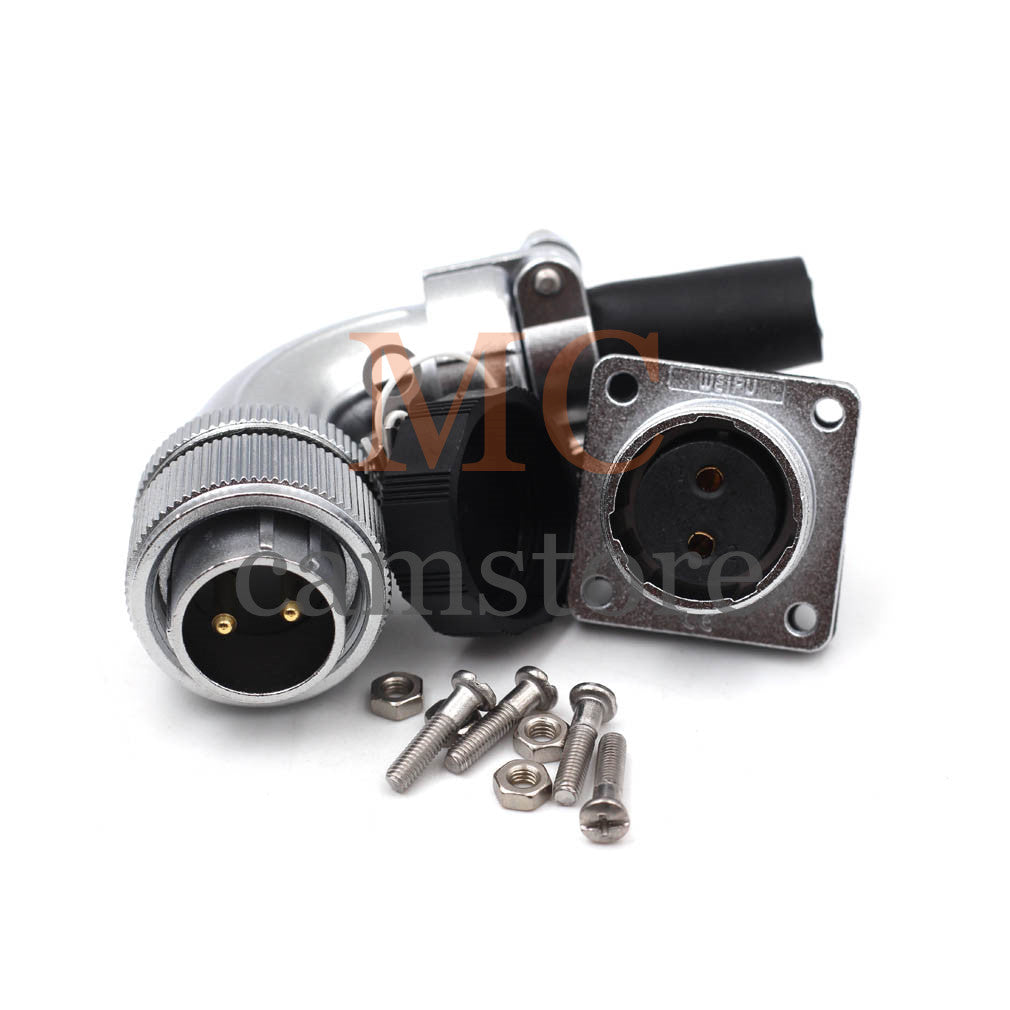

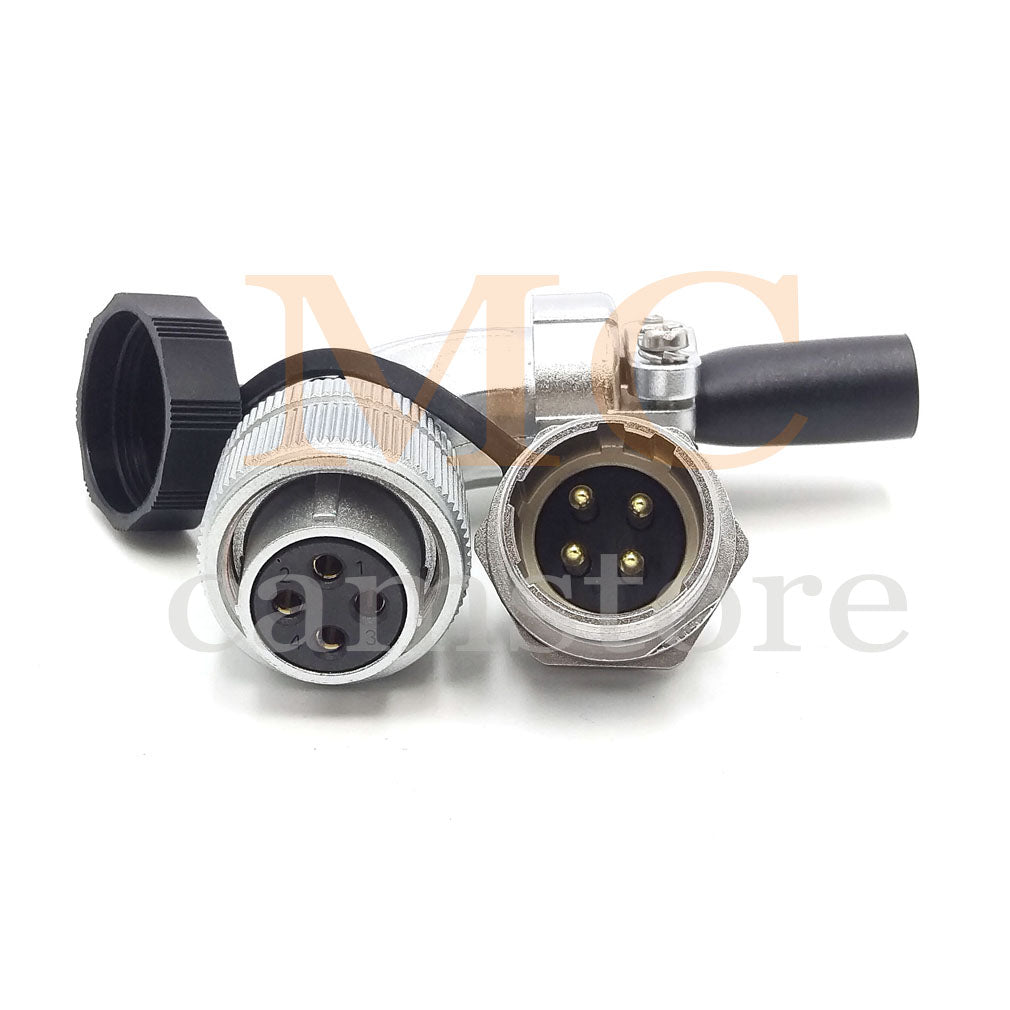

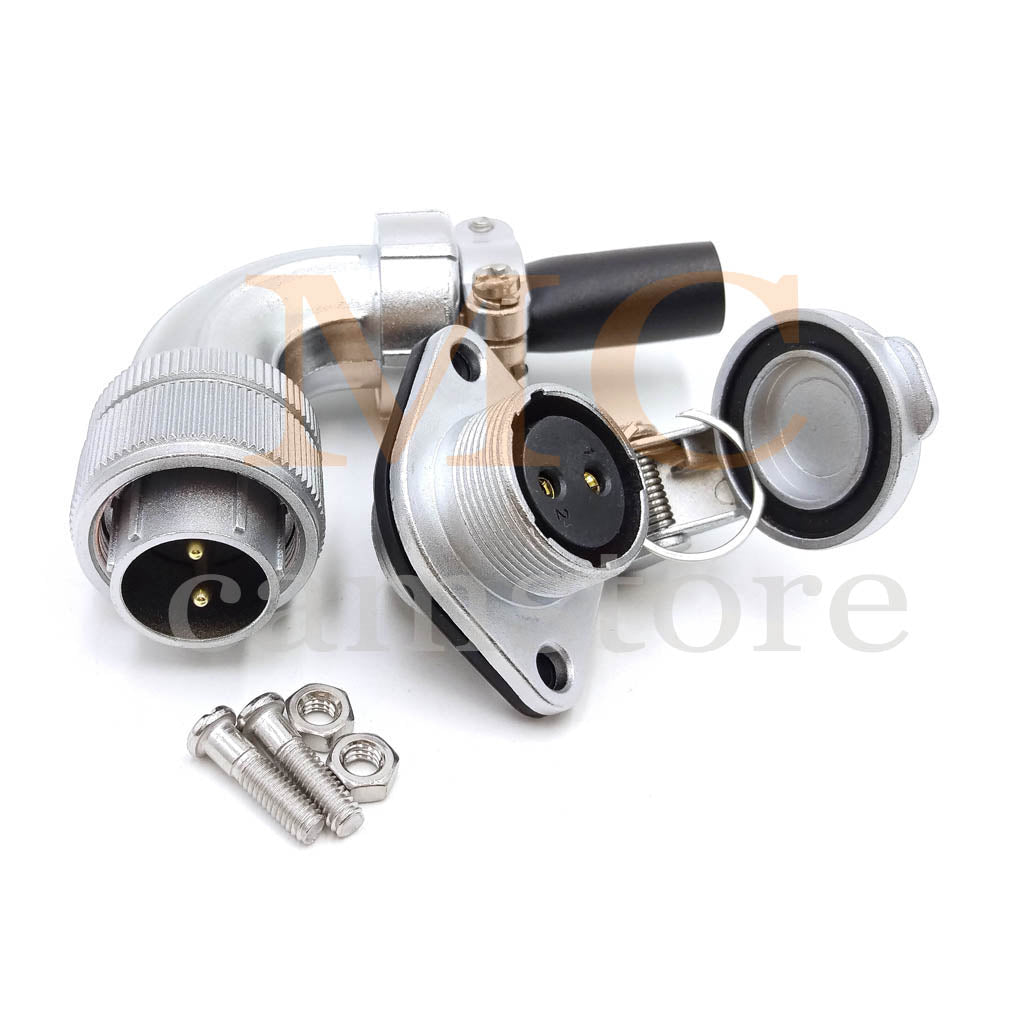

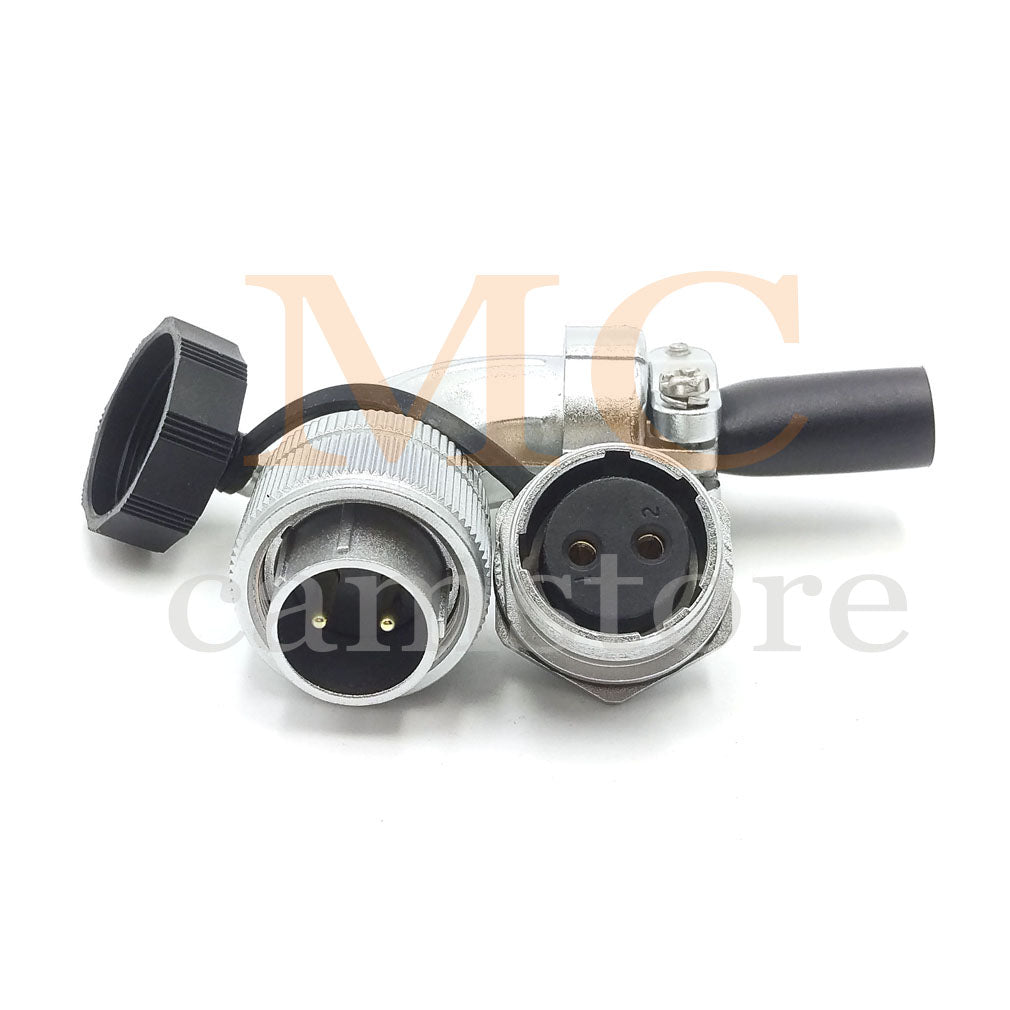

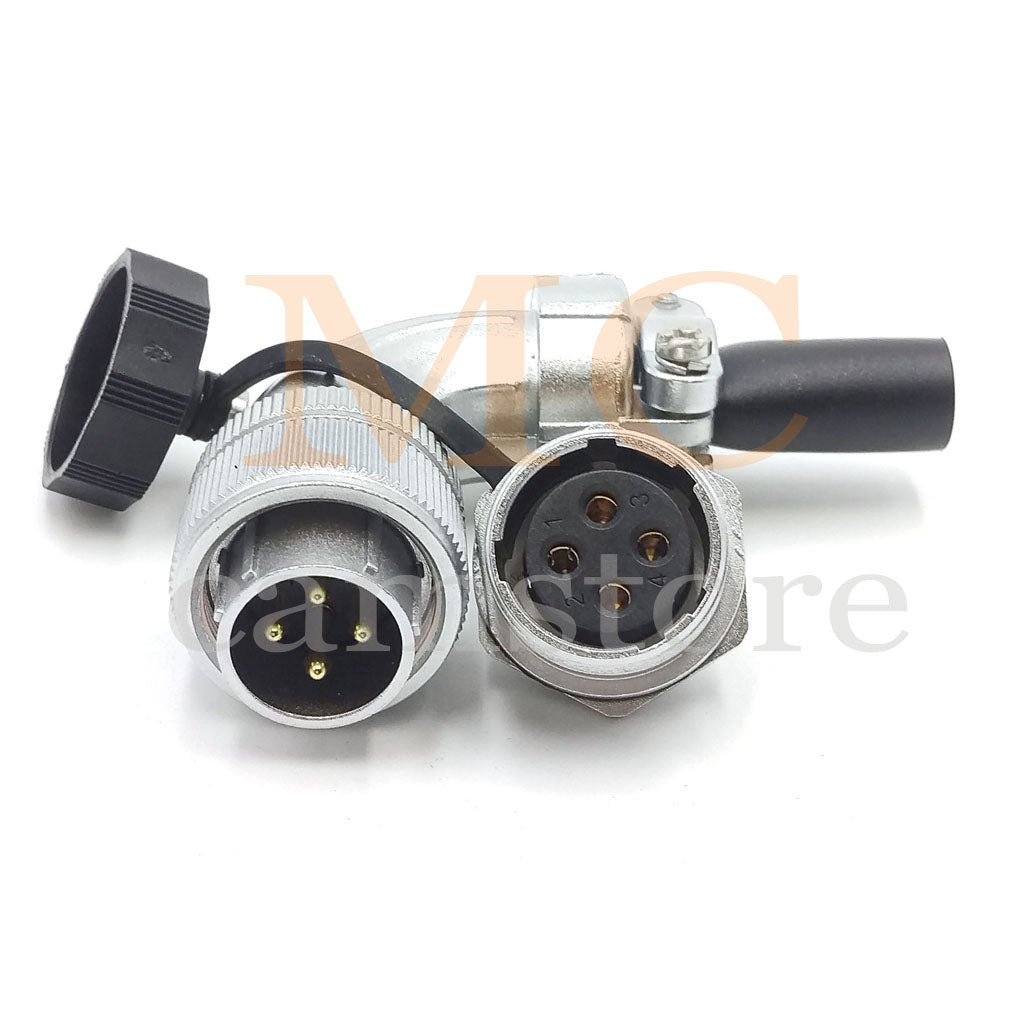

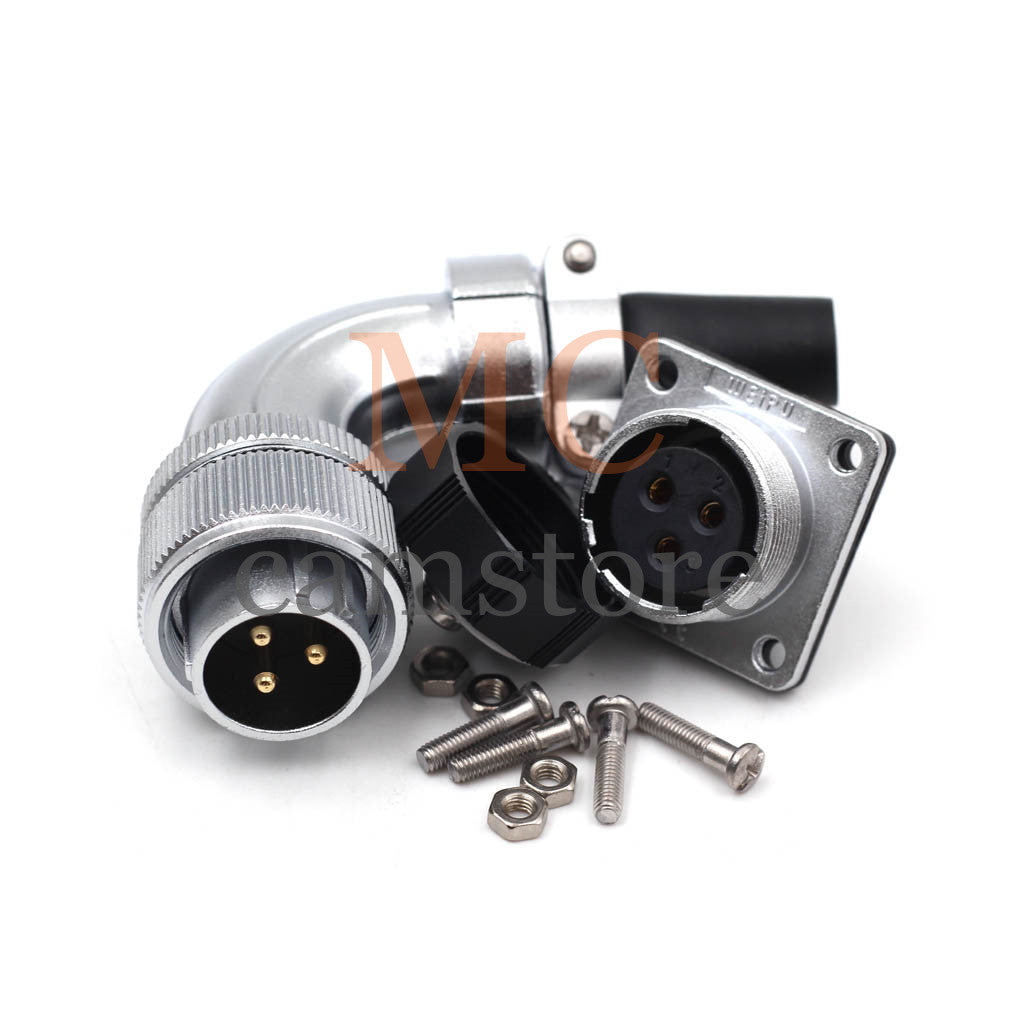

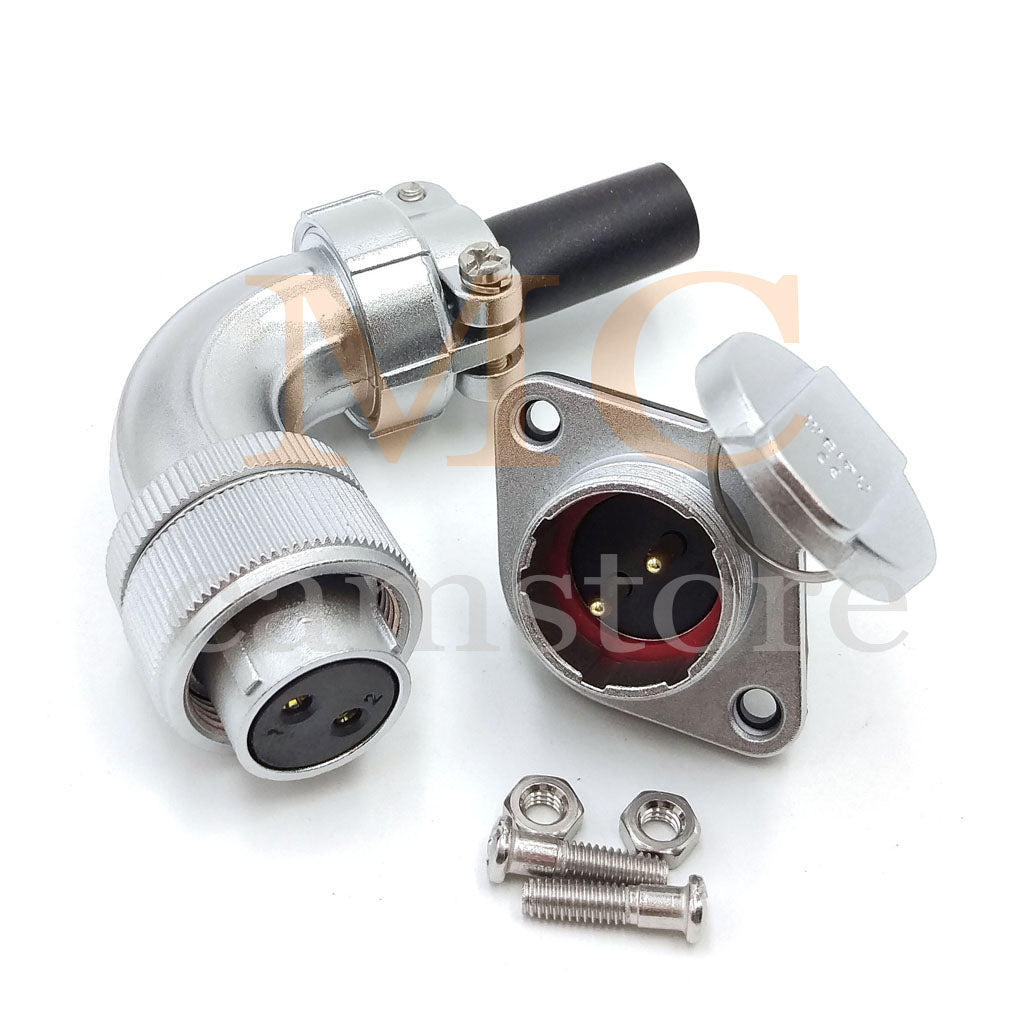

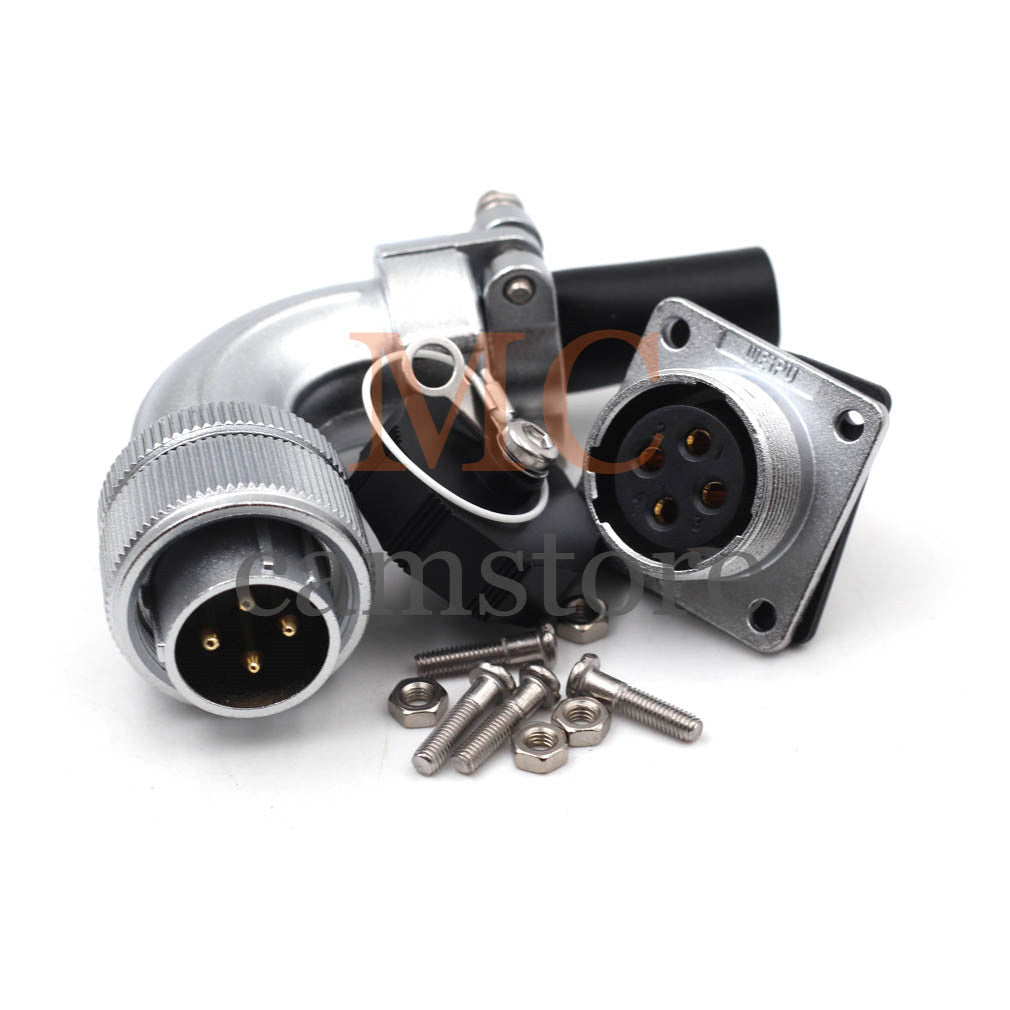

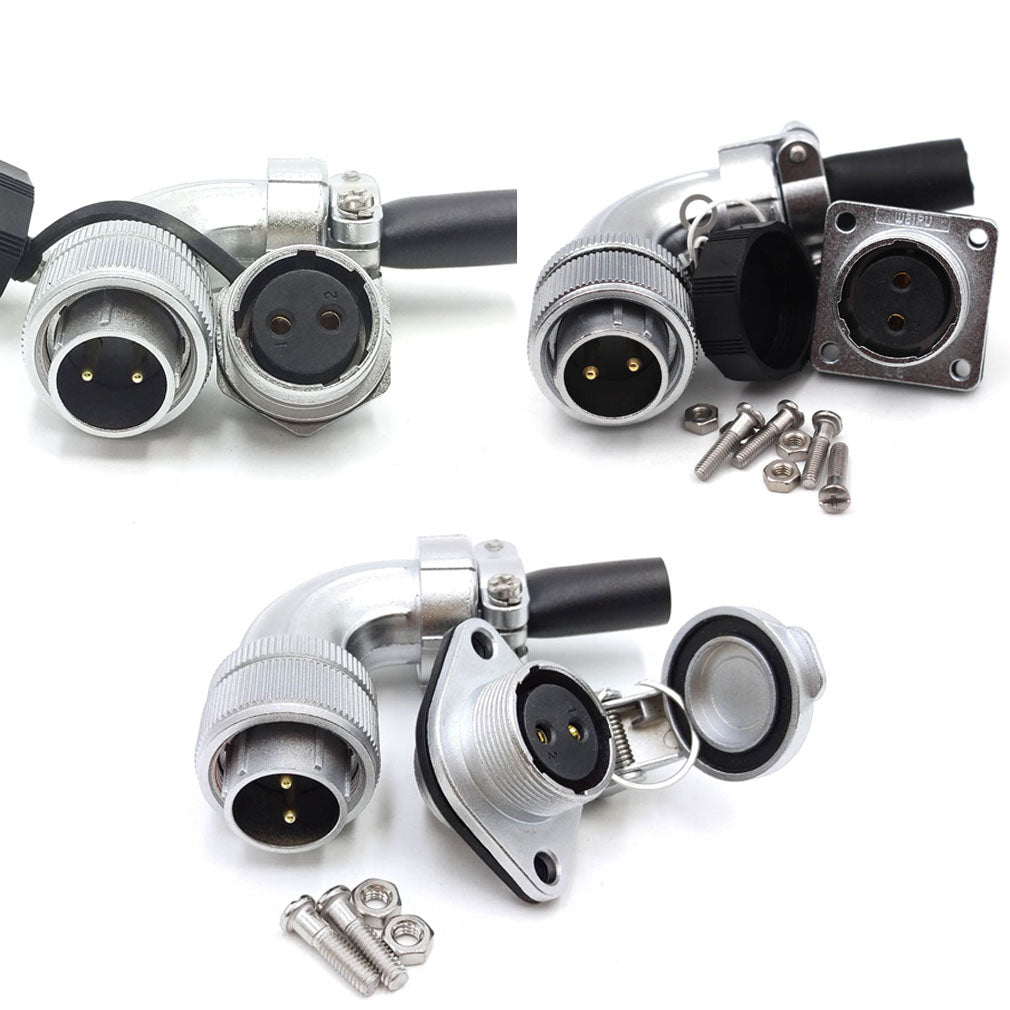

2pin, 3pin, 4pin:
Rated current (A): 25A
Contact diameter × quantity: Φ2.5x2 / Φ2.5x 3 / Φ2.5x 4
Rated voltage (AC.V.): 500V
Withstand voltage (AC.V) 1 minute: 1500V
Contact resistance: 1mΩ
Wire specification: <2.5m㎡/13AWG

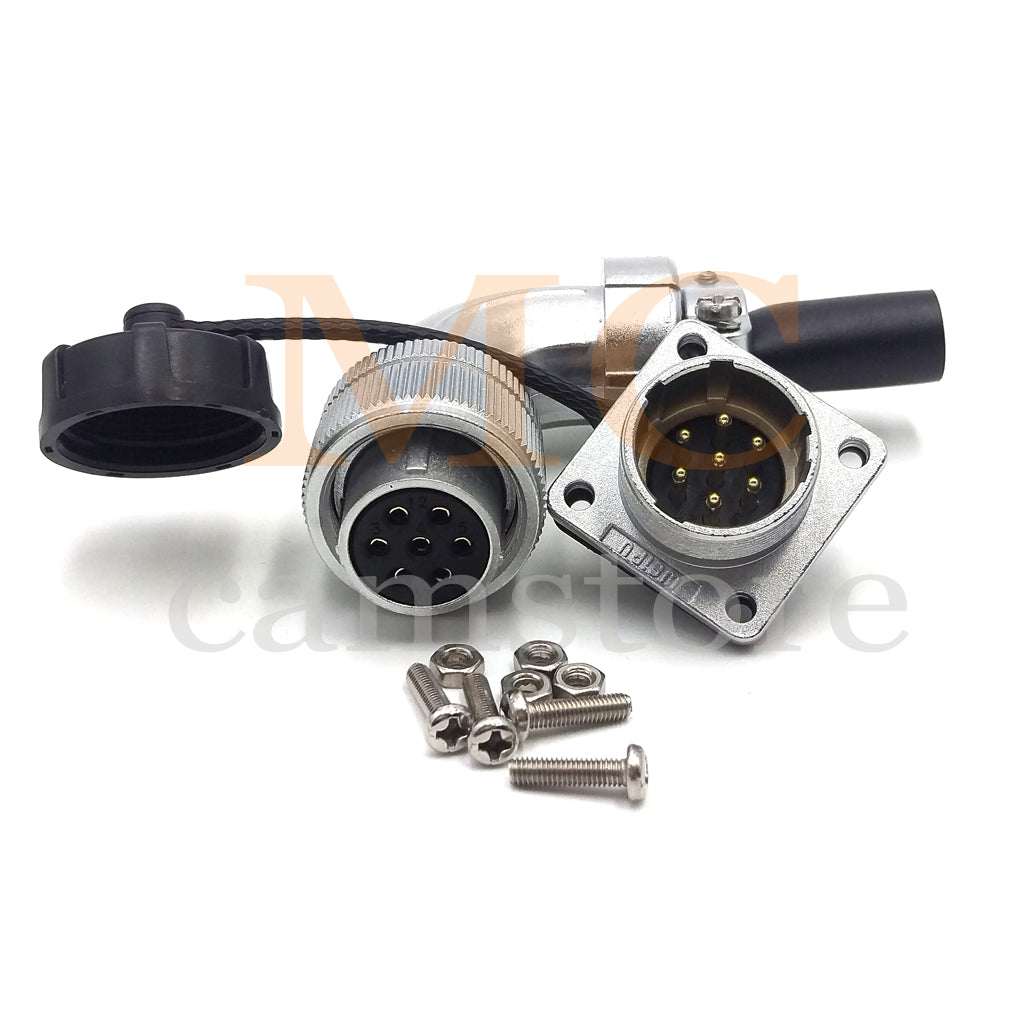

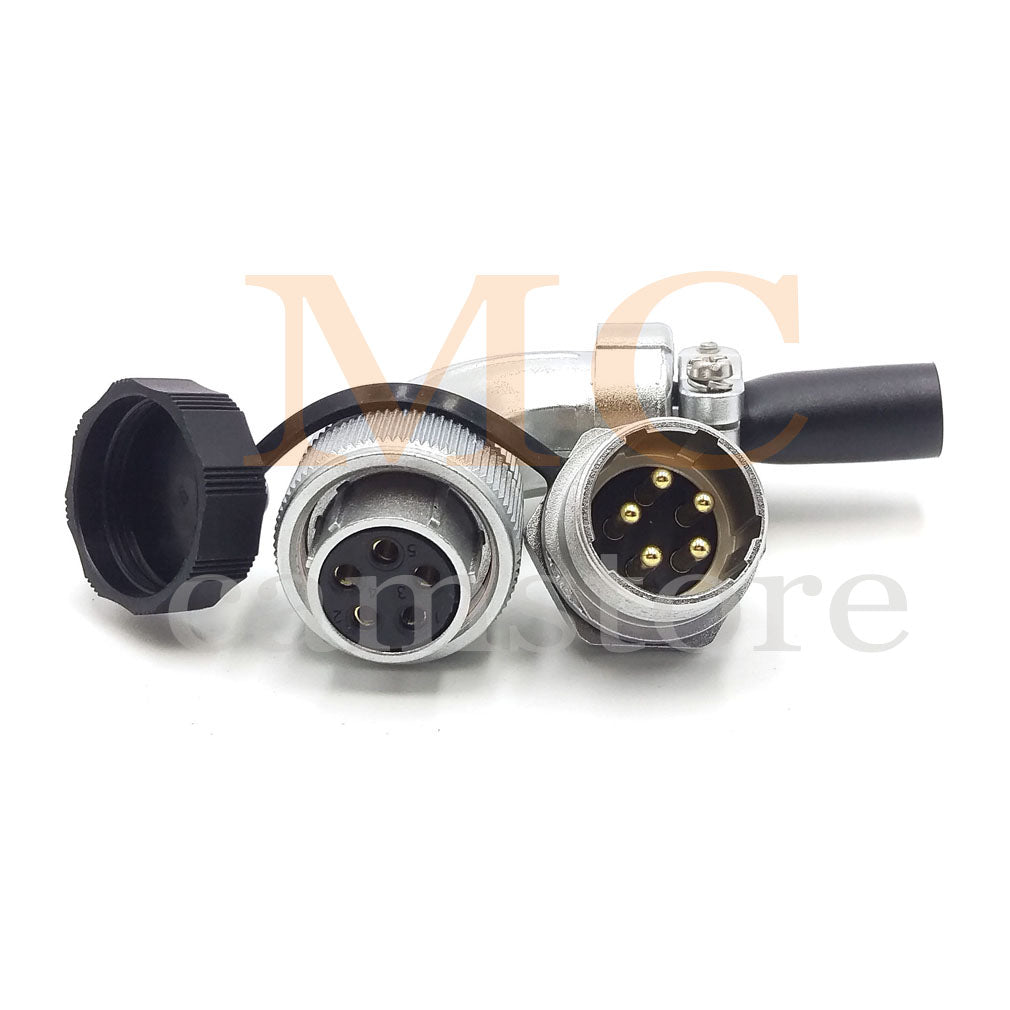

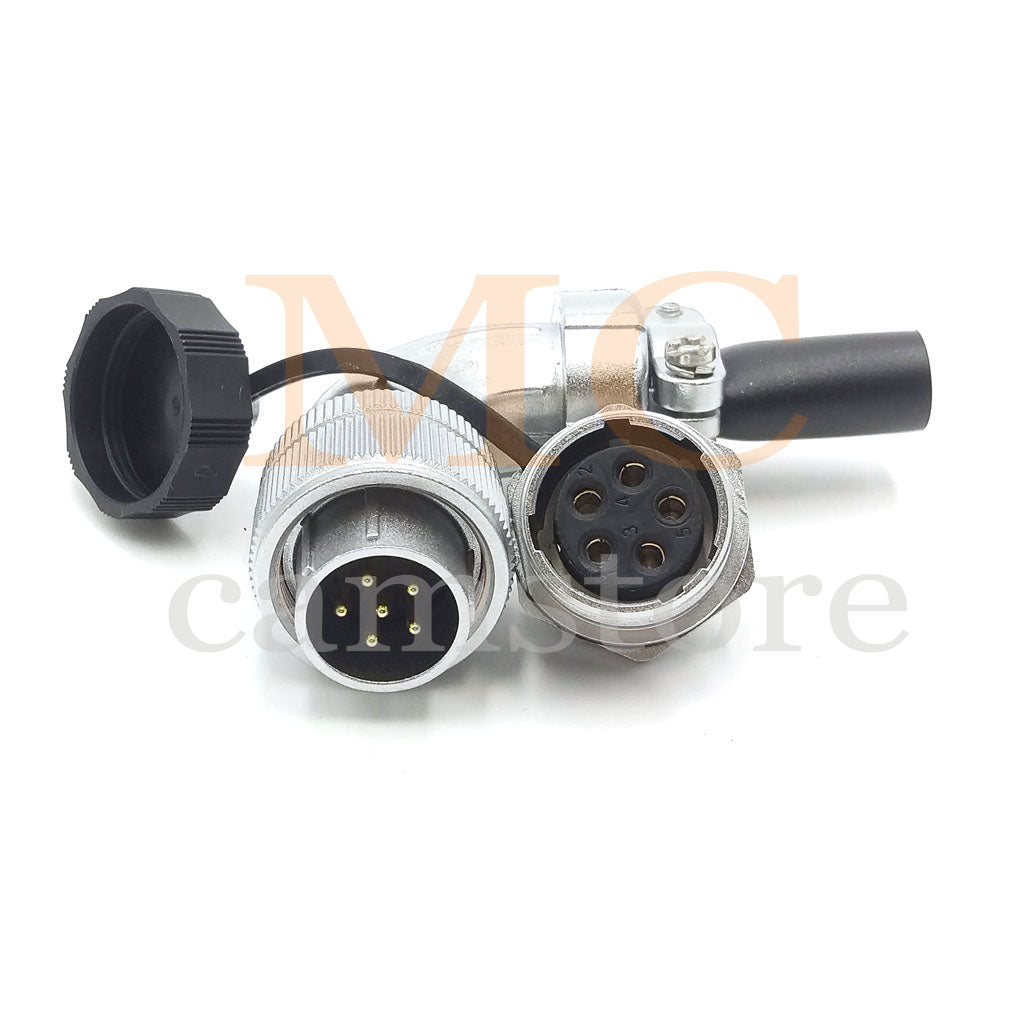

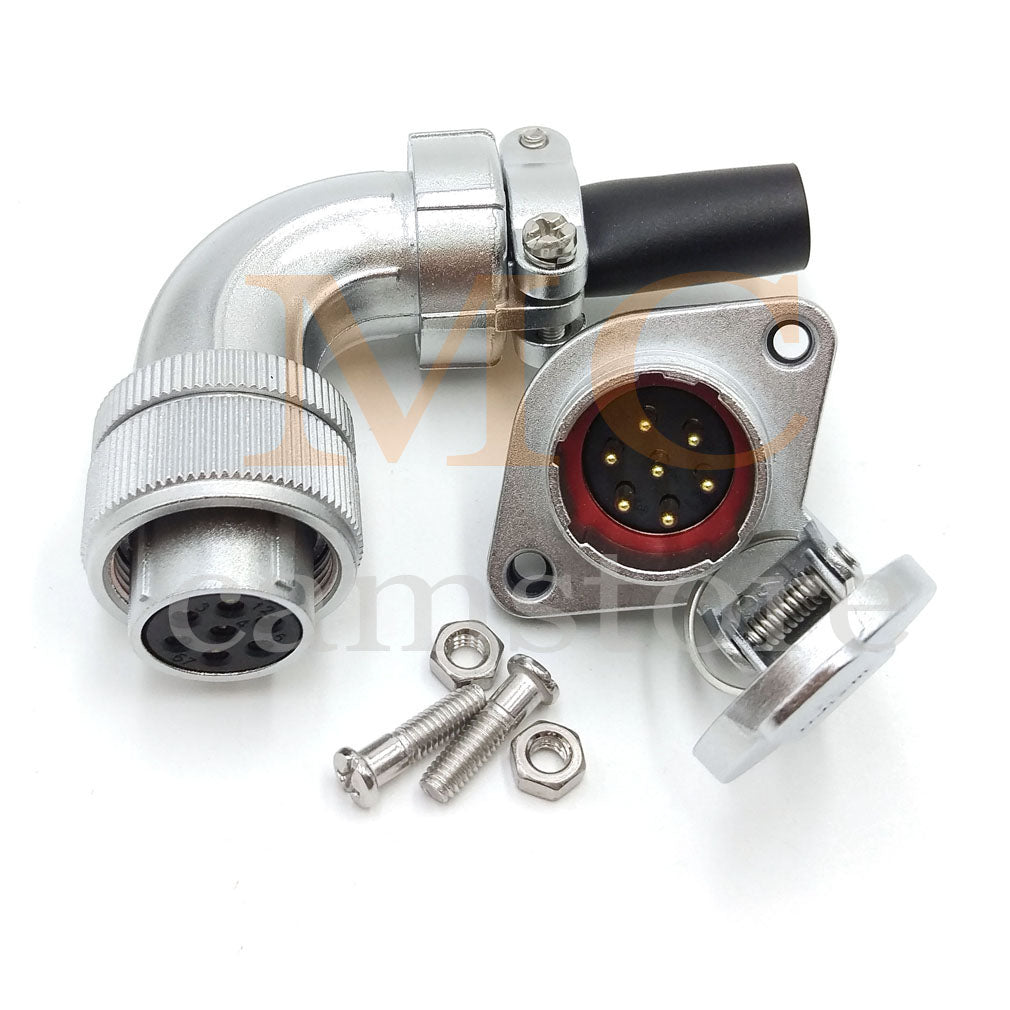

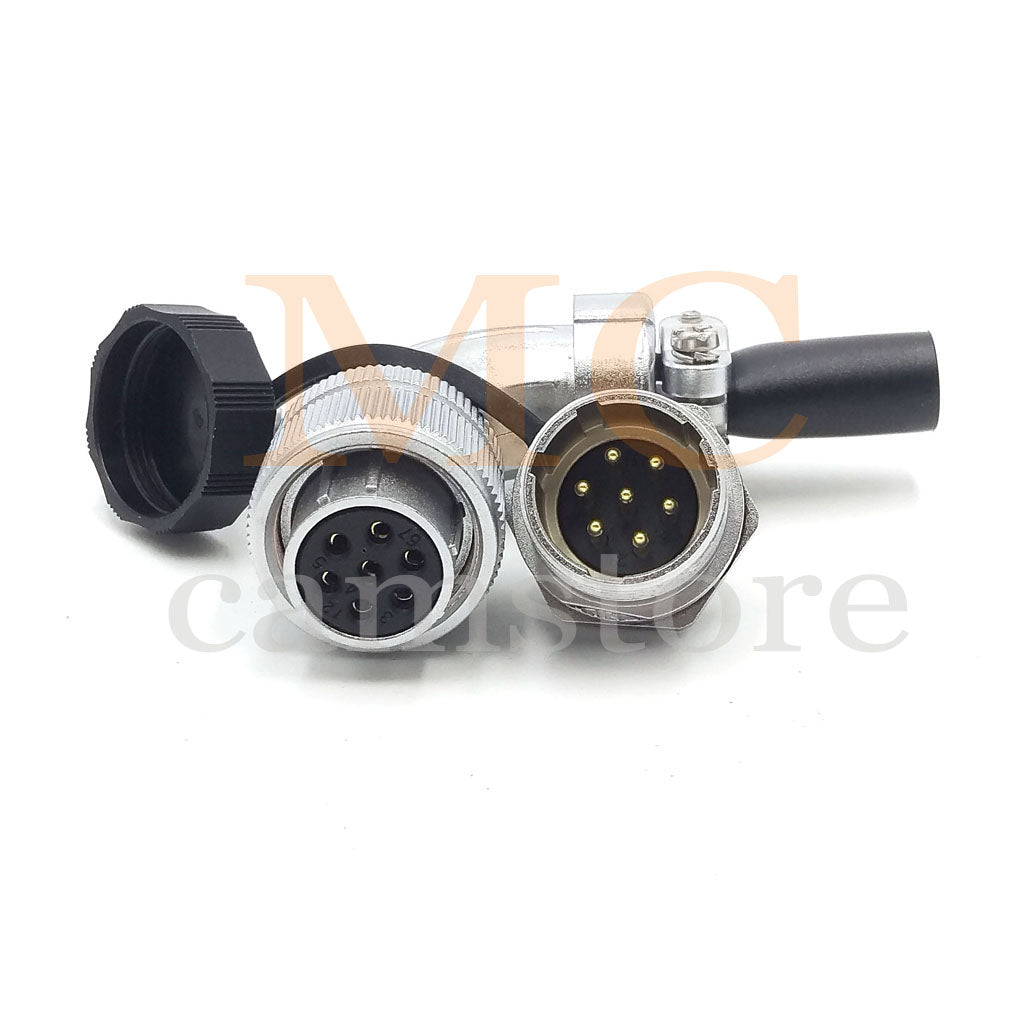

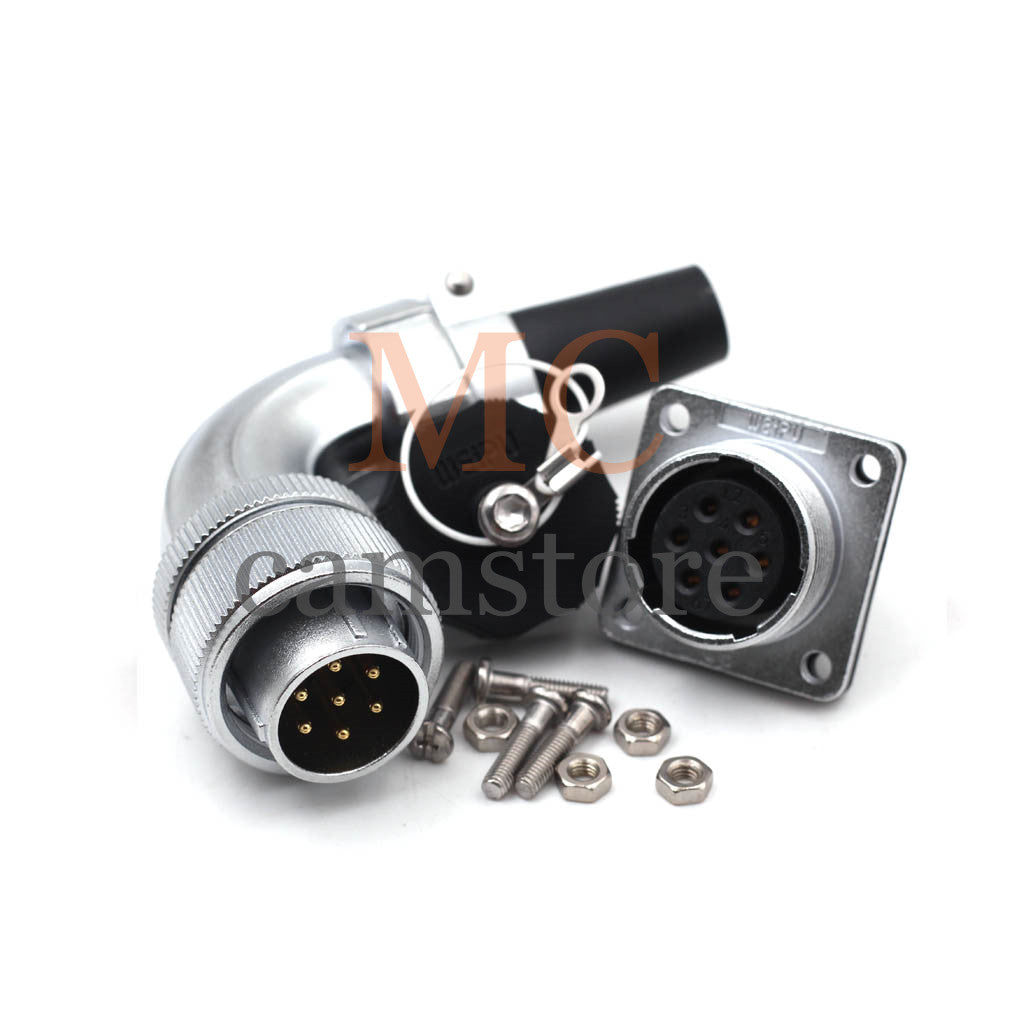

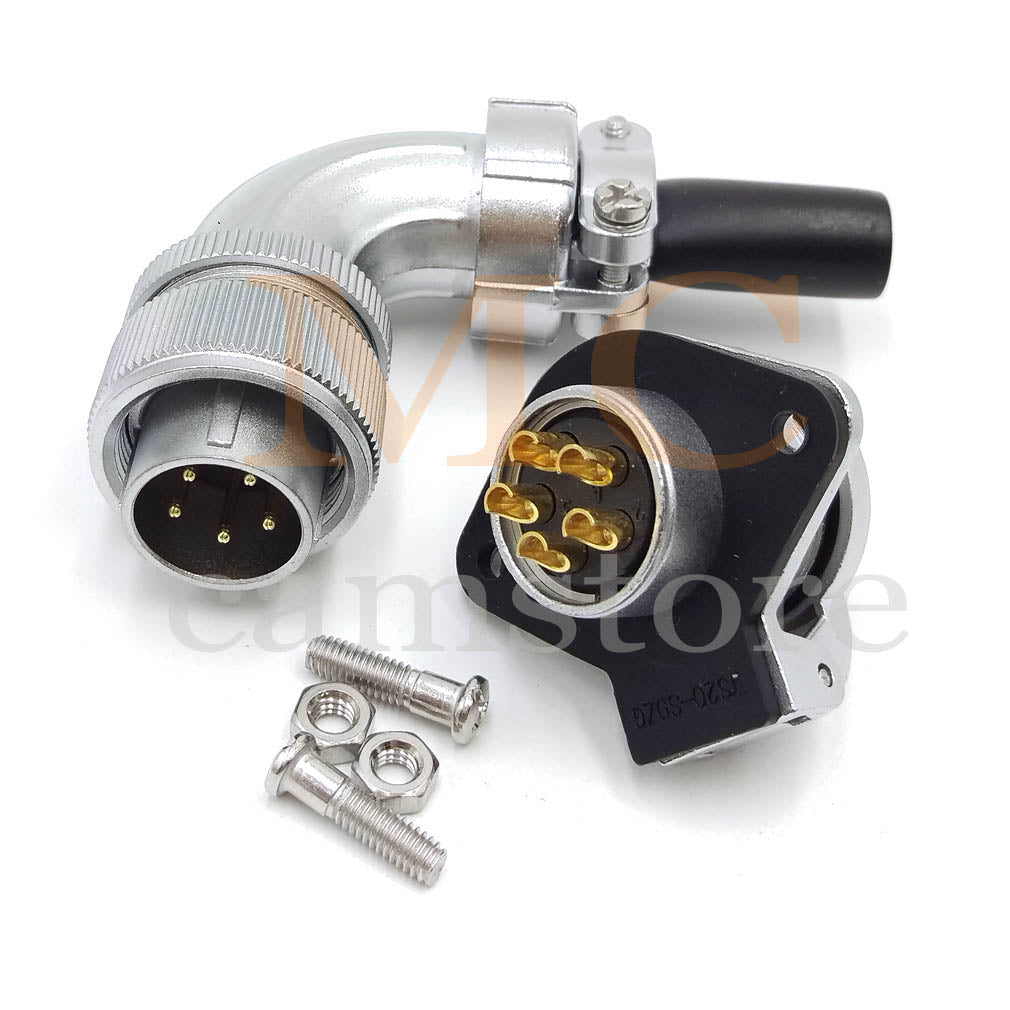

5pin, 6pin, 7pin:
Rated current (A): 10A
Contact diameter × quantity: Φ1.5x5 / Φ2.5x4+ Φ1.0x2 / Φ1.5x7
Rated voltage (AC.V.): 500V
Withstand voltage (AC.V) 1 minute: 1500V
Contact resistance: 2.5mΩ
Wire specifications: <2.0m㎡/14AWG

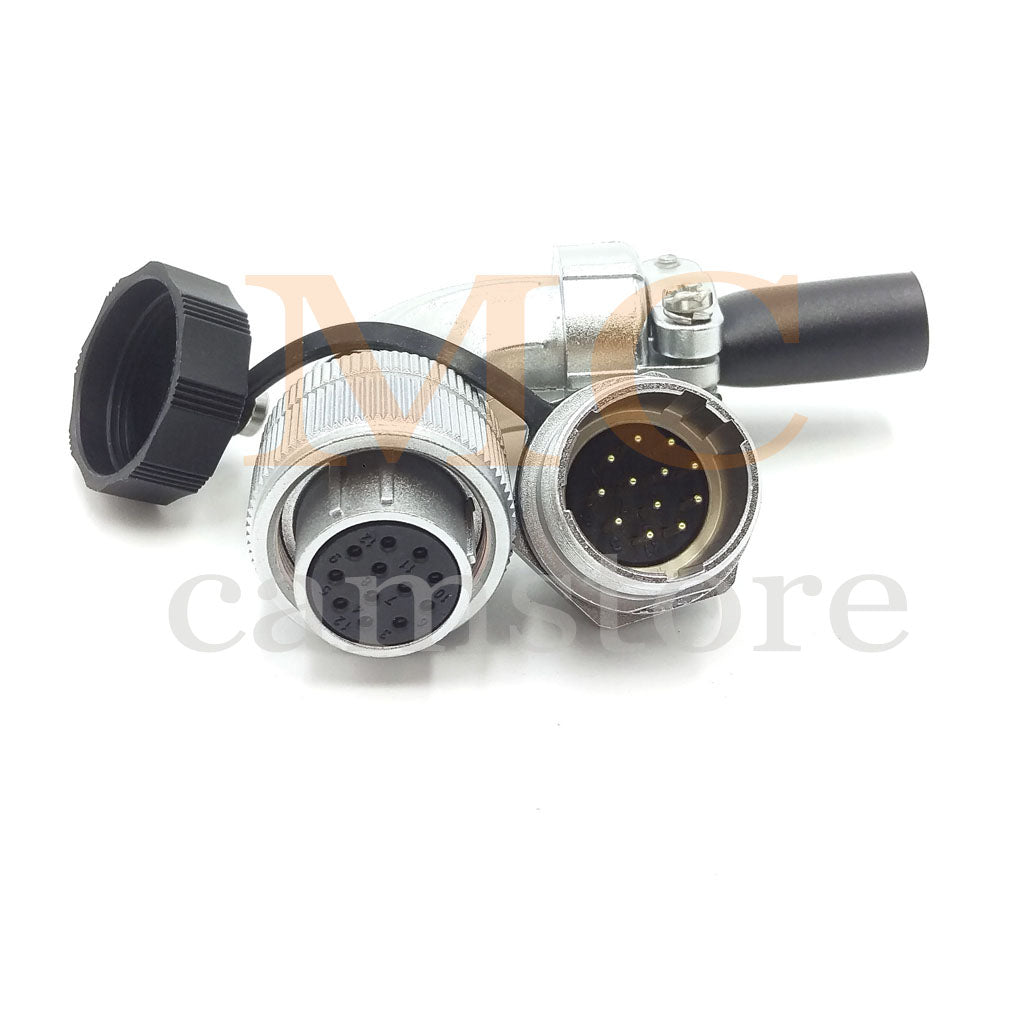

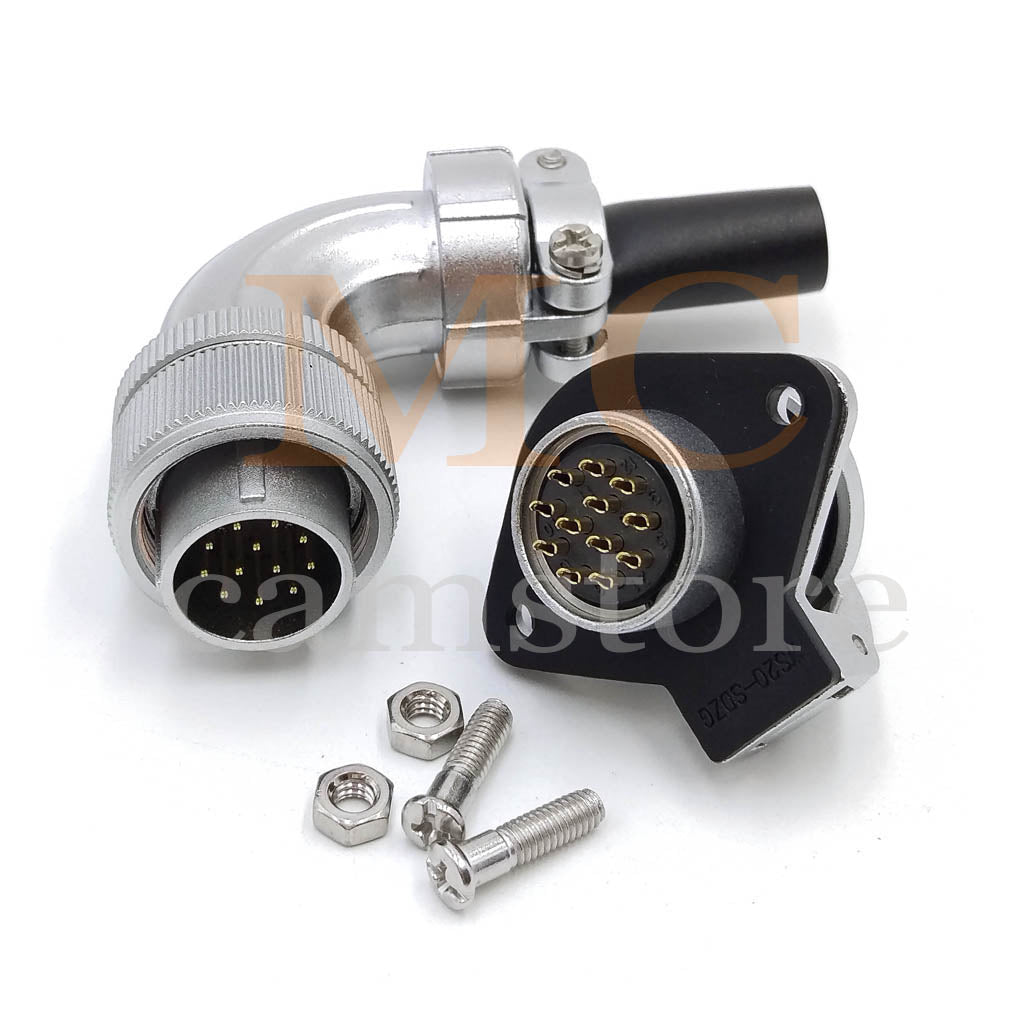

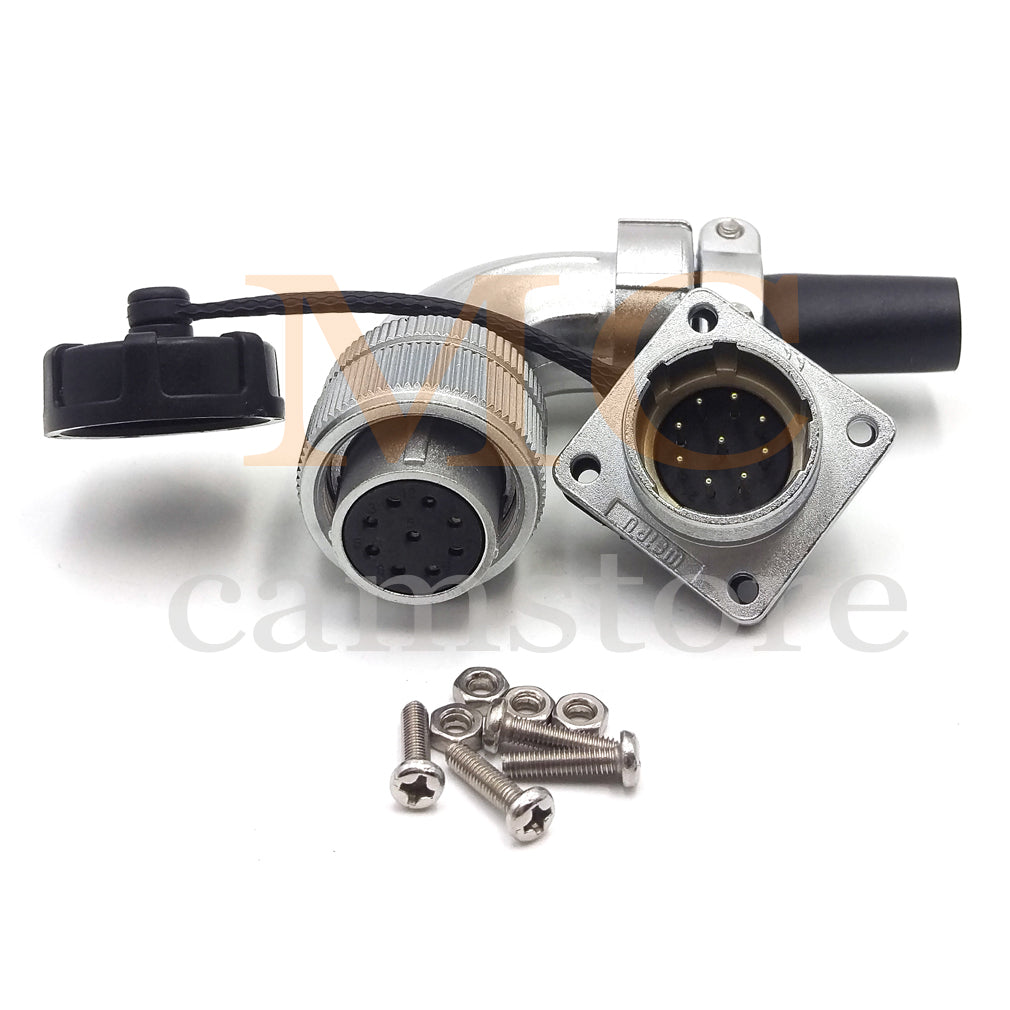

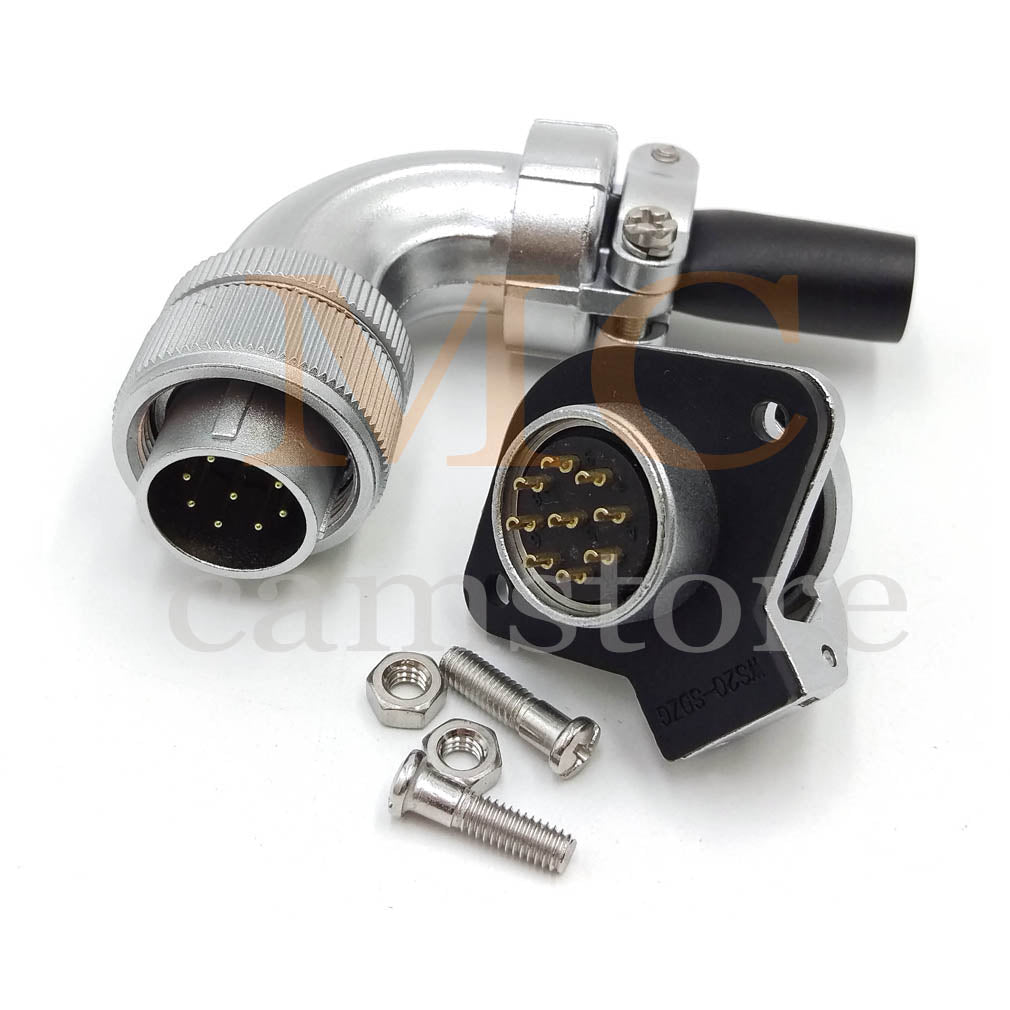

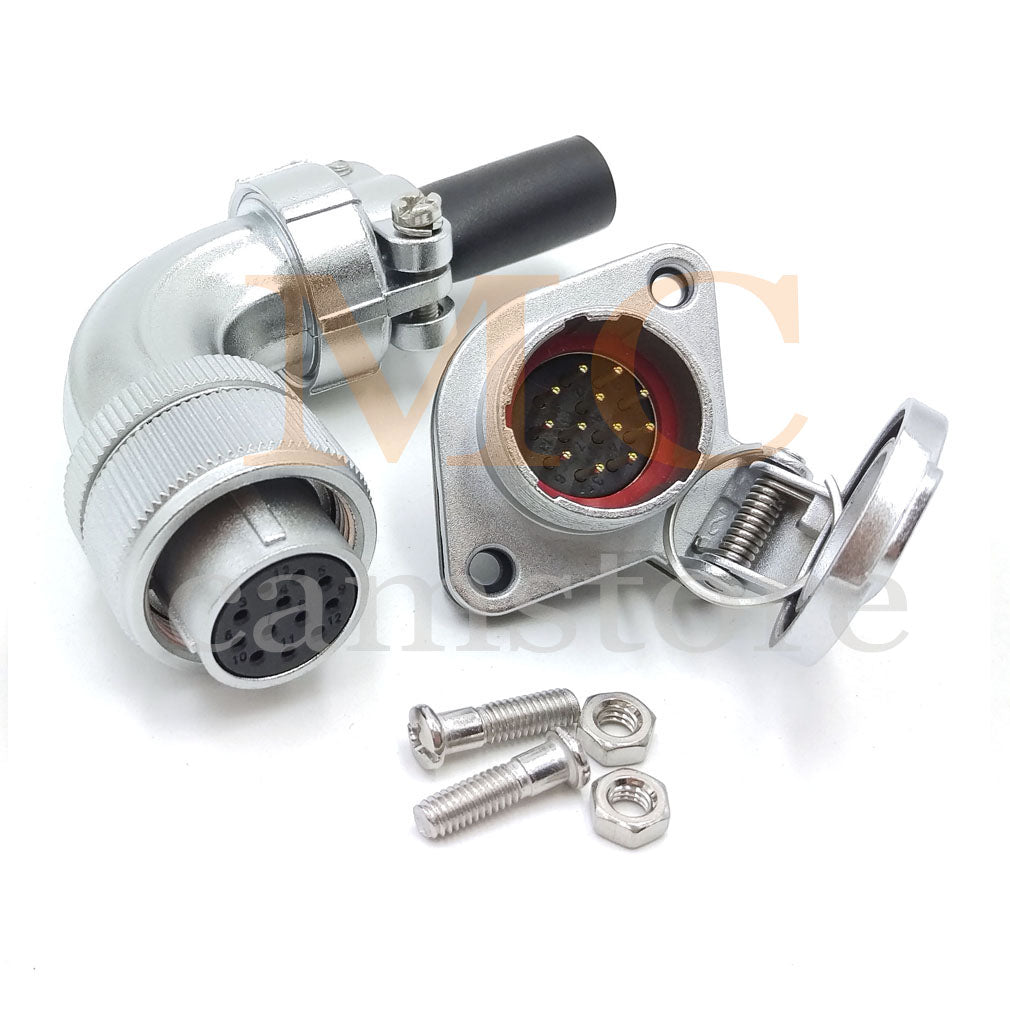

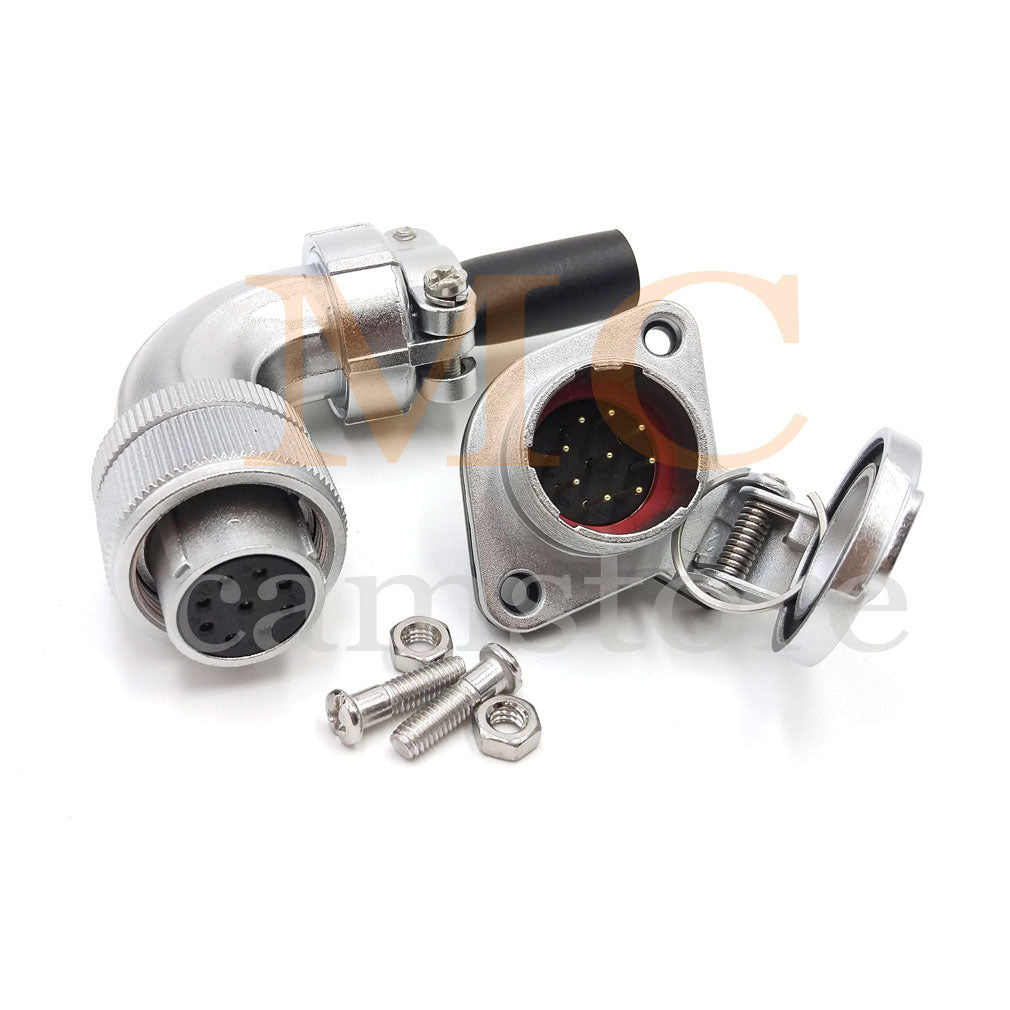

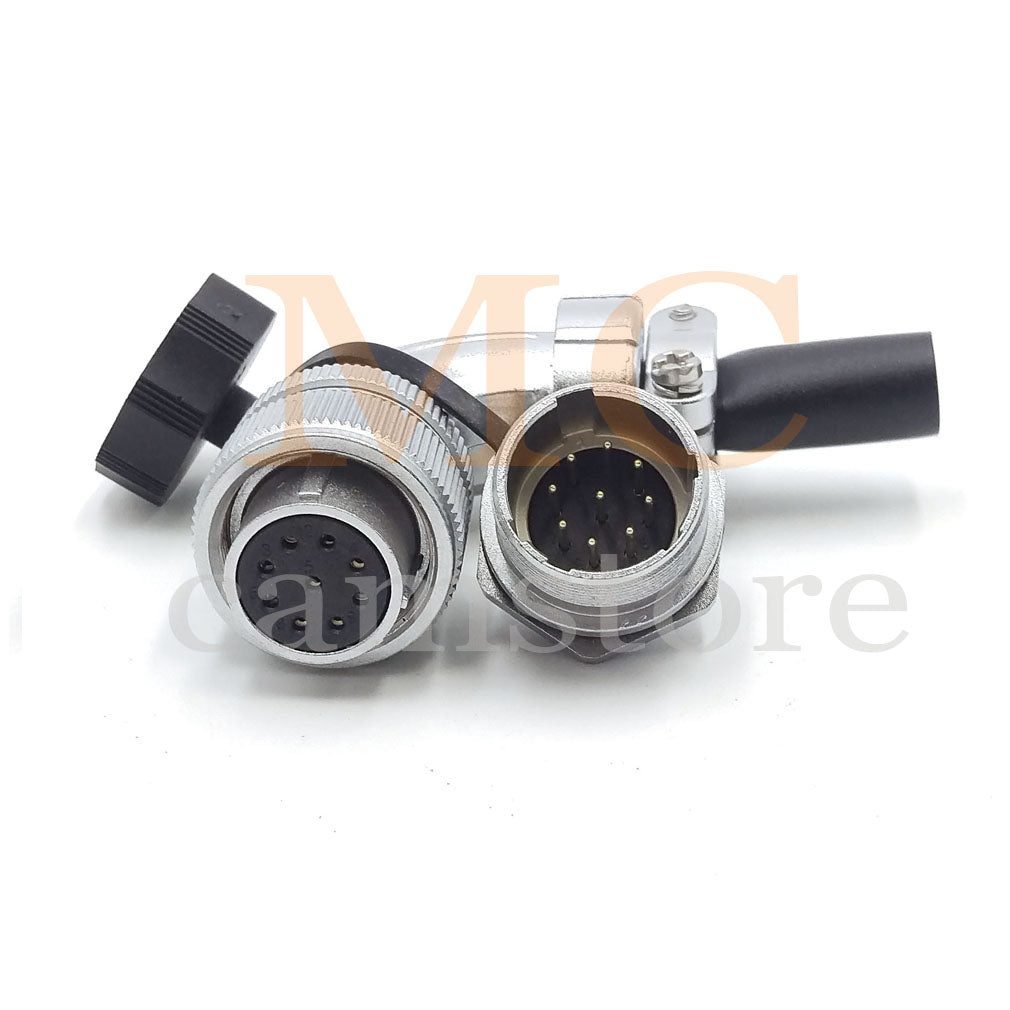

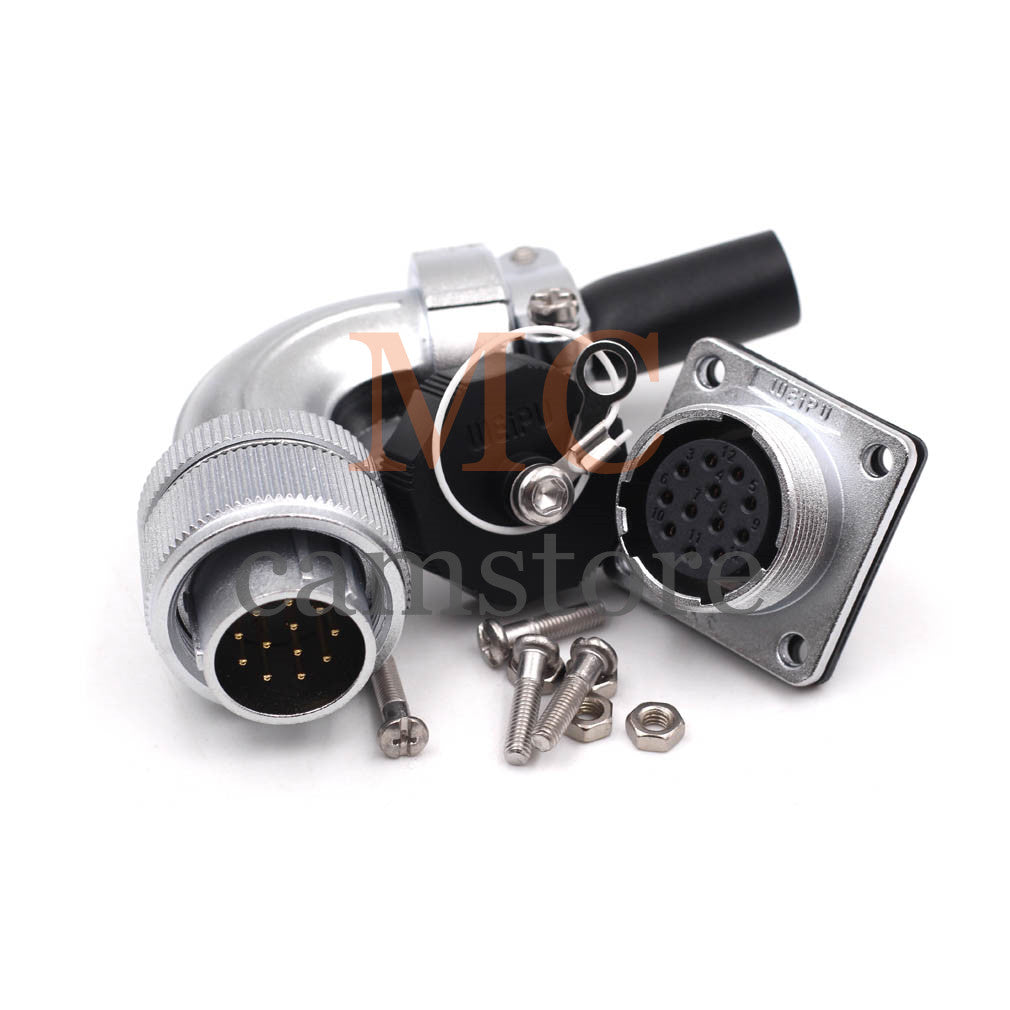

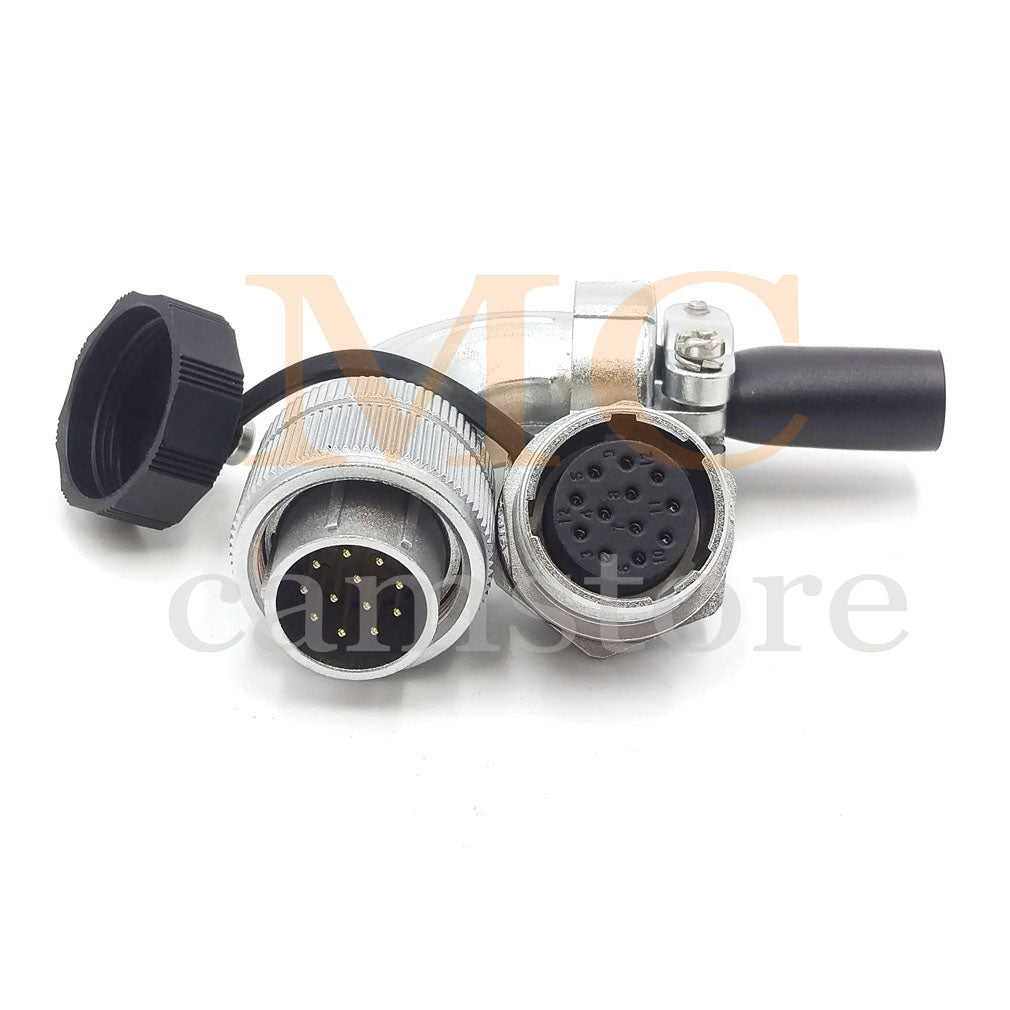

9pin, 12pin, 15pin:
Rated current (A): 5A
Contact diameter × quantity: Φ1.0 x9 / Φ1.0 x12 / Φ1.0 x15
Rated voltage (AC.V.): 400V
Withstand voltage (AC.V) 1 minute: 1200V
Contact resistance: 5mΩ
Wire specification: <0.75m㎡/18AWG

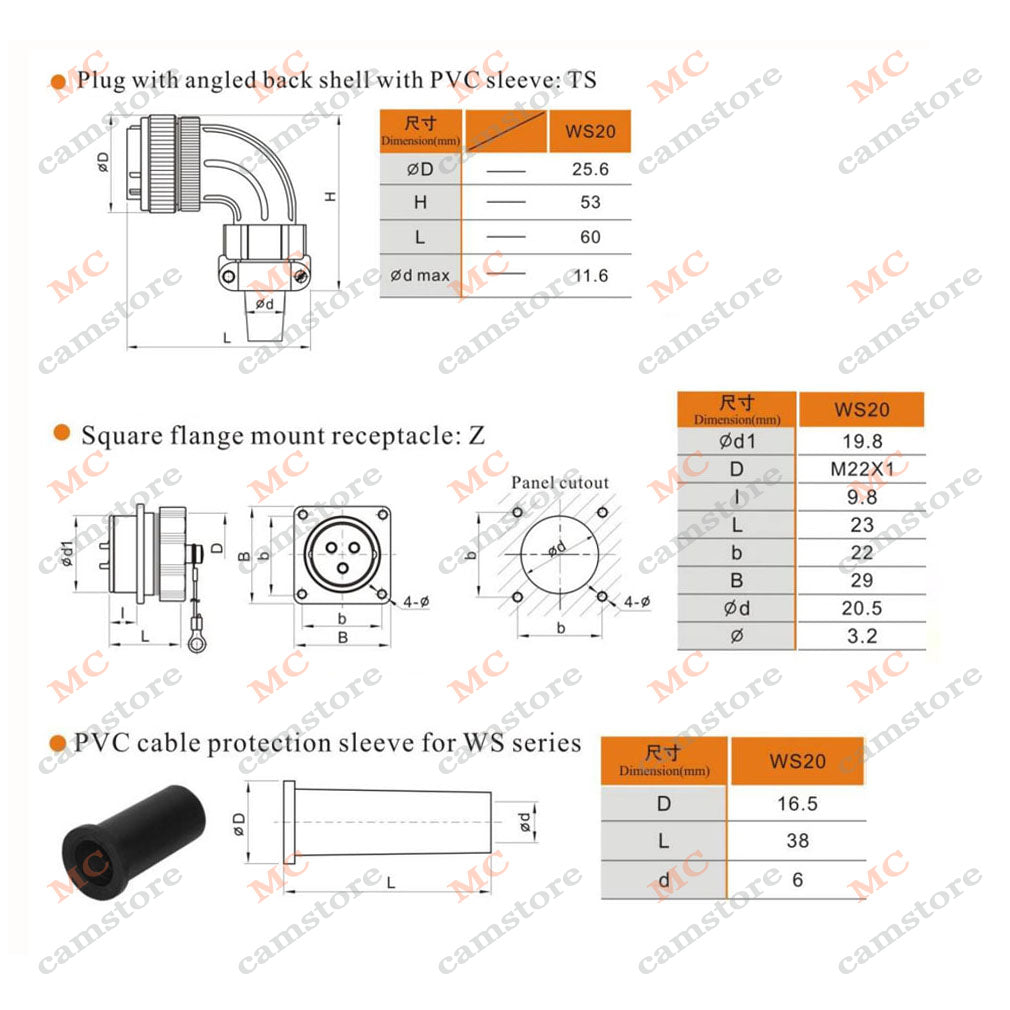

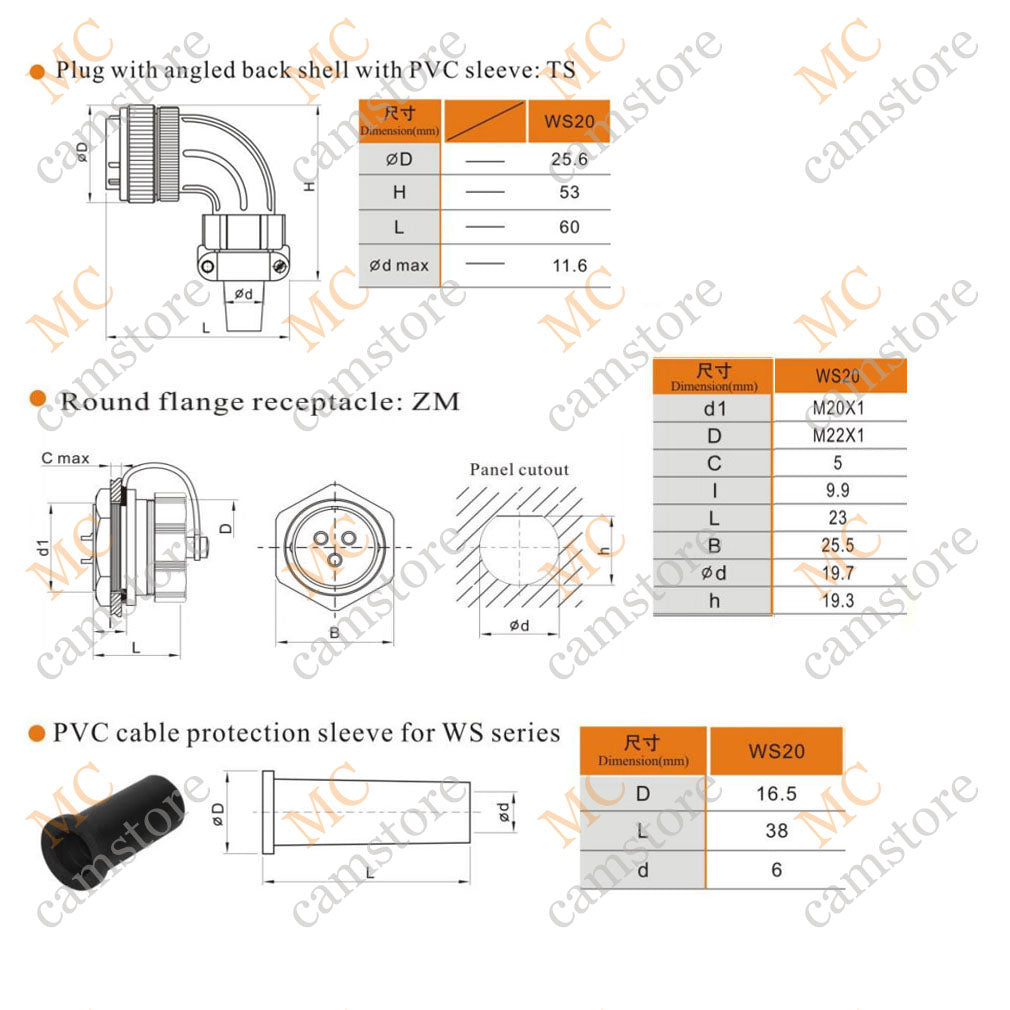

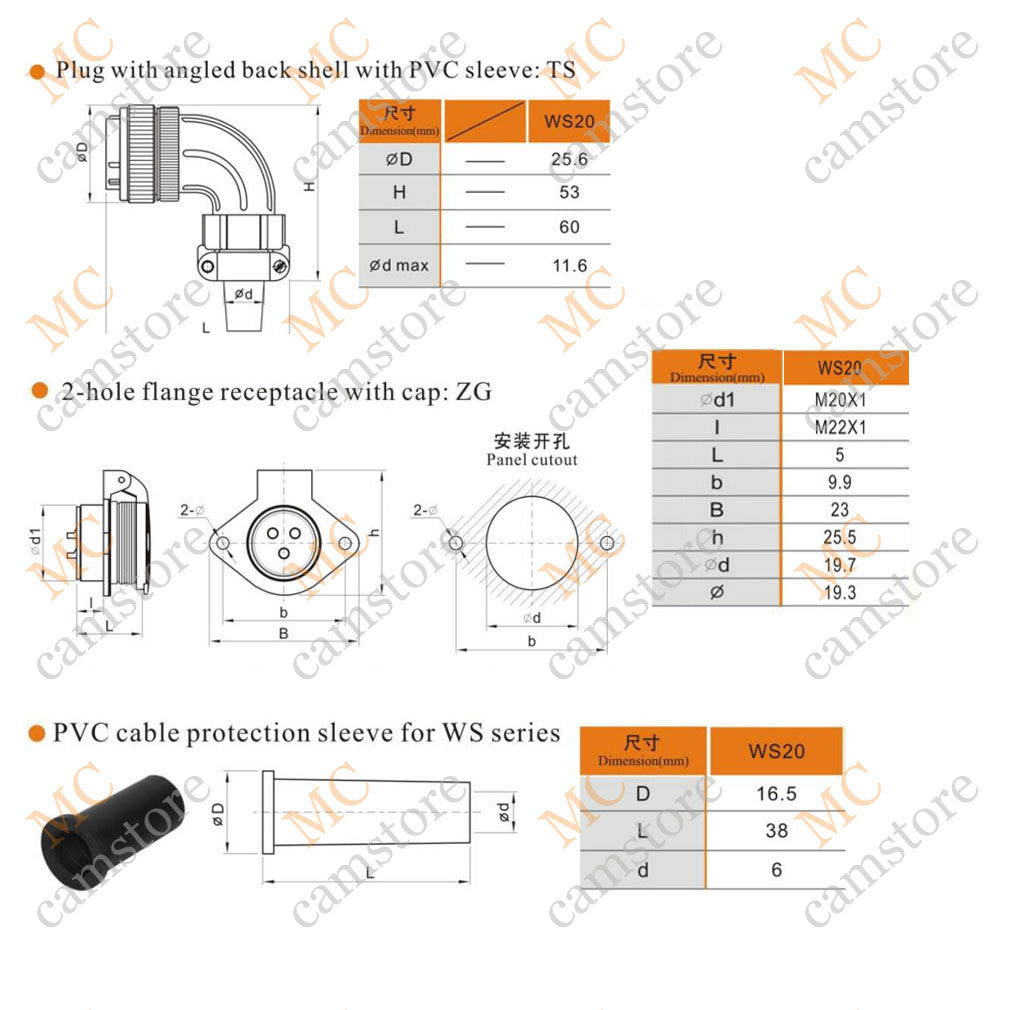

Coupling: Threaded Coupling
Housing material: chrome-plated zinc alloy
Blade material: PPS human temperature 260°
Contact Material: Brass (Gold Plated)
Termination: Solder
Cable outer diameter range: 11.6 max
Protection class: IP44
Durability: ≥500 times
Working temperature: -40℃～85℃
What's in the package: (pin and install type your choice)
1 plug + 1 socket
