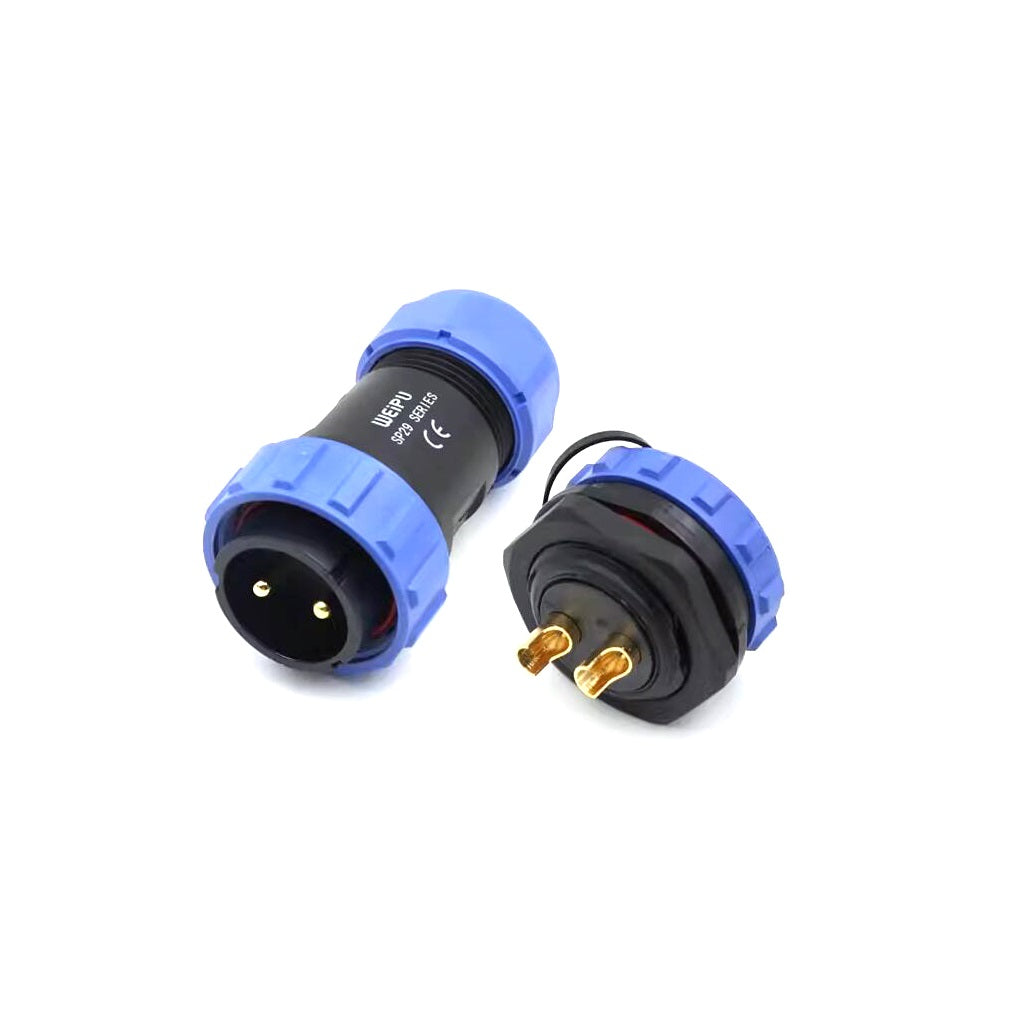

WEIPU SP29 IP68 Waterproof Connector, 2 3 4 7 8 8B 9 10 10B 12 16 17 20 24 26 35pin Industrial Aviation Power Cable Plug Socket
WEIPU SP29 IP68 Waterproof Connector, 2 3 4 7 8 8B 9 10 10B 12 16 17 20 24 26 35pin Industrial Aviation Power Cable Plug Socket
Precio habitual
$14.30 USD
Precio habitual
$0.00 USD
Precio de oferta
$14.30 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Weipu SP29 2 3 4 7 8 8B 9 10 10B 12 16 17 20 24 26 35 pin IP68 Panel Mount Waterproof Power Wire Connector,
Aviation Solder Plug and Socket

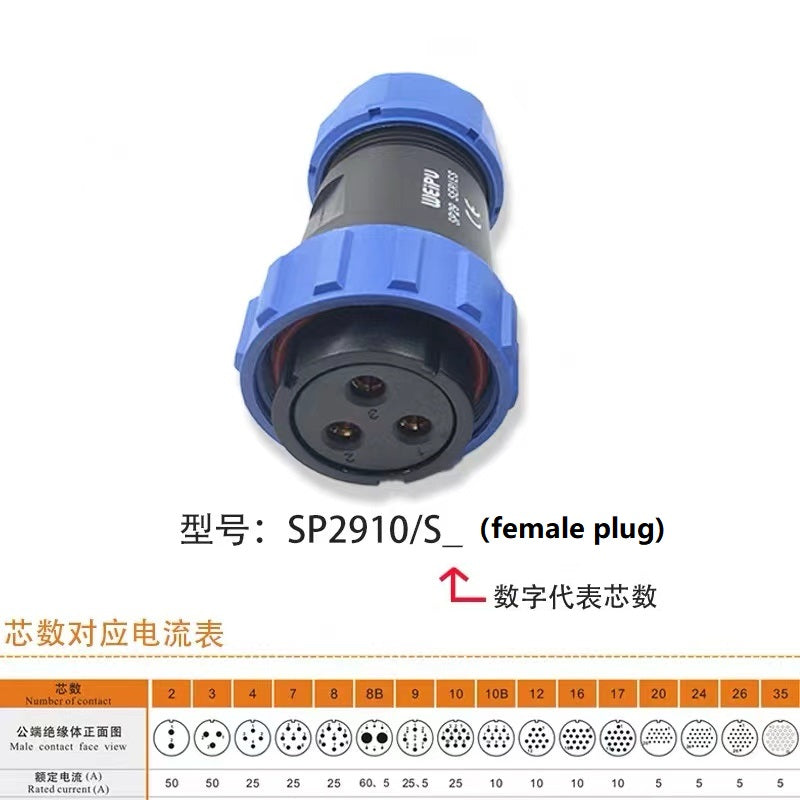

Gender: Male plug female socket default.
(if you need female plug male socket, please contact before place order)

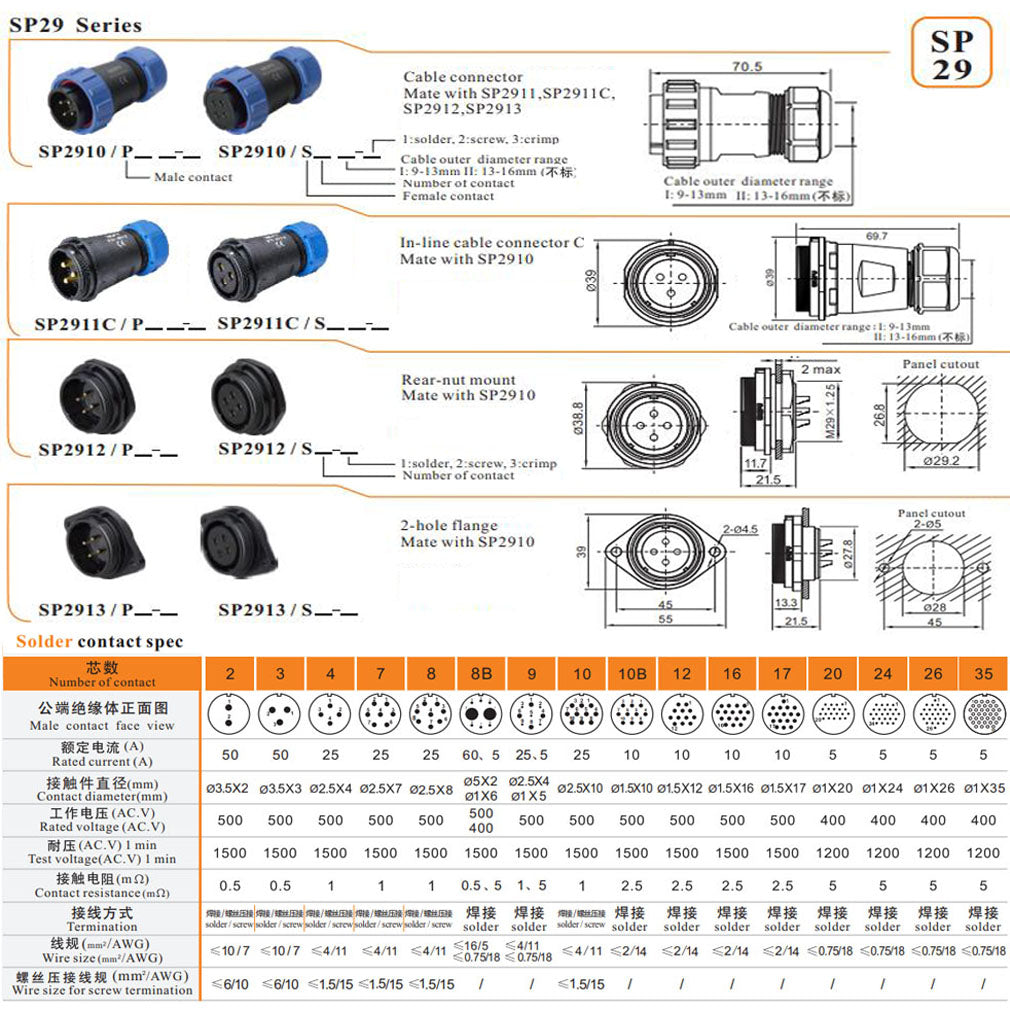

2pin, 3pin:
Rated Current (A): 30A
Contact diameter × number: Φ3.5x2 / Φ3.5x 3
Rated voltage (AC.V.): 500V
Withstanding Voltage (AC.V) 1 minute: 1500V
Contact resistance: 0.5mΩ
Wire specification: <10m㎡/7AWG
4pin, 7pin, 8pin, 10pin:
Rated Current (A): 25A
Contact diameter × number: Φ2.5x4 / Φ2.5x7 / Φ2.5x8 / Φ2.5x10
Rated voltage (AC.V.): 500V
Withstanding Voltage (AC.V) 1 minute: 1500V
Contact resistance: 1mΩ
Wire specification: ≤4m㎡/12AWG
8Bpin:
Rated Current (A): 60A/5A
Contact diameter × number: Φ5x2 + Φ1x6
Rated voltage (AC.V.): 500V/400V
Withstanding Voltage (AC.V) 1 minute: 1500V
Contact resistance: 0.5mΩ/5mΩ
Wire specification: <16m㎡/5AWG, <0.75m㎡/18AWG
9pin:
Rated Current (A): 25A/5A
Contact diameter × number: Φ2.5x4 + Φ1x5
Rated voltage (AC.V.): 500V
Withstanding Voltage (AC.V) 1 minute: 1500V
Contact resistance: 1mΩ/5mΩ
Wire specification: <4m㎡/11AWG, <0.75m㎡/18AWG
10Bpin, 12pin, 16pin, 17pin:
Rated Current (A): 10A
Contact diameter × number: Φ1.5x10 / Φ1.5x12 / Φ1.5x16 / Φ1.5x17
Rated voltage (AC.V.): 500V
Withstanding Voltage (AC.V) 1 minute: 1500V
Contact resistance: 2.5mΩ
Wire specification: <2m㎡/14AWG
20pin, 24pin, 26pin, 35pin:
Rated Current (A): 5A
Contact diameter × number: Φ1.0x20 / Φ1.0x24 / Φ1.0x26 / Φ1.0x35
Rated voltage (AC.V.): 400V
Withstanding Voltage (AC.V) 1 minute: 1200V
Contact resistance: 5mΩ
Wire specification: <0.75m㎡/18AWG

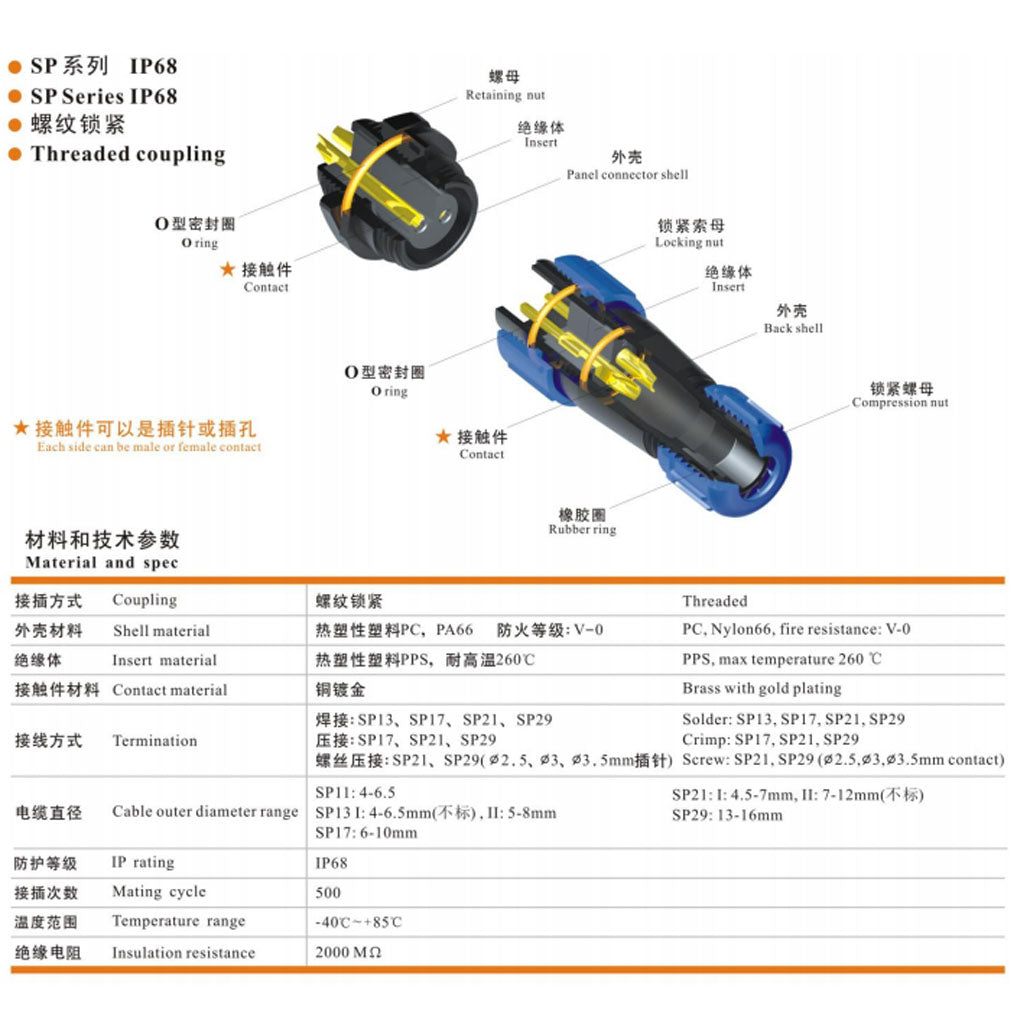

Material: Plastic(PC)
IP Rating: IP68
Shell: Nylon66
Fire Resistance: V-0
Contact Material: Brass with Gold Plating
Termination: Solder
Cable Outer Diameter Range: 13-16mm（there is soft plastic ring you can make it tight）
Mating Cycle: 500
Temperature Range: -40~+85℃
Insulation Resistance : 2000mΩ
What's in the package:

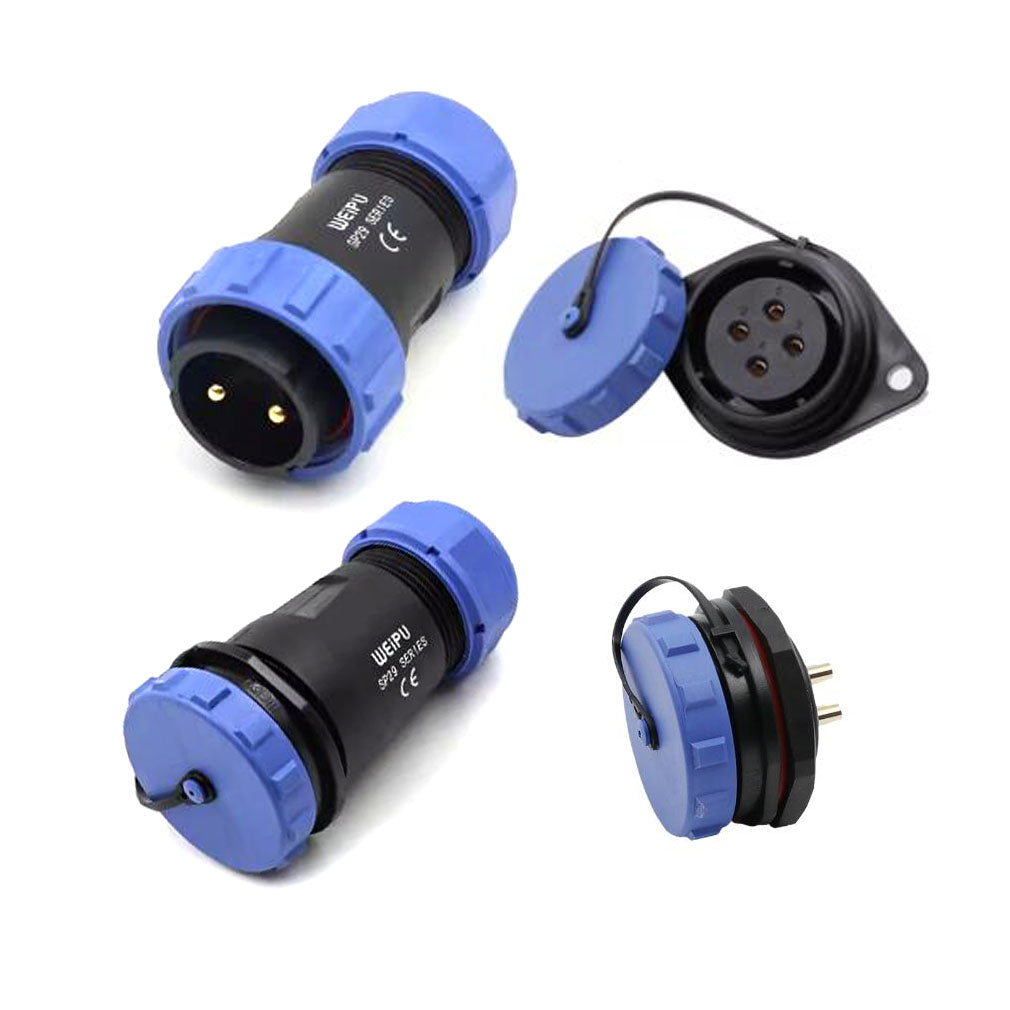

1 plug + 1 socket with cap
(screw included for flange panel socket）
