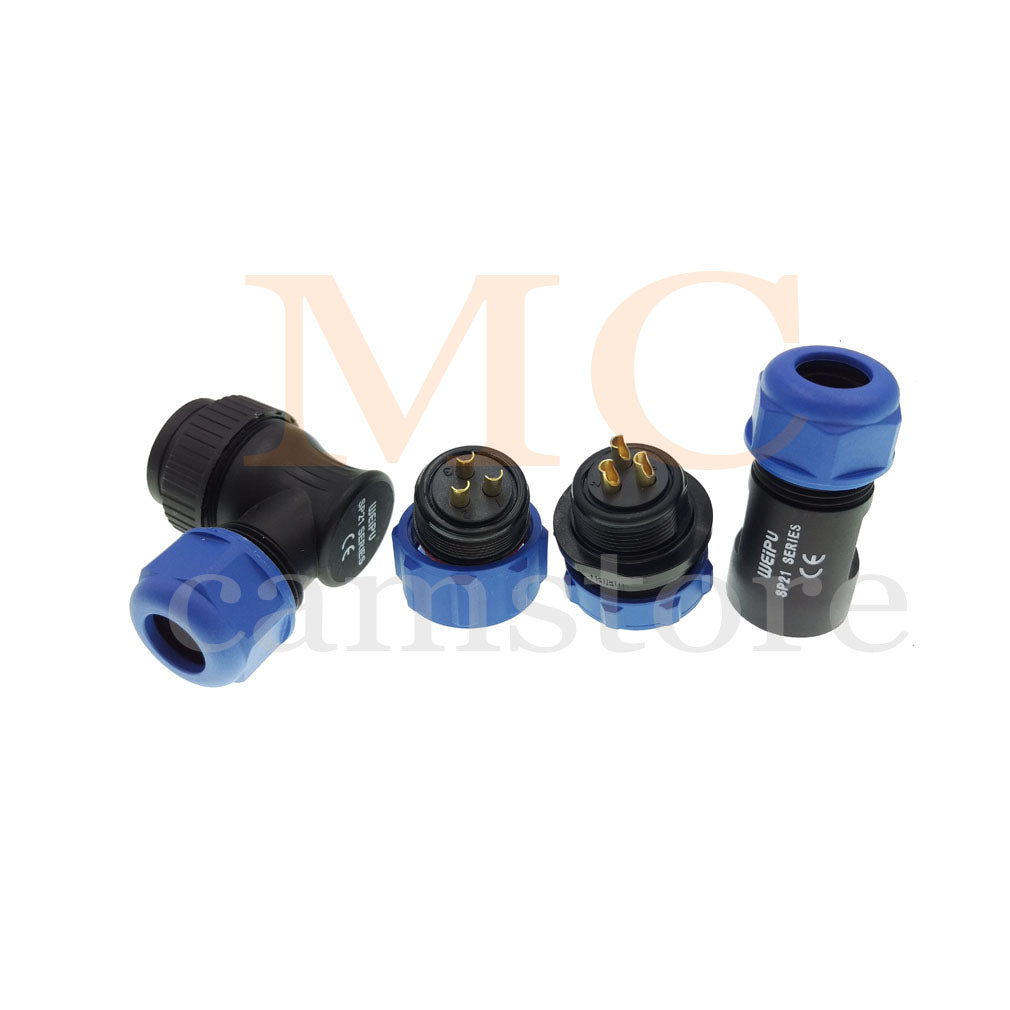

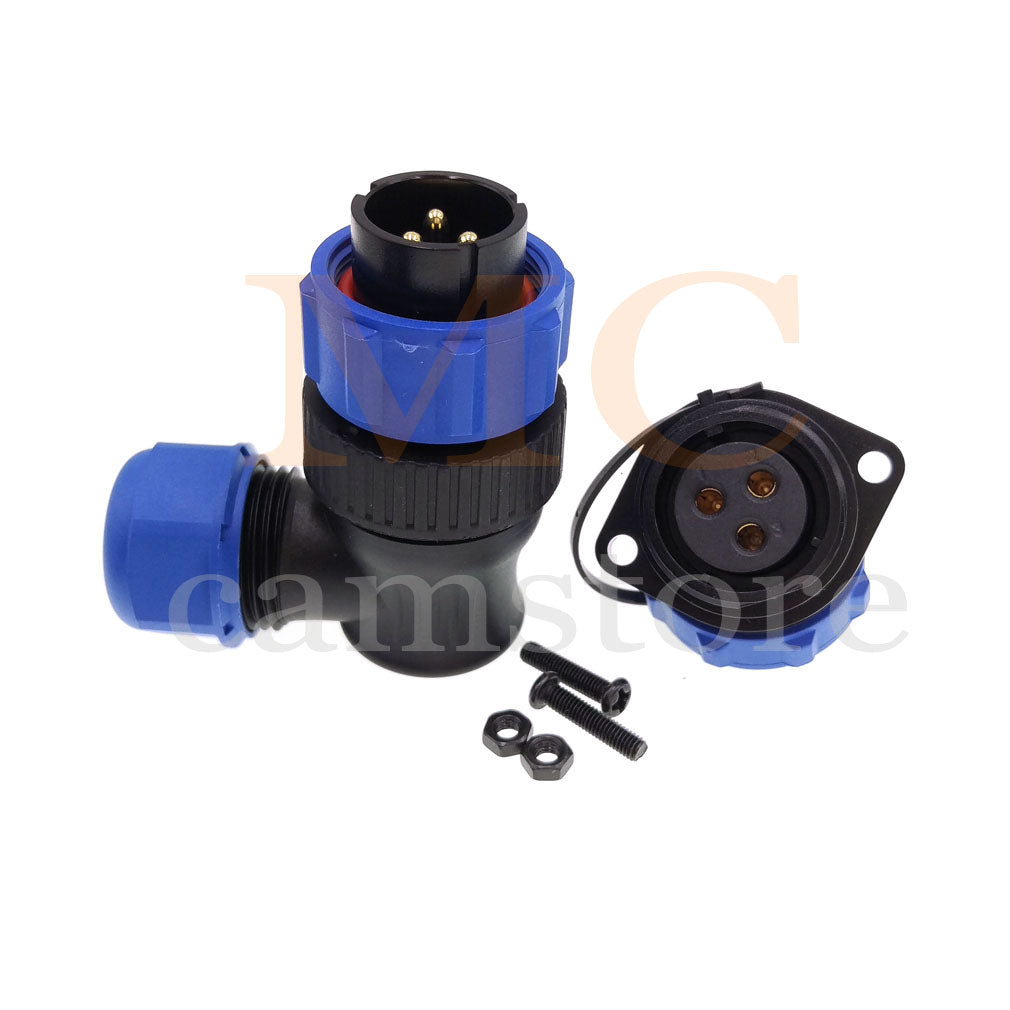

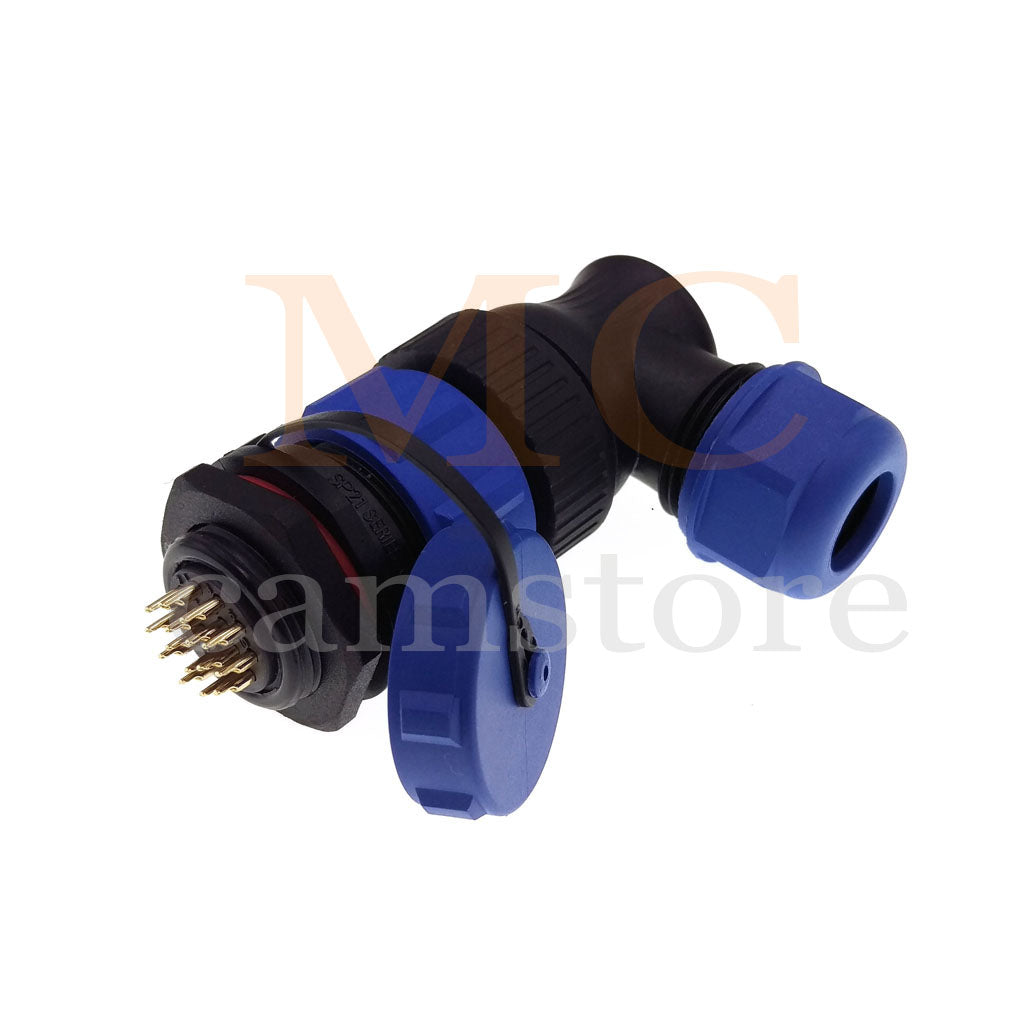

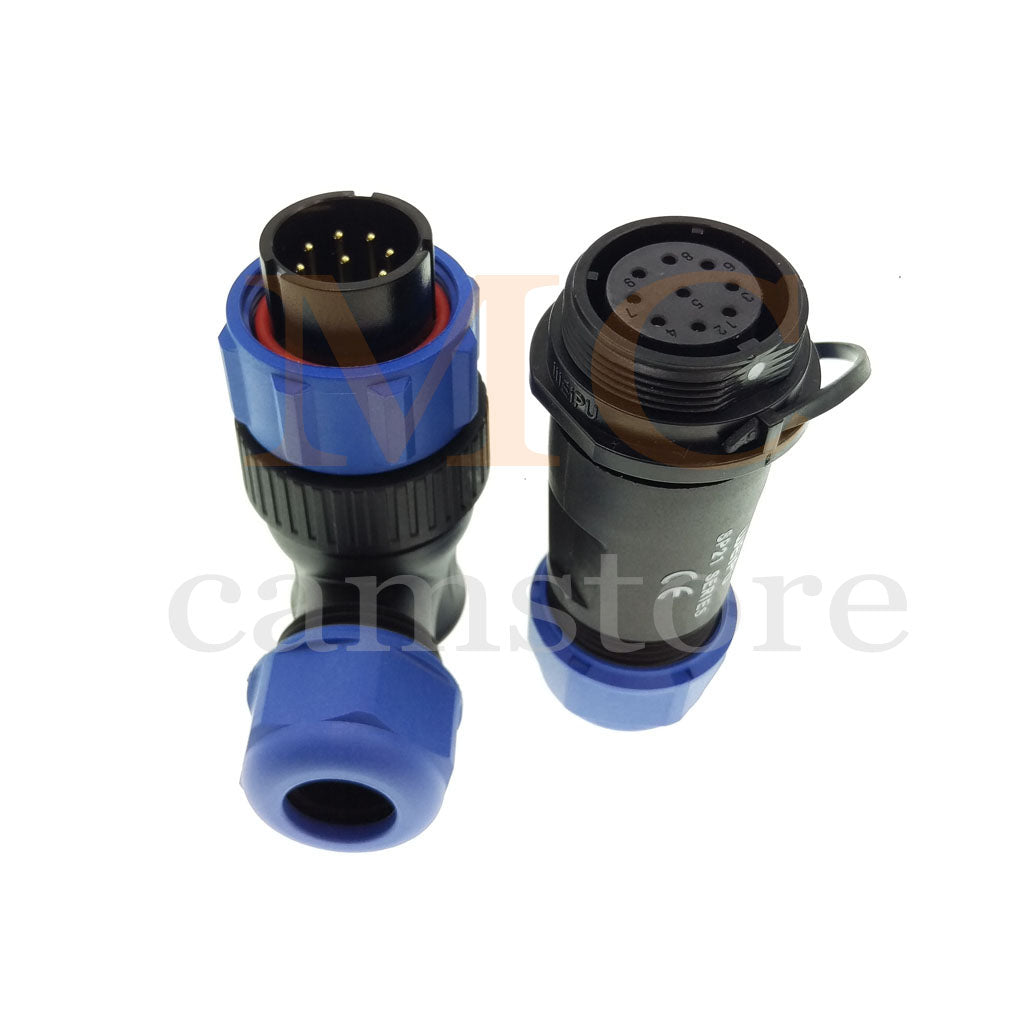

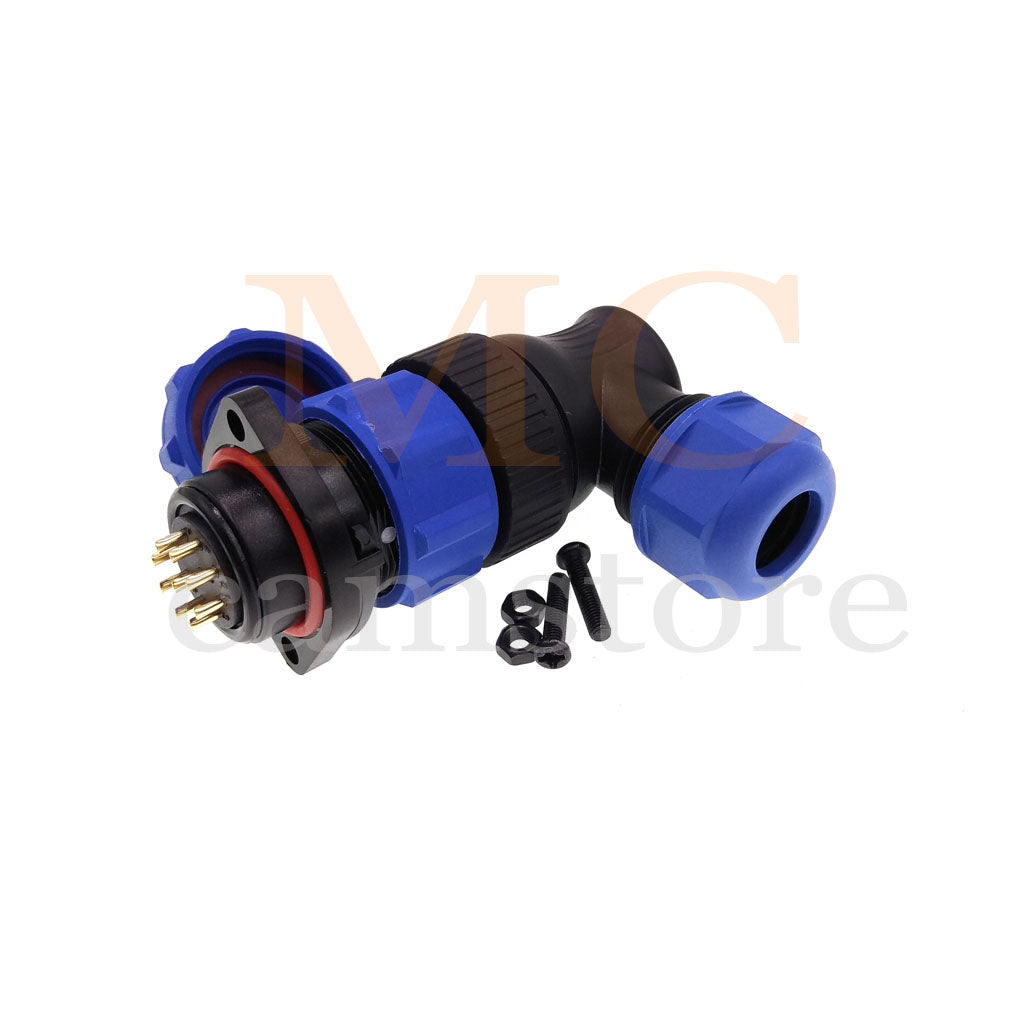

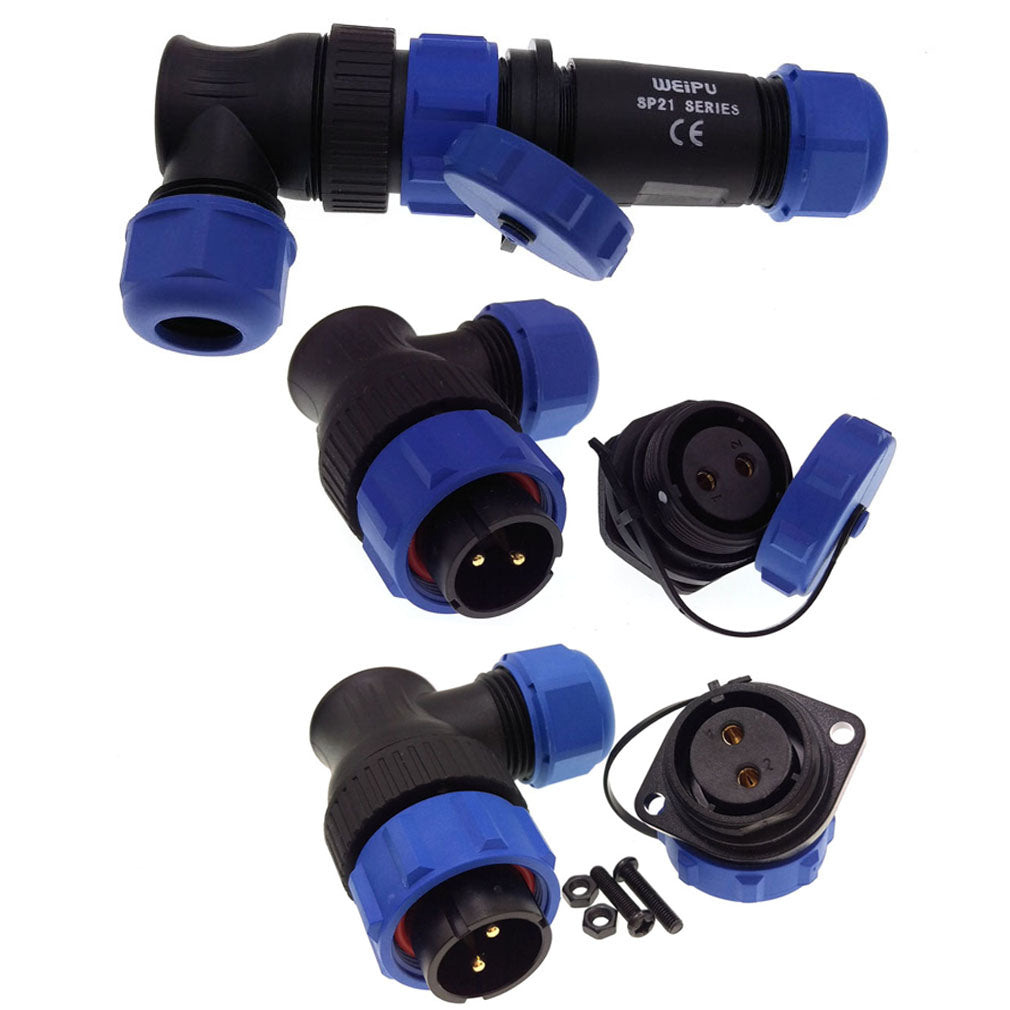

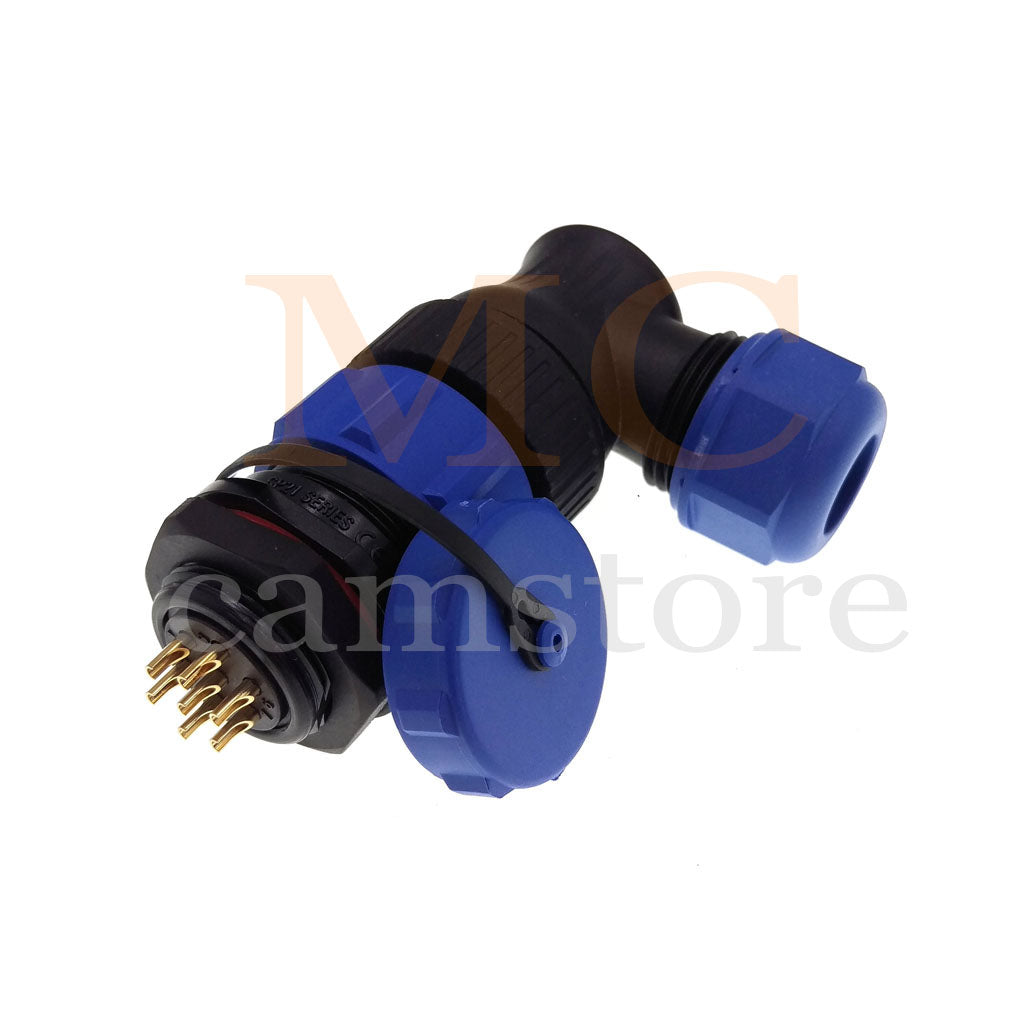

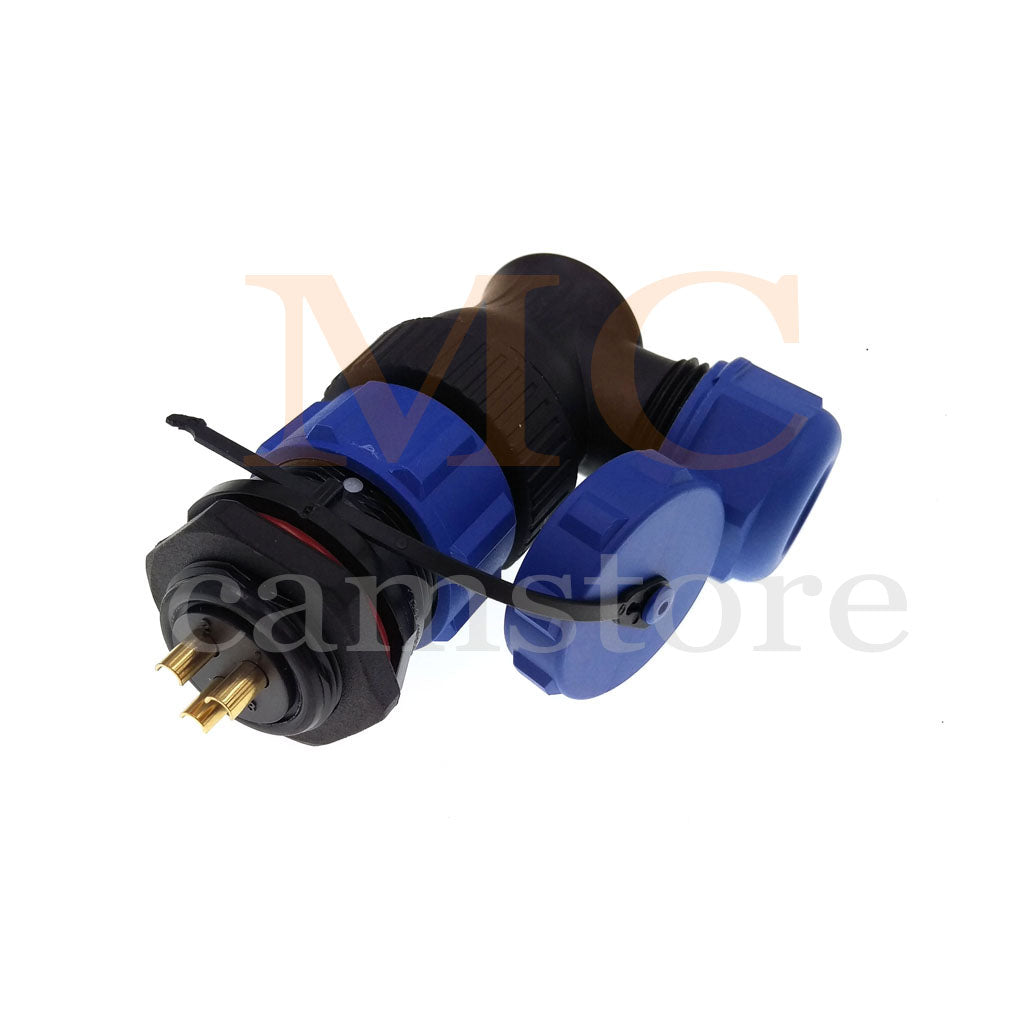

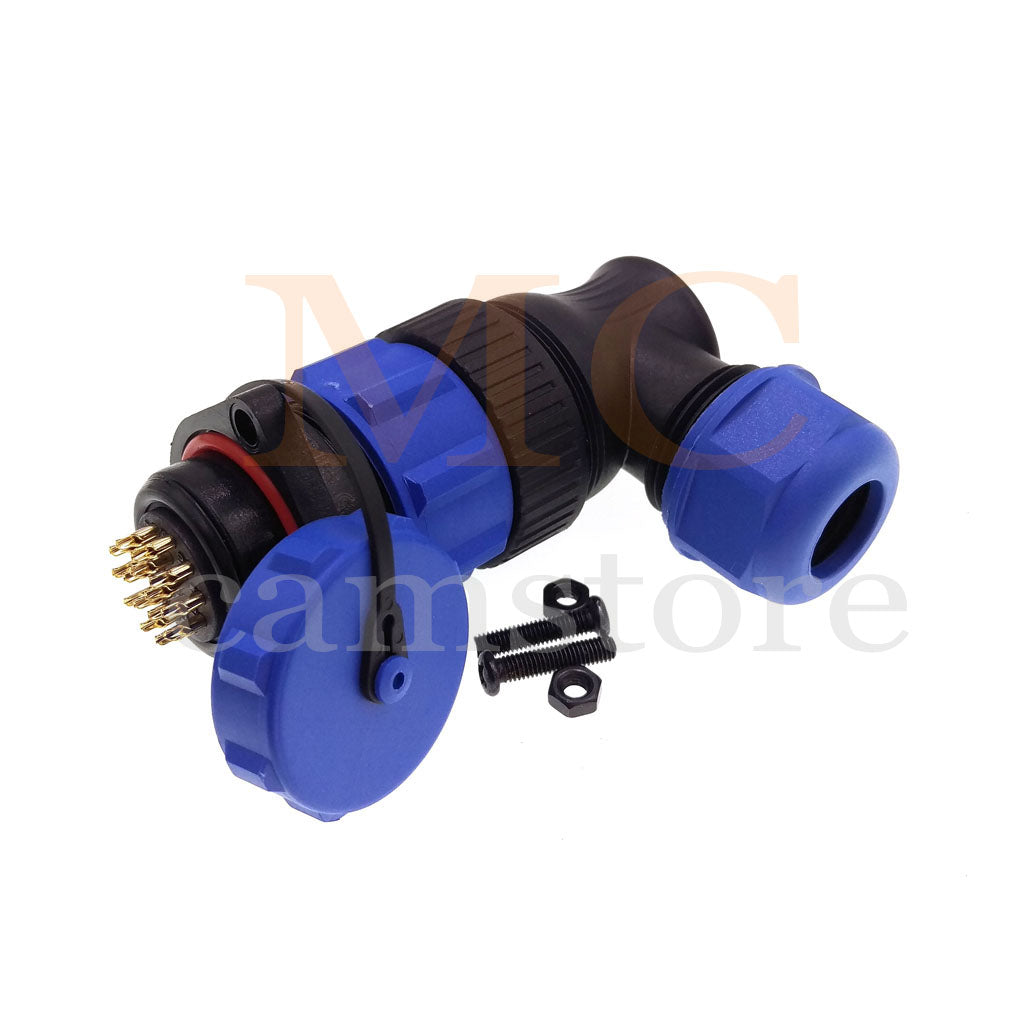

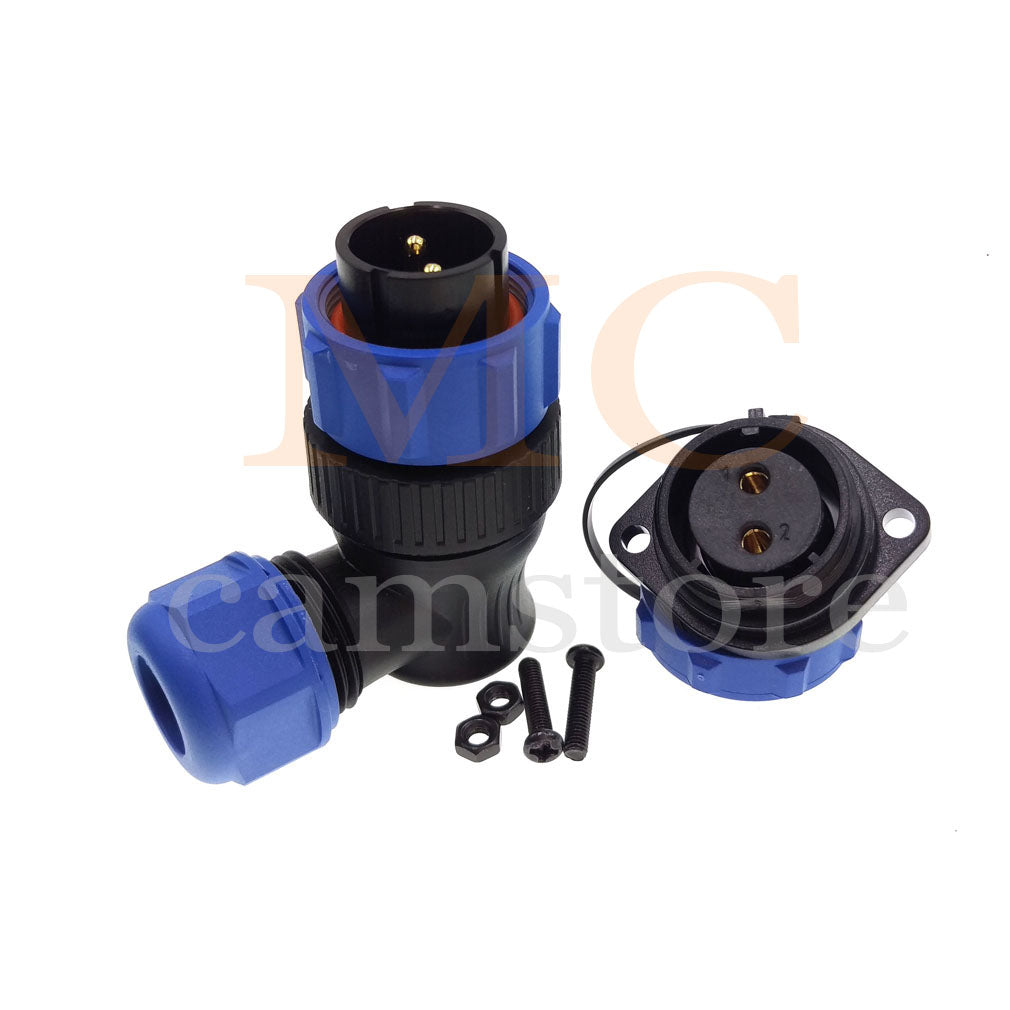

WEIPU SP21 IP68 Waterproof Connector, 2 3 4 5 5B 5C 6 6B 7 9 12 15pin Industrial Aviation LED Lamp Power Cable Angle Plug Socket

WEIPU SP21 IP68 Waterproof Connector, 2 3 4 5 5B 5C 6 6B 7 9 12 15pin Industrial Aviation LED Lamp Power Cable Angle Plug Socket

$9.59 USD
$0.00 USD $9.59 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Install type
Gender option
Pin option
WEIPU original SP21 2 3 4 5 5B 5C 6 6B 7 9 12 15 PIN WATERPROOF CONNECTOR IP68 POWER CABLE Industrial AVIATION SOLDER ANGLE PLUG, SOCKET

Plug Type:

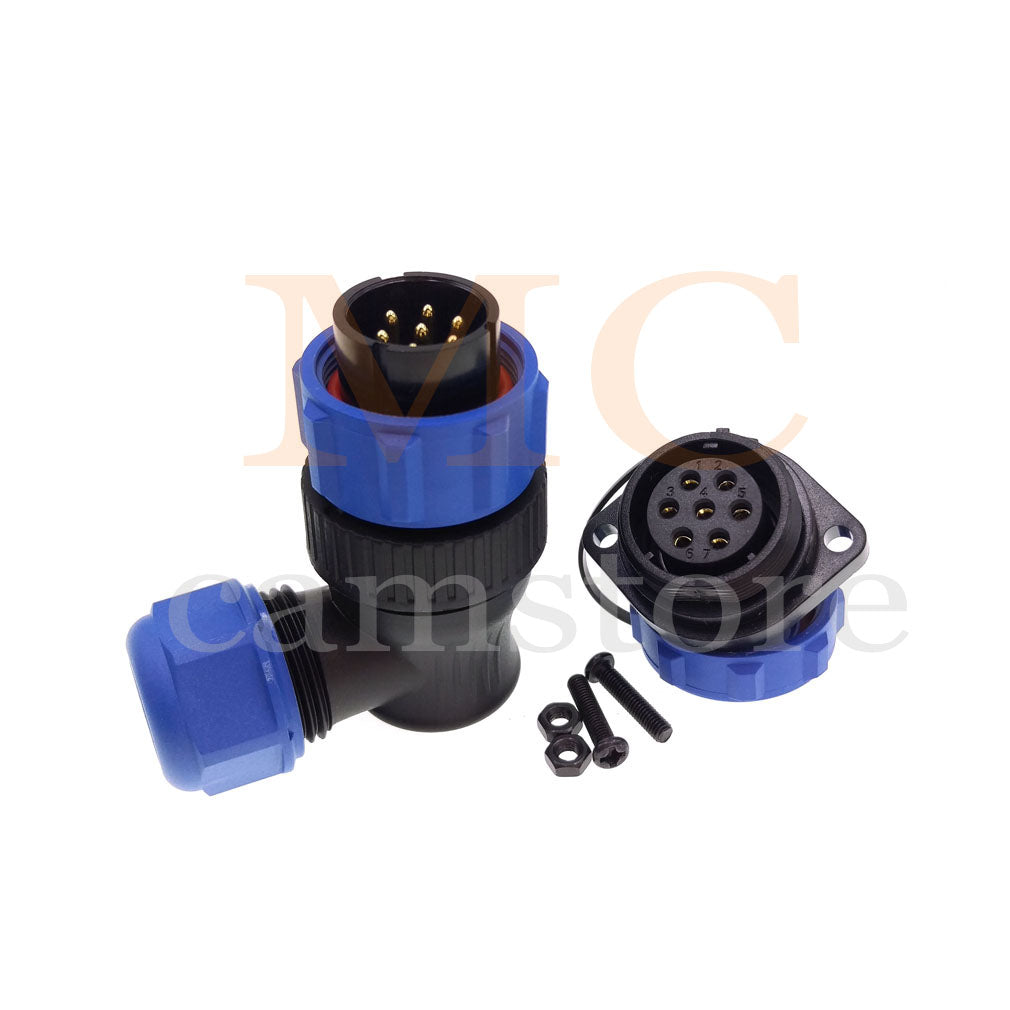

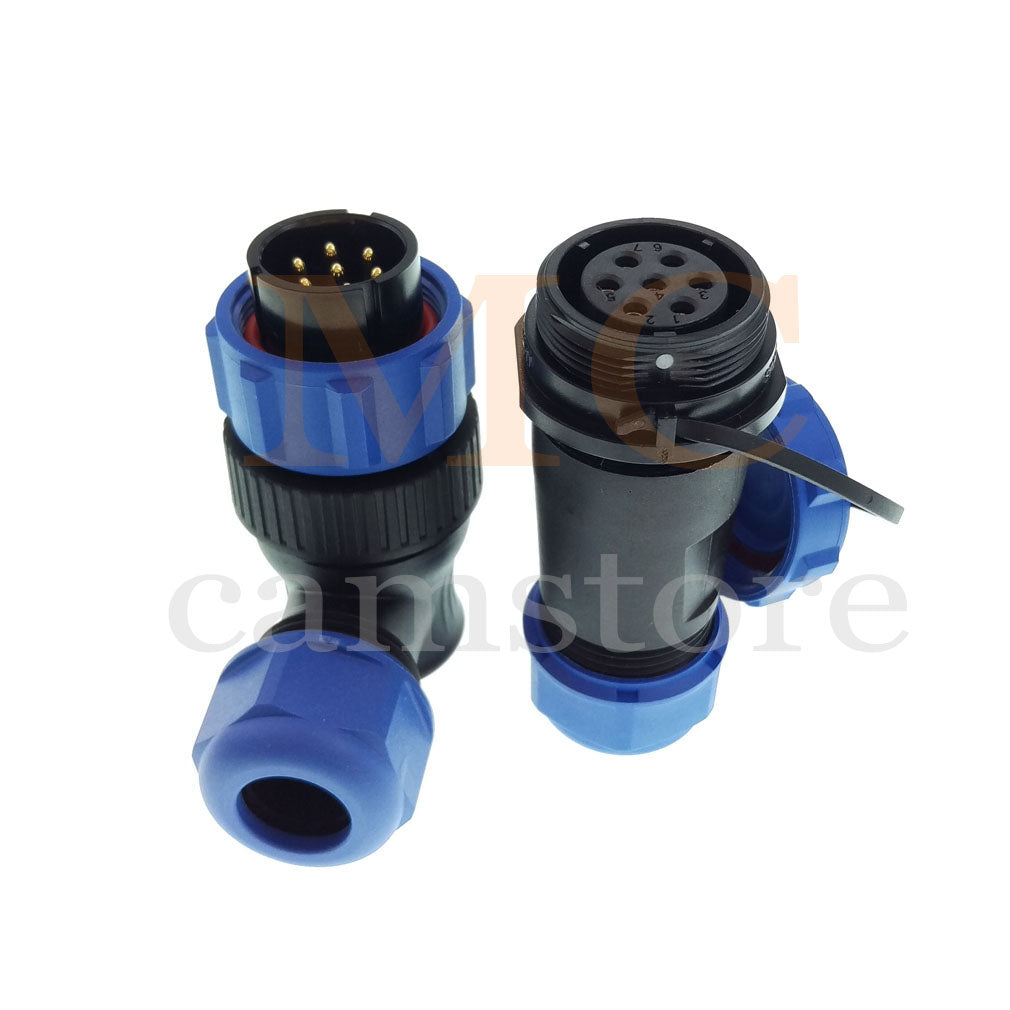

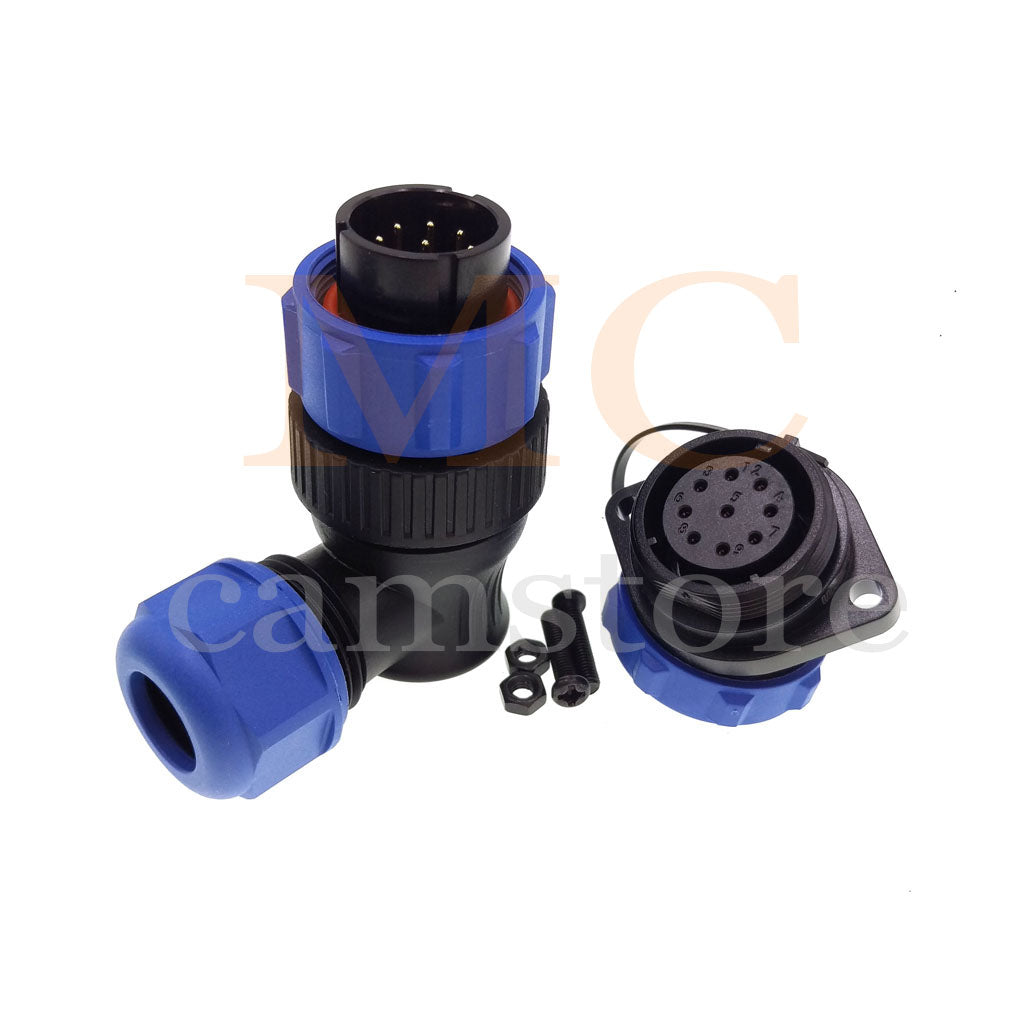

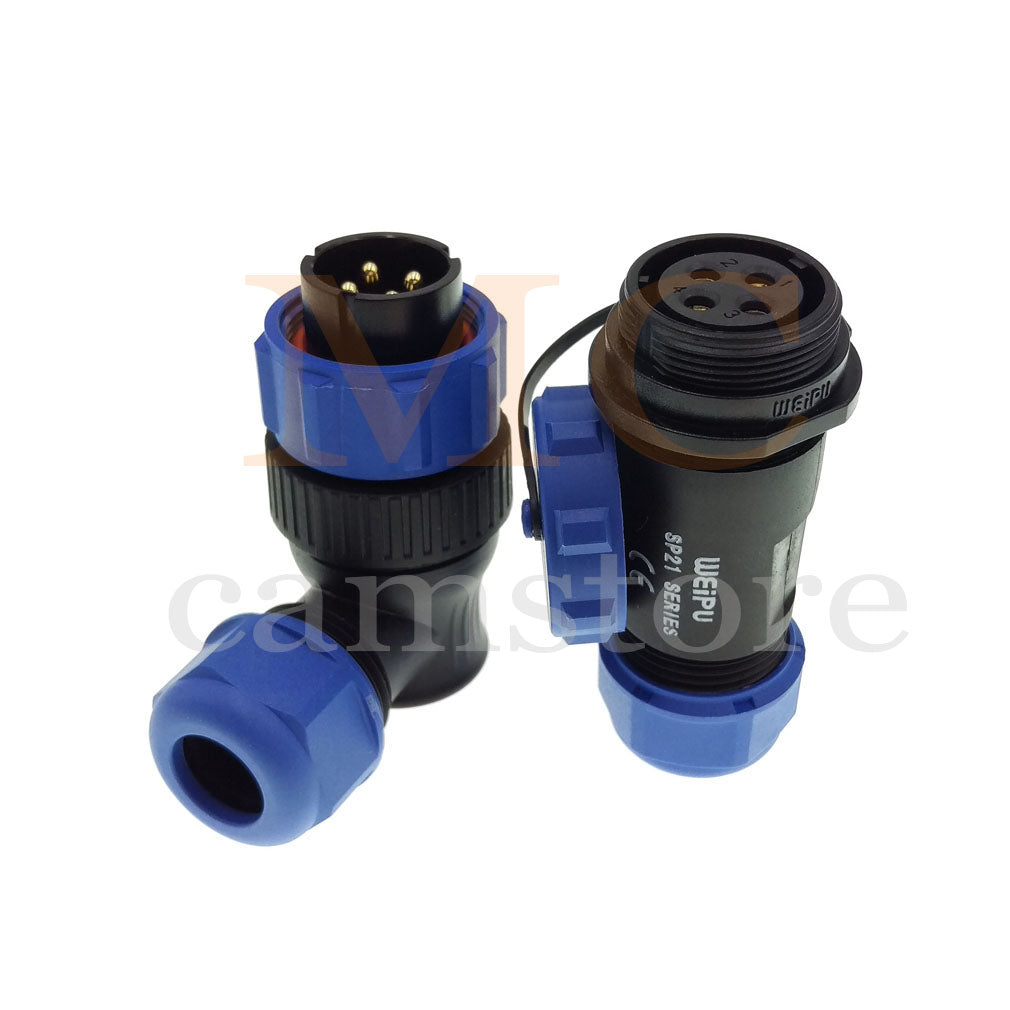

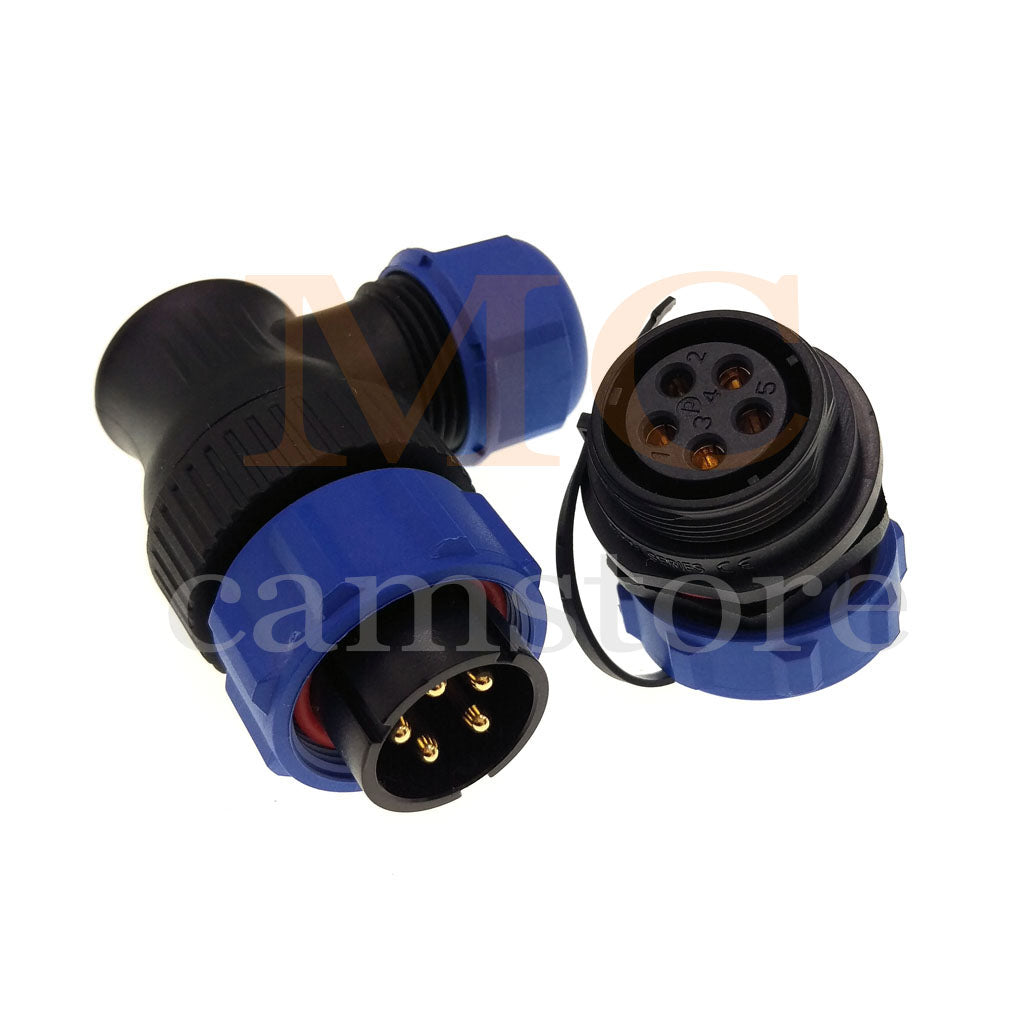

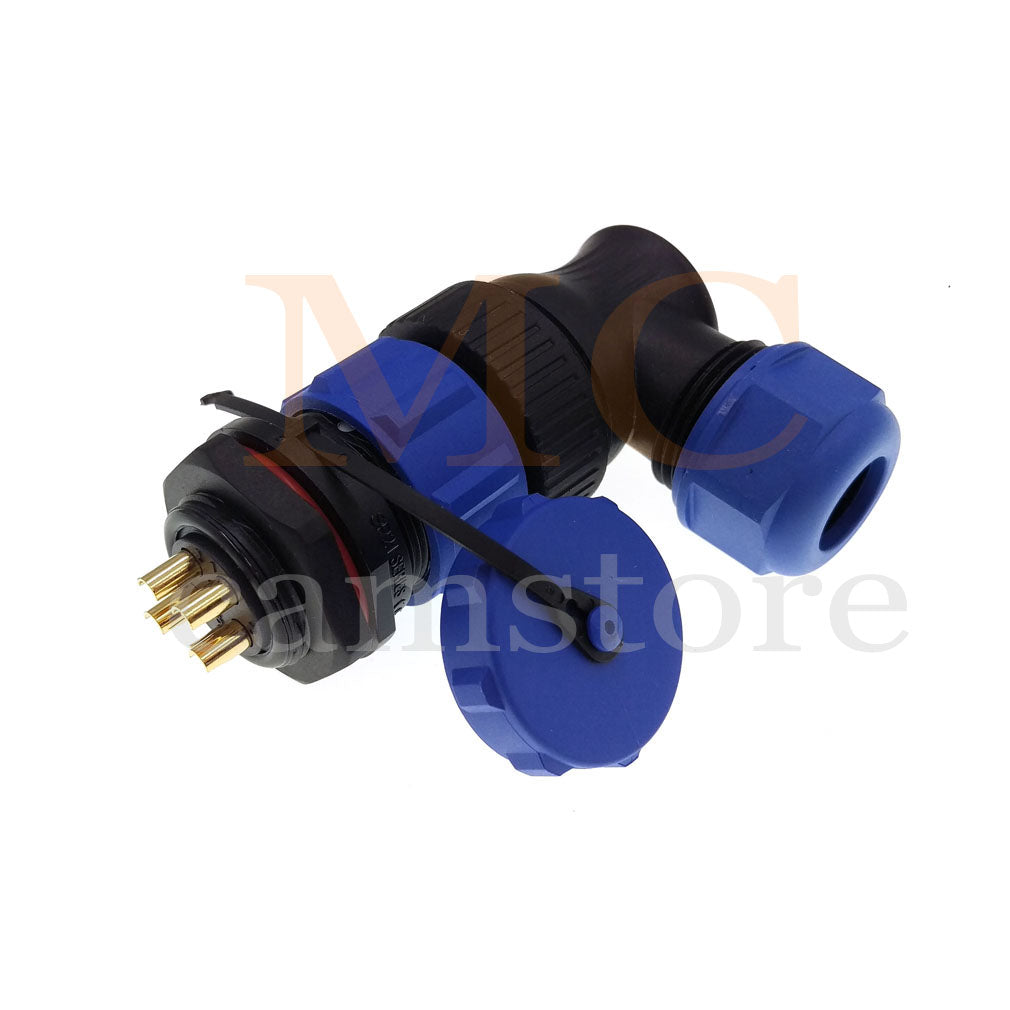

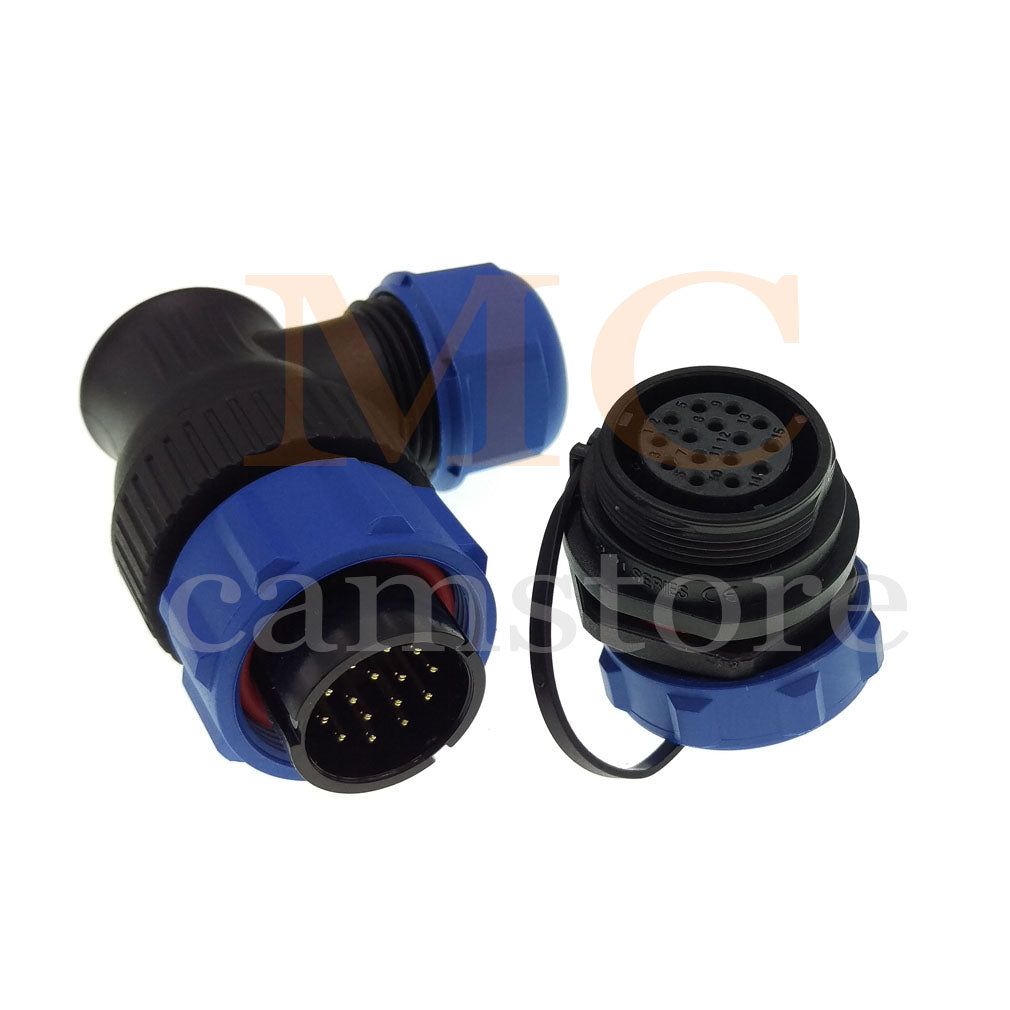

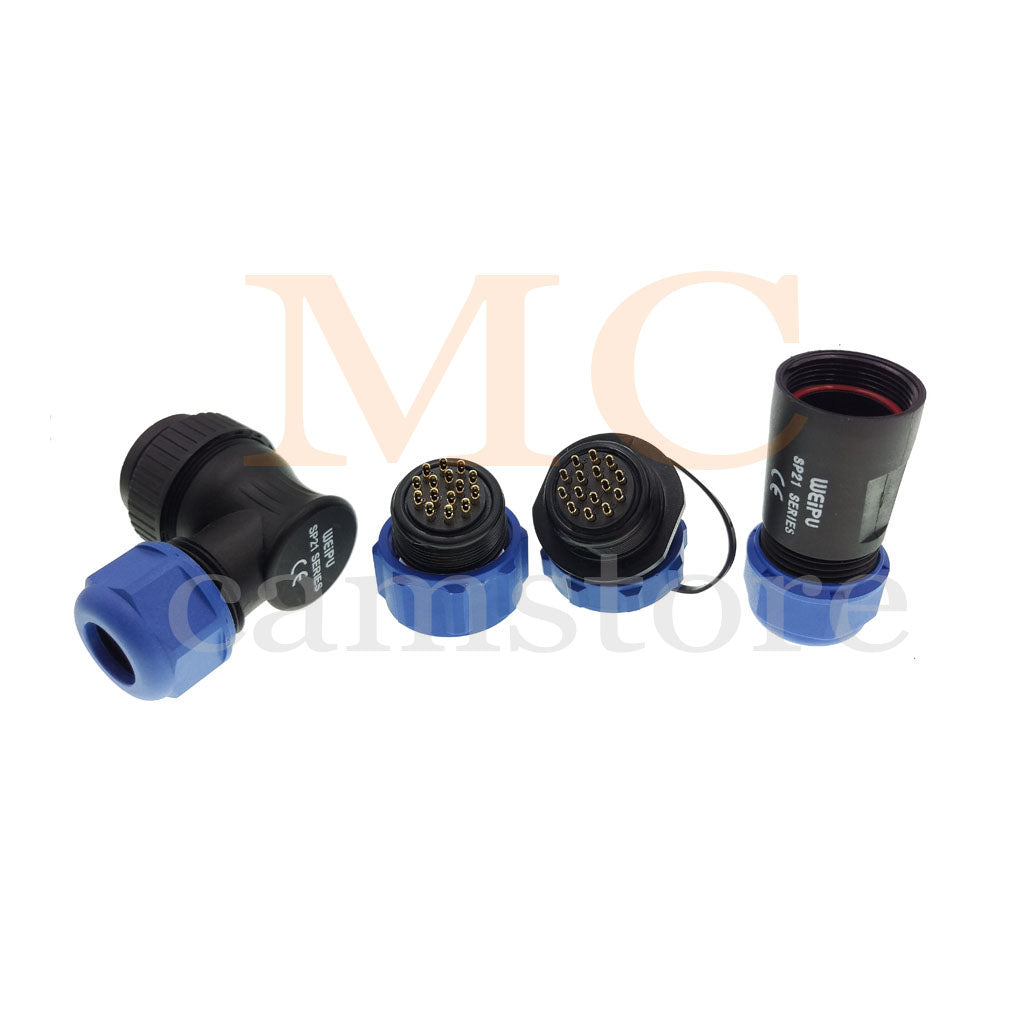

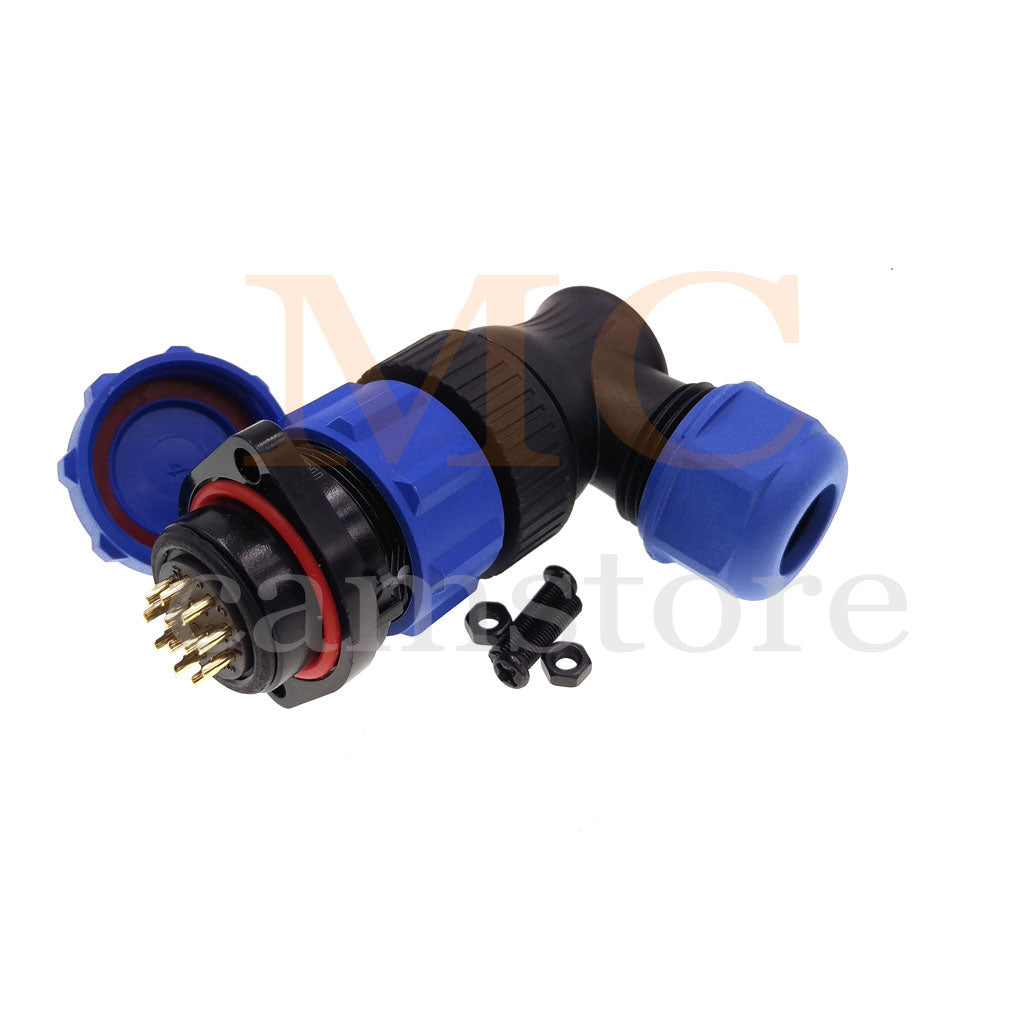

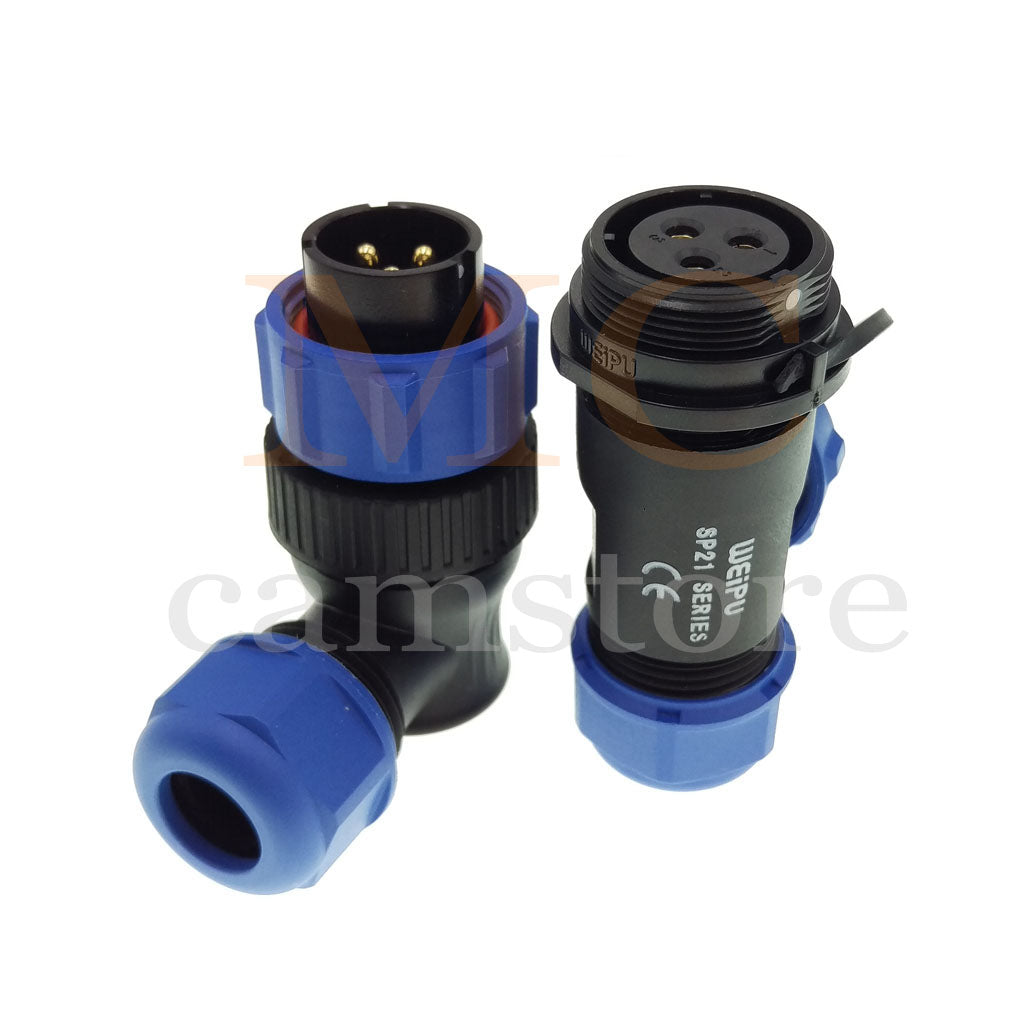

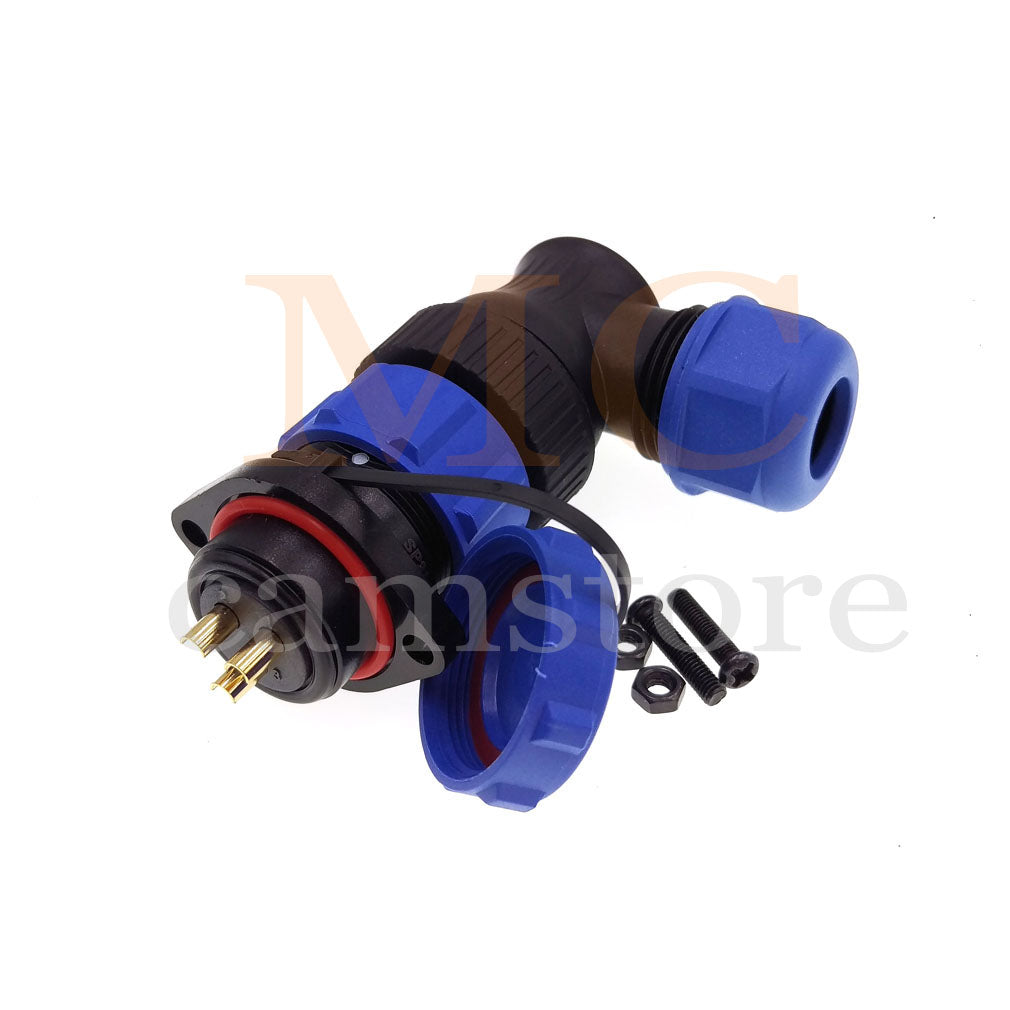

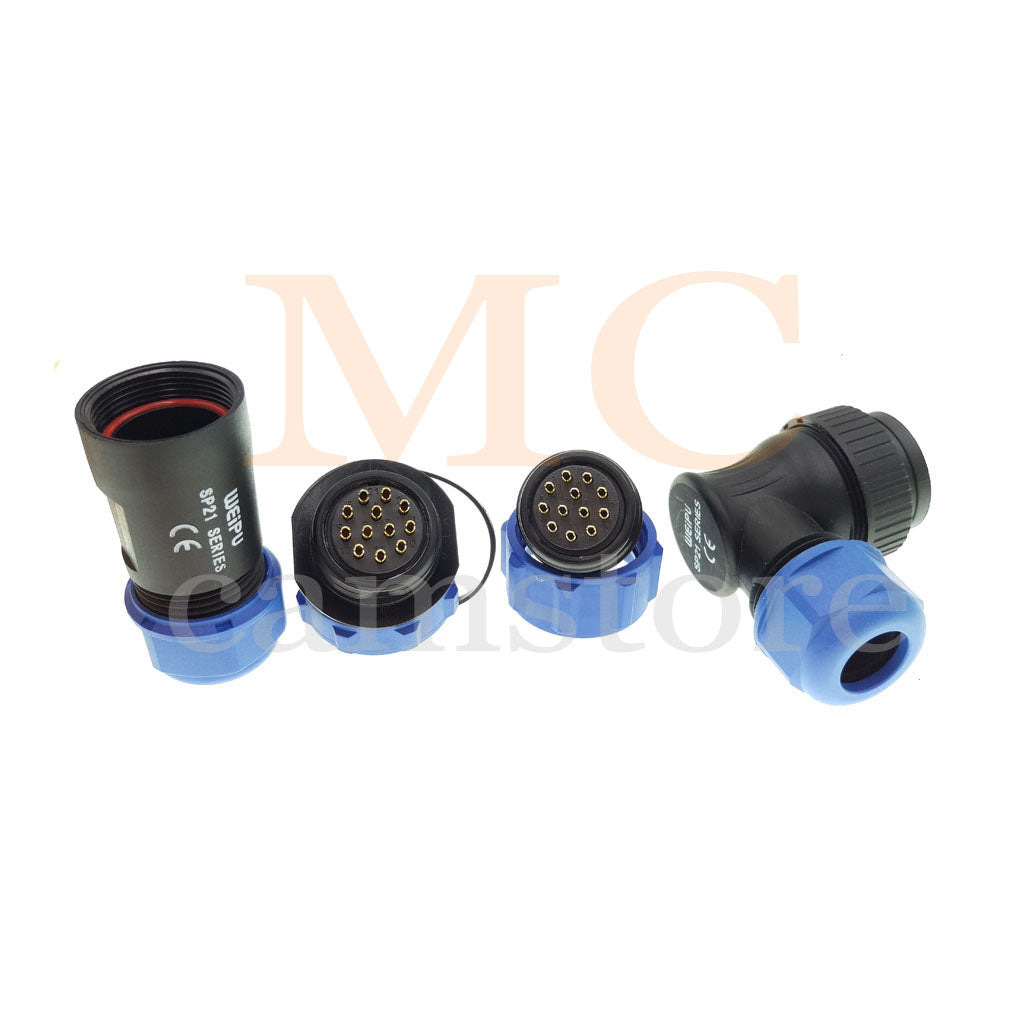

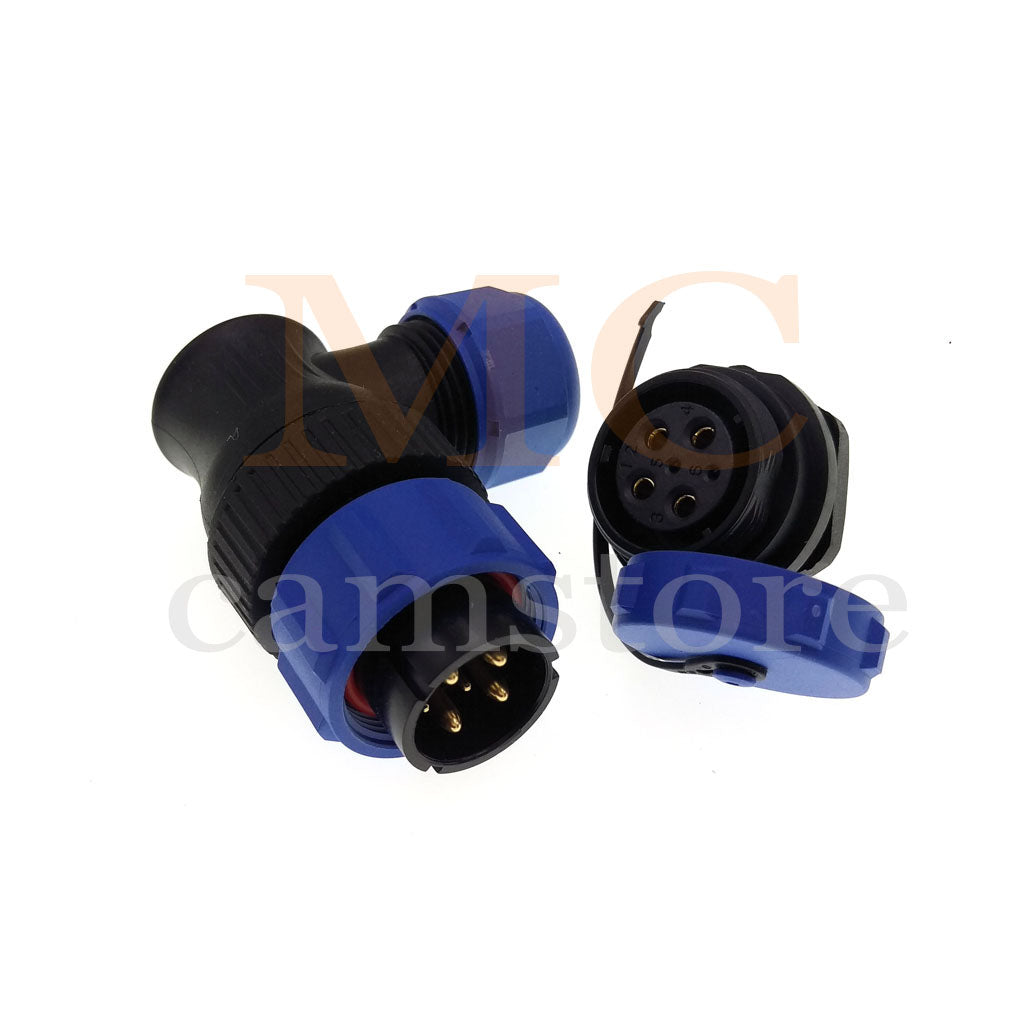

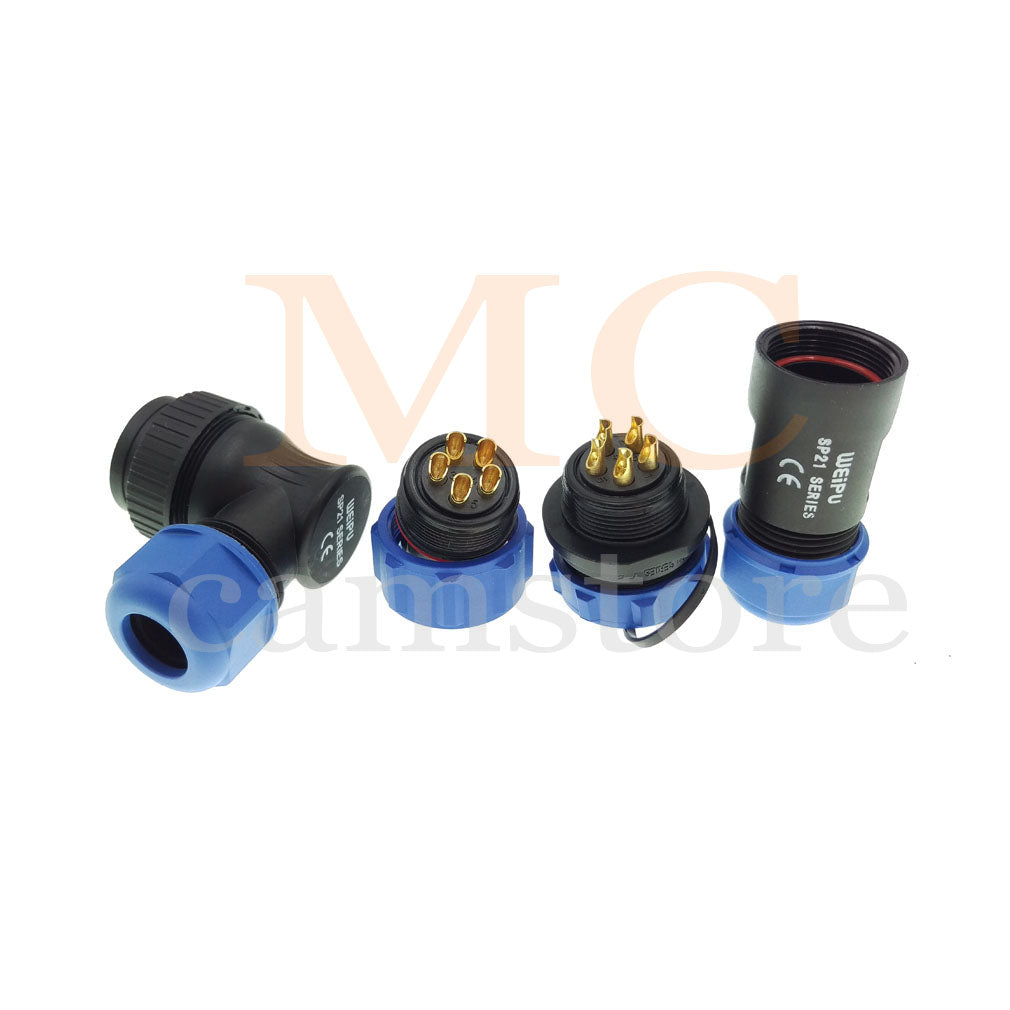

Angle male plug female socket

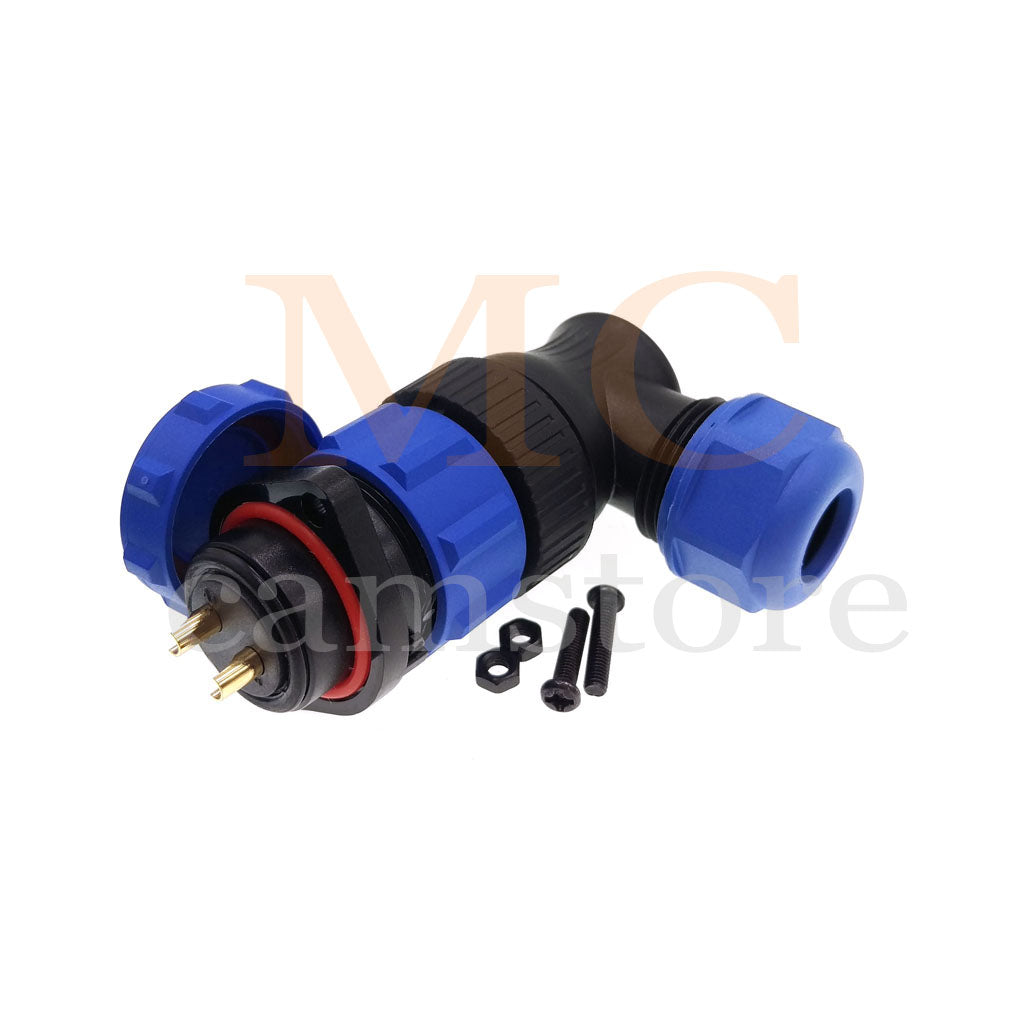

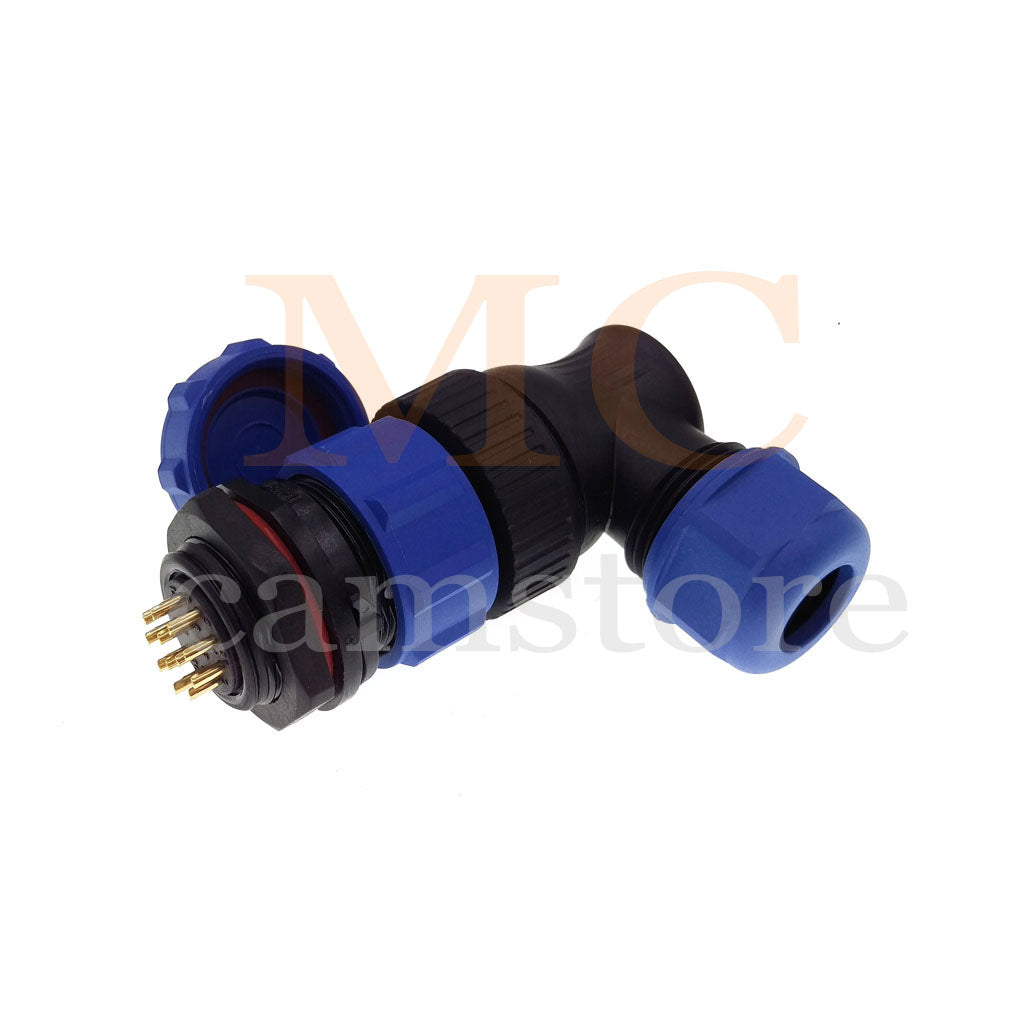

Female plug male socket

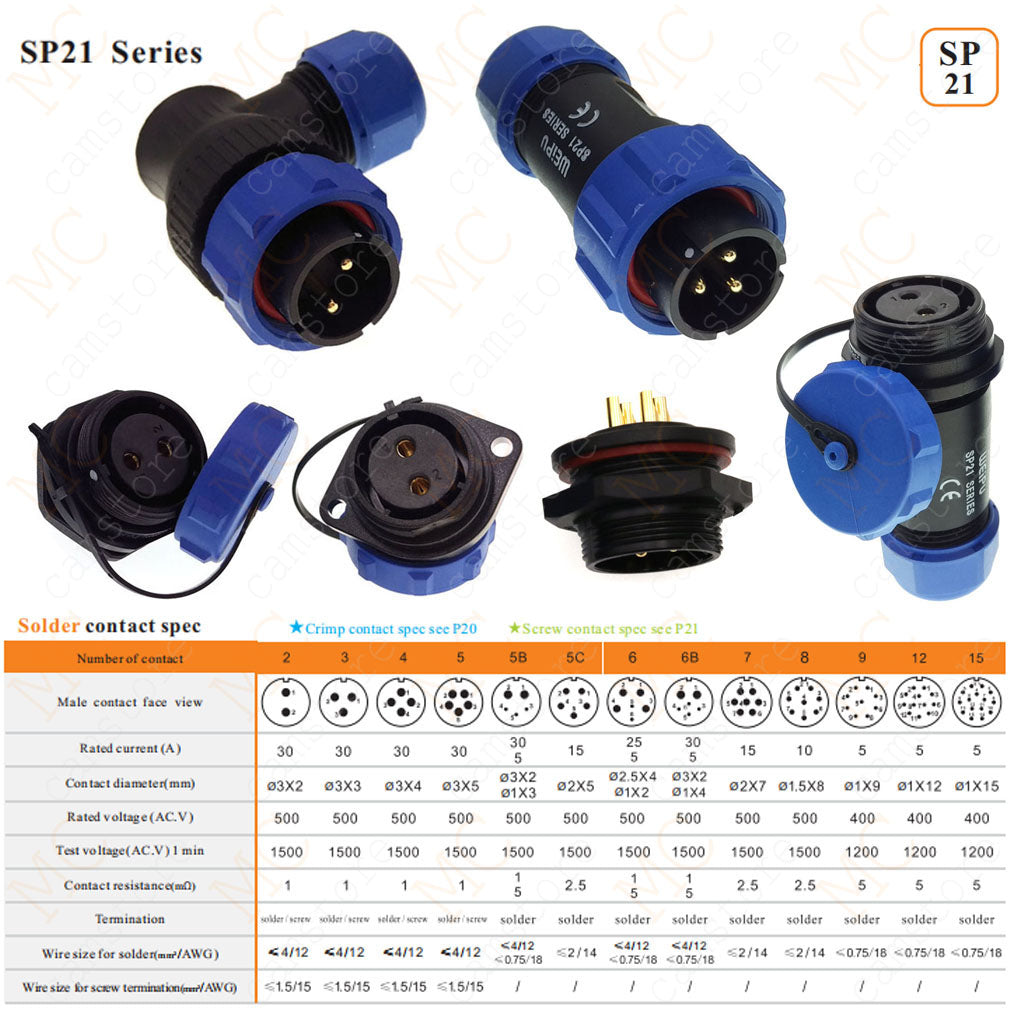

2pin, 3pin, 4pin, 5pin:
Rated Current (A): 30A
Contact diameter × number: Φ3x2 / Φ3x 3 / Φ3x 4 / Φ3x 5
Rated voltage (AC.V.): 500V
Withstanding Voltage (AC.V) 1 minute: 1500V
Contact resistance: 1mΩ
Wire specification: <4m㎡/11AWG

6pin, 7pin:
Rated Current (A): 15A
Contact diameter × number: Φ2x6, Φ2x7
Rated voltage (AC.V.): 500V
Withstanding Voltage (AC.V) 1 minute: 1500V
Contact resistance: 2.5mΩ
Wire specification: <2m㎡/14AWG

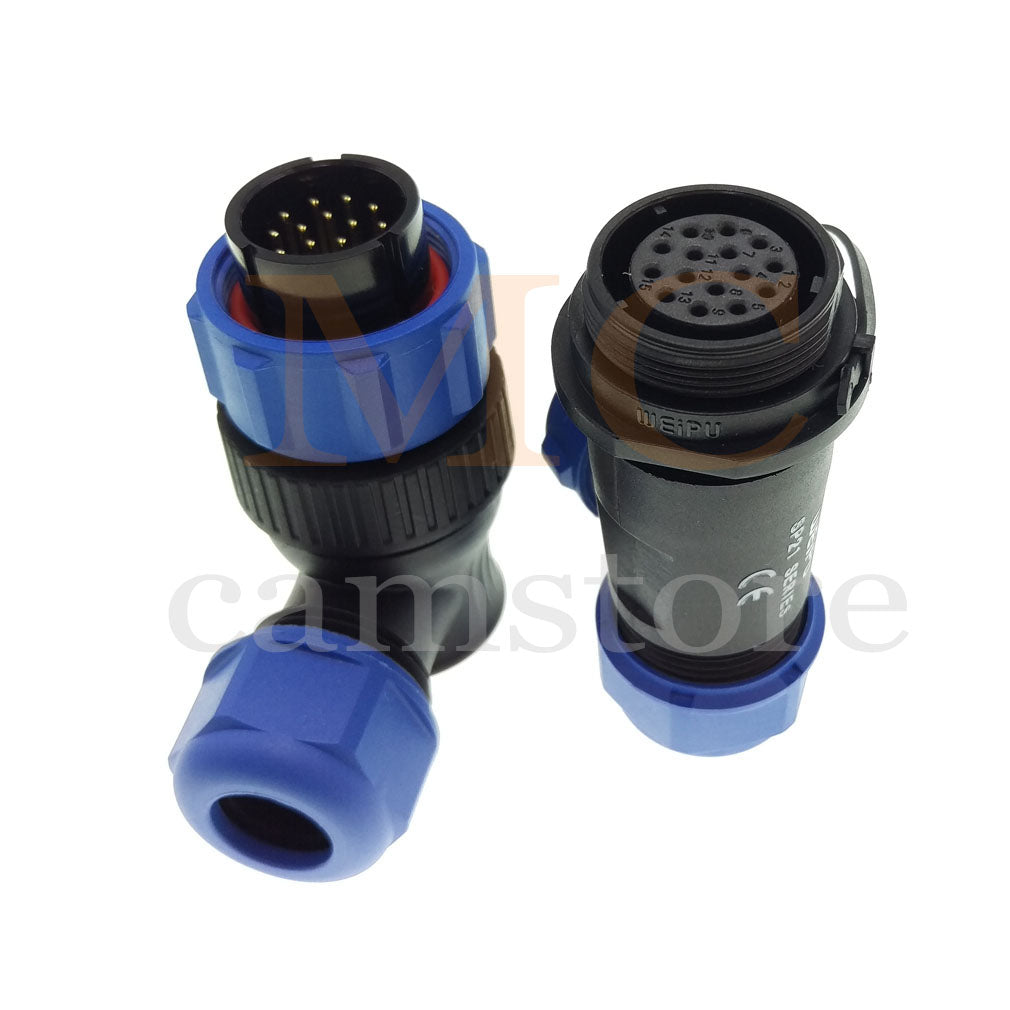

9pin, 12pin, 15pin:
Rated Current (A): 5A
Contact diameter × number: Φ1x 9, Φ1x 12, Φ1x 15
Rated voltage (AC.V.): 9pin-500V, 12pin/15pin-400V
Withstanding Voltage (AC.V) 1 minute: 9pin-1500V，12pin/15pin-1200V
Contact resistance: 5mΩ
Wire specification: <0.785m㎡/18AWG

Material: Plastic
IP Rating: IP68
Waterproof type: Structural waterproof, plastic ring waterproof
Shell: Nylon66
Fire Resistance: V-0
Contact Material: Brass with Gold Plating
Termination: Solder
Cable Outer Diameter Range:  7-12mm（there is soft plastic ring you can adjust and tigthen it, to make it tight enough to be waterproof）
Mating Cycle: >500
Temperature Range: -25℃ ~ +85℃
Insulation Resistance : 2000mΩ

What's in the package: (pin as to your choose)
 1 plug + 1 socket with cap
