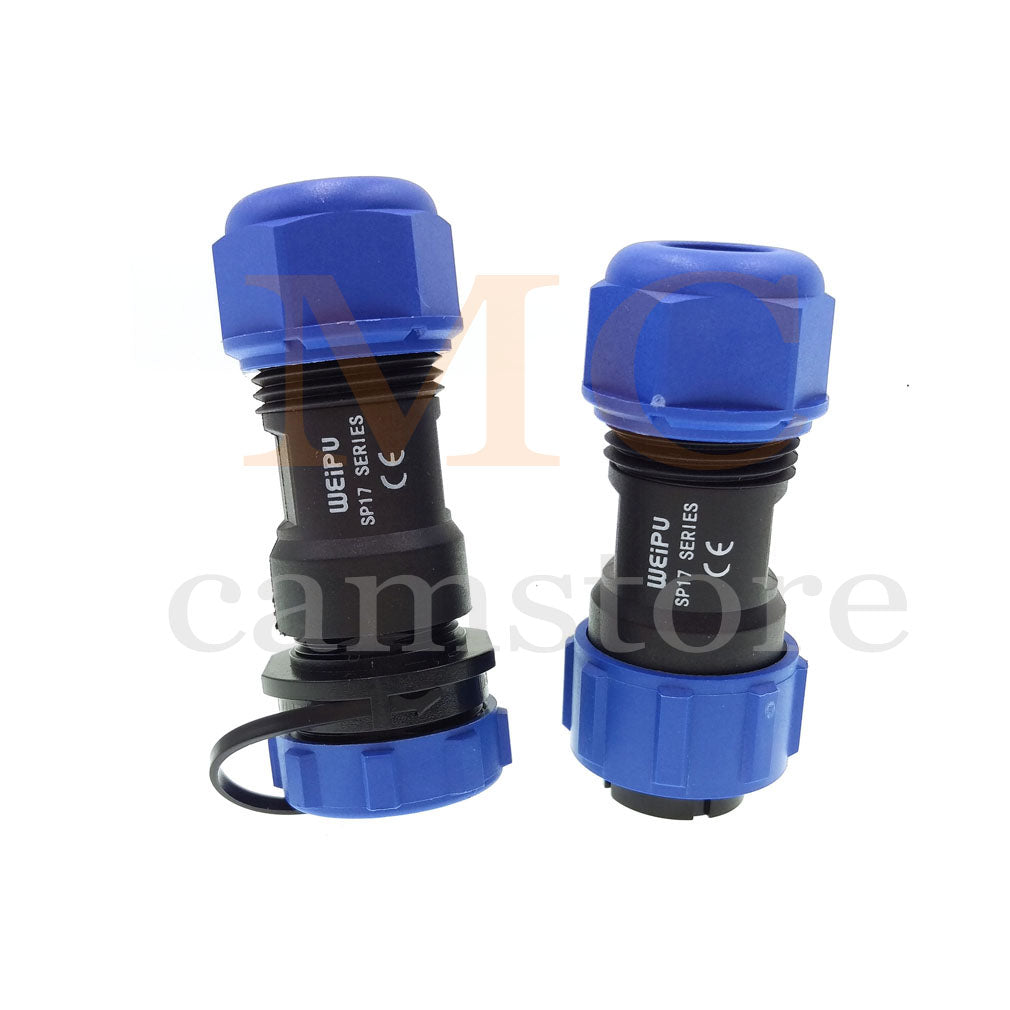

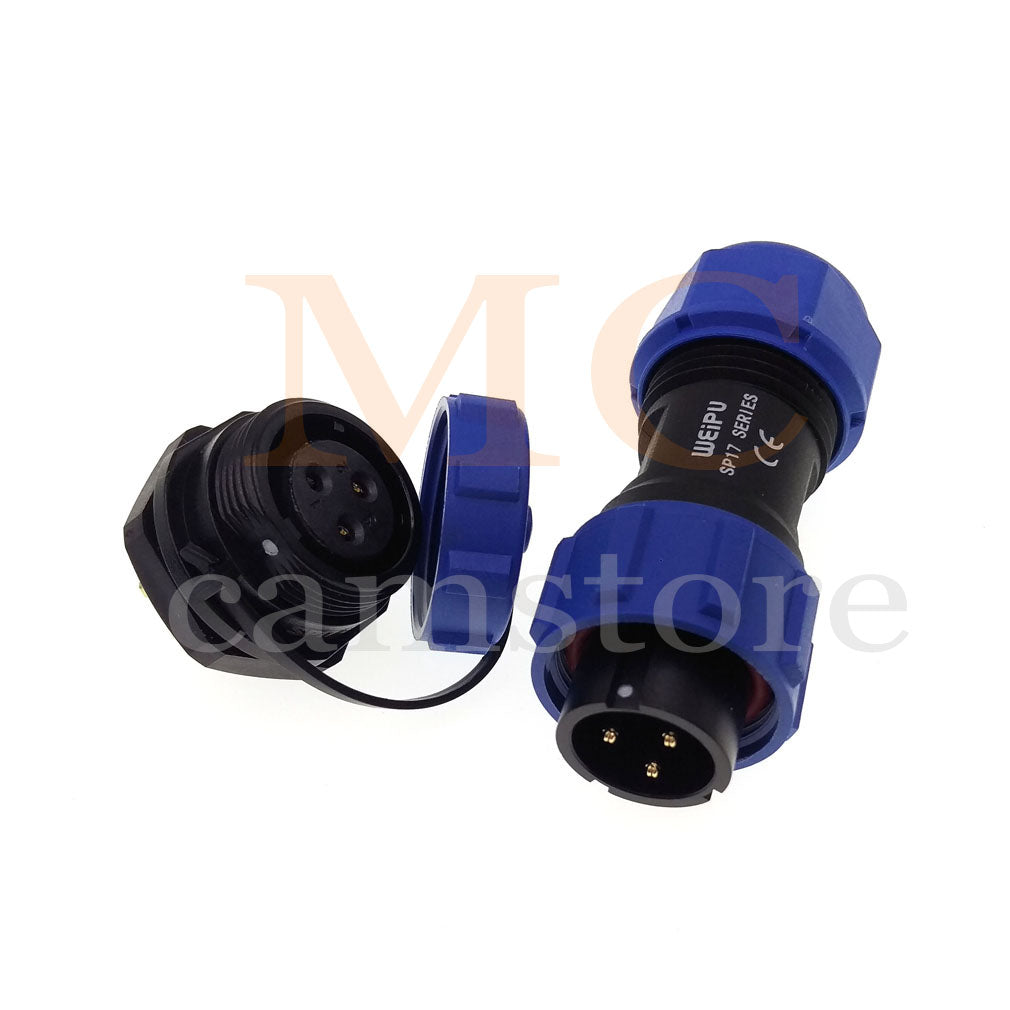

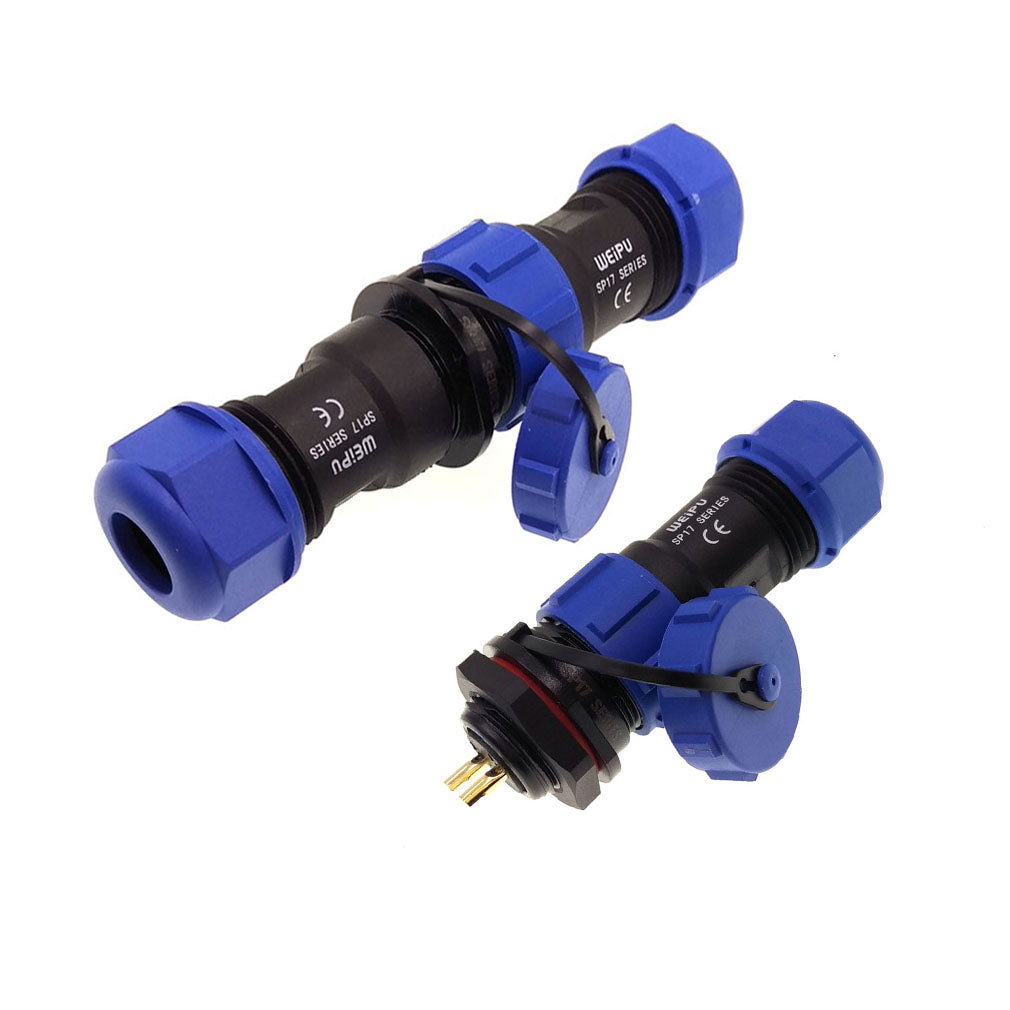

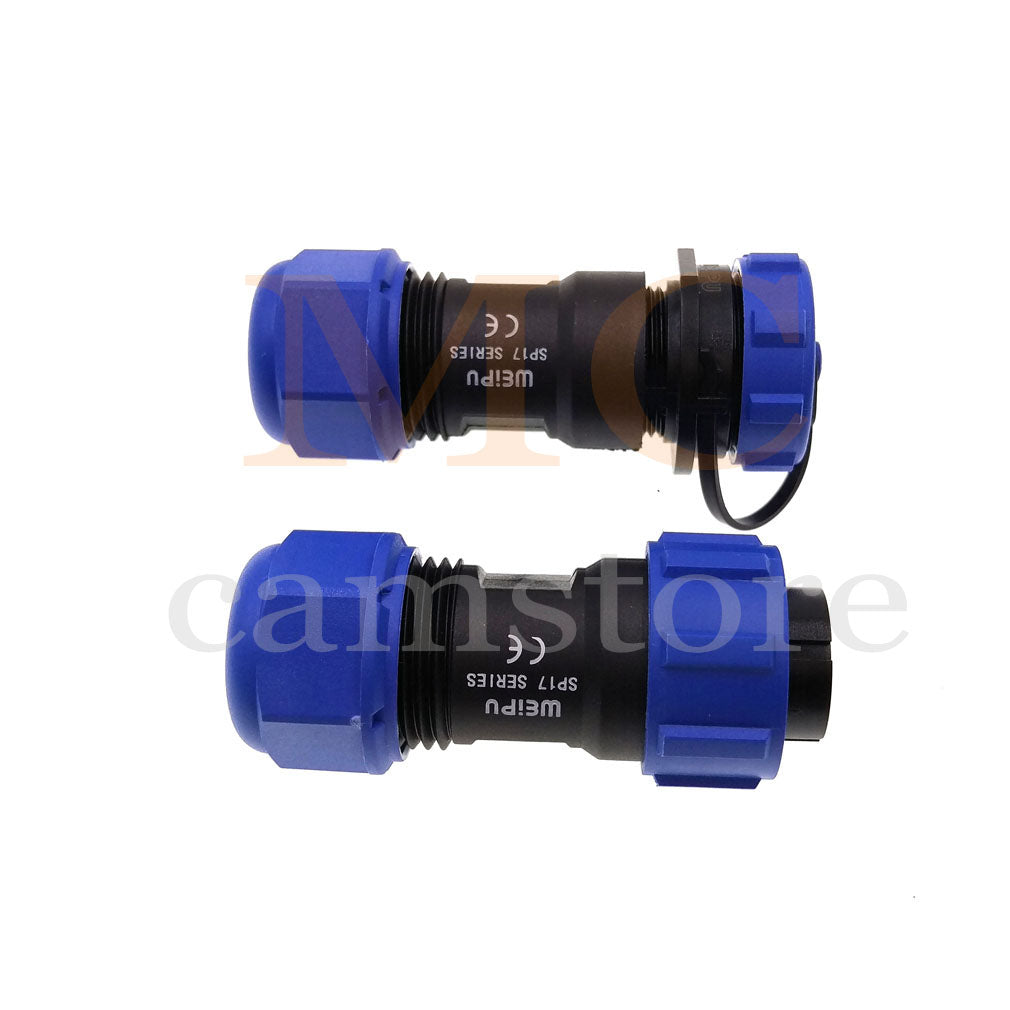

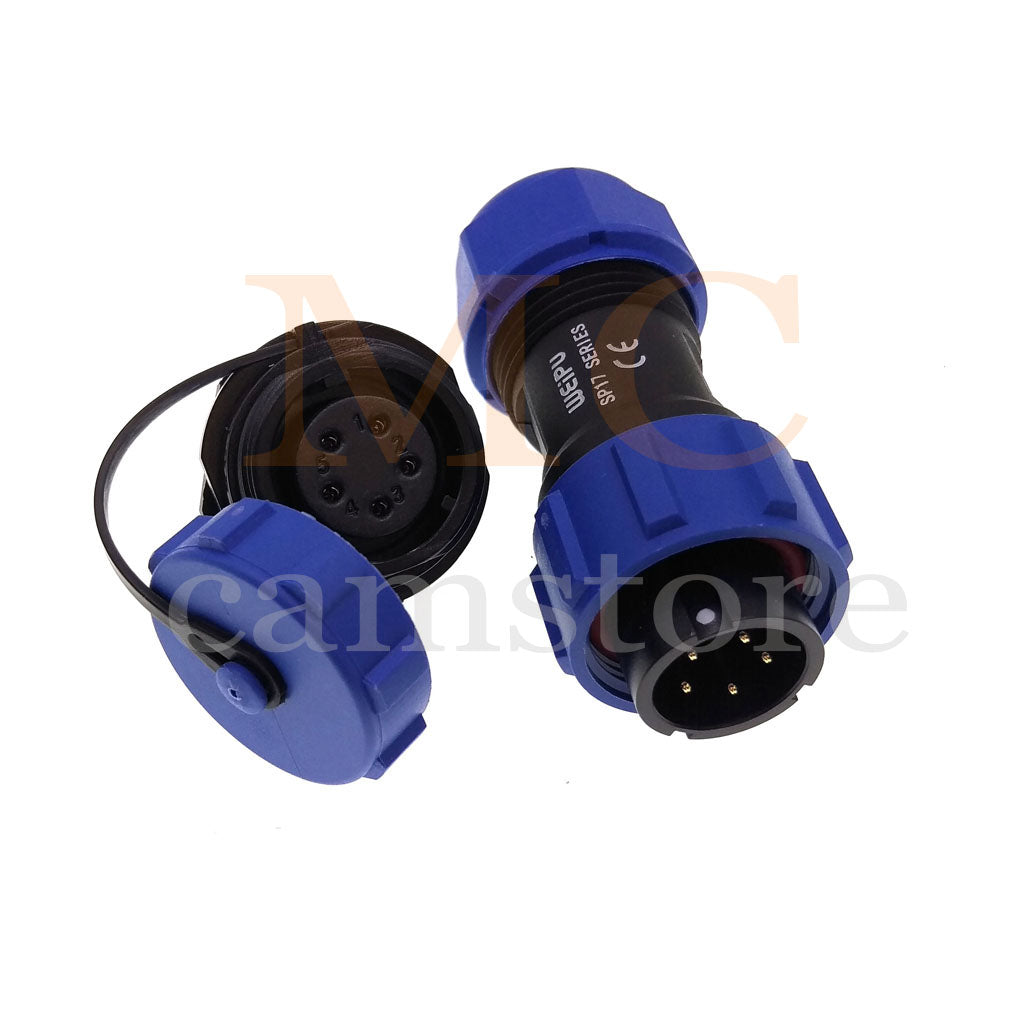

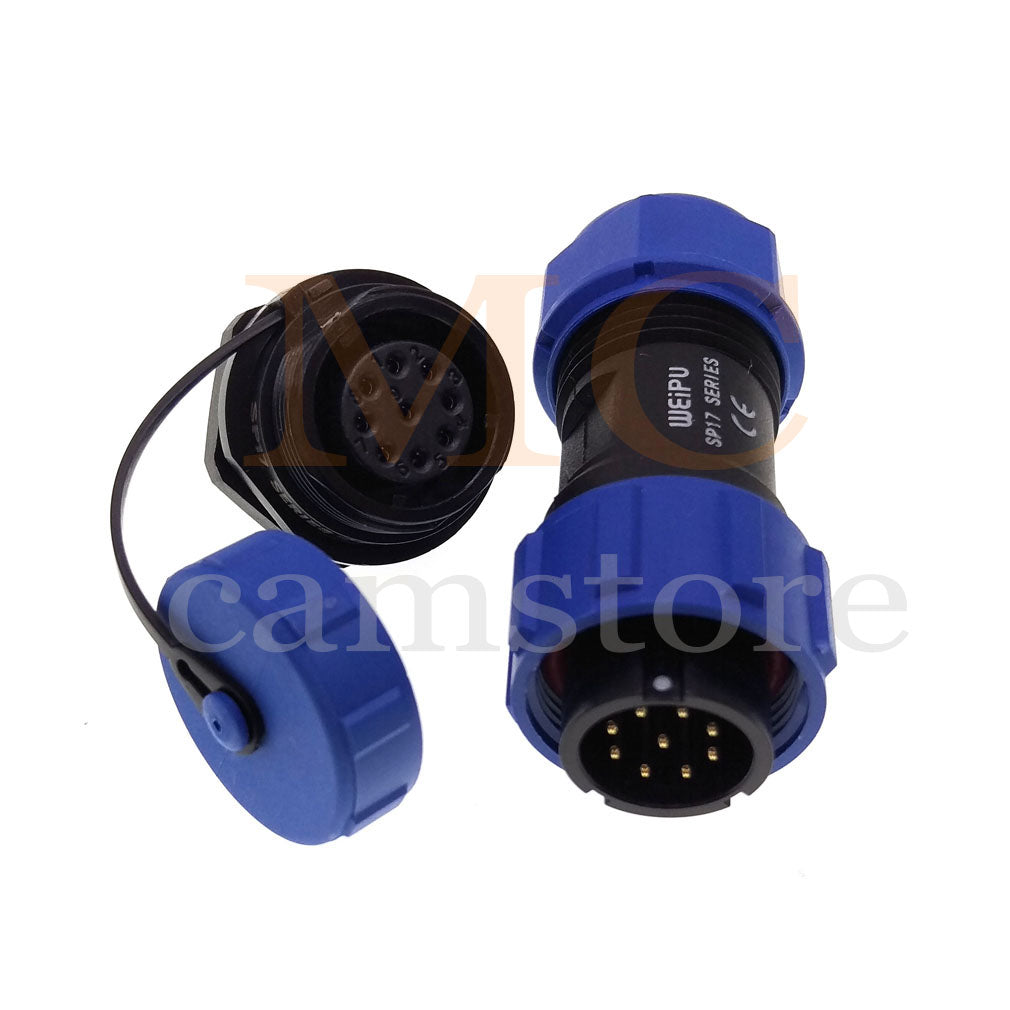

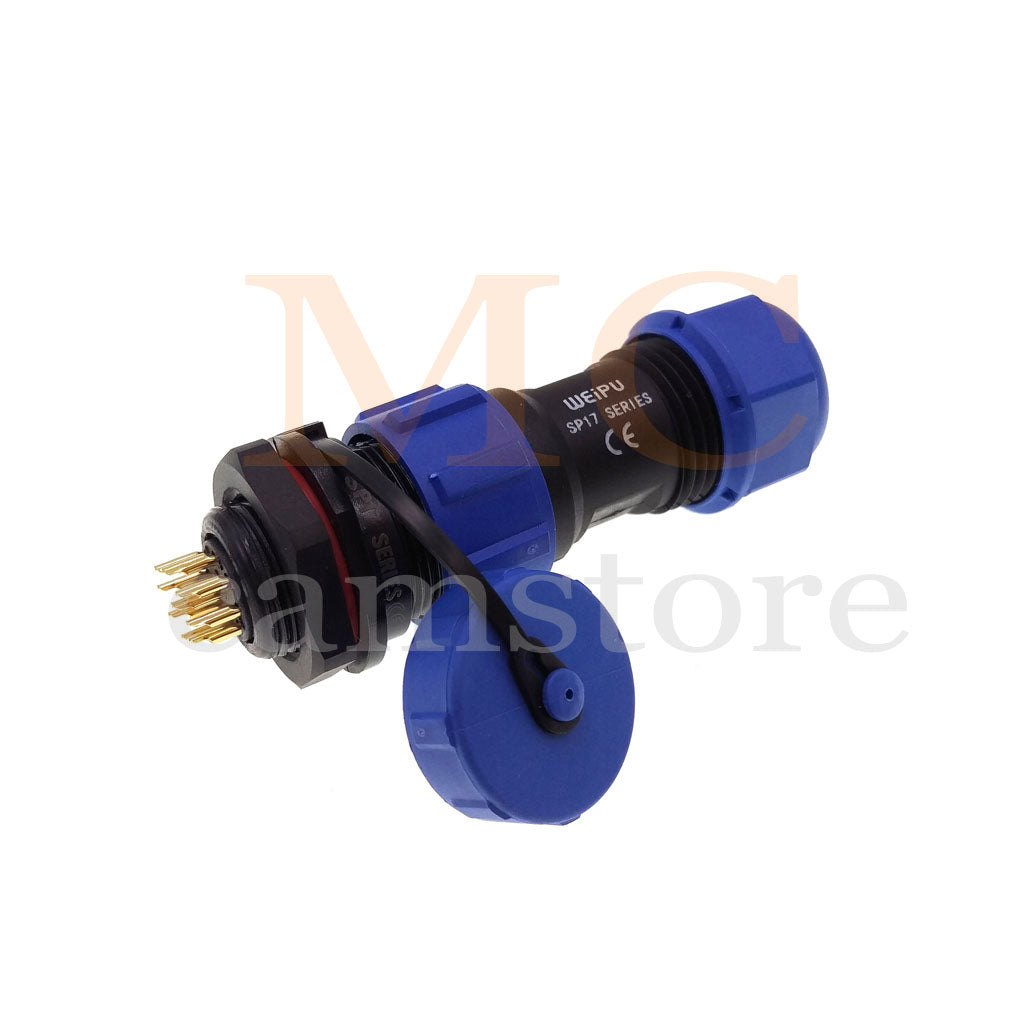

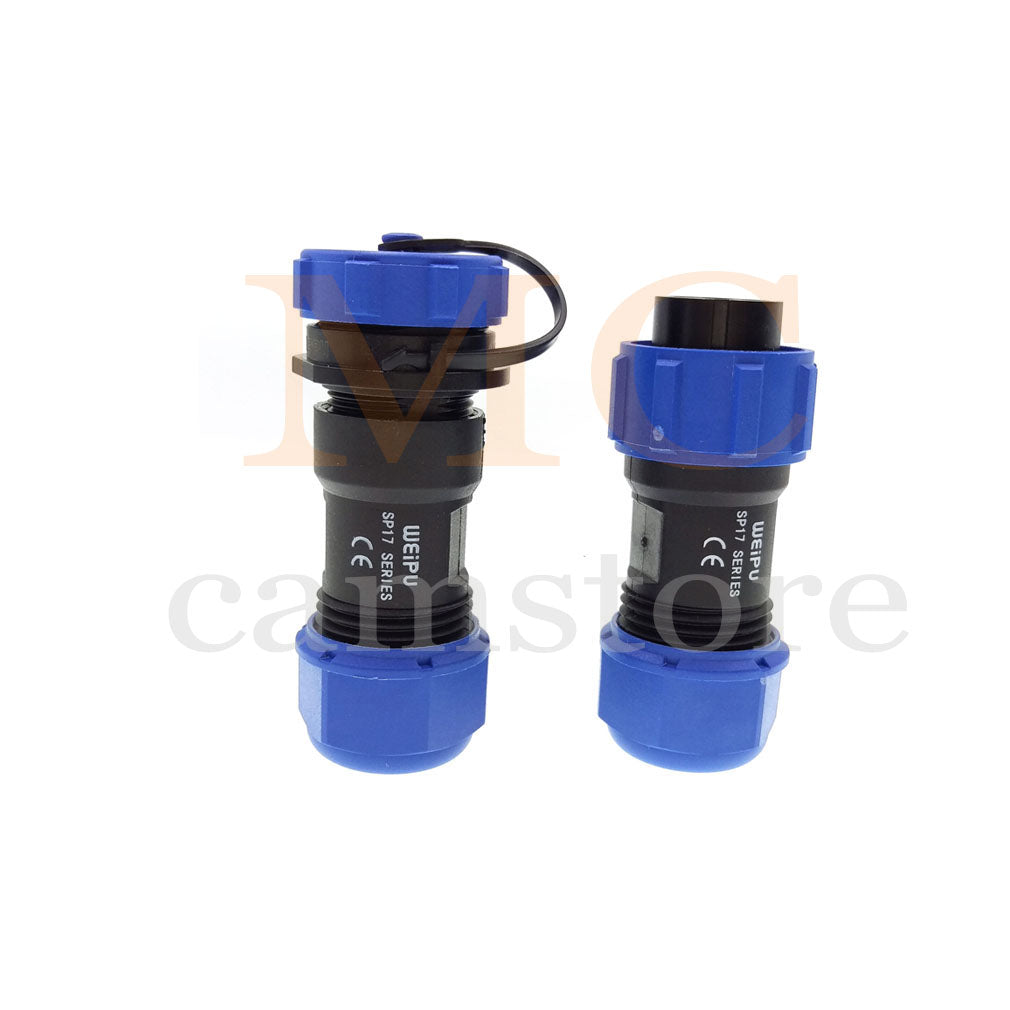

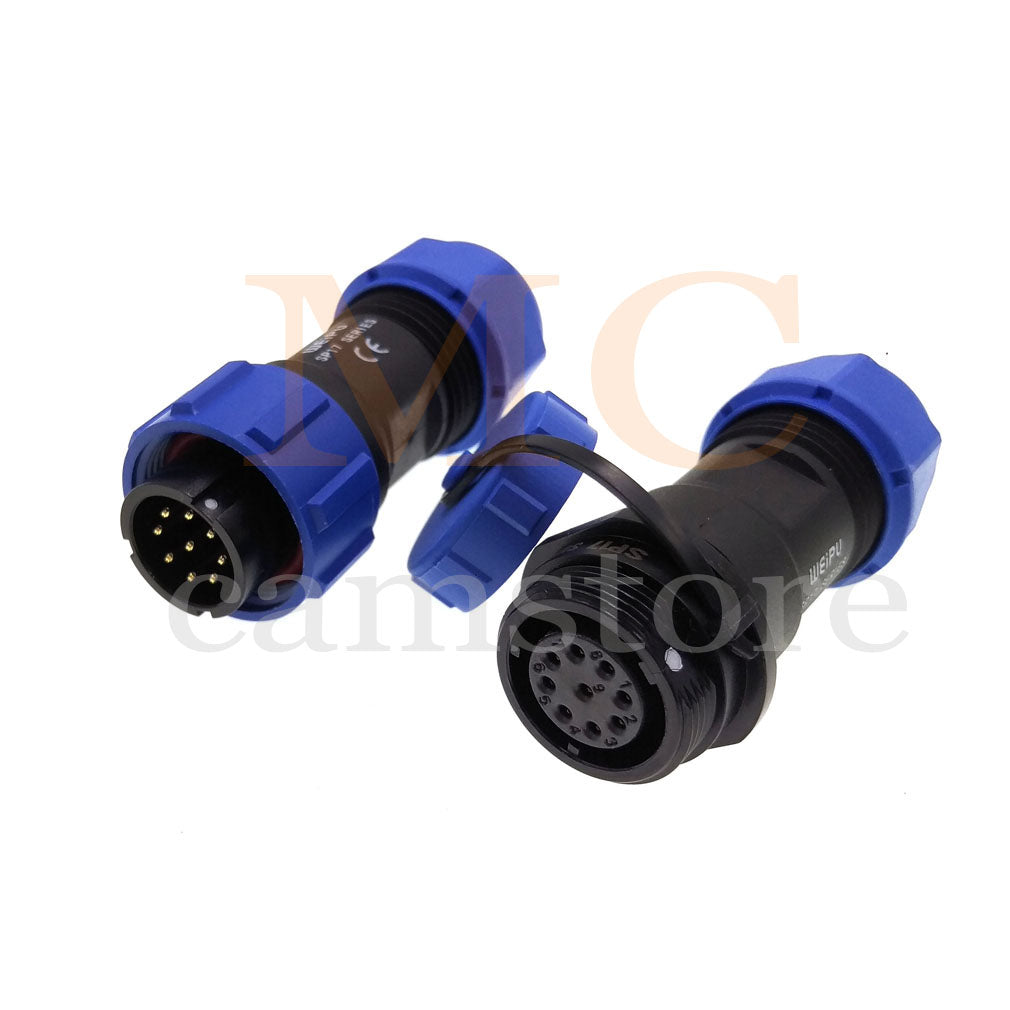

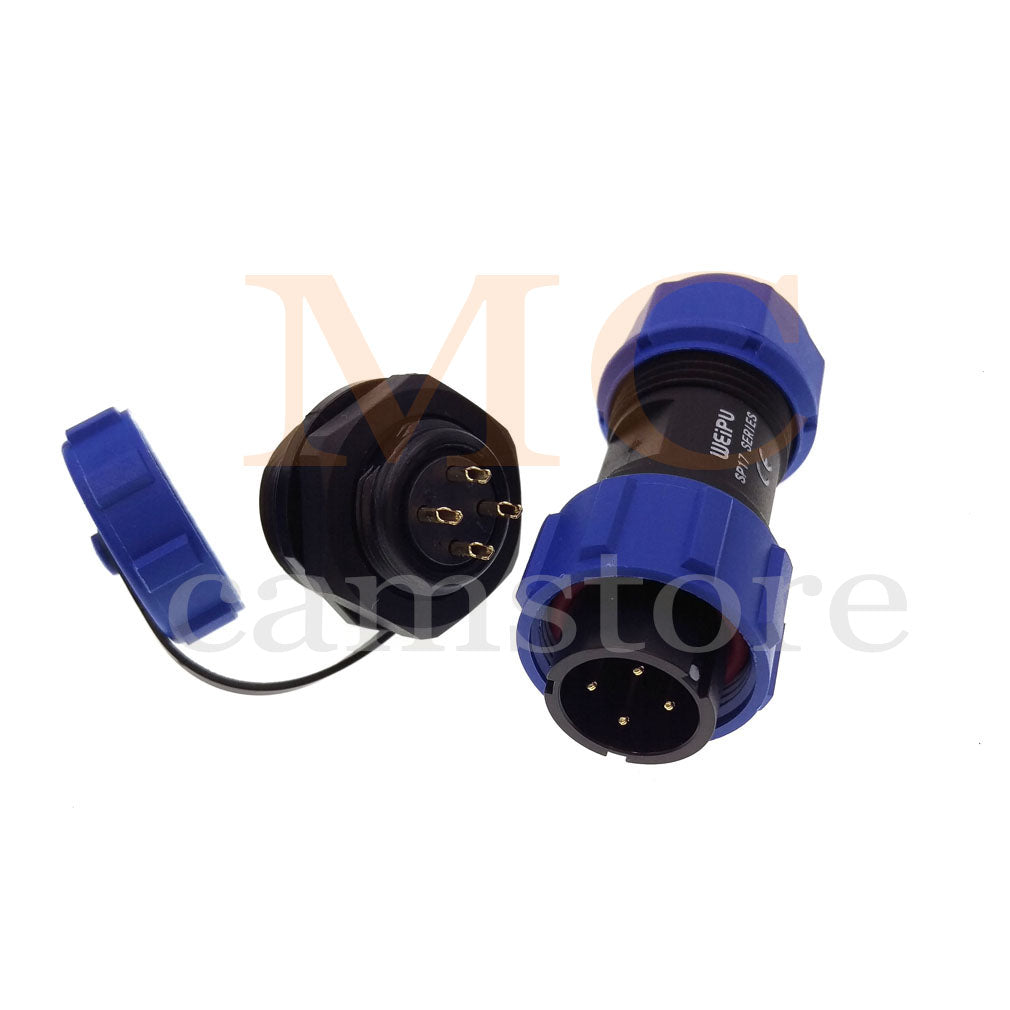

WEIPU SP17 IP68 Waterproof Connector, 2 3 4 5 7 9 10pin Thread Nut Panel Mount / Cable to Cable Power Plug Socket

WEIPU SP17 IP68 Waterproof Connector, 2 3 4 5 7 9 10pin Thread Nut Panel Mount / Cable to Cable Power Plug Socket

$8.20 USD
$0.00 USD $8.20 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Install type
Gender option
Pin option
WEIPU SP17 2 3 4 5 7 9 10 PIN WATERPROOF CONNECTOR
IP68 POWER CABLE AVIATION Thread nut panel mount / In-line Cable to Cable PLUG SOCKET

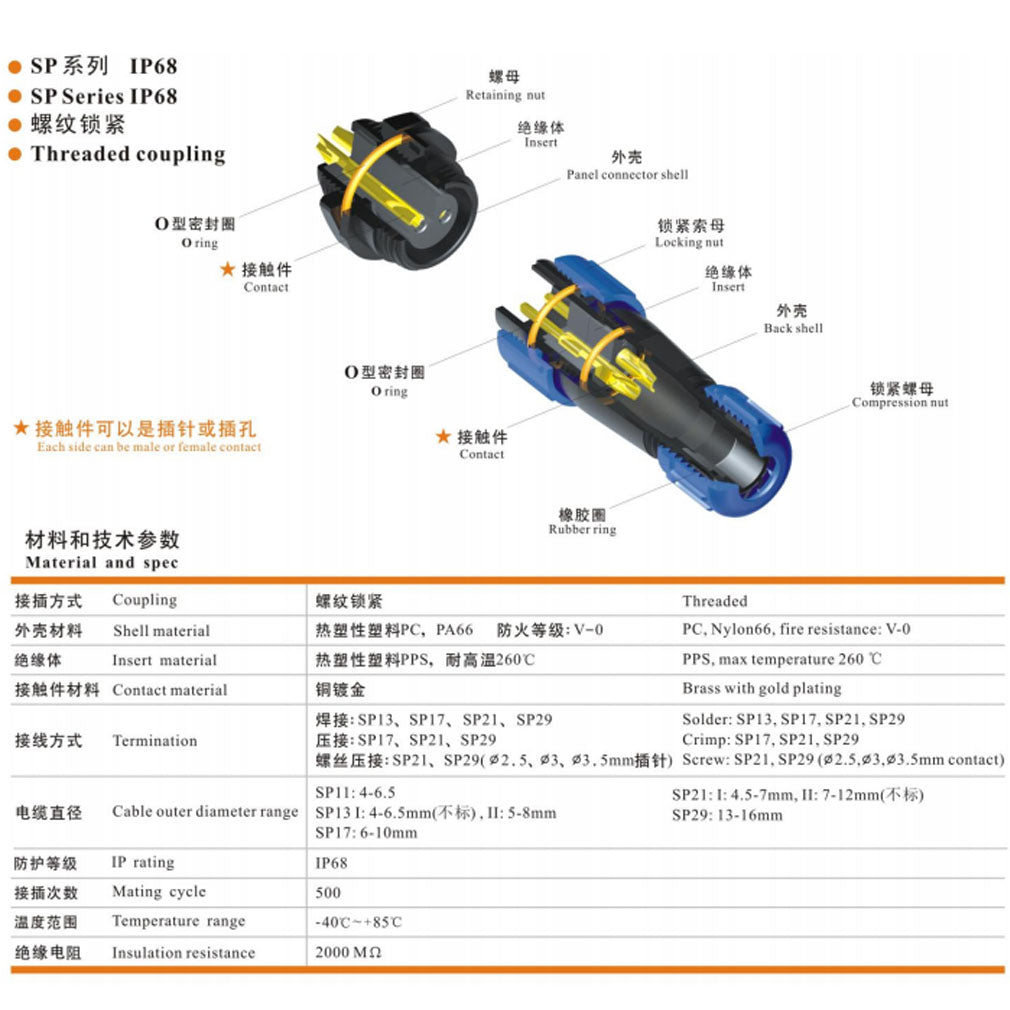

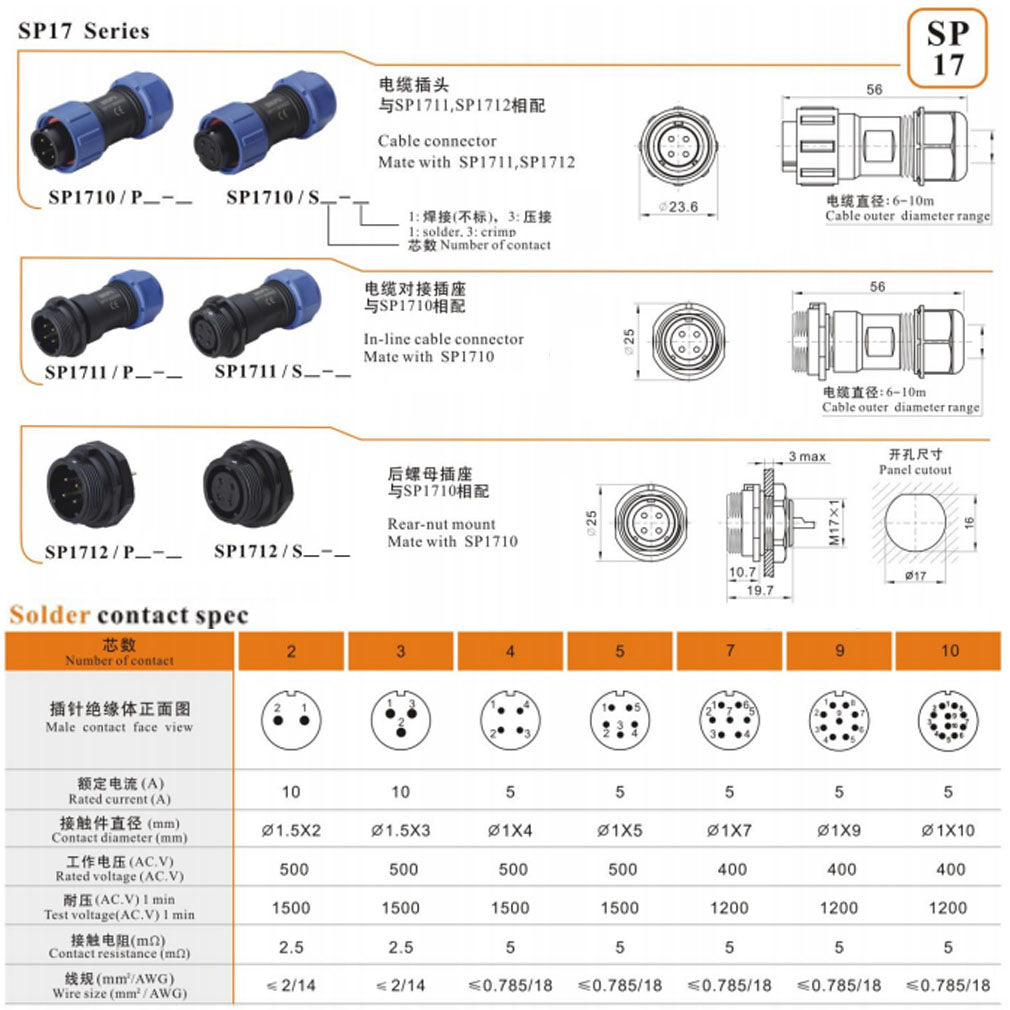

(size and paremeter details, please refer to 2nd and 3rd main picture)

2pin, 3pin:
Rated Current (A): 10A
Contact diameter × number: Φ1.5x2 / Φ1.5x 3
Rated voltage (AC.V.): 500V
Withstanding Voltage (AC.V) 1 minute: 1500V
Contact resistance: 2.5mΩ
Wire specification: <2m㎡/14AWG

4pin, 5pin:
Rated Current (A): 5A
Contact diameter × number: Φ1x4, Φ1x5
Rated voltage (AC.V.): 500V
Withstanding Voltage (AC.V) 1 minute: 1500V
Contact resistance: 5mΩ
Wire specification: <0.785m㎡/18AWG

7pin, 9pin, 10pin:
Rated Current (A): 5A
Contact diameter × number: Φ1x 7, Φ1x 9, Φ1x 10
Rated voltage (AC.V.): 400V
Withstanding Voltage (AC.V) 1 minute: 1200V
Contact resistance: 5mΩ
Wire specification: <0.785m㎡/18AWG

Material: Plastic
IP Rating: IP68
Shell: Nylon66
Fire Resistance: V-0
Contact Material: Brass with Gold Plating
Termination: Solder
Cable Outer Diameter Range:  6-10mm
Mating Cycle: >500
Temperature Range: -25~+85℃
Insulation Resistance : 2000mΩ

What's in the package: (pin as to your choose)
 1  plug + 1 socket with cap
