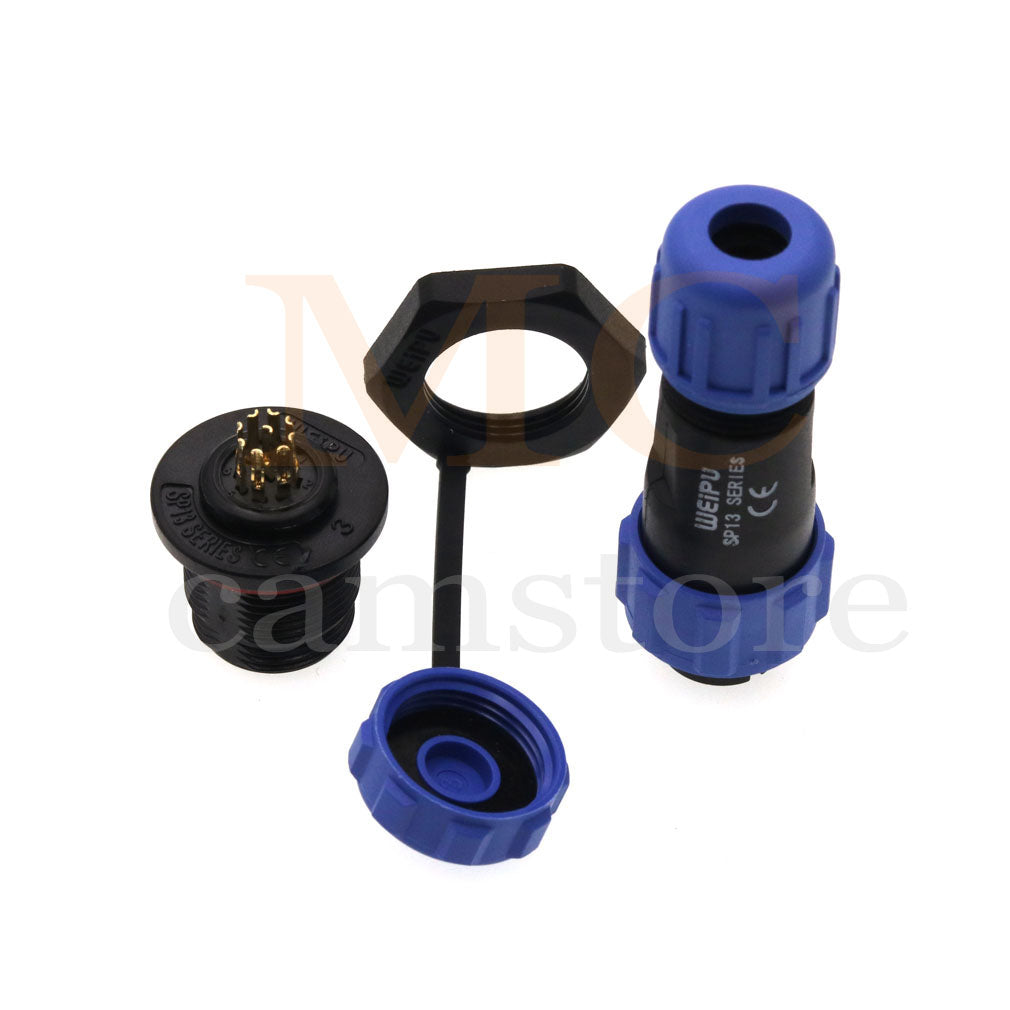

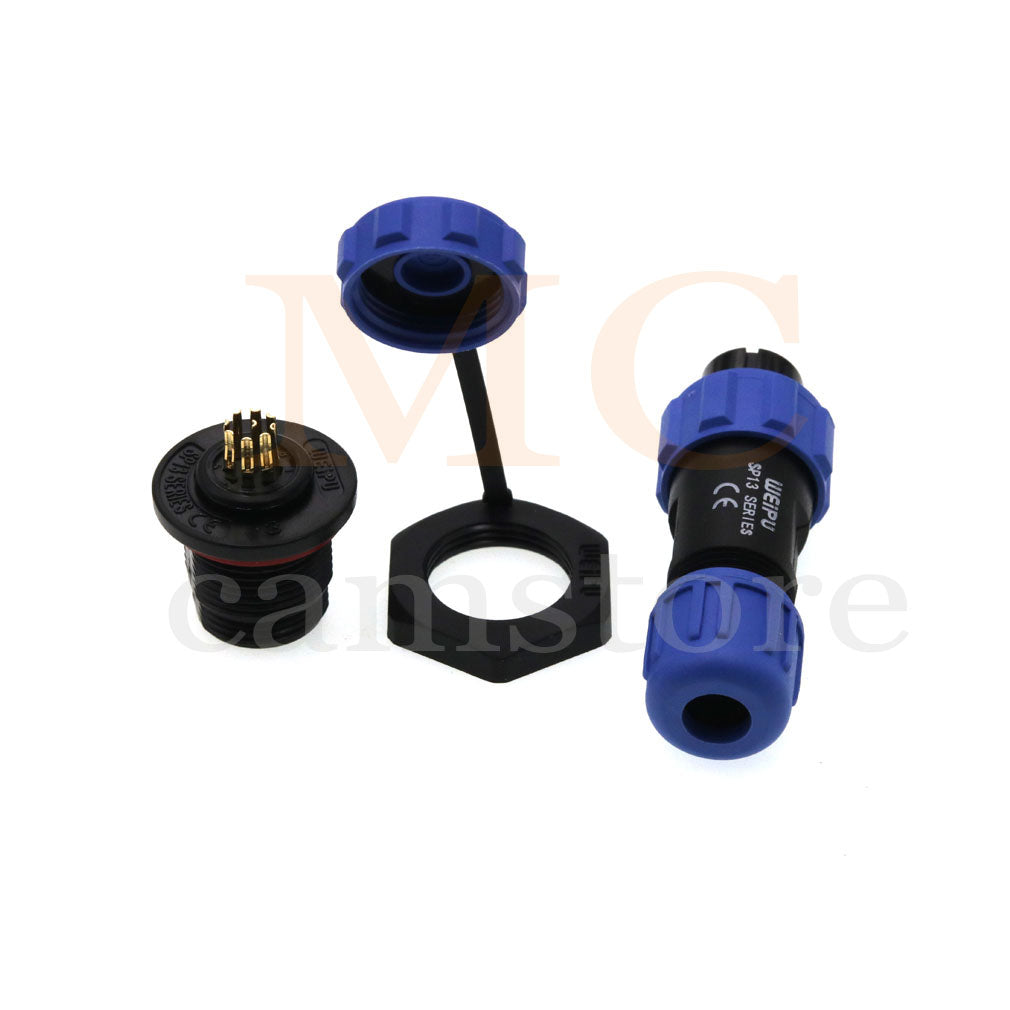

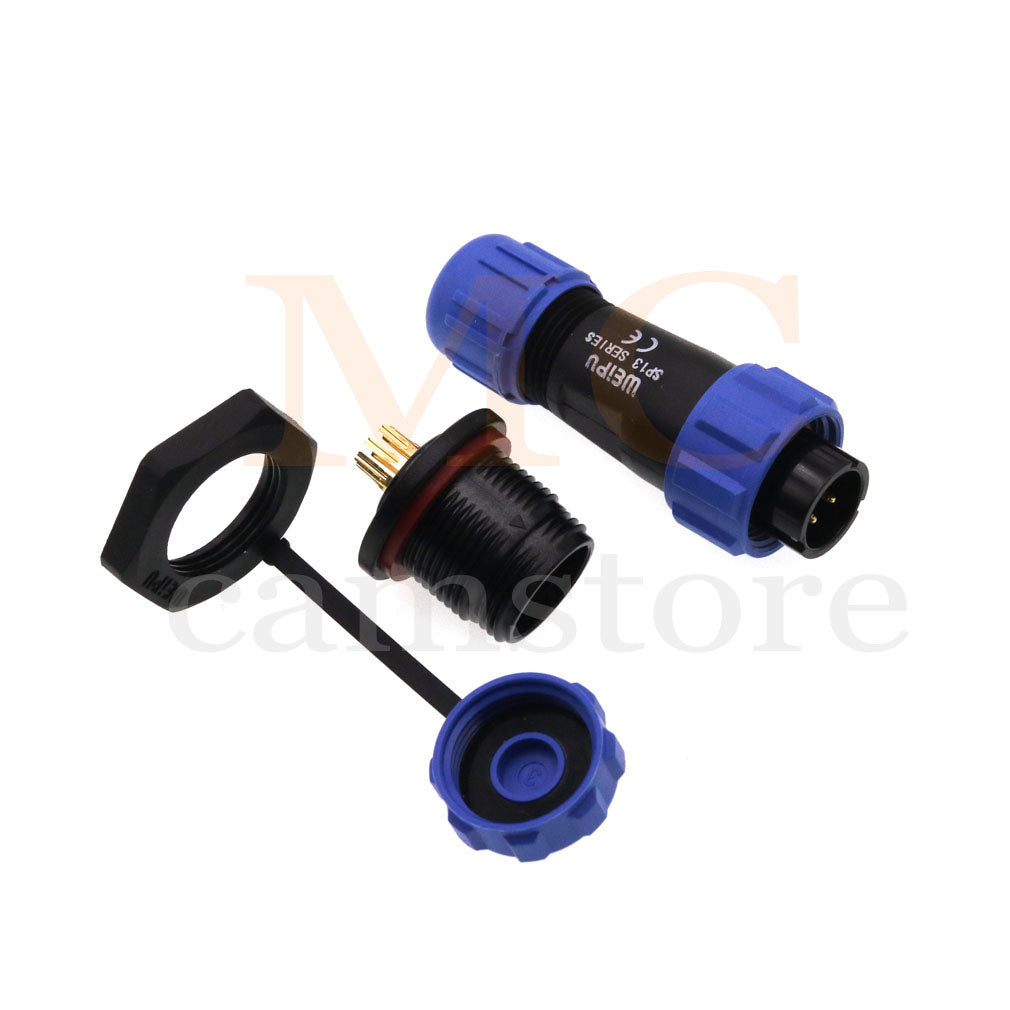

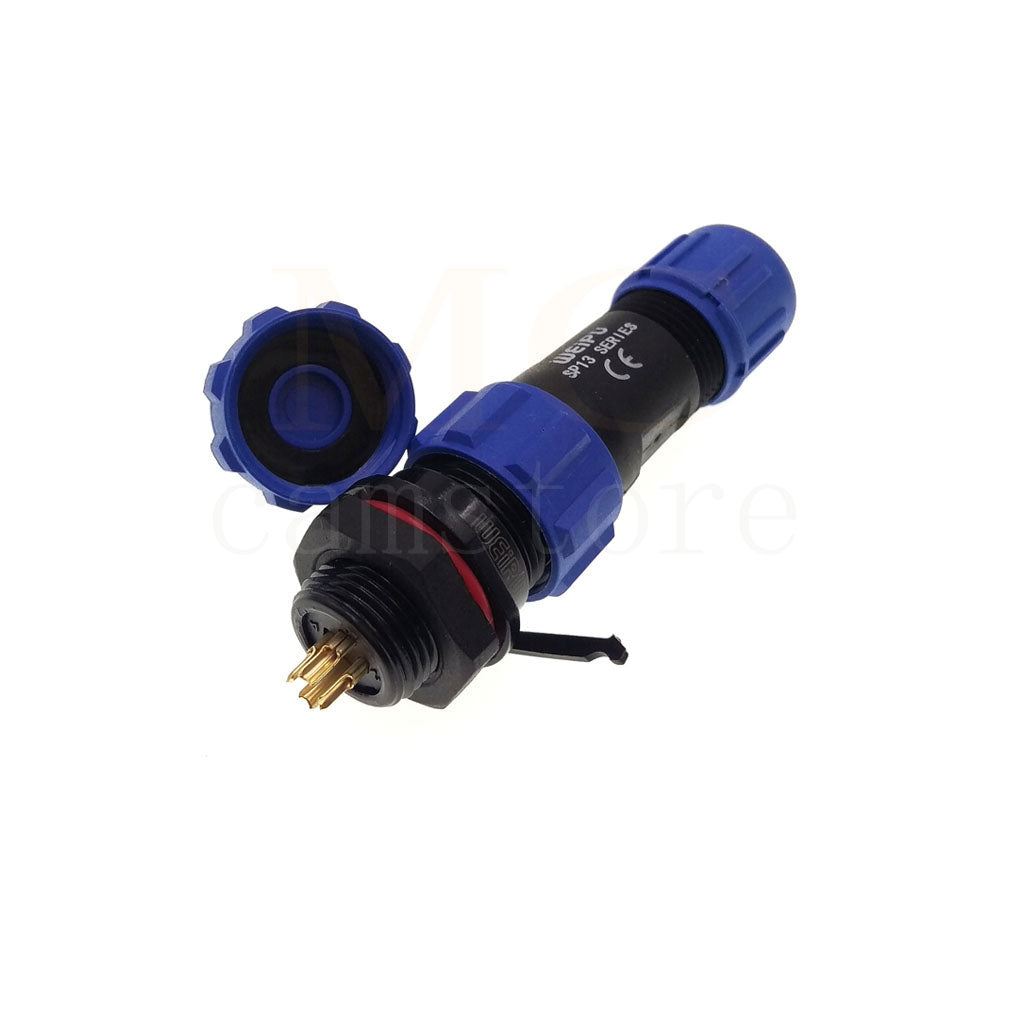

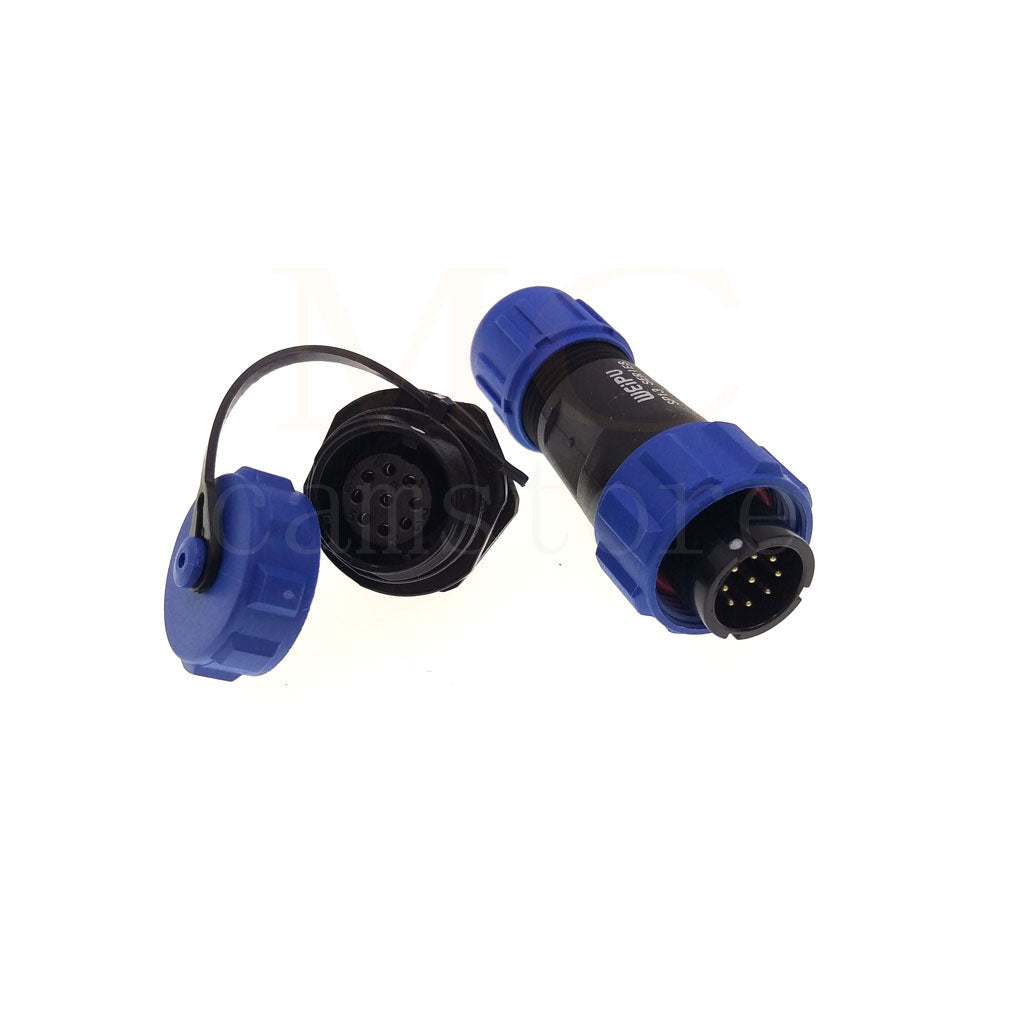

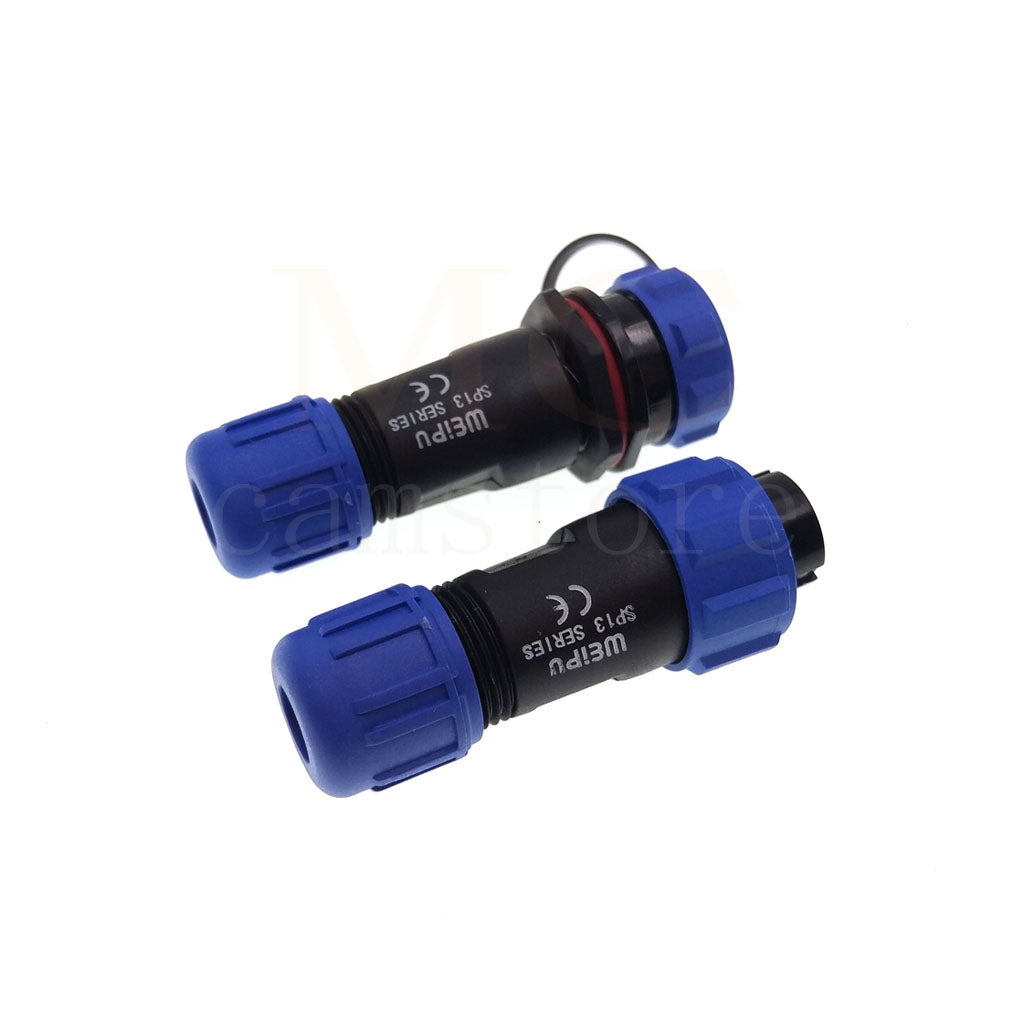

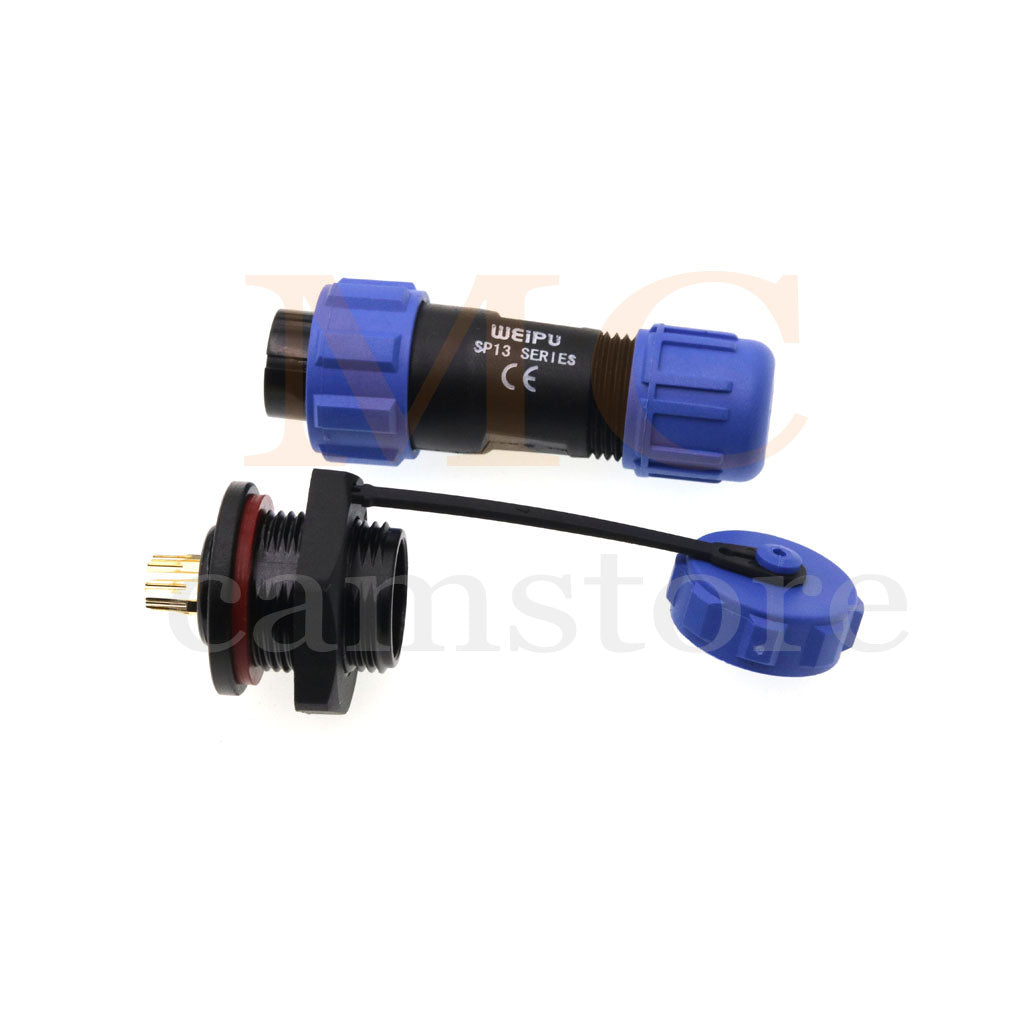

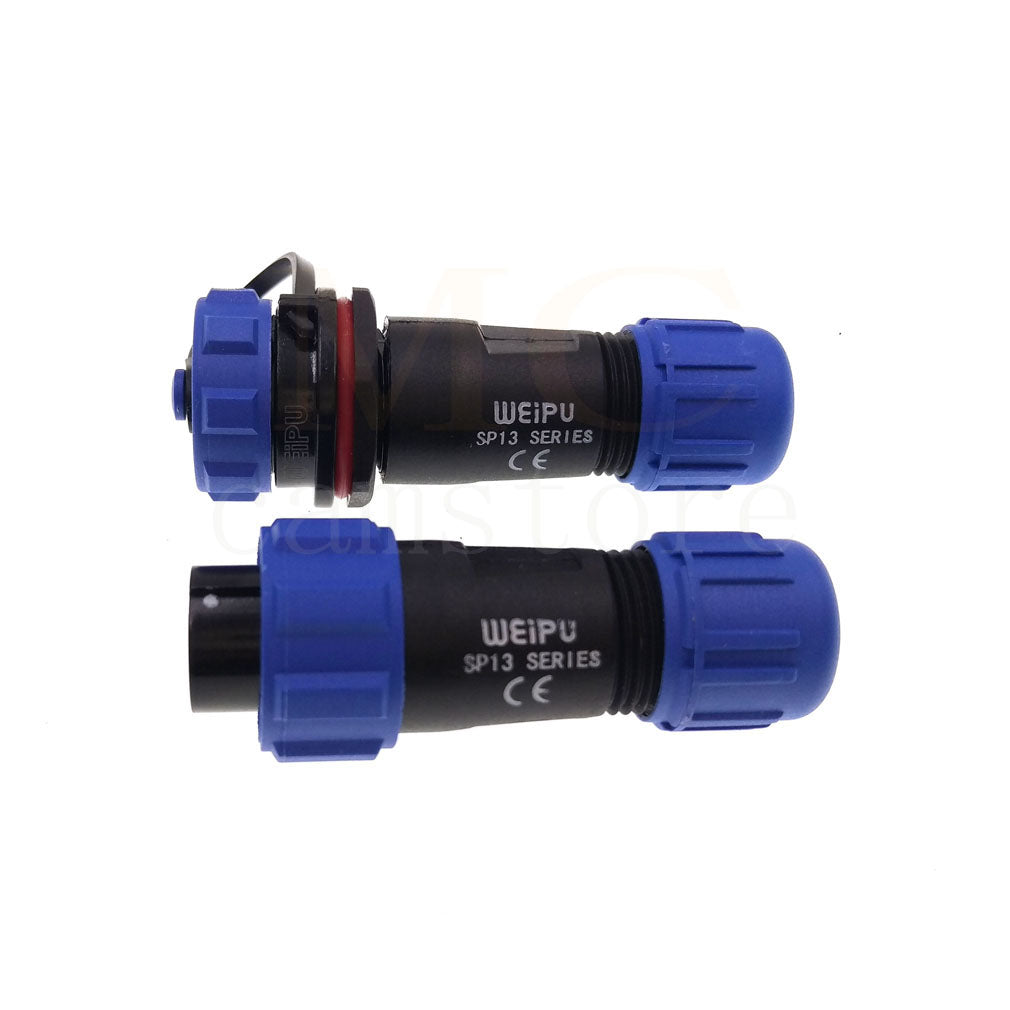

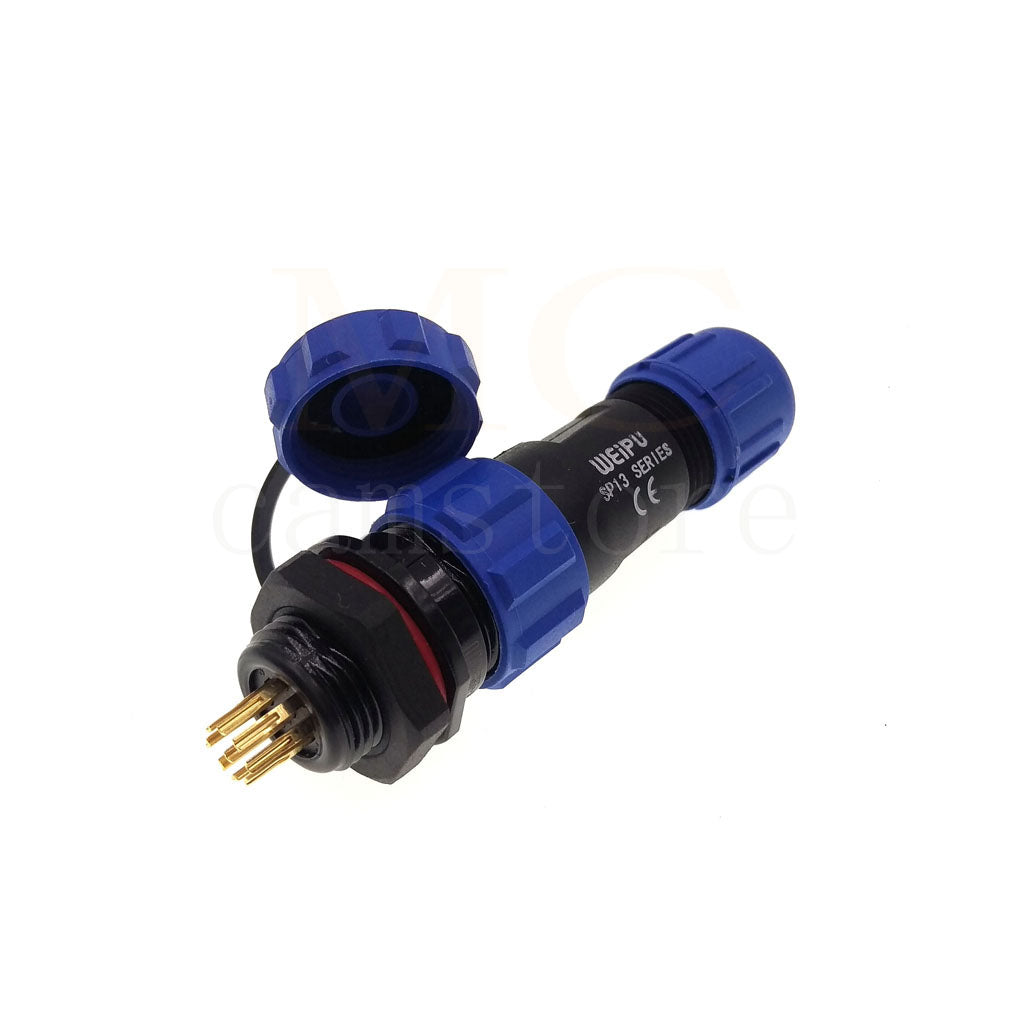

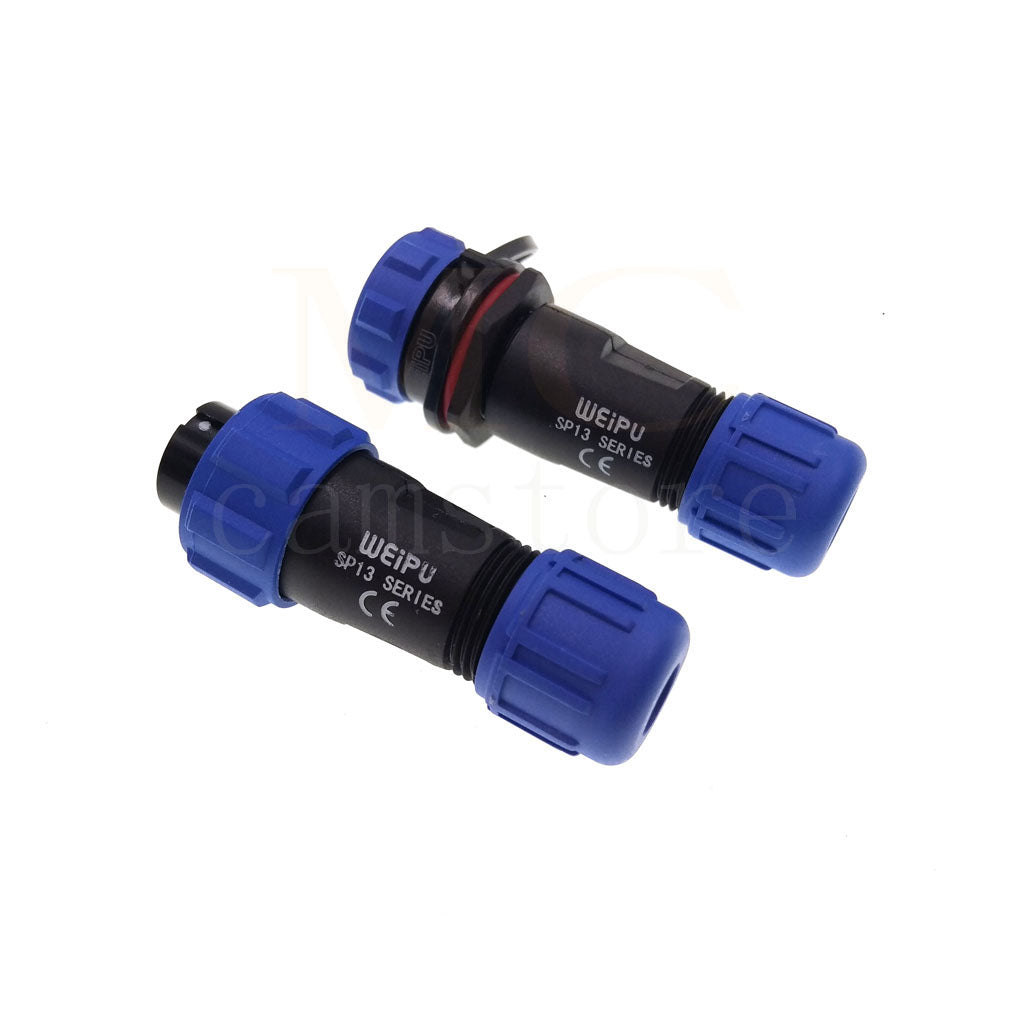

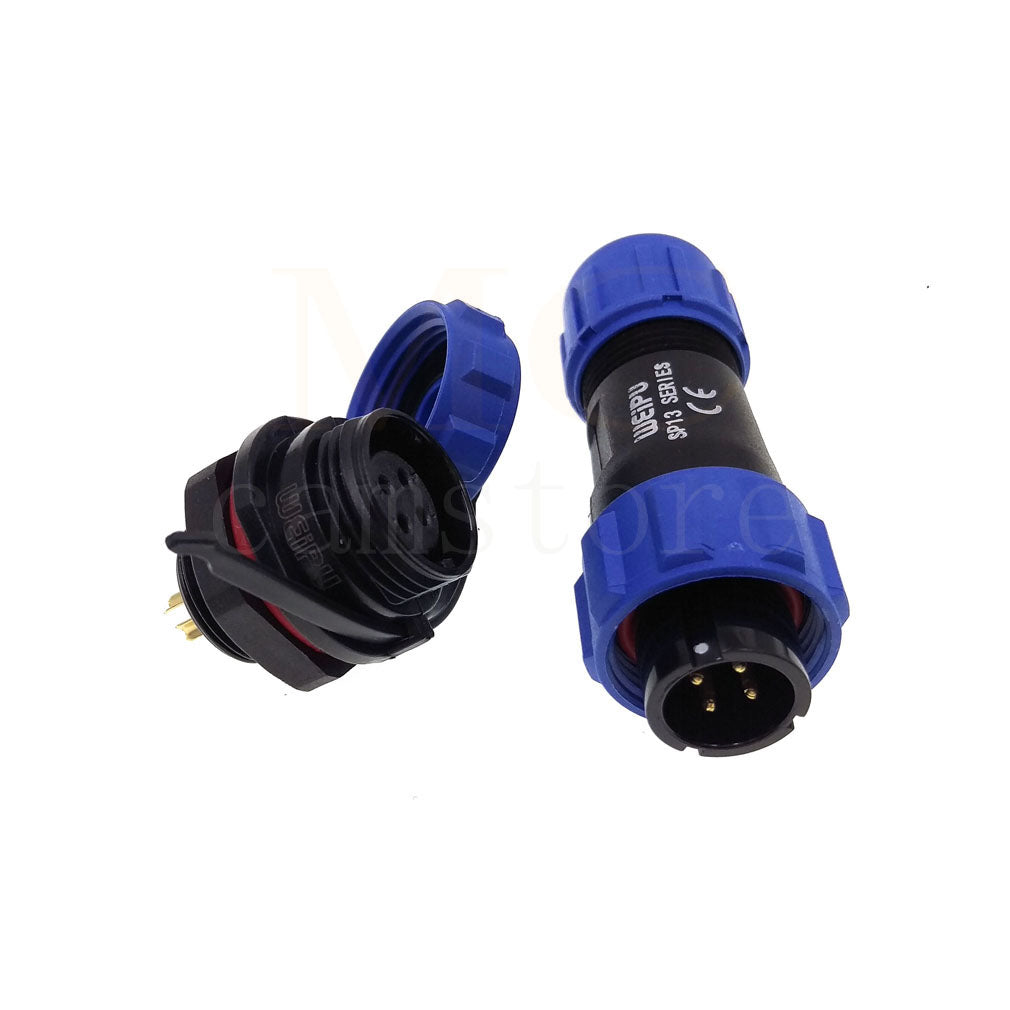

WEIPU SP13 IP68 Waterproof Connector, 2 3 4 5 6 7 9pin Thread Nut Panel Mount / Cable to Cable Power Plug Socket

WEIPU SP13 IP68 Waterproof Connector, 2 3 4 5 6 7 9pin Thread Nut Panel Mount / Cable to Cable Power Plug Socket

$7.39 USD
$0.00 USD $7.39 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Install type
Gender option
Pin option

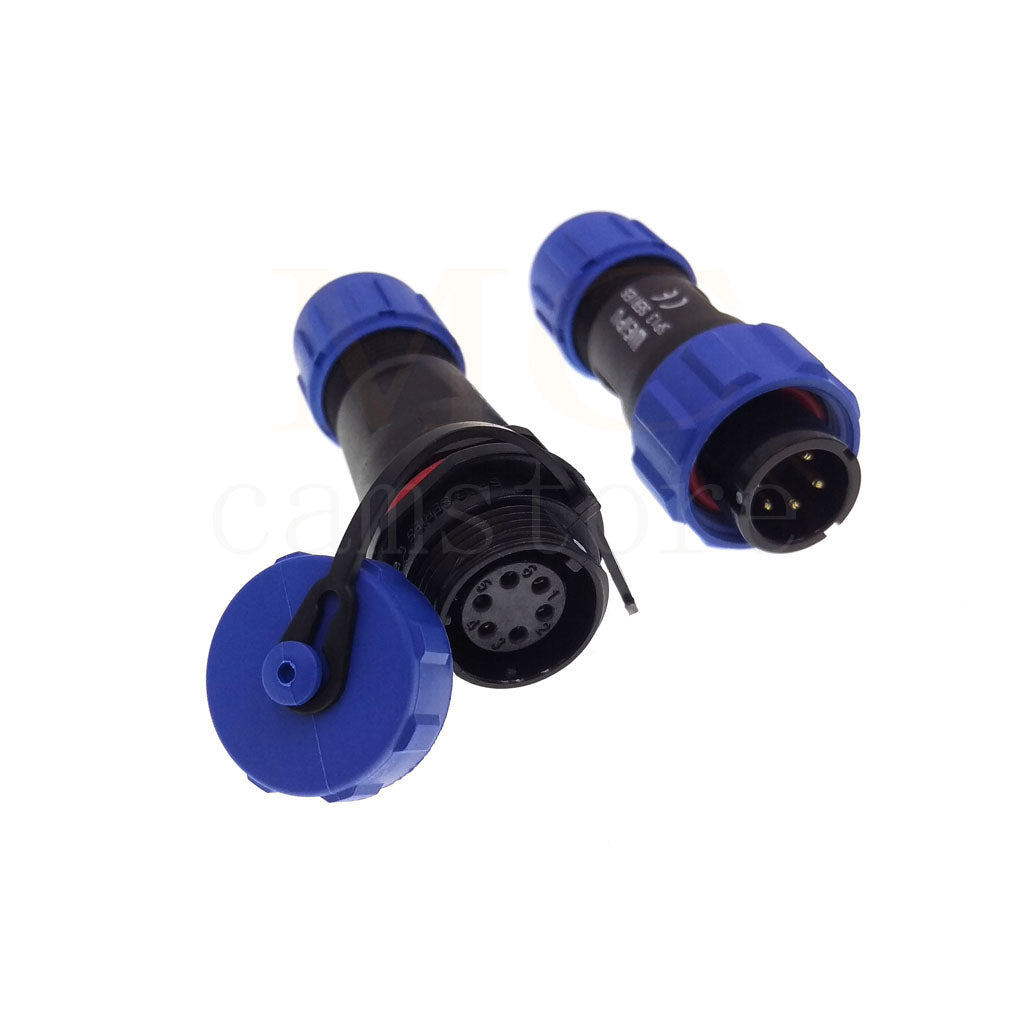

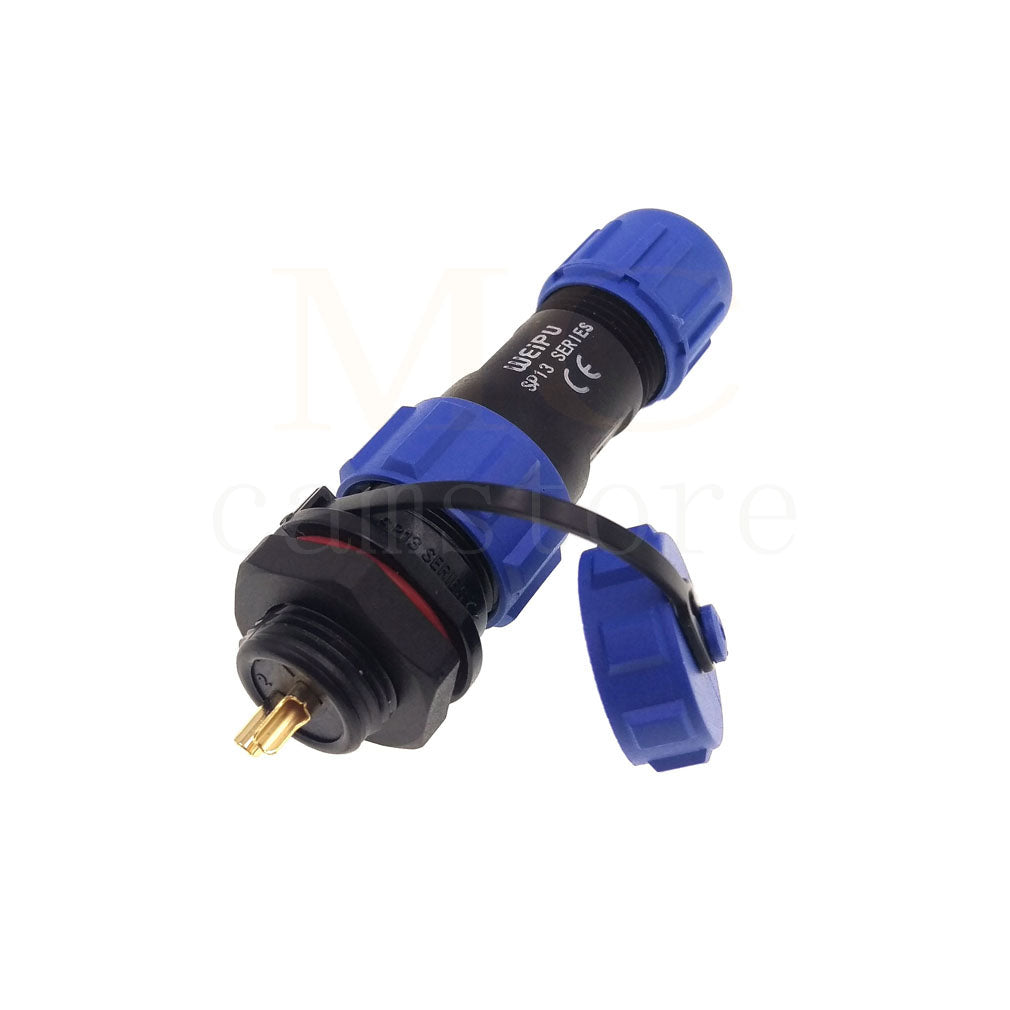

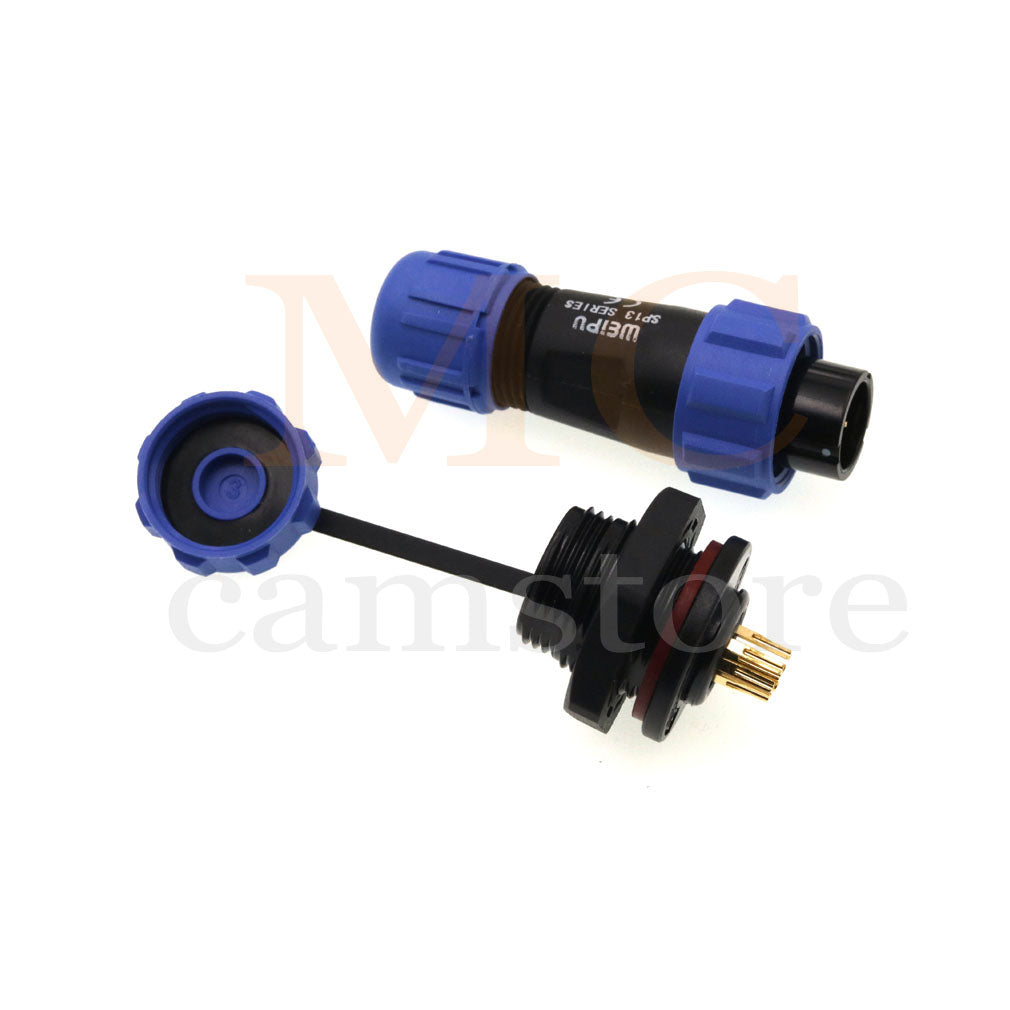

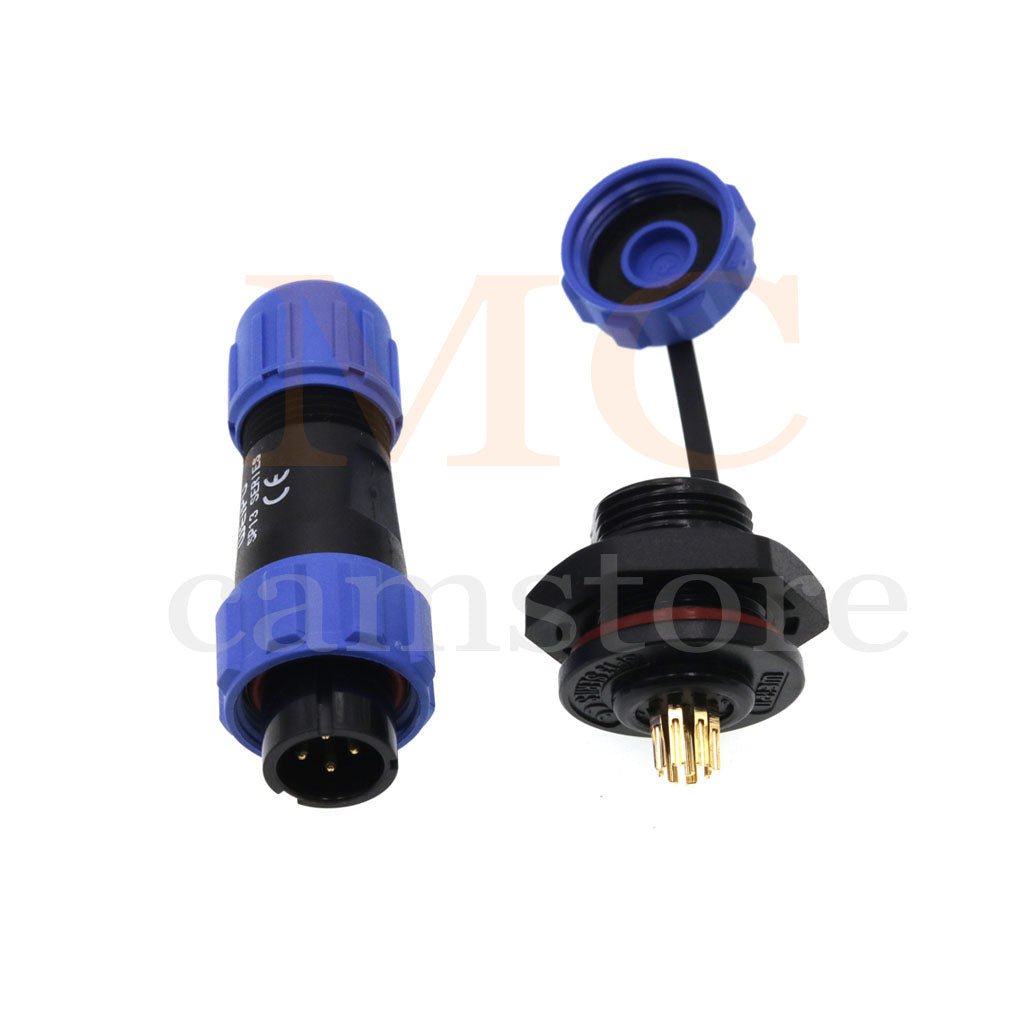

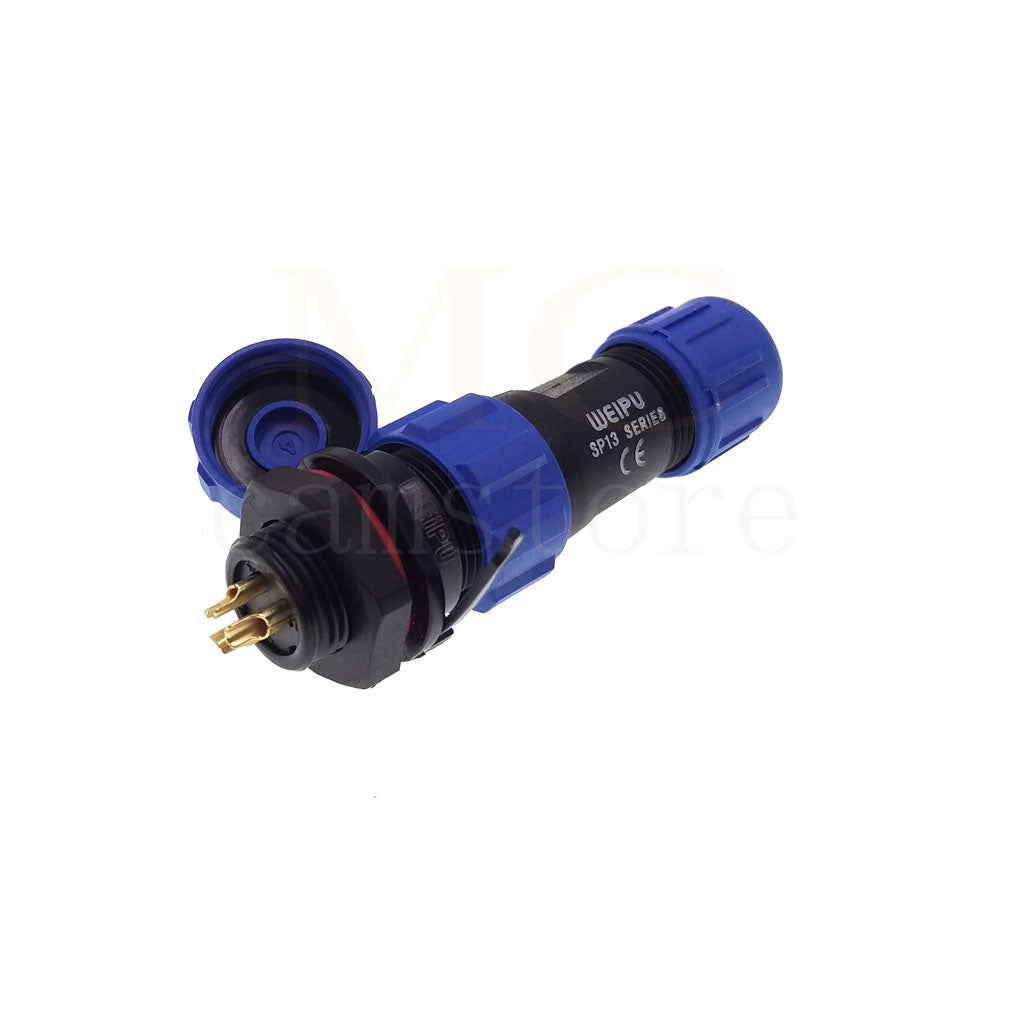

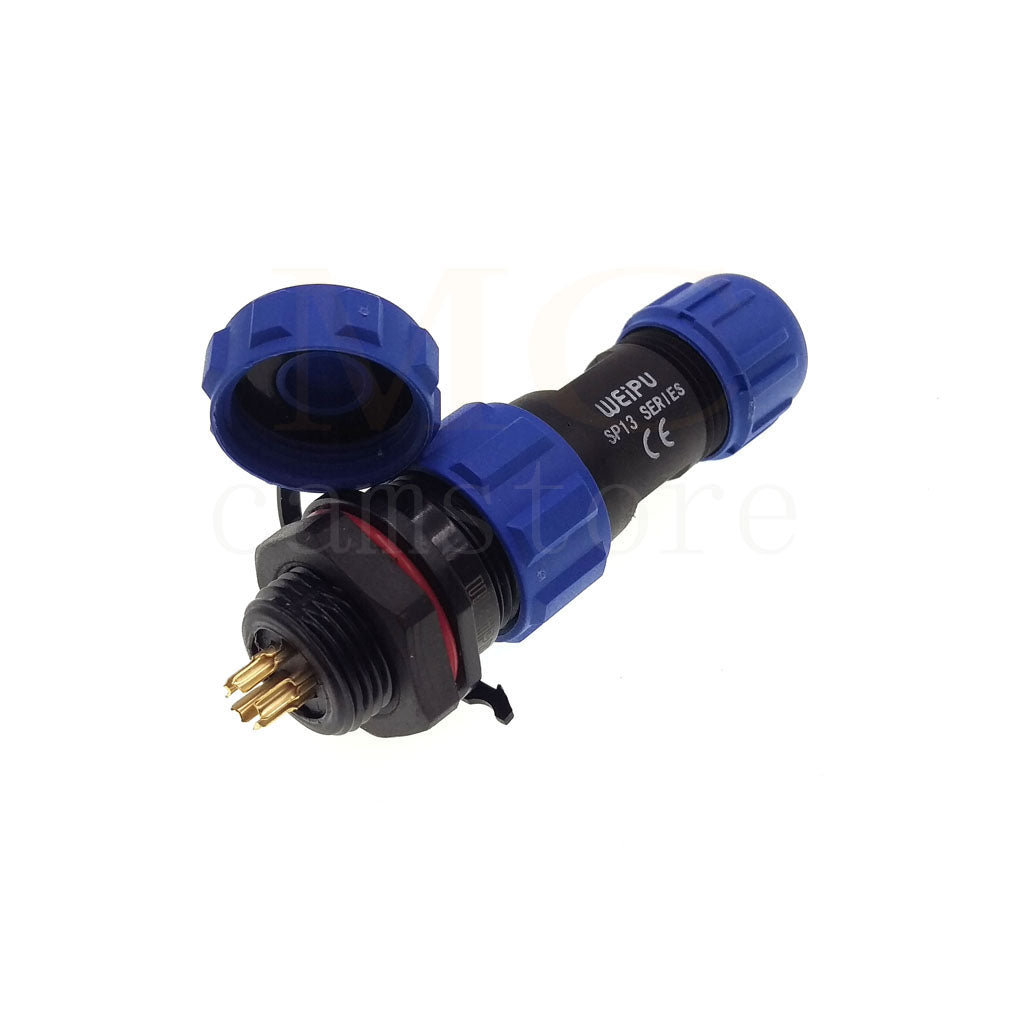

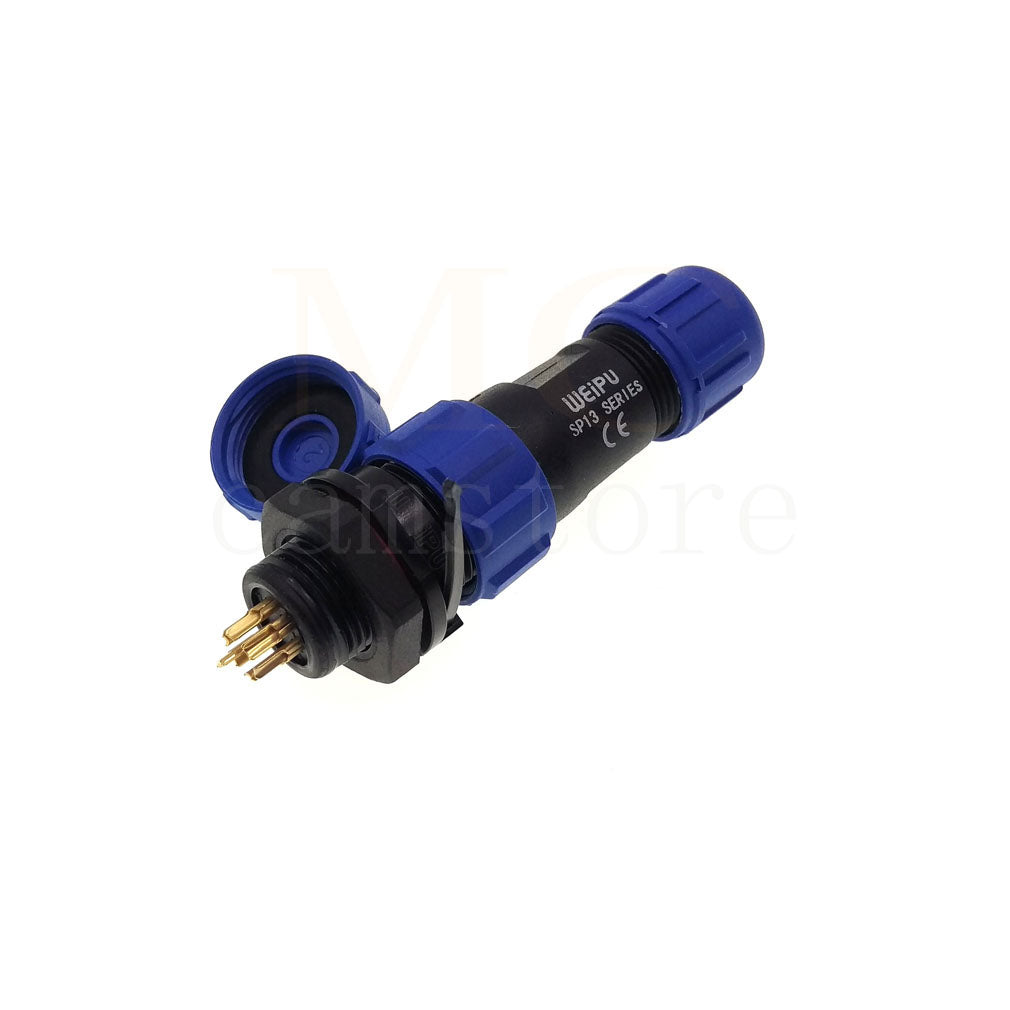

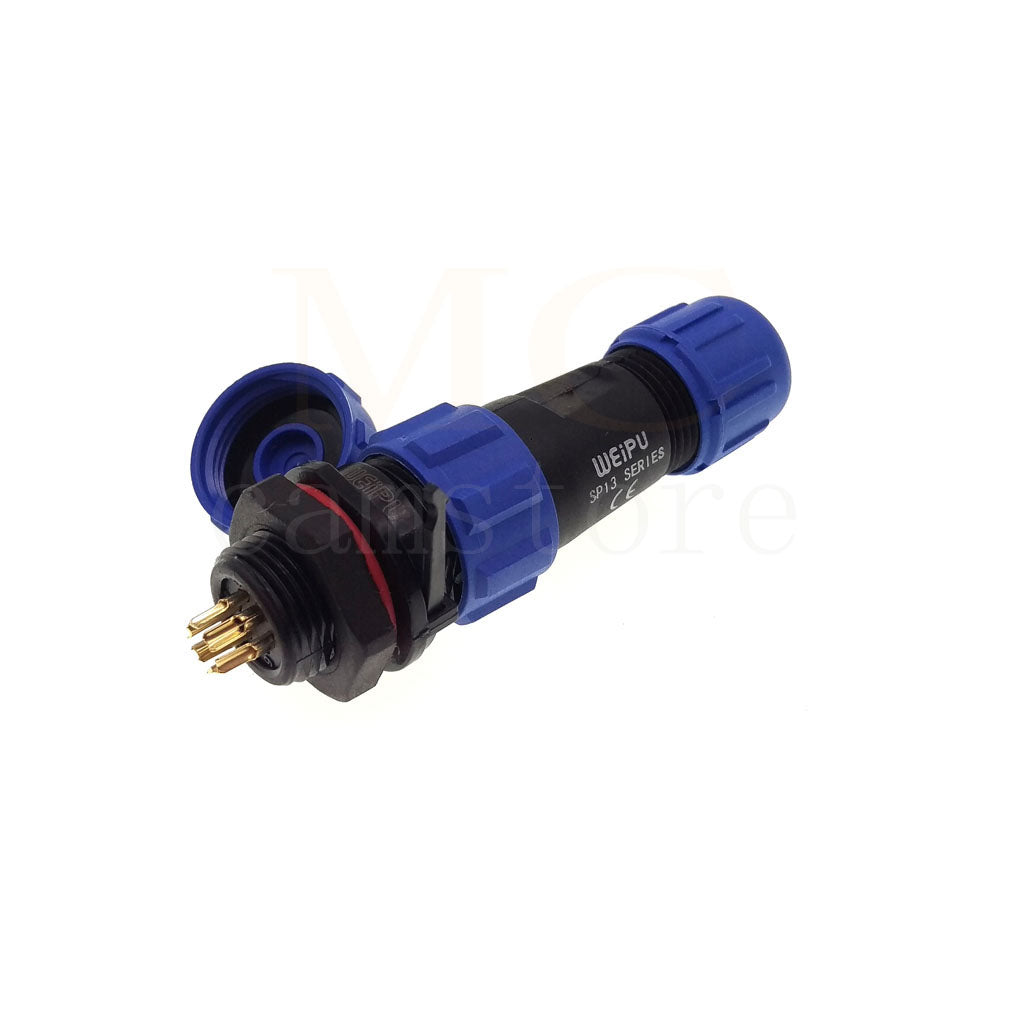

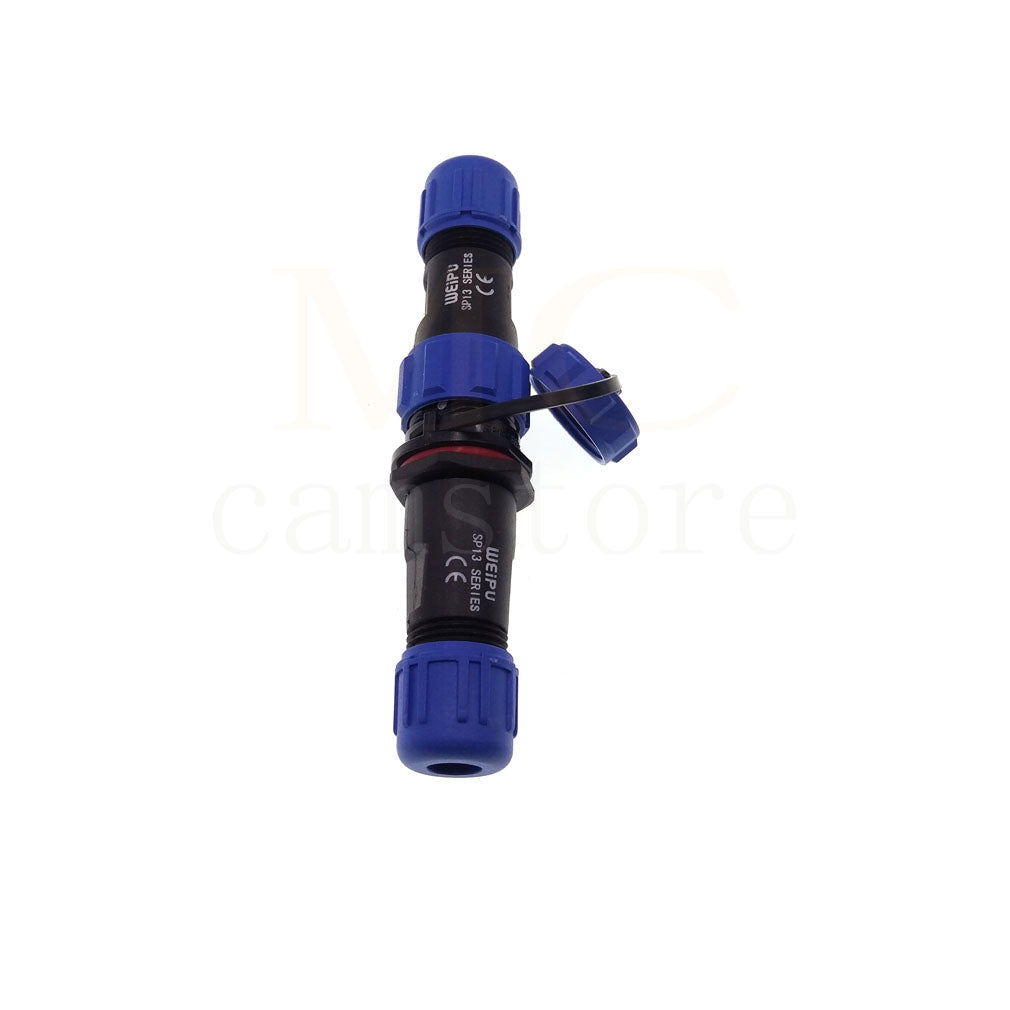

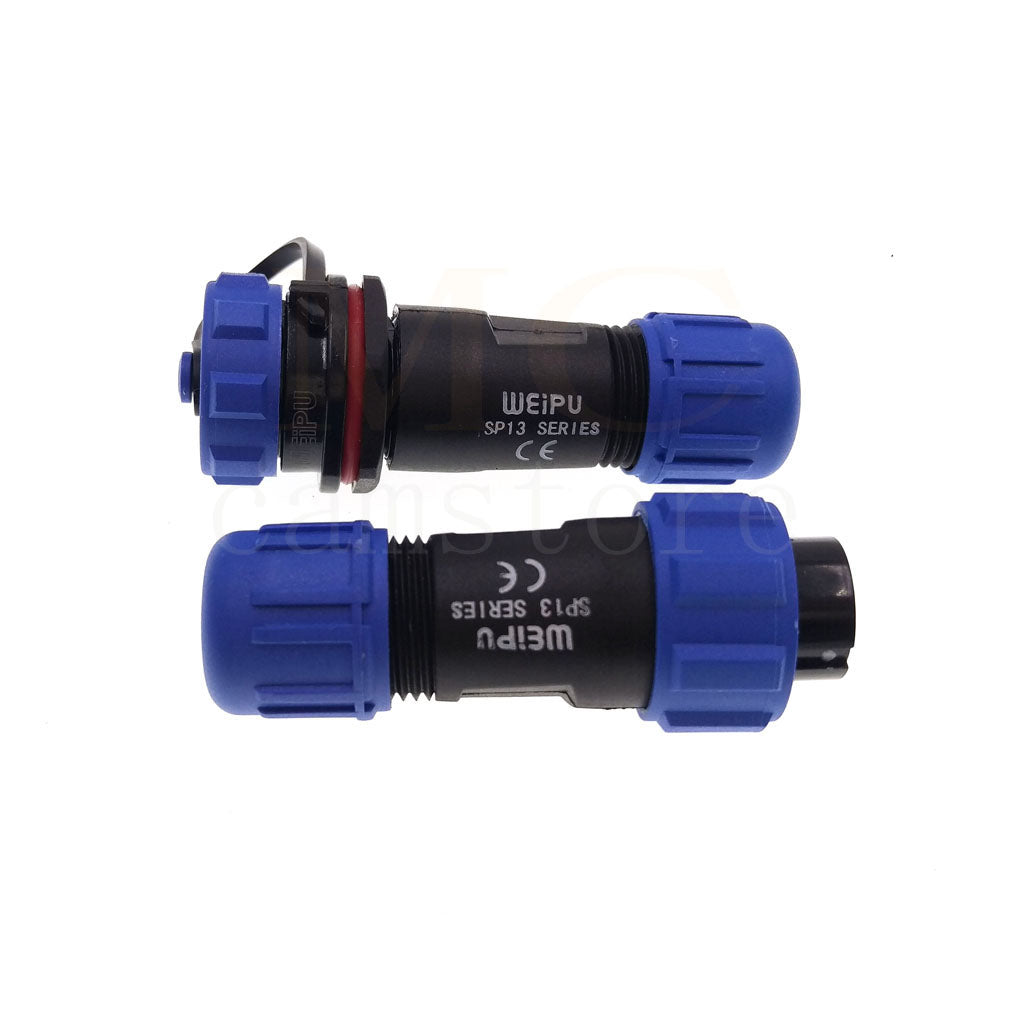

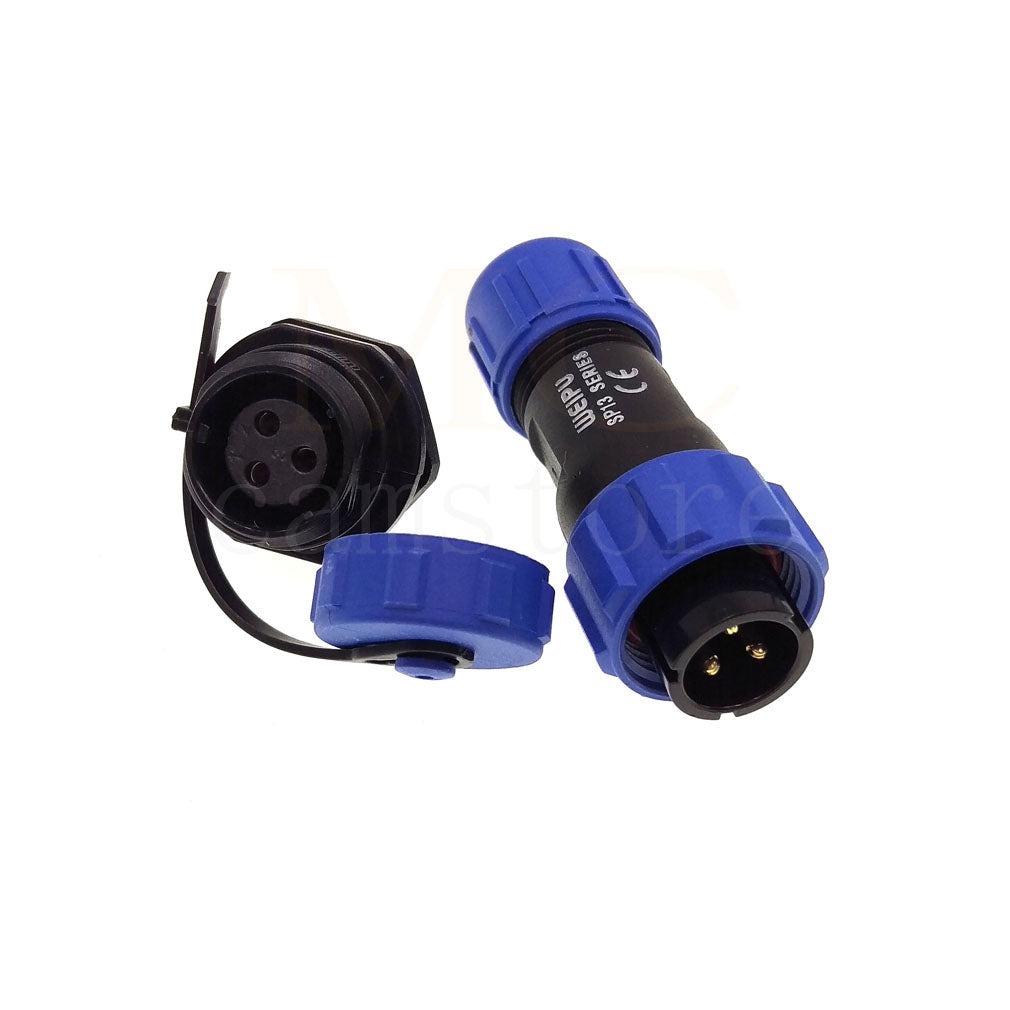

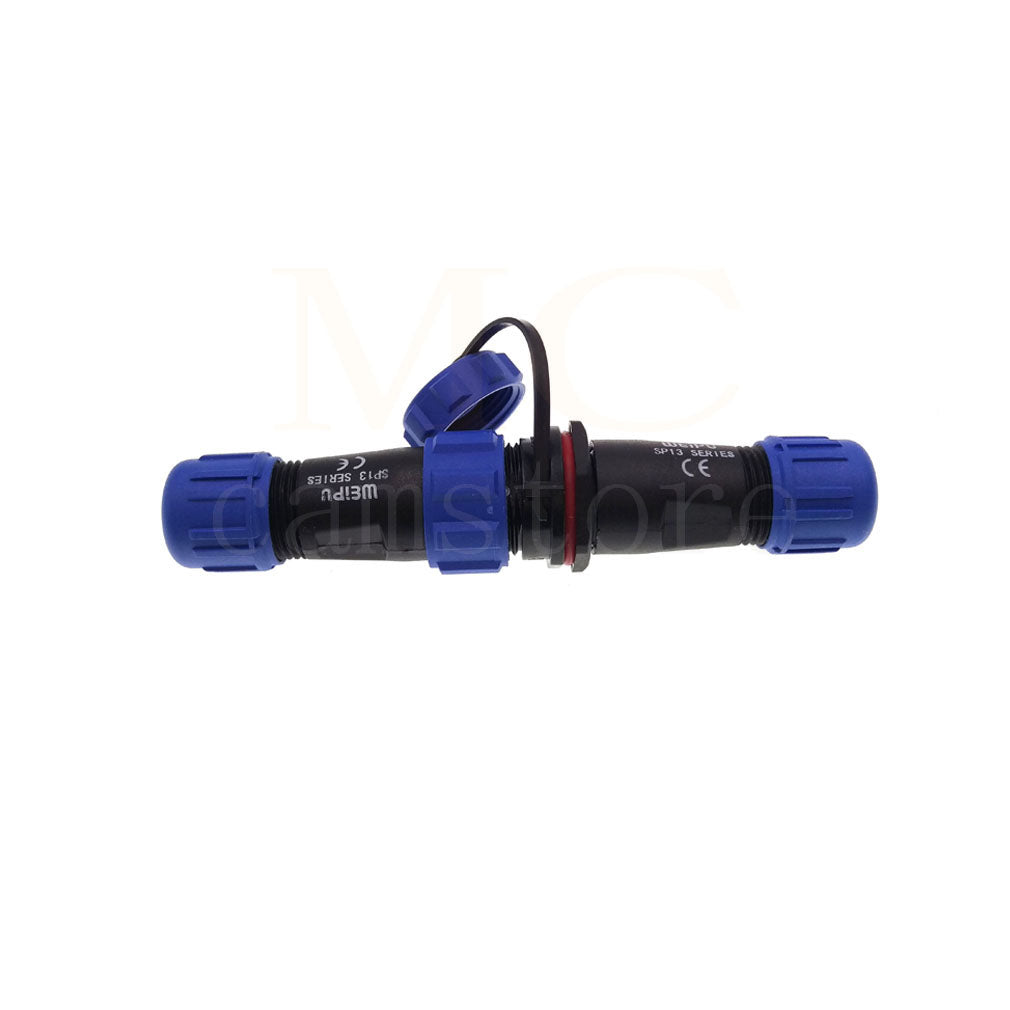

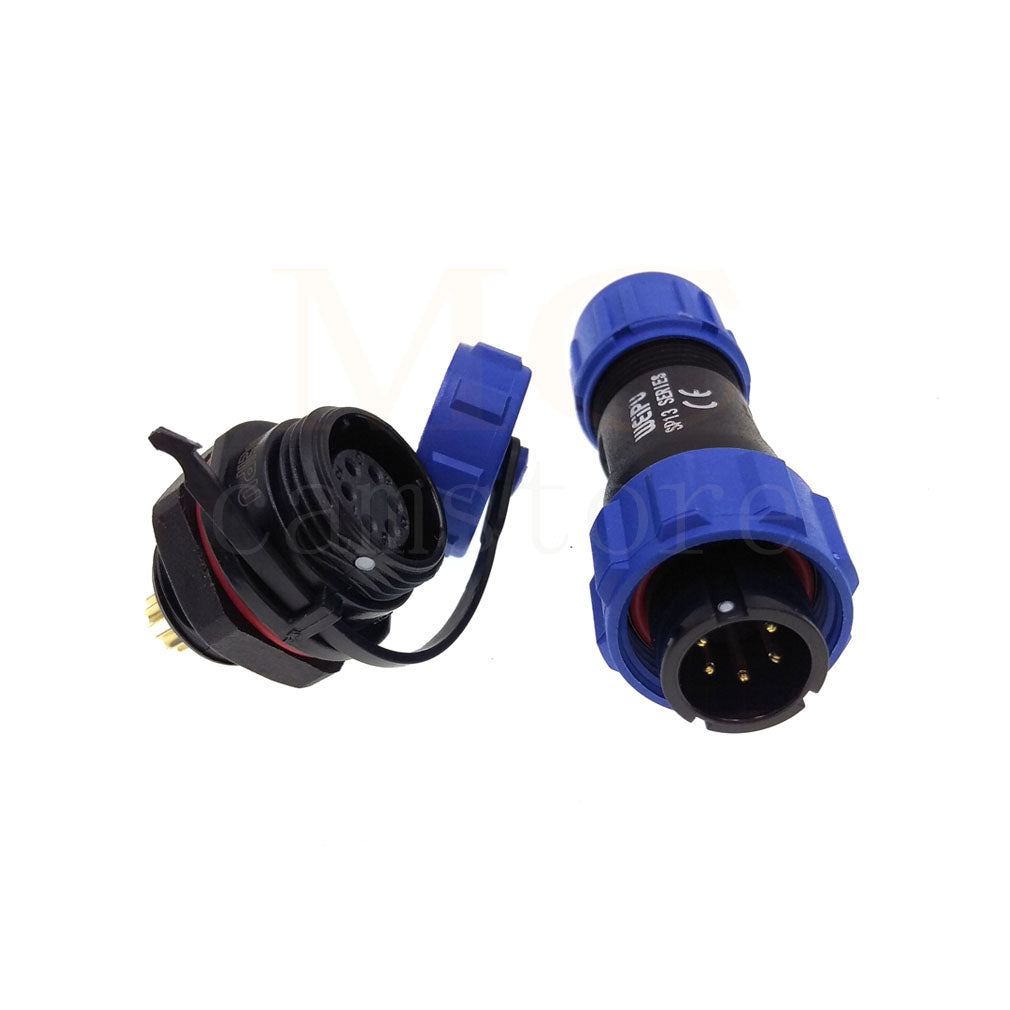

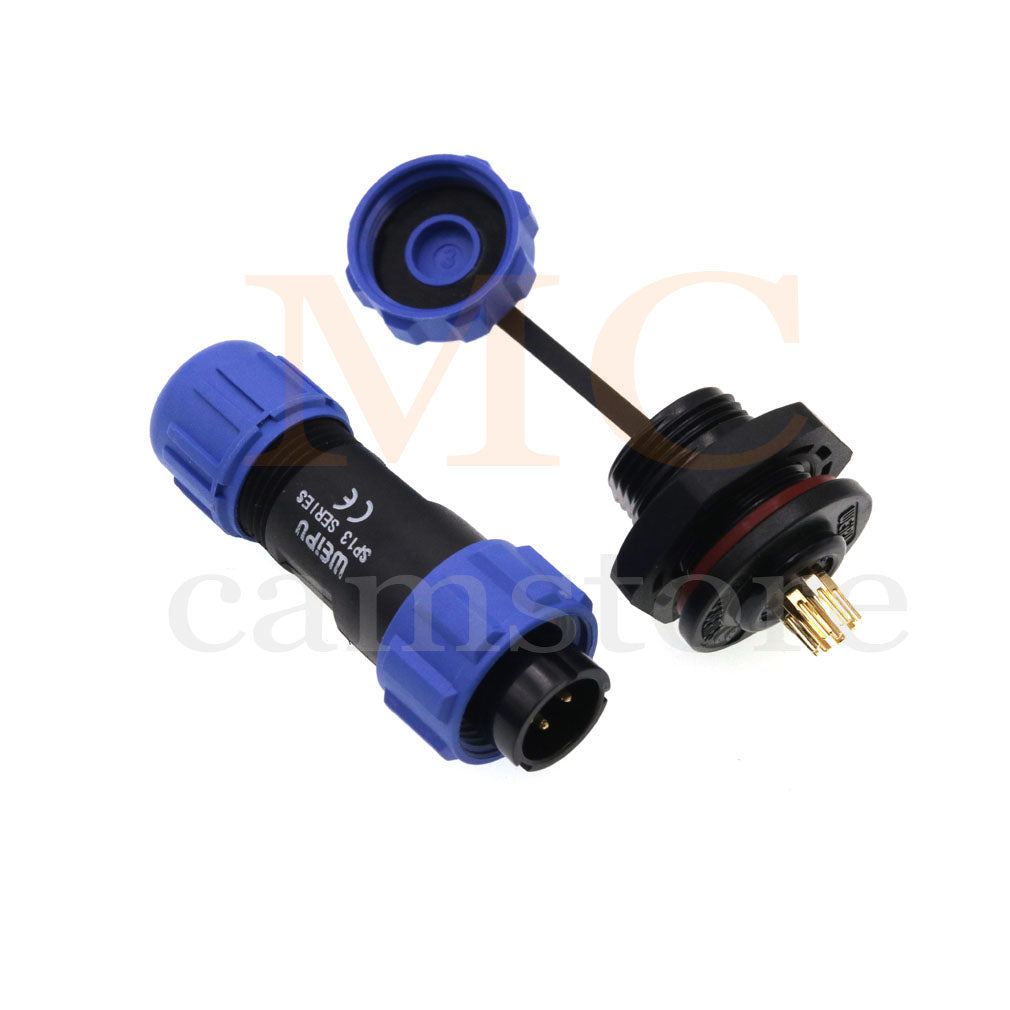

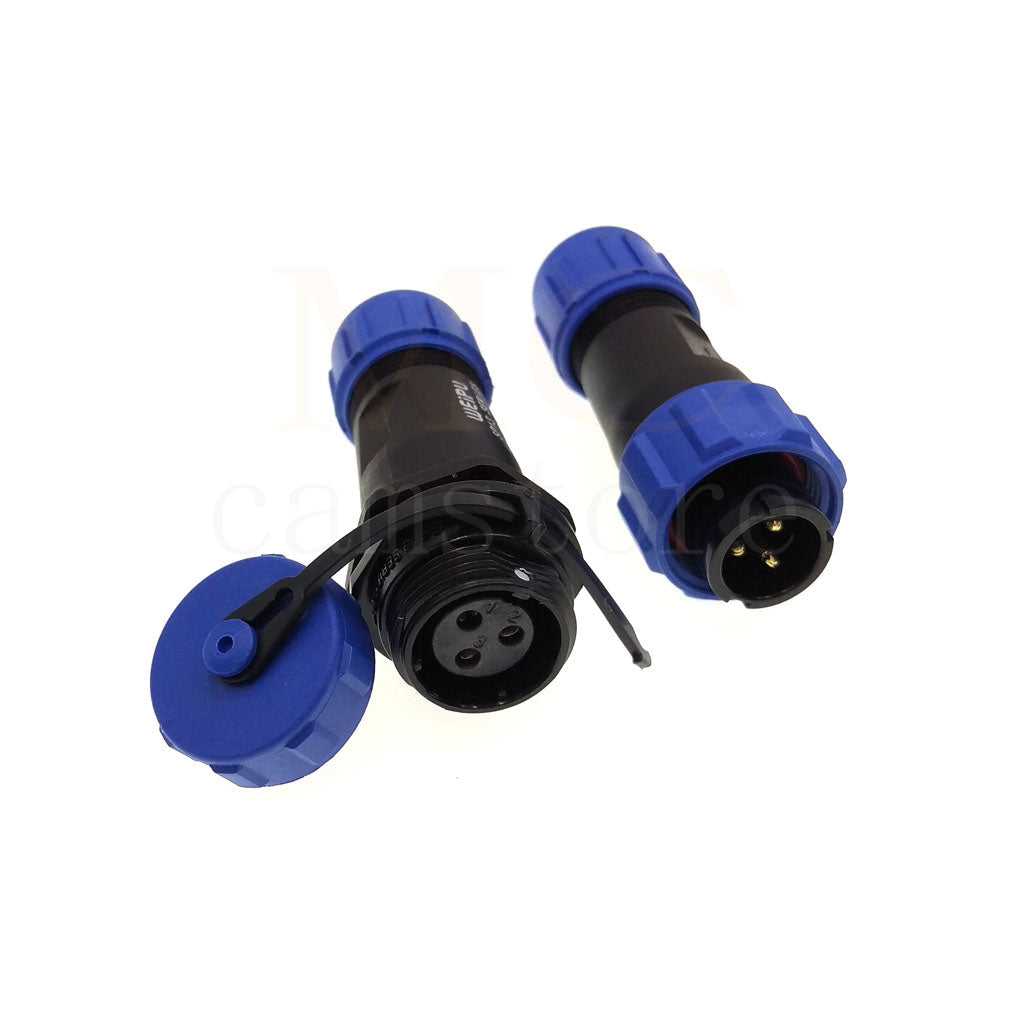

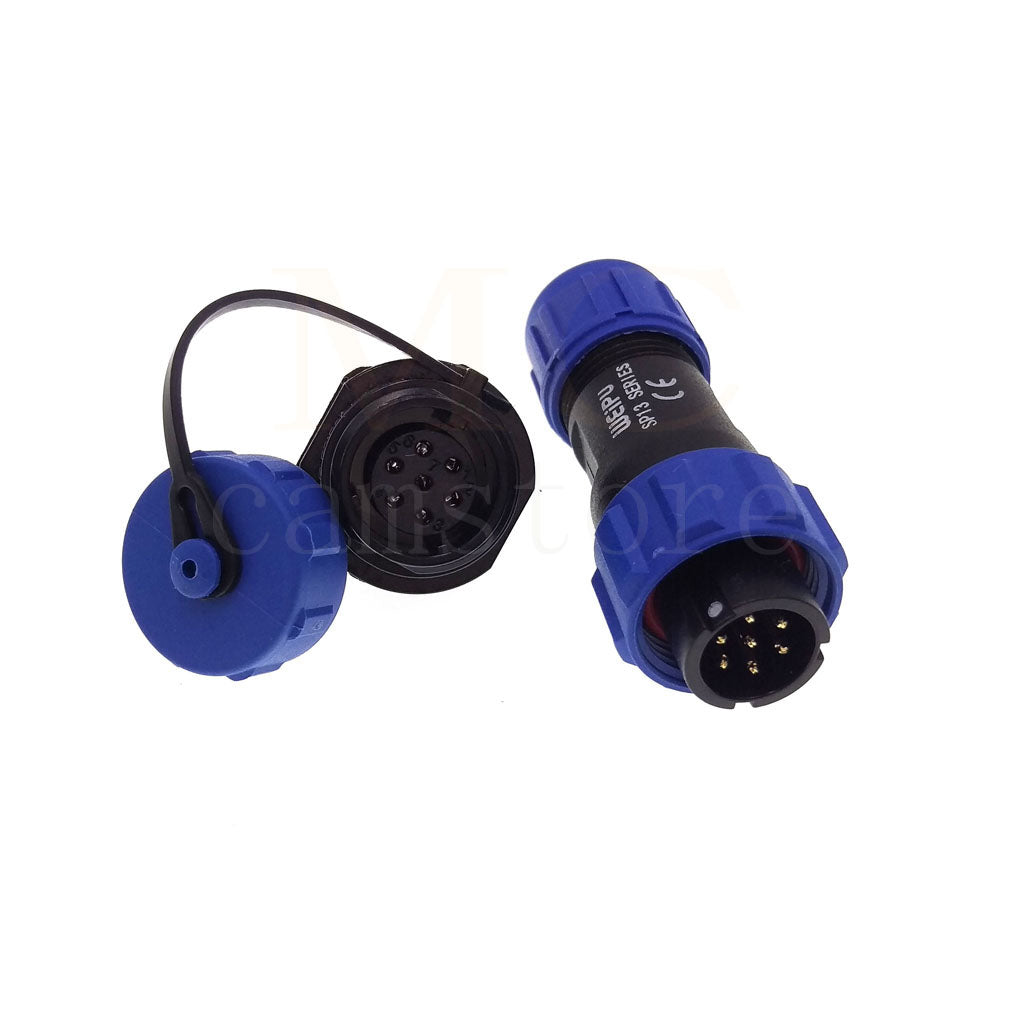

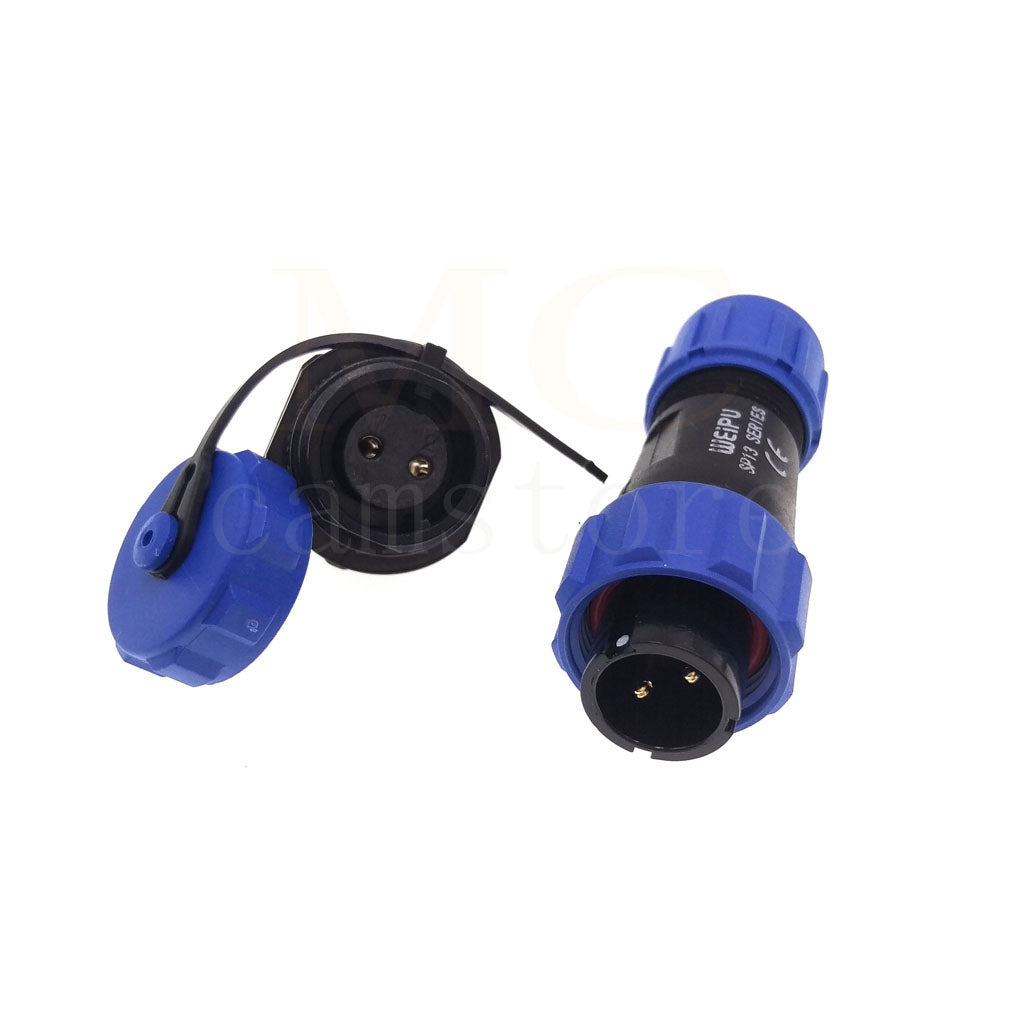

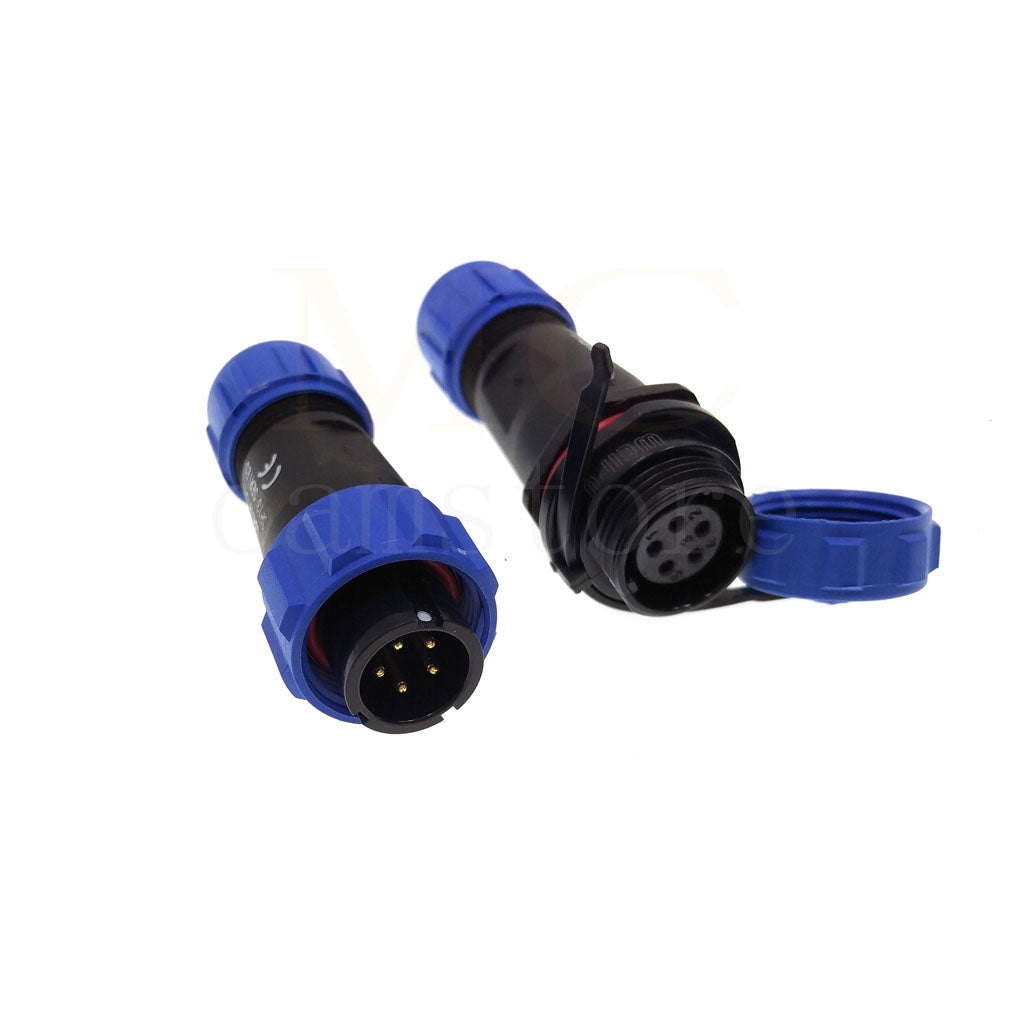

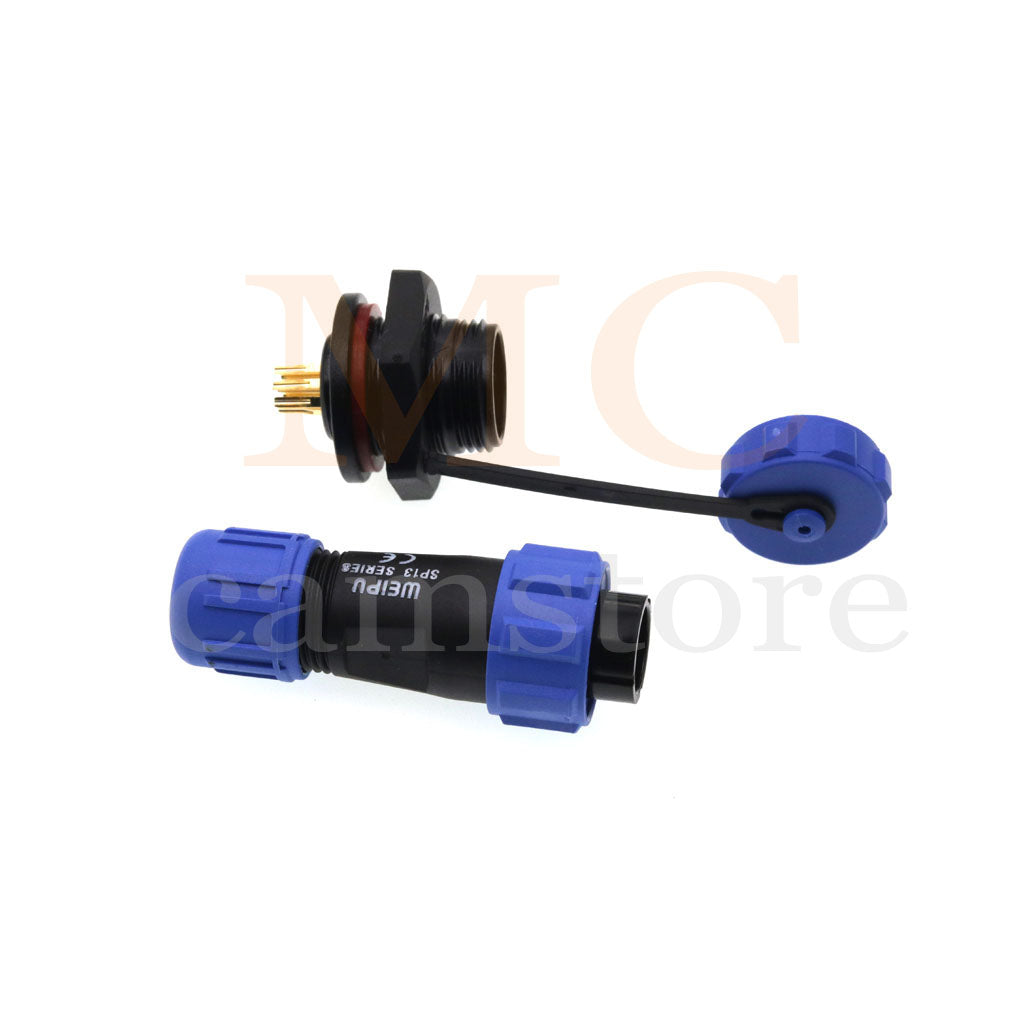

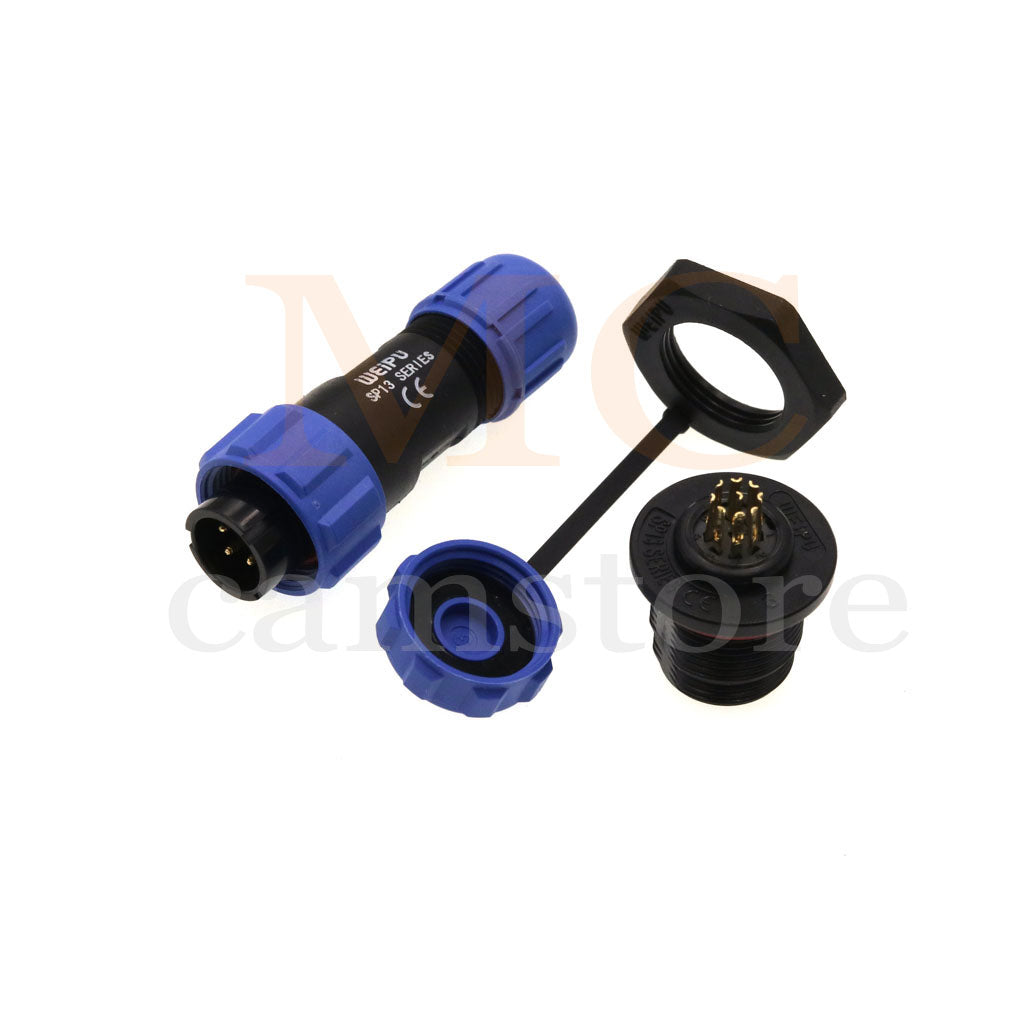

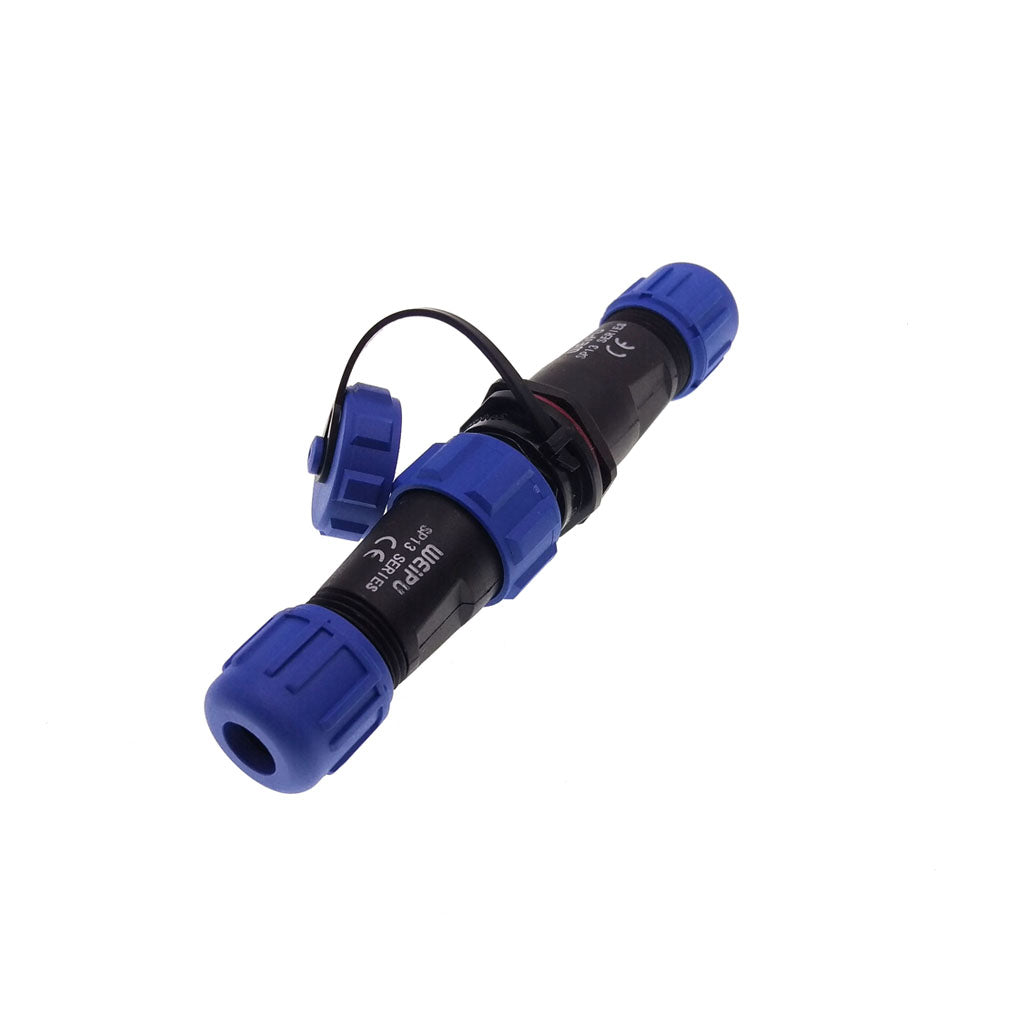

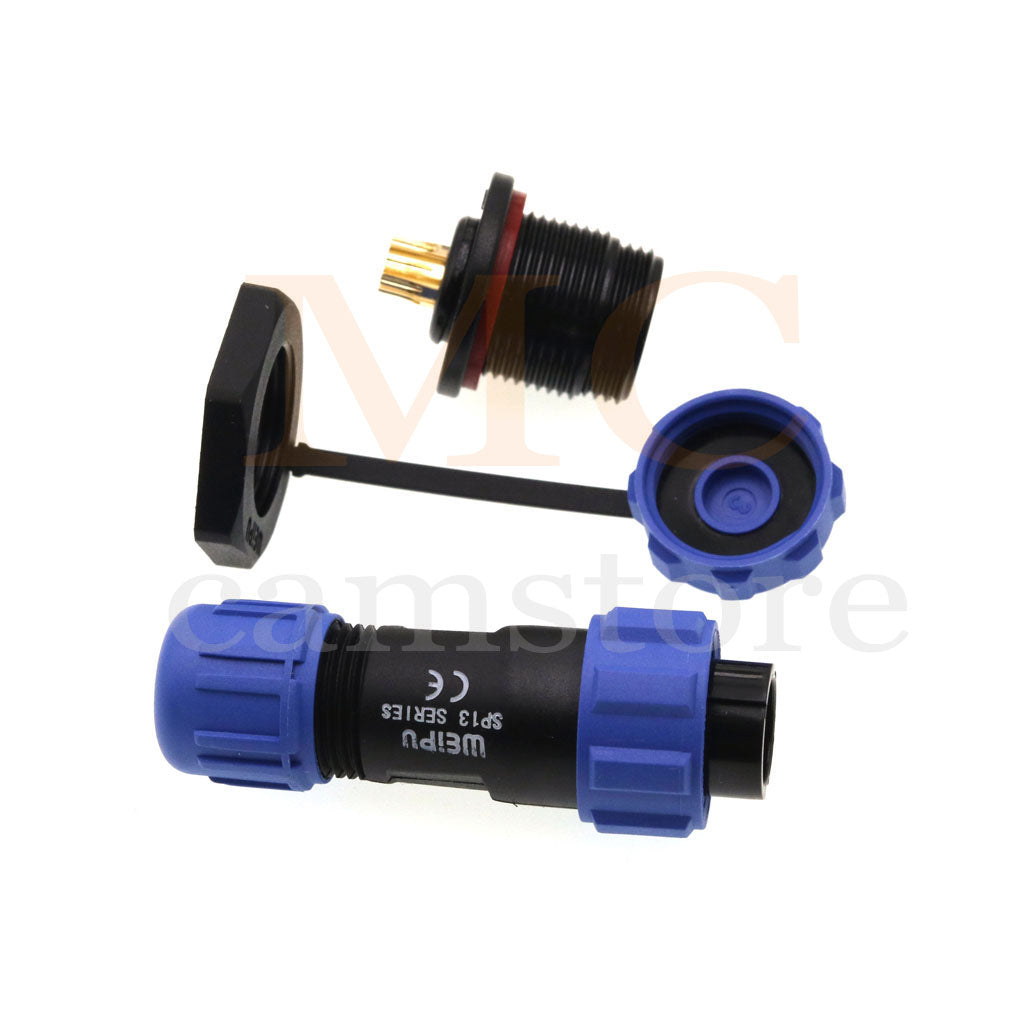

WEIPU SP13 2 3 4 5 6 7 9 pin Waterproof IP68 Cable to Cable Aviation Plug Socket

Male plug female socket, Female plug male available.

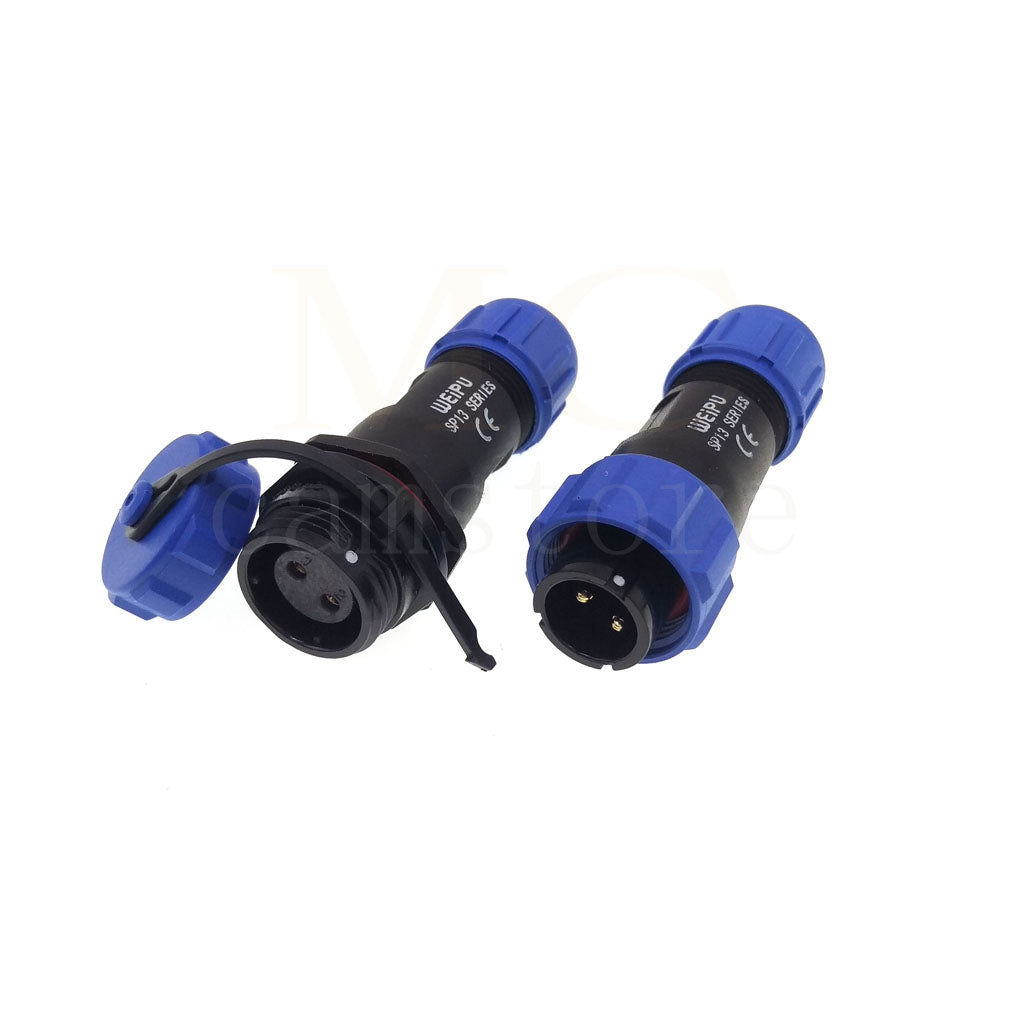

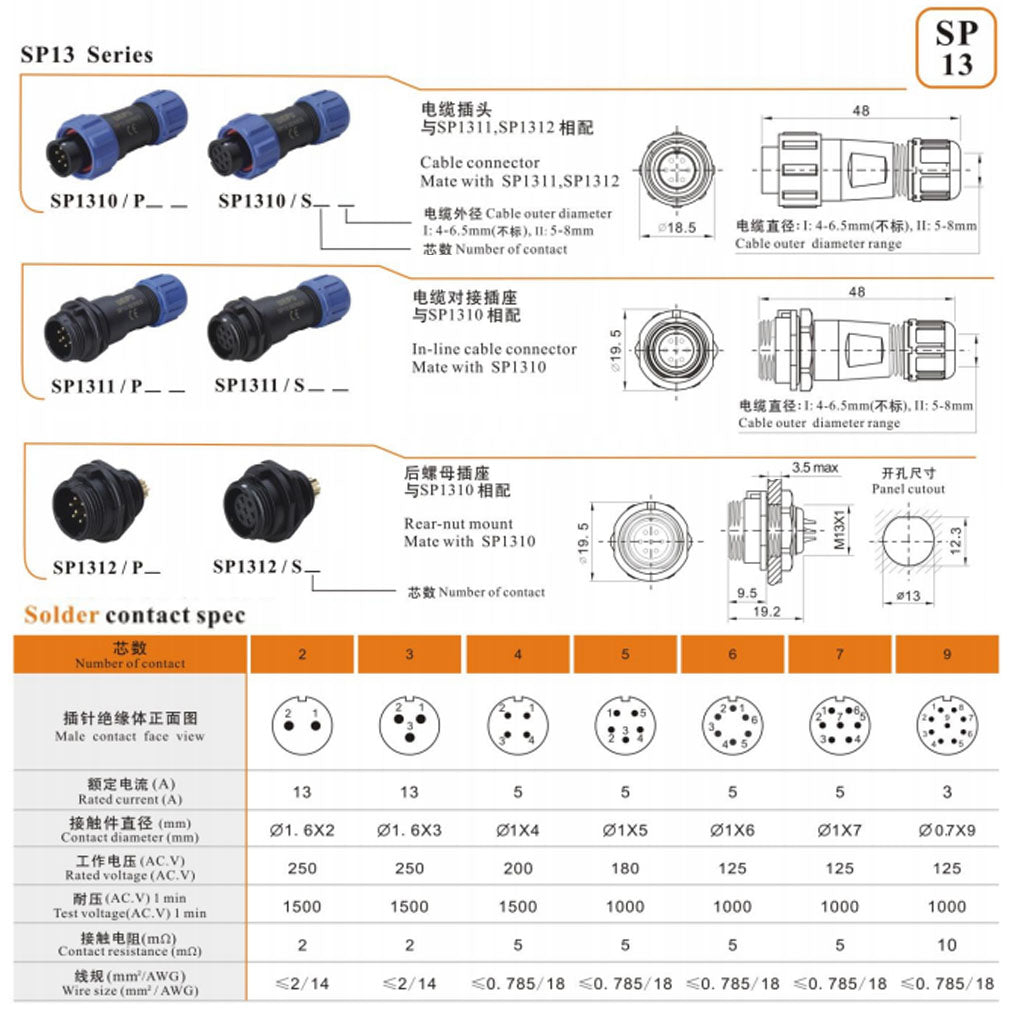

2pin, 3pin:
Rated Current (A): 13A
Contact diameter × number: Φ1.6x2 / Φ1.6x 3
Rated voltage (AC.V.): 250V
Withstanding Voltage (AC.V) 1 minute: 1500V
Contact resistance: 2mΩ
Wire specification: <2m㎡/14AWG

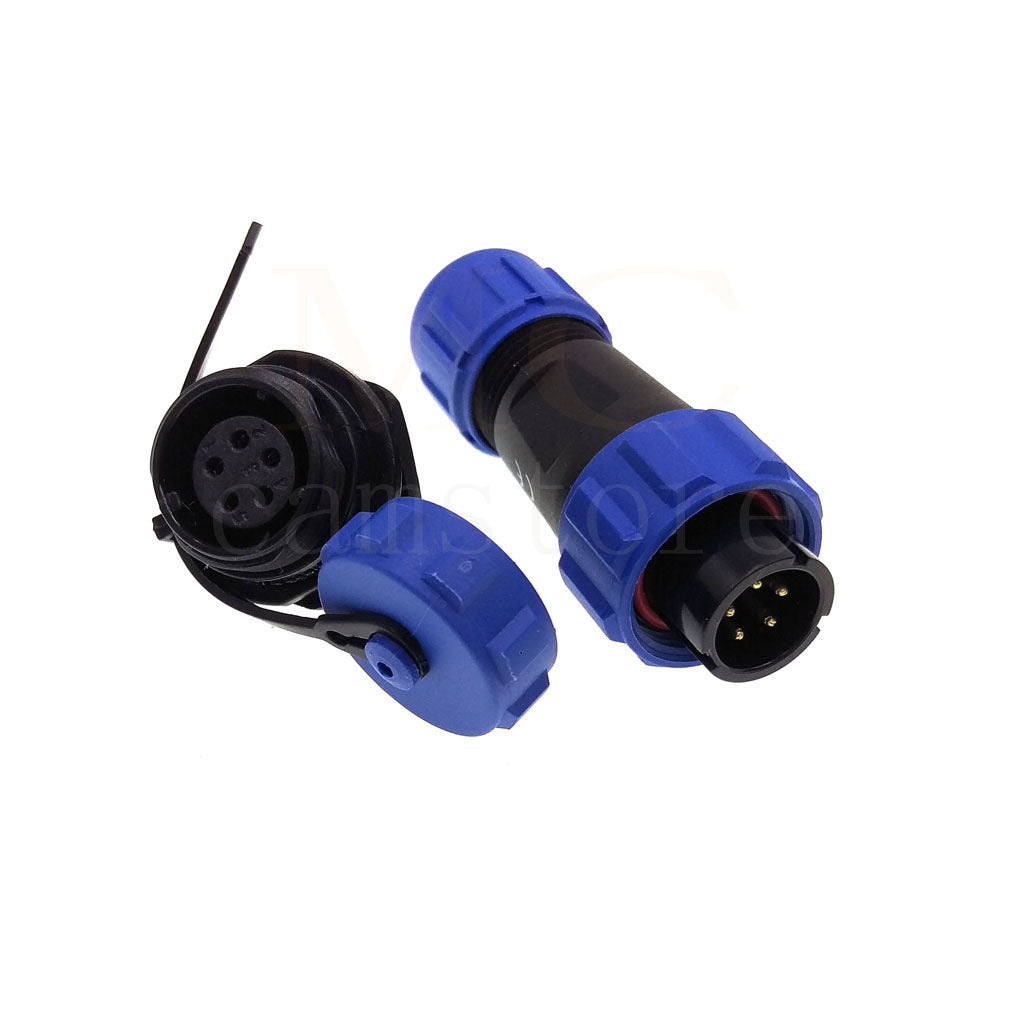

4pin, 5pin, 6pin, 7pin:
Rated Current (A): 5A
Contact diameter × number: Φ1x4, Φ1x5, Φ1x6, Φ1x7
Rated voltage (AC.V.): 4pin-200V，5pin-180V，6pin-125V，7pin-125V
Withstanding Voltage (AC.V) 1 minute: 4pin-1500V，5 6 7pin-1000V
Contact resistance: 5mΩ
Wire specification: <0.785m㎡/18AWG

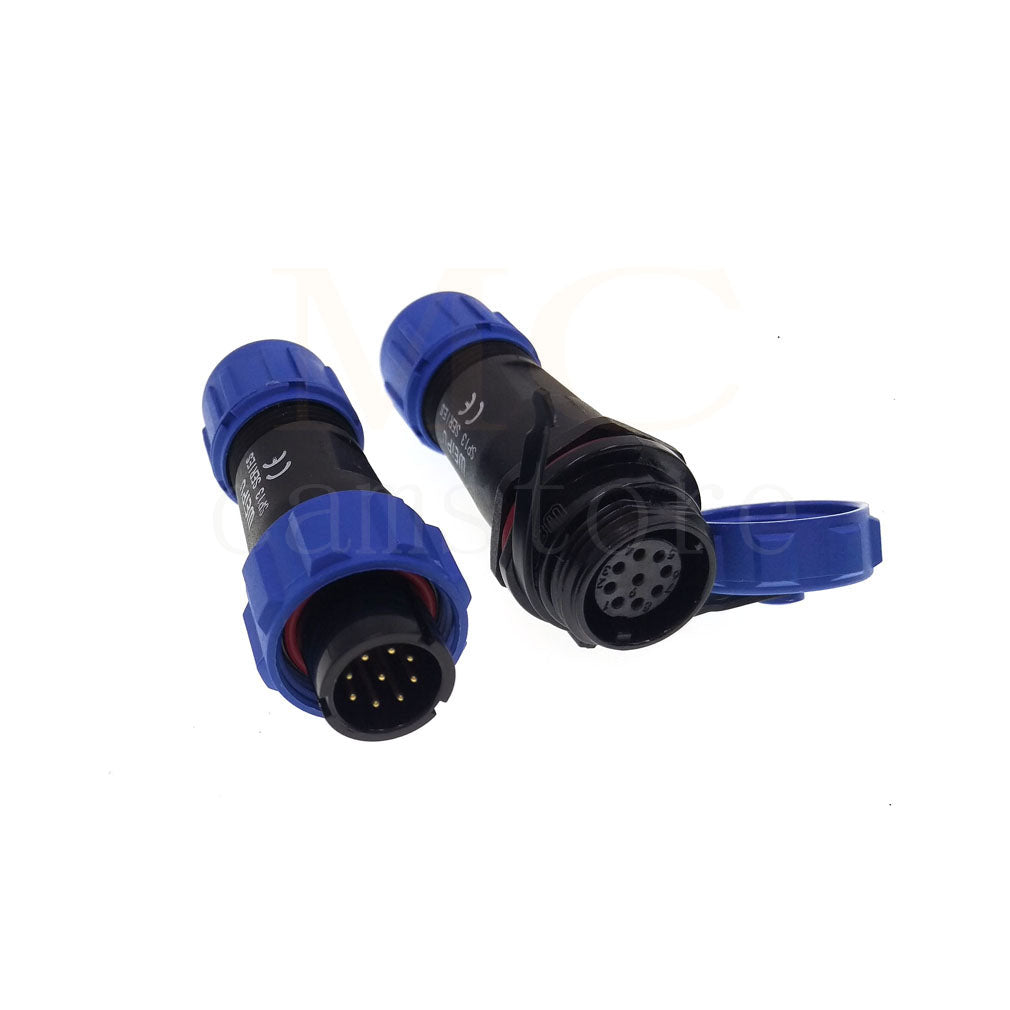

9pin:
Rated Current (A): 3A
Contact diameter × number: Φ0.7x 9
Rated voltage (AC.V.): 125V
Withstanding Voltage (AC.V) 1 minute: 1000V
Contact resistance: 10mΩ
Wire specification: <0.785m㎡/18AWG

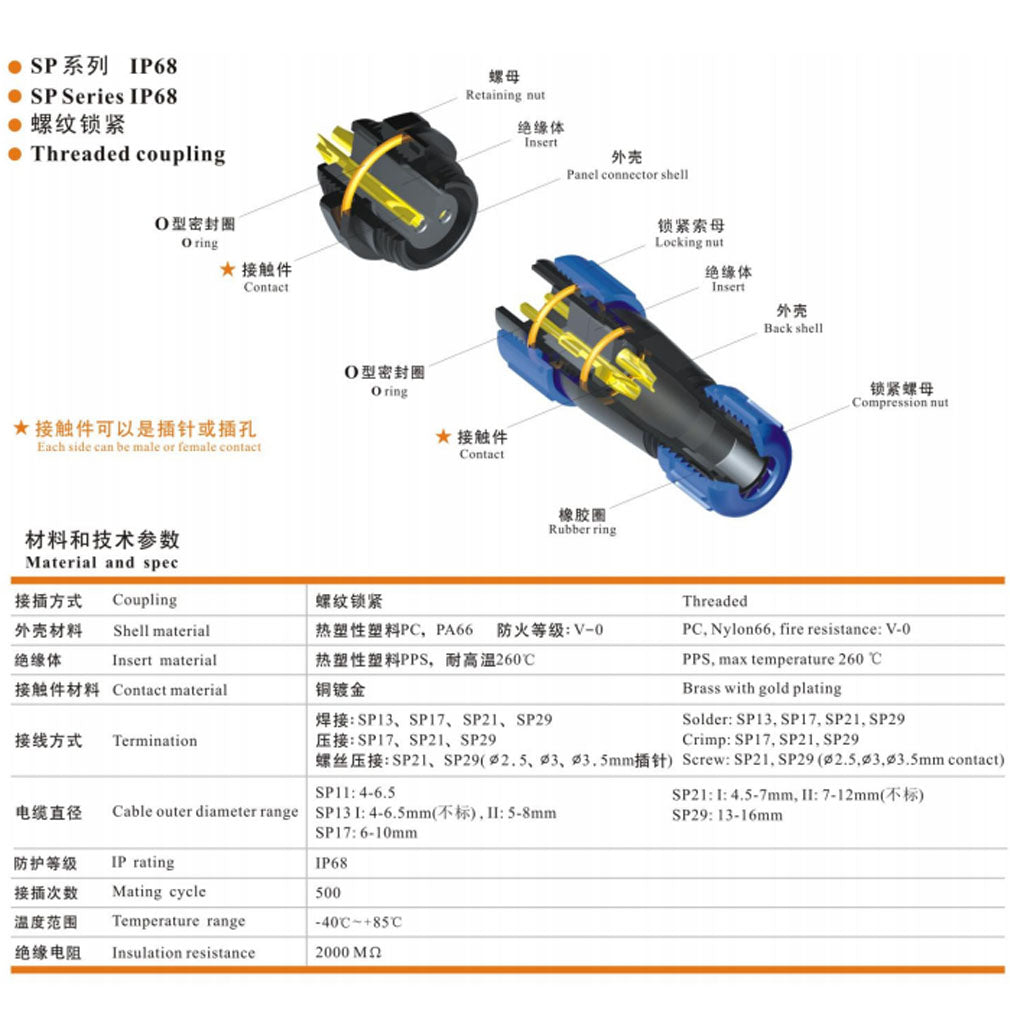

Material: Plastic
IP Rating: IP68
Shell: Nylon66
Fire Resistance: V-0
Contact Material: Brass with Gold Plating
Termination: Solder
Cable Outer Diameter Range:  5-8mm
Mating Cycle: >500
Temperature Range: -25~+85℃
Insulation Resistance : 2000mΩ

What's in the package: (as to your choose)

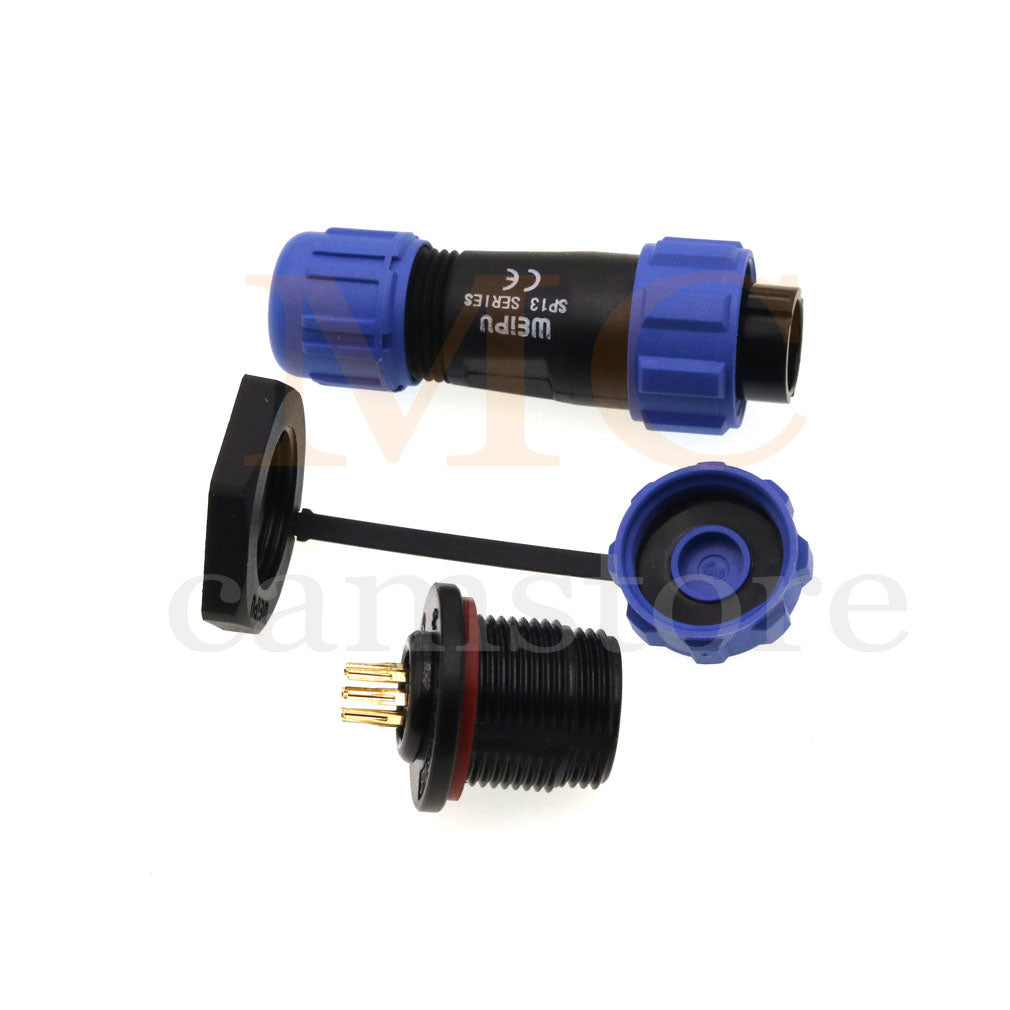

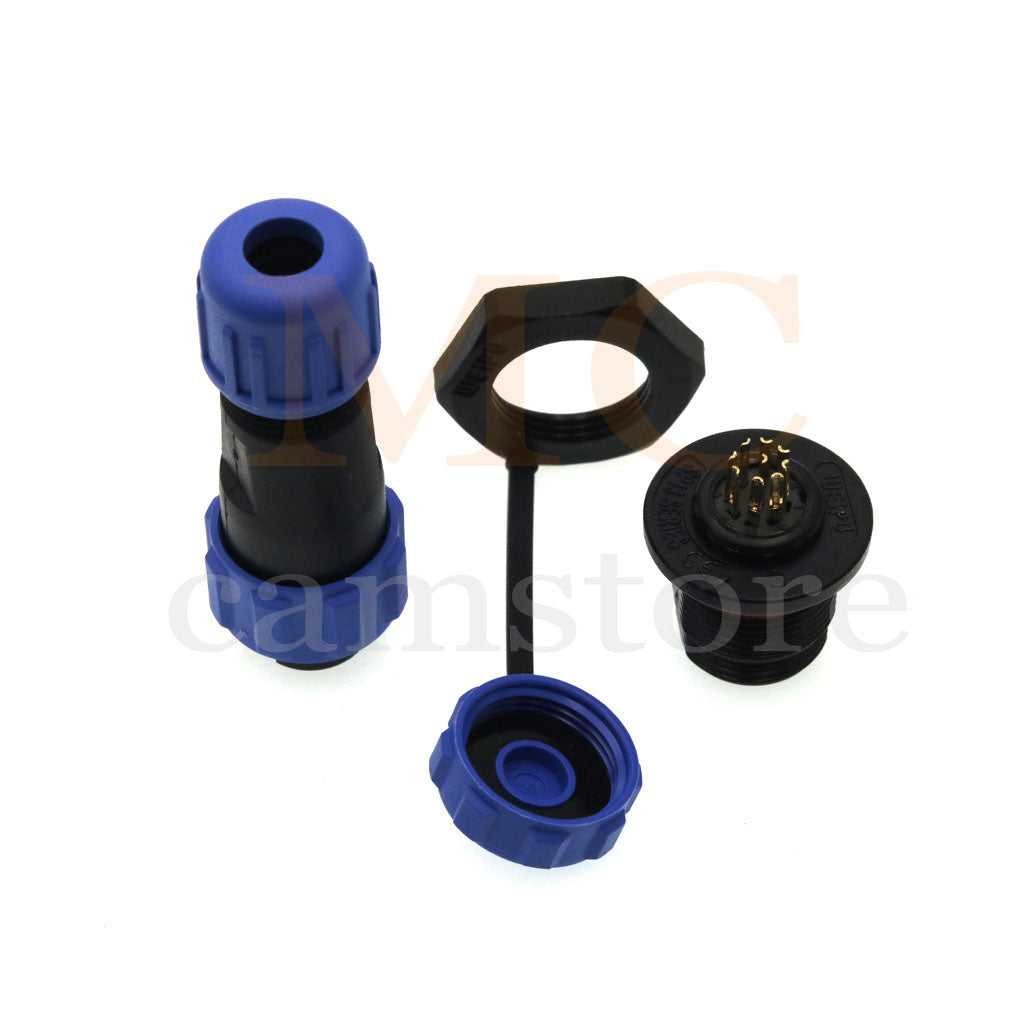

 1  plug + 1 socket with cap
