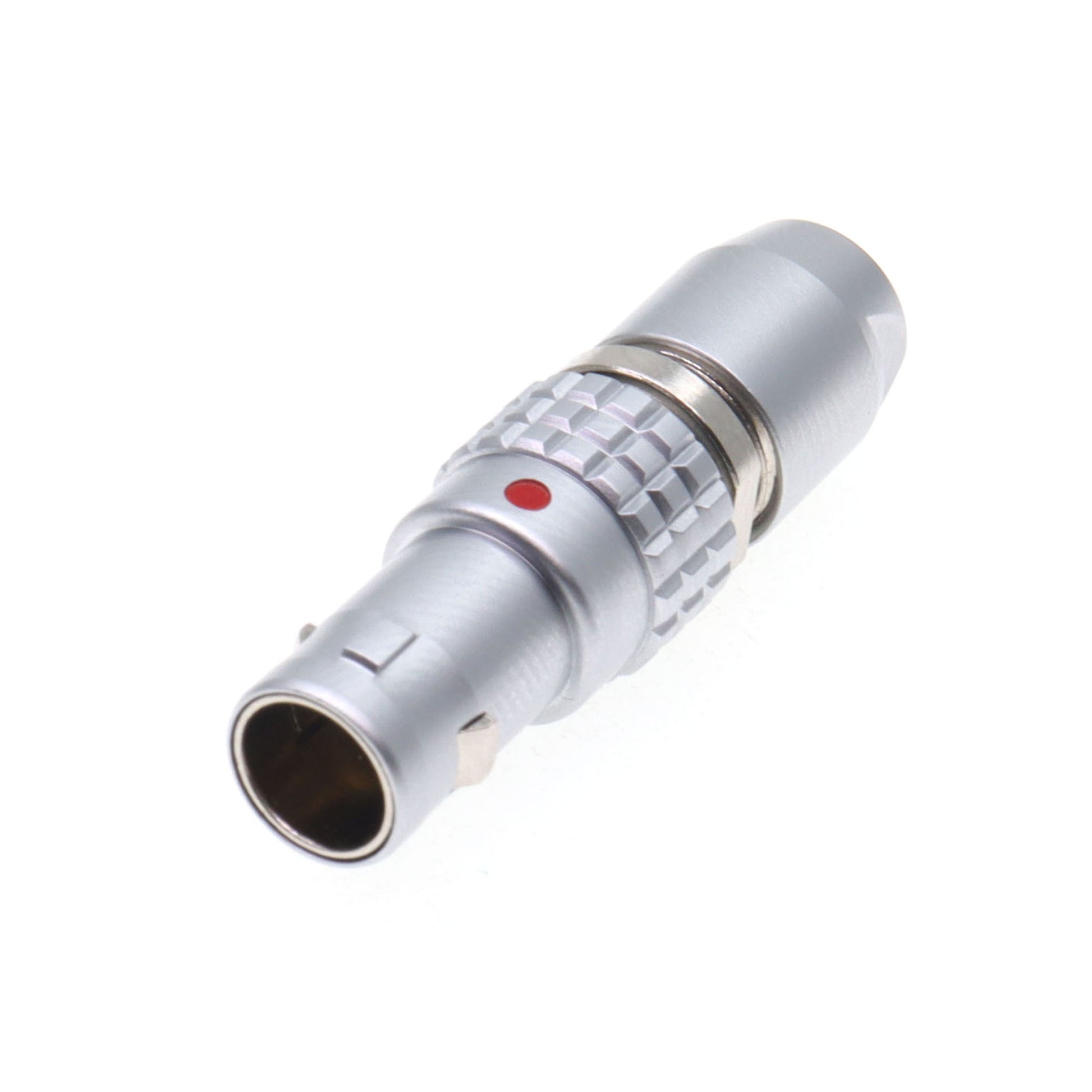

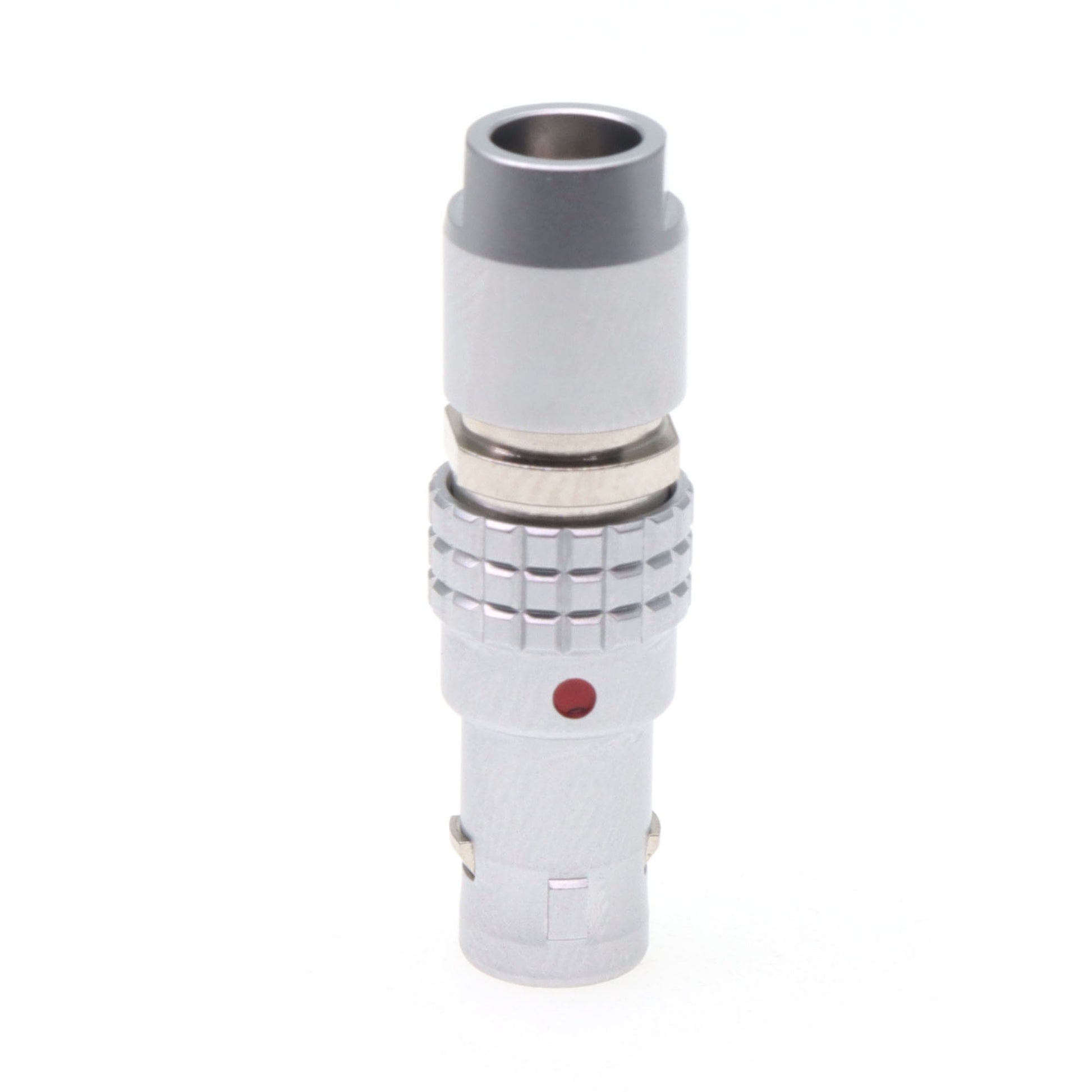

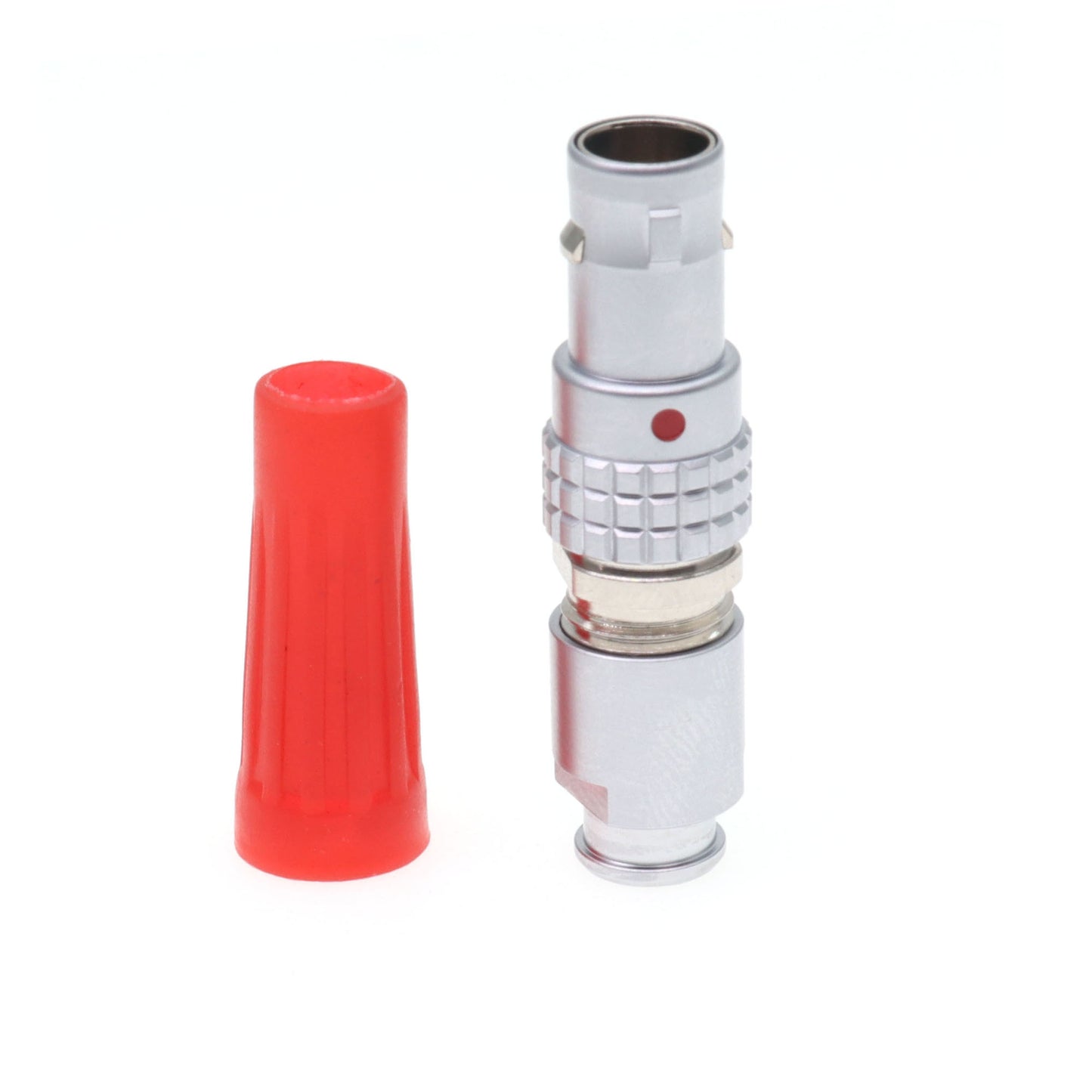

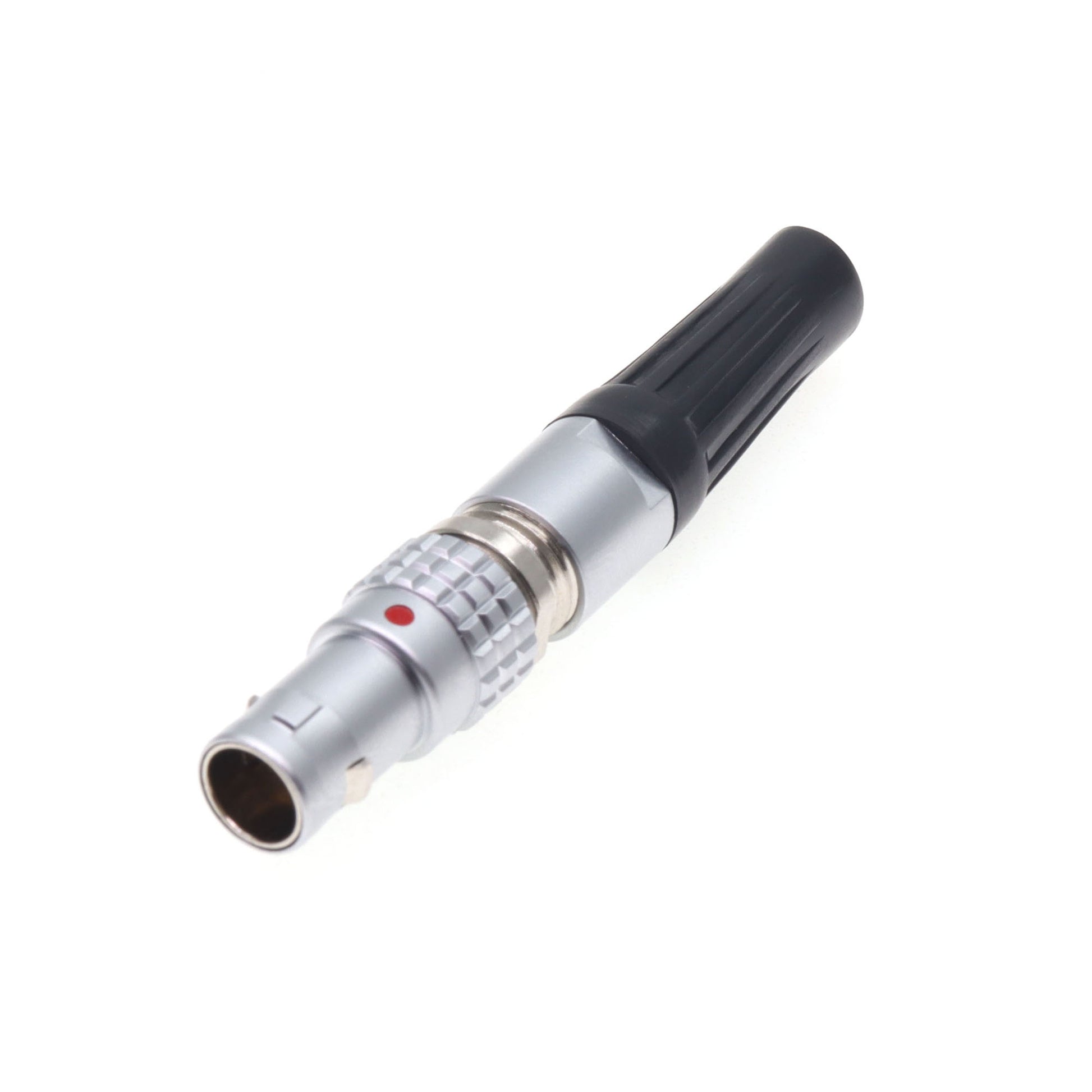

M09 JGG.0B.302 Low Profile 0B 2 3 4 5 6 7 9 12 Pin Aviation Connector, Push-pull Self-lock Male Plug

M09 JGG.0B.302 Low Profile 0B 2 3 4 5 6 7 9 12 Pin Aviation Connector, Push-pull Self-lock Male Plug

$8.50 USD
$0.00 USD $8.50 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Color
Pin option
  • 0B JGG 2-12 Pin Industrial Aviation Connector. Termination type: Solder;
  • 2Pin:
  •      Rated current: 6.3A; Working voltage: 500V; Test voltage: 1000V. Pin diameter: Φ0.9mm×2; Pin resistance: 6mΩ
         3Pin:
         Rated current: 6.3A; Working voltage:400V; Test voltage: 875V. Pin diameter: Φ0.9mm×3; Pin resistance: 6mΩ
         4Pin:
         Rated current: 3.8A; Working voltage:300V; Test voltage: 875V. Pin diameter: Φ0.7mm×4; Pin resistance: 7.5mΩ
         5Pin:
         Rated current: 3.8A; Working voltage: 300V; Test voltage:750V. Pin diameter: Φ0.7mm×5; Pin resistance: 7.5mΩ
         6Pin:
         Rated current: 1.8A; Working voltage:300V; Test voltage: 750V. Pin diameter: Φ0.5mm×6; Pin resistance: 10mΩ
         7Pin:
         Rated current: 1.8A; Working voltage: 300V; Test voltage: 750V. Pin diameter: Φ0.5mm×7; Pin resistance: 10mΩ
         9Pin:
         Rated current: 1.8A; Working voltage: 200V; Test voltage: 600V. Pin diameter: Φ0.5mm×9; Pin resistance: 10mΩ
         12Pin:
         Rated current: 0.9A; Pin diameter: Φ0.35mm×12; Pin resistance: 30mΩ; Wire Size: ≤0.35mm²or 28AWG
  • Push-pull self-locking design enables quick plugging and unplugging for easy operation.
  • It is widely used in aerospace, aviation, ships, industry, medical equipment, cameras, communications, railways, new energy vehicles, drones, and other fields.

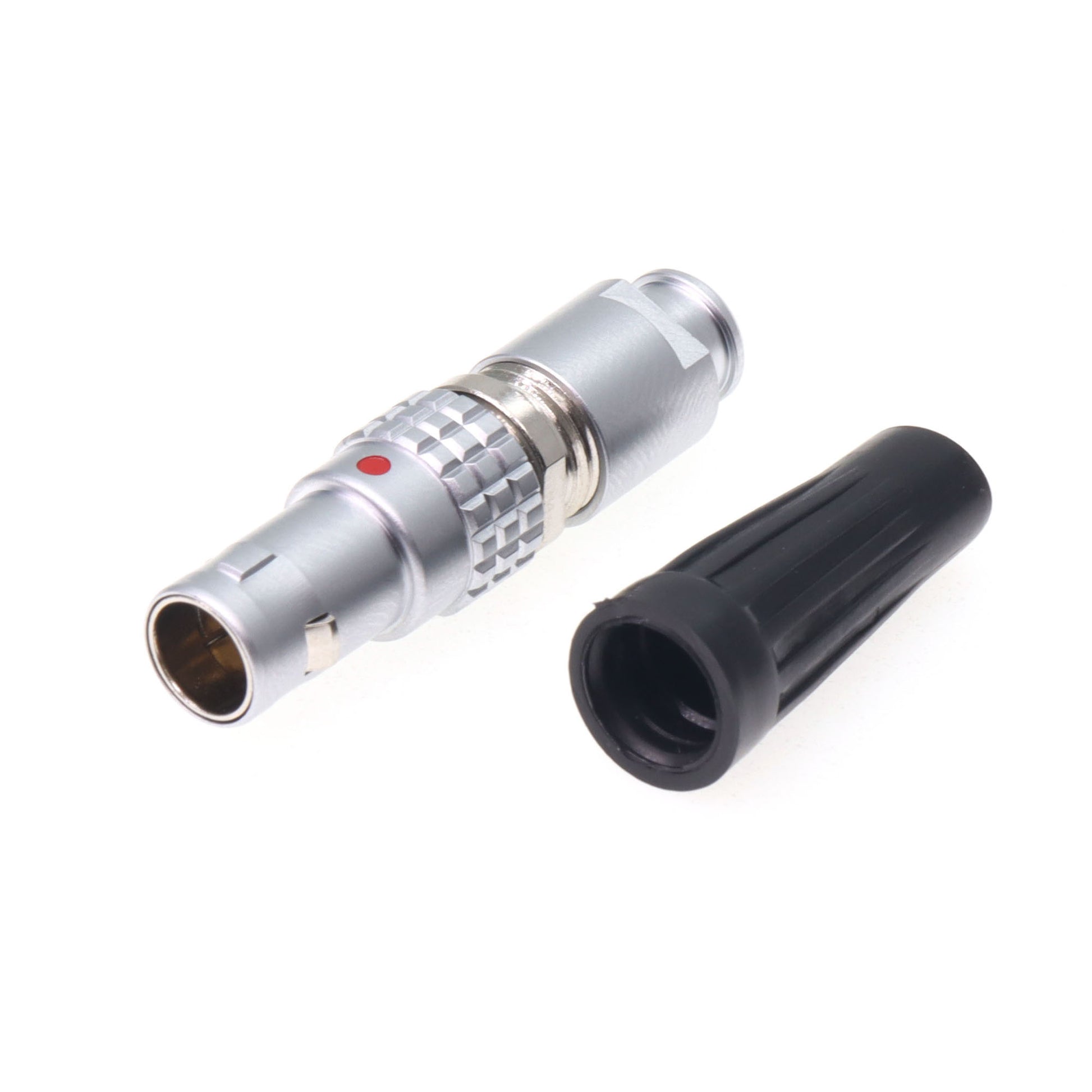

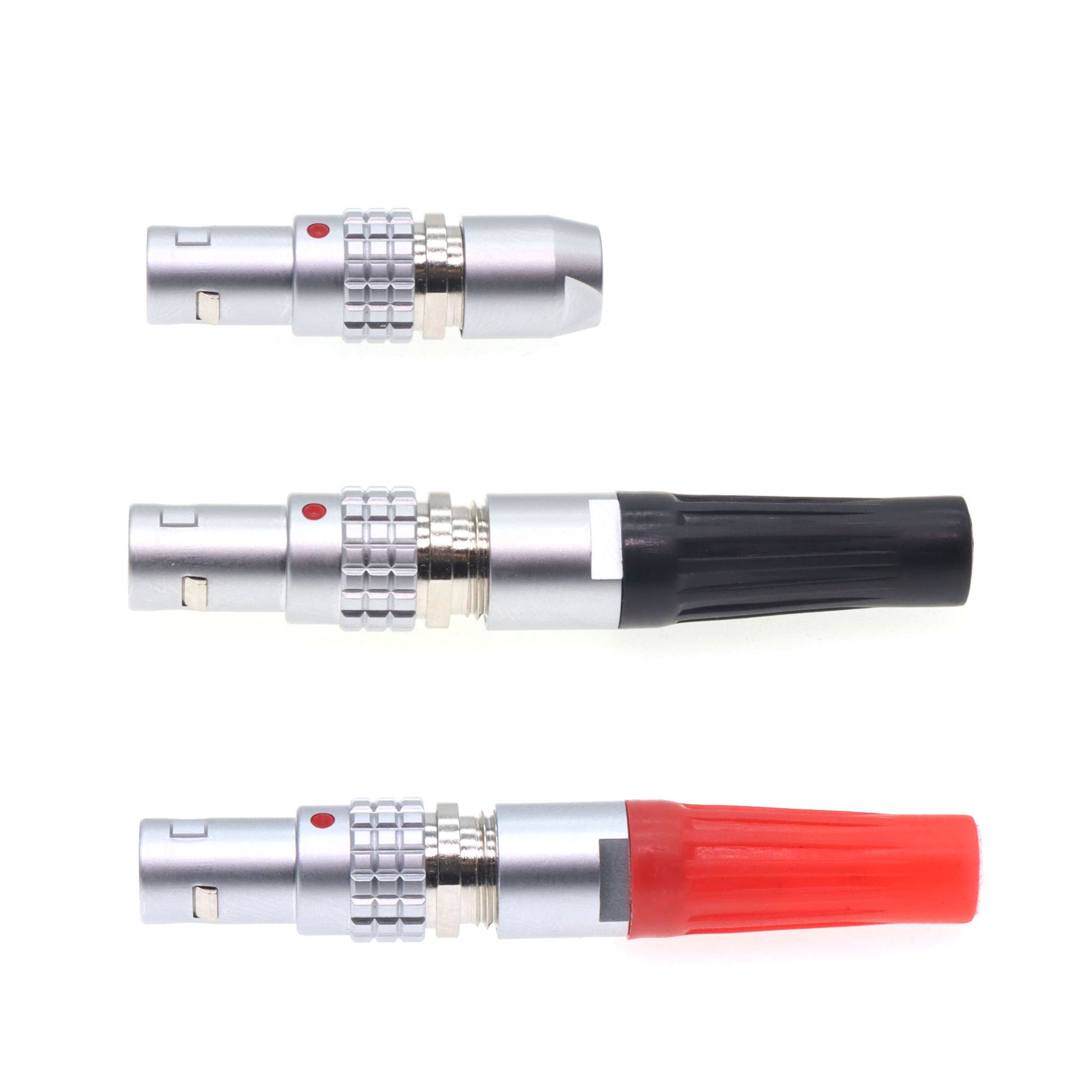

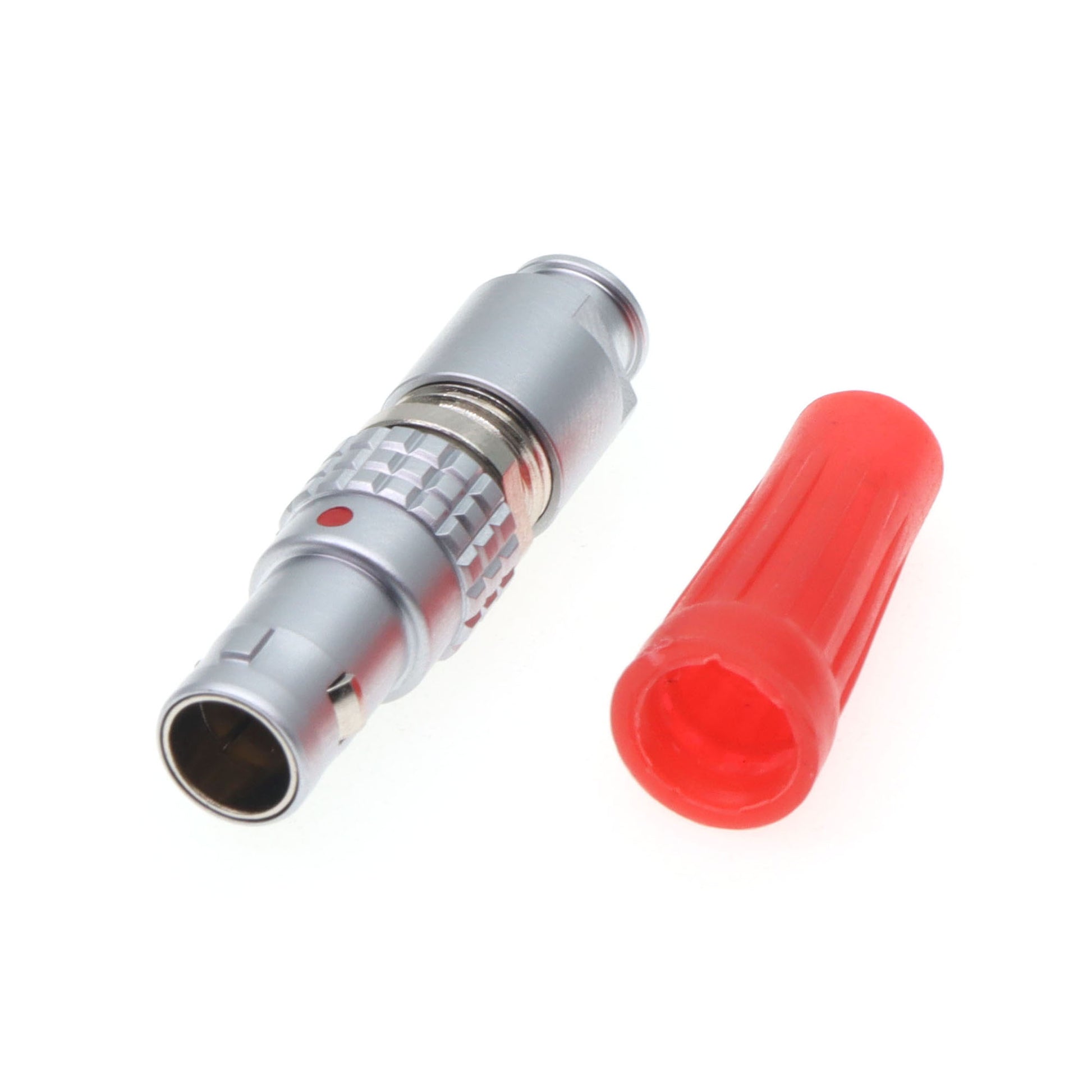

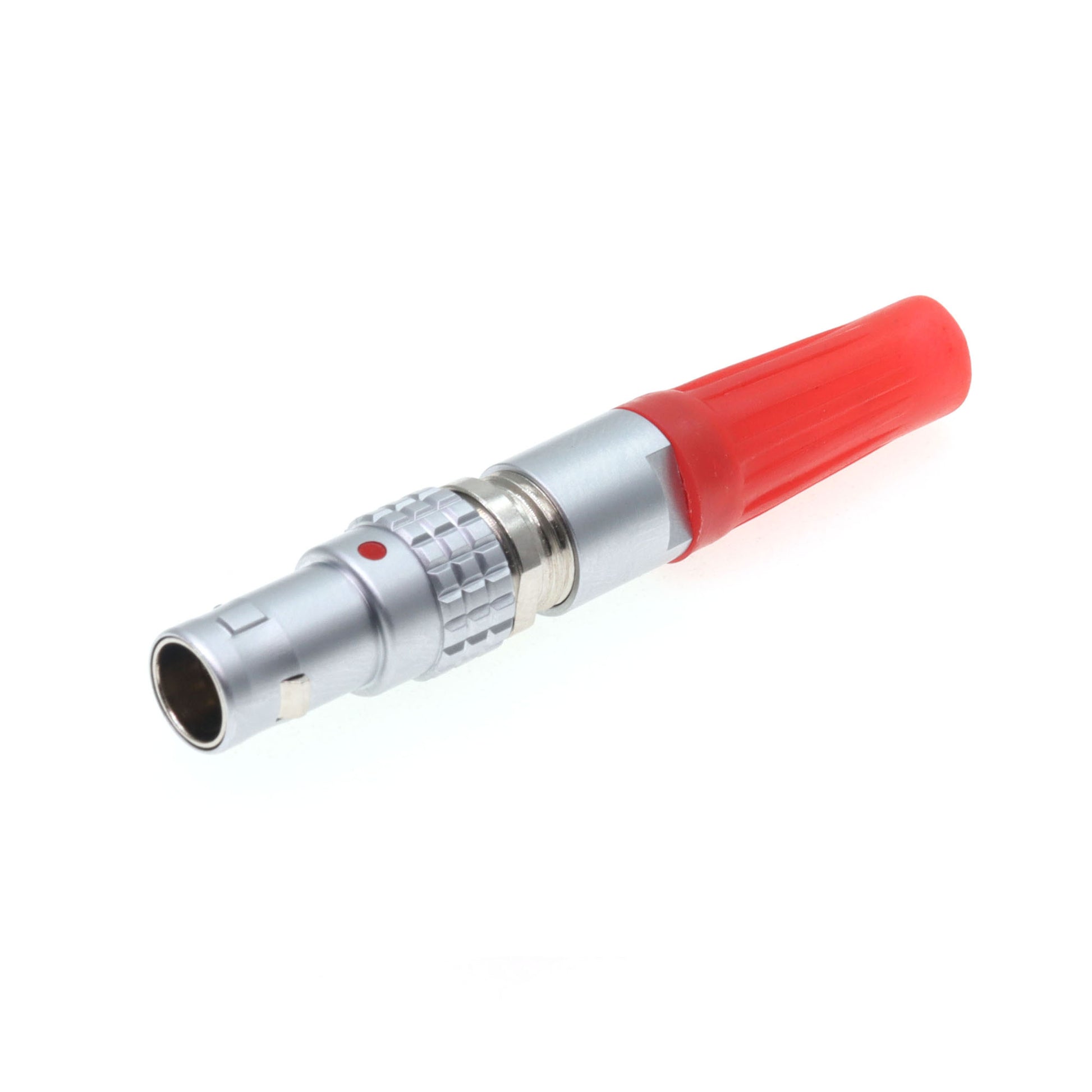

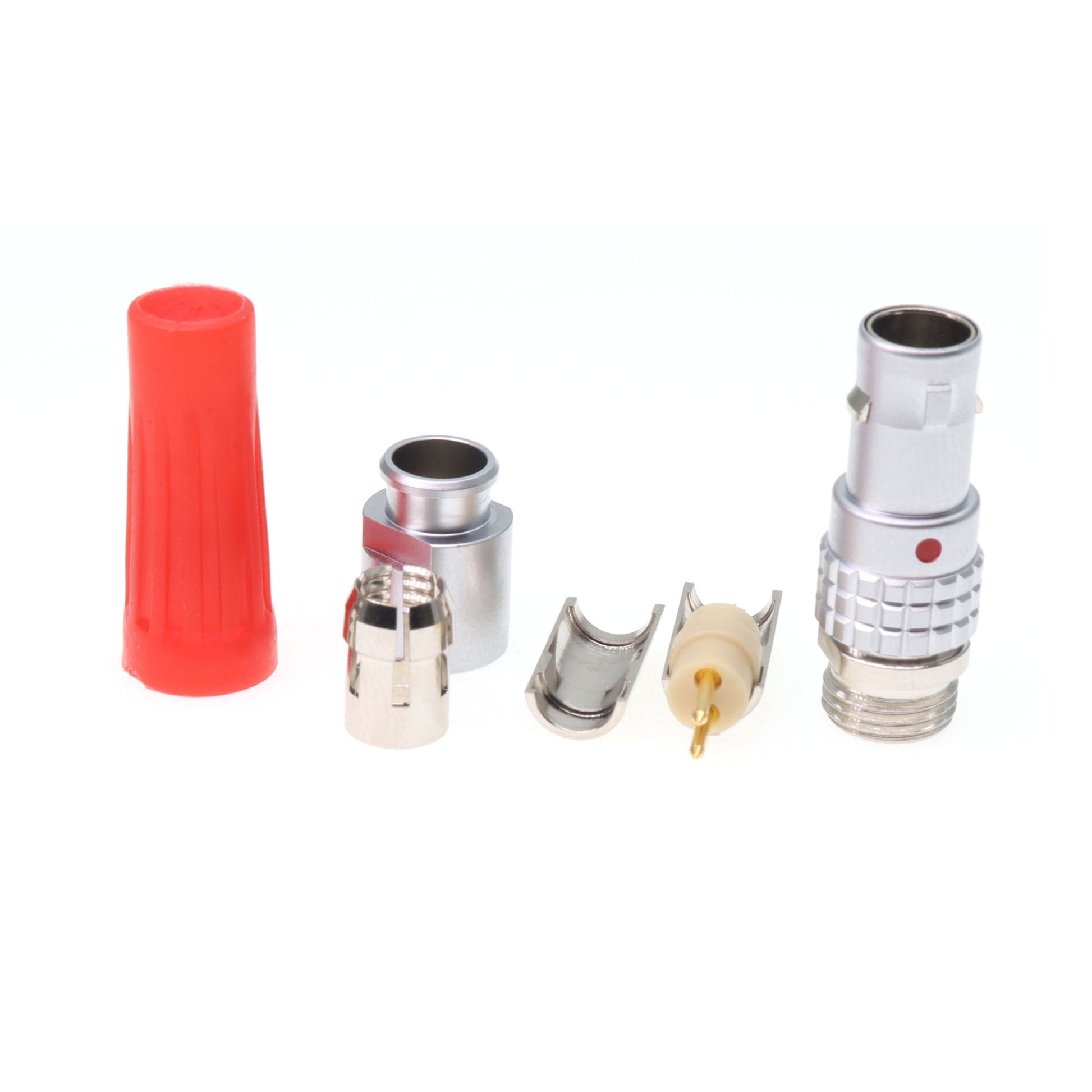

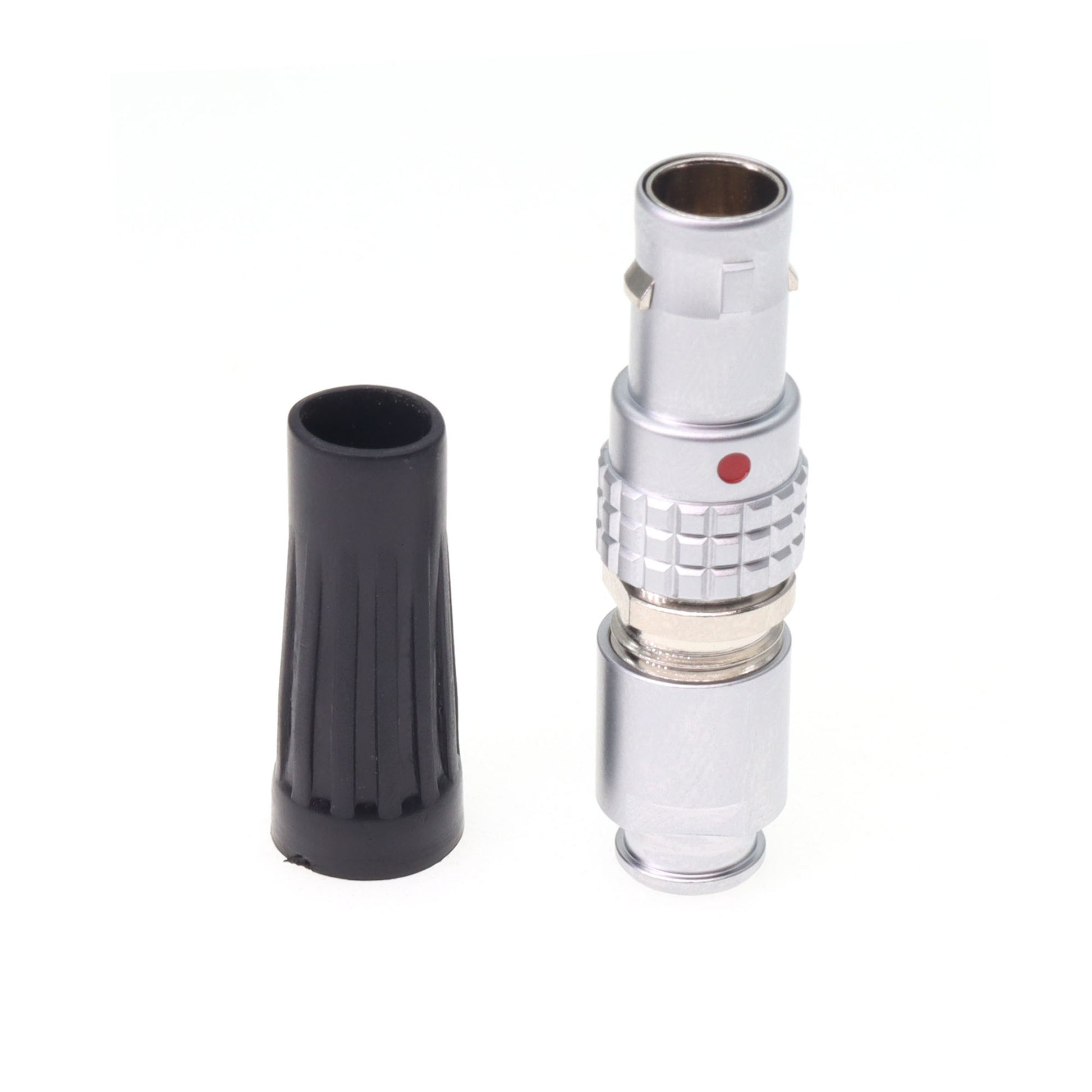

  • Red and Black bend relief are available. Please message us if you require other colors

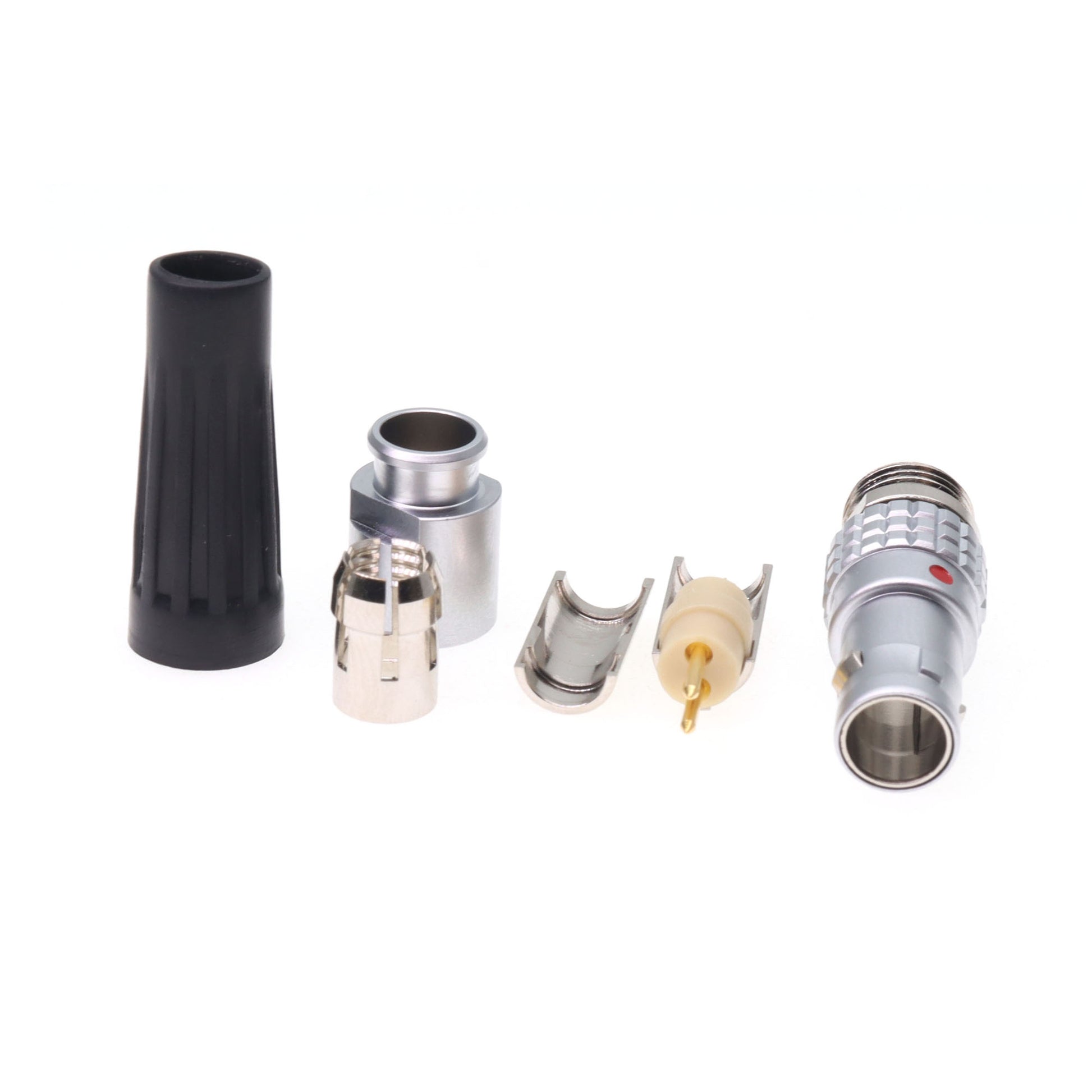

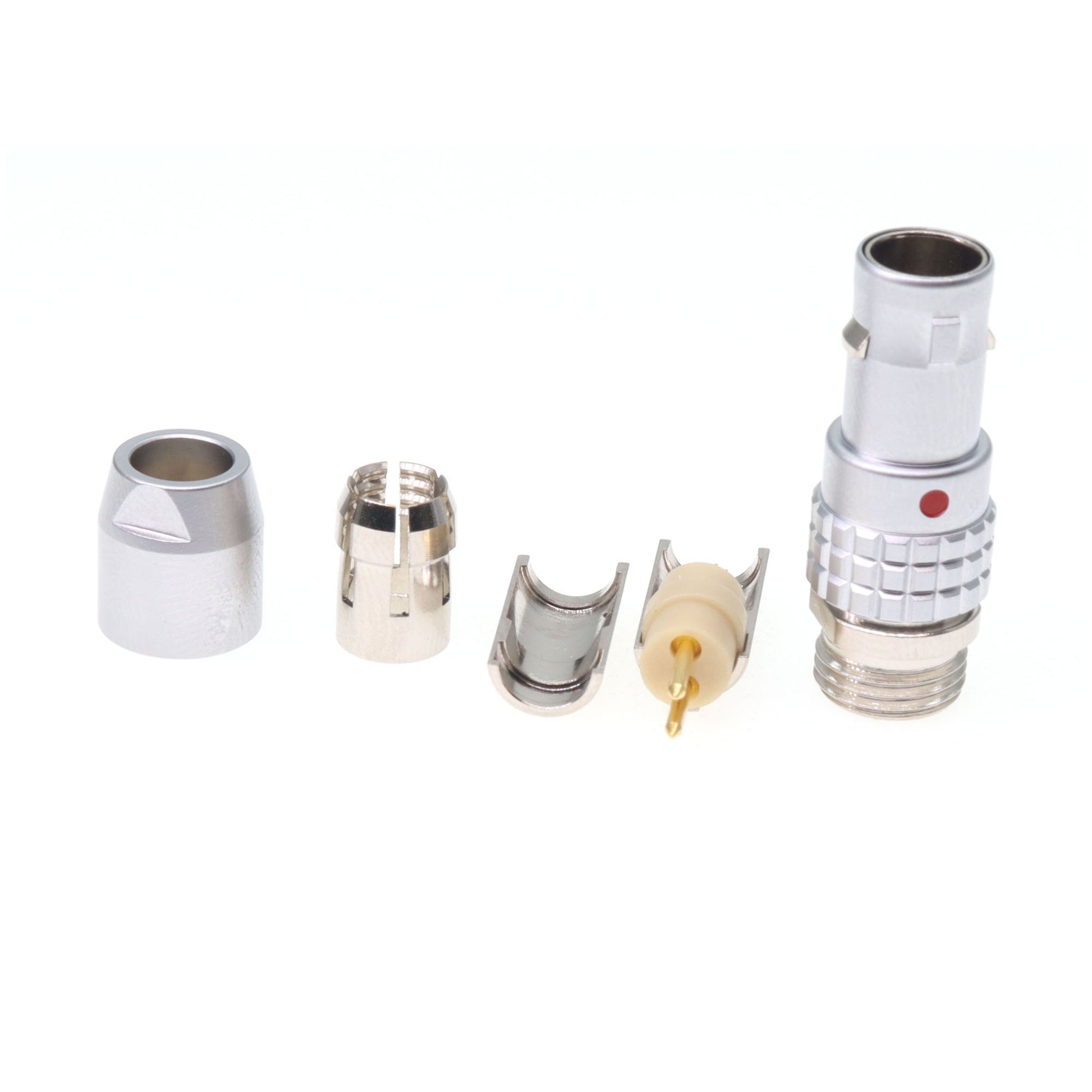

  • What's in the package:1 × Plug (Boots color Based on your choice, cable size is 5mm default, 3mm and 4mm please message us to confirm before order)
